Track Set, for Sliding Wardrobe Doors, PS48.1

Product Details

Will this track set suit my cabinet or wardrobe door?

Yes. PS48.1 is designed for overlay cabinet and wardrobe doors with a door weight of up to 80 kg. It is suitable for door widths of 760 mm and above, provided your door thickness is within 18 to 28 mm.

What size are the tracks and does the 3050 mm length cover my application?

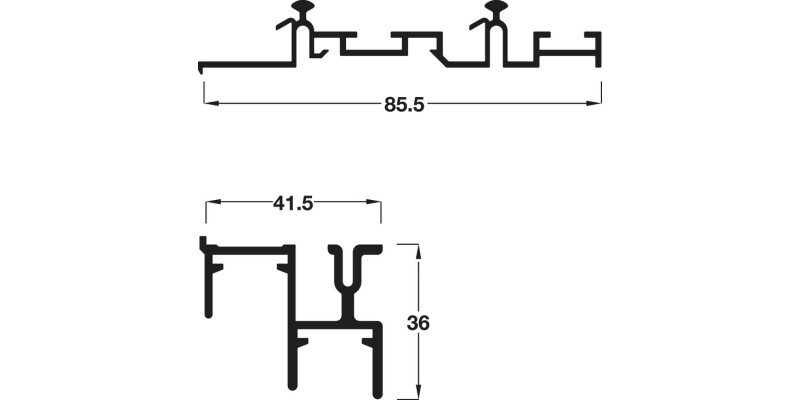

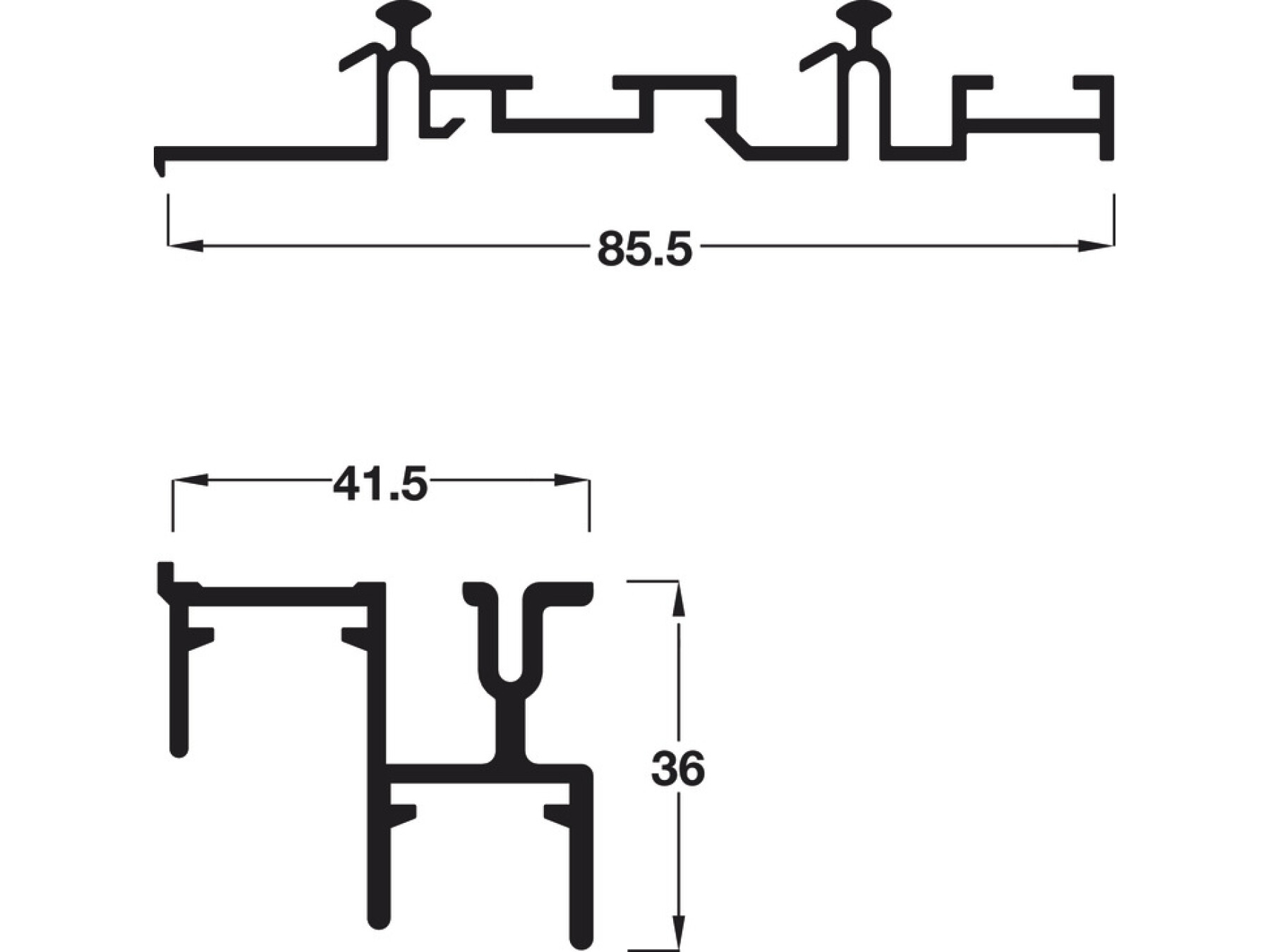

Each track is 3050 mm long, with a dimension of 41.5 x 36 mm. If your opening requires a different track length or you are planning multiple-door setups, check your cabinet measurements before ordering so the tracks will align correctly.

How are the top and bottom tracks installed?

The tracks are installed using screw fixing. Make sure the fixing points match your door frame and keep the tracks level to support smooth sliding and proper alignment during use.

Does this set include soft closing parts?

No. This order reference includes the top and bottom tracks only. Fitting sets and soft closing sets must be ordered separately, so if you want quieter operation you will need to add the compatible components.

Is the satin anodised finish suitable for everyday use?

Yes. The satin anodised aluminium finish is made for furniture applications where the gear should look neat and withstand regular use. Aluminium tracks also help provide stable running surfaces for sliding systems.

What door weight and thickness limits should I follow?

For best results, keep the door within the system limits of up to 80 kg and a door thickness of 18 to 28 mm. Staying within these ranges helps maintain reliable movement and long term performance.
