Ball Bearing Drawer Runners, with Push-to-Open Function, Full Extension, Load Ca (Part No: 422.02.067) is a... Read More

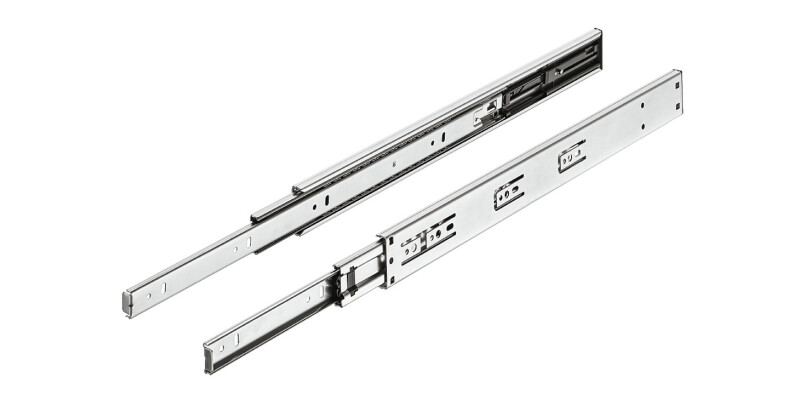

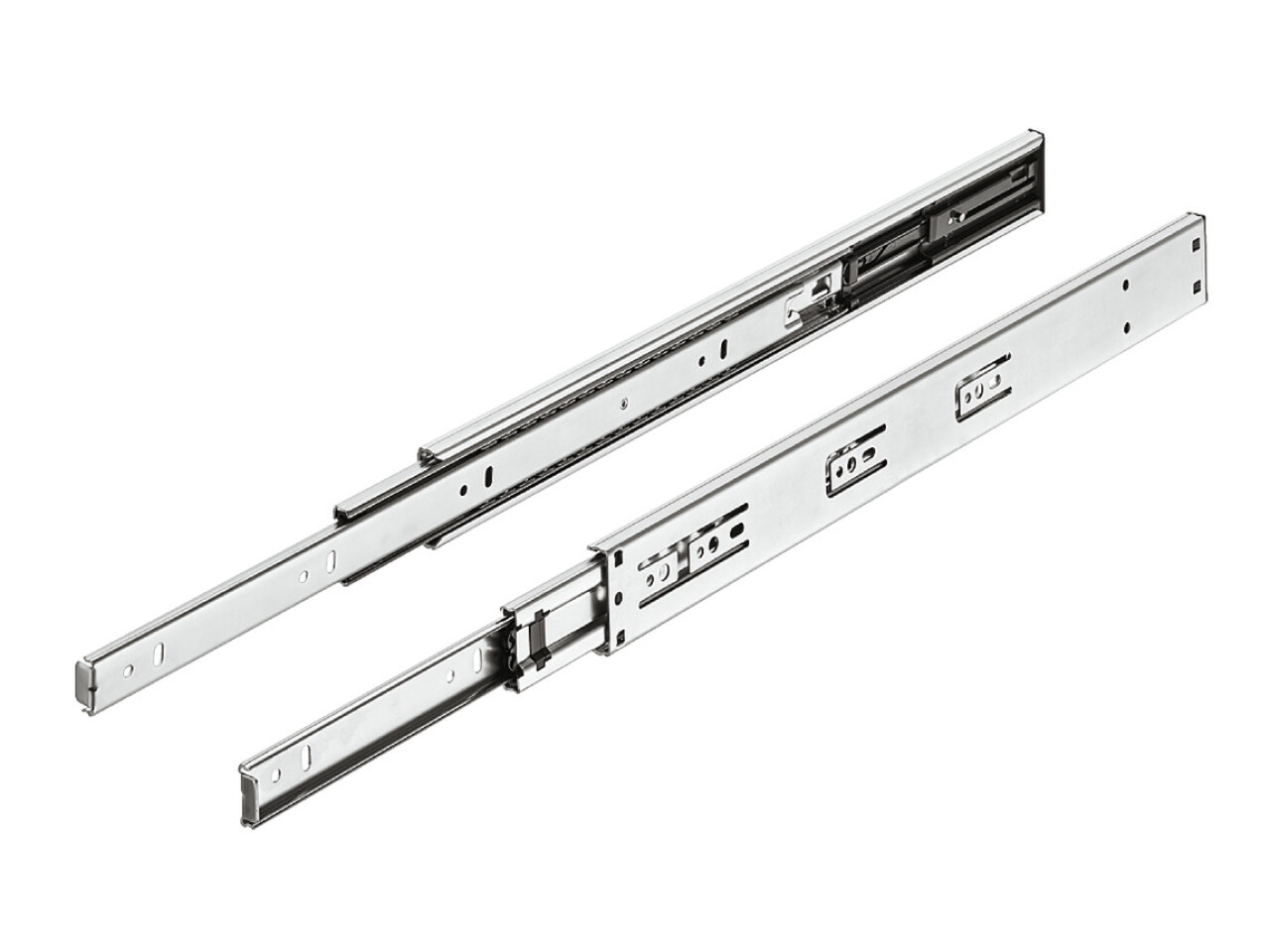

Ball Bearing Drawer Runners, with Push-to-Open Function, Full Extension, Load Ca (Part No: 422.02.067) is a premium ball bearing drawer runner designed for smooth, reliable everyday use in both living and commercial furniture. Built in steel and finished in silver grey, zinc-plated protection, this side-mounted runner delivers dependable performance while helping resist wear over time.
Featuring the Push-to-Open function, the Ball Bearing Drawer Runners, with Push-to-Open Function, Full Extension, Load Ca lets you open drawers with a gentle push—perfect for kitchens, office storage, vanities, workshops, and more where clean, handle-free styling is desired. With installed length 600 mm and extension length 600 mm, you’ll enjoy full extension for easy access to the back of the drawer.
Built for strength and stability, these runners support a 20 kg load capacity and use ball bearing technology for a fluid glide. Installation is straightforward with screw fixing, and the system is disengageable using a release lever, making drawer removal quick and hassle-free.
Designed for compatibility, it suits material thickness of 1.2 / 1.2 / 1.4 mm. For correct ordering, please note the order reference: order M4 bolts and Hospa pan head 4.0 mm screws separately.
If you’re upgrading existing drawers or specifying runners for a new build, choose the Ball Bearing Drawer Runners, with Push-to-Open Function, Full Extension, Load Ca for a smooth action, smart Push-to-Open convenience, and dependable full-extension storage.
Side Mounted
For easy installation, can be disengaged using release lever, with Push-to-Open
Silver grey, Zinc-plated
For material thickness 1.2/1.2/1.4 mm
Steel
Screw fixing
Order M4 bolts and Hospa pan head 4.0 mm screws separately
Yes. The “MX BB A DrwRun Side Full” runner is designed for full extension, so the drawer can roll fully out for easier access to the contents.
It features Push to Open. With this function, the drawer can be released by gently pushing the front, making everyday opening smooth and convenient. It is also compatible with easy adjustment thanks to the release lever.
Up to 20 kg. This model is rated for a 20 kg load capacity, making it suitable for a wide range of home and light commercial drawer applications.

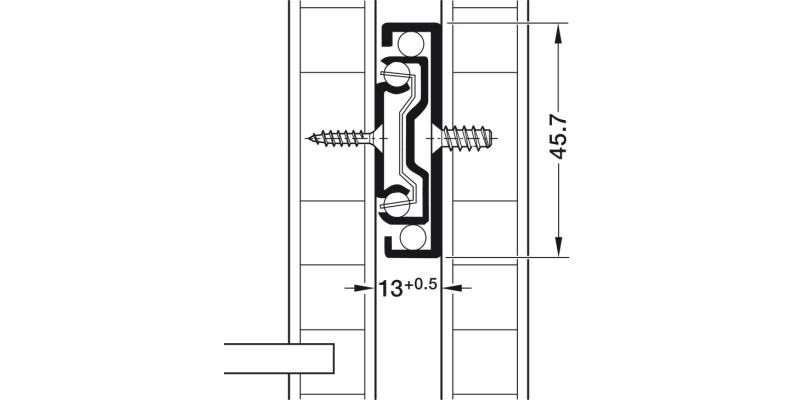

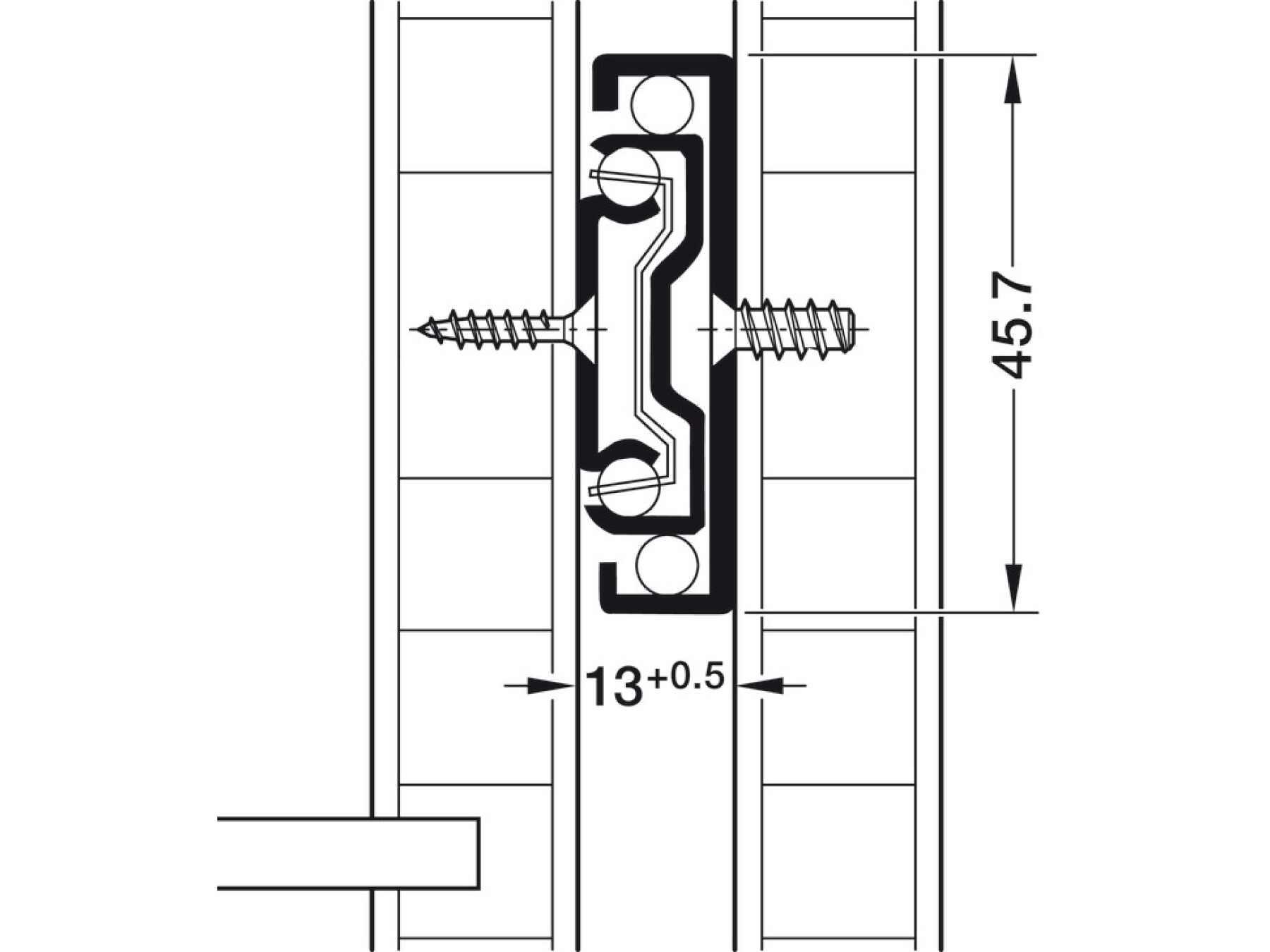

Yes, side mounted. The runner is side mounted and uses screw fixing for installation. It is intended for a straightforward fit to the drawer sides and cabinet structure.

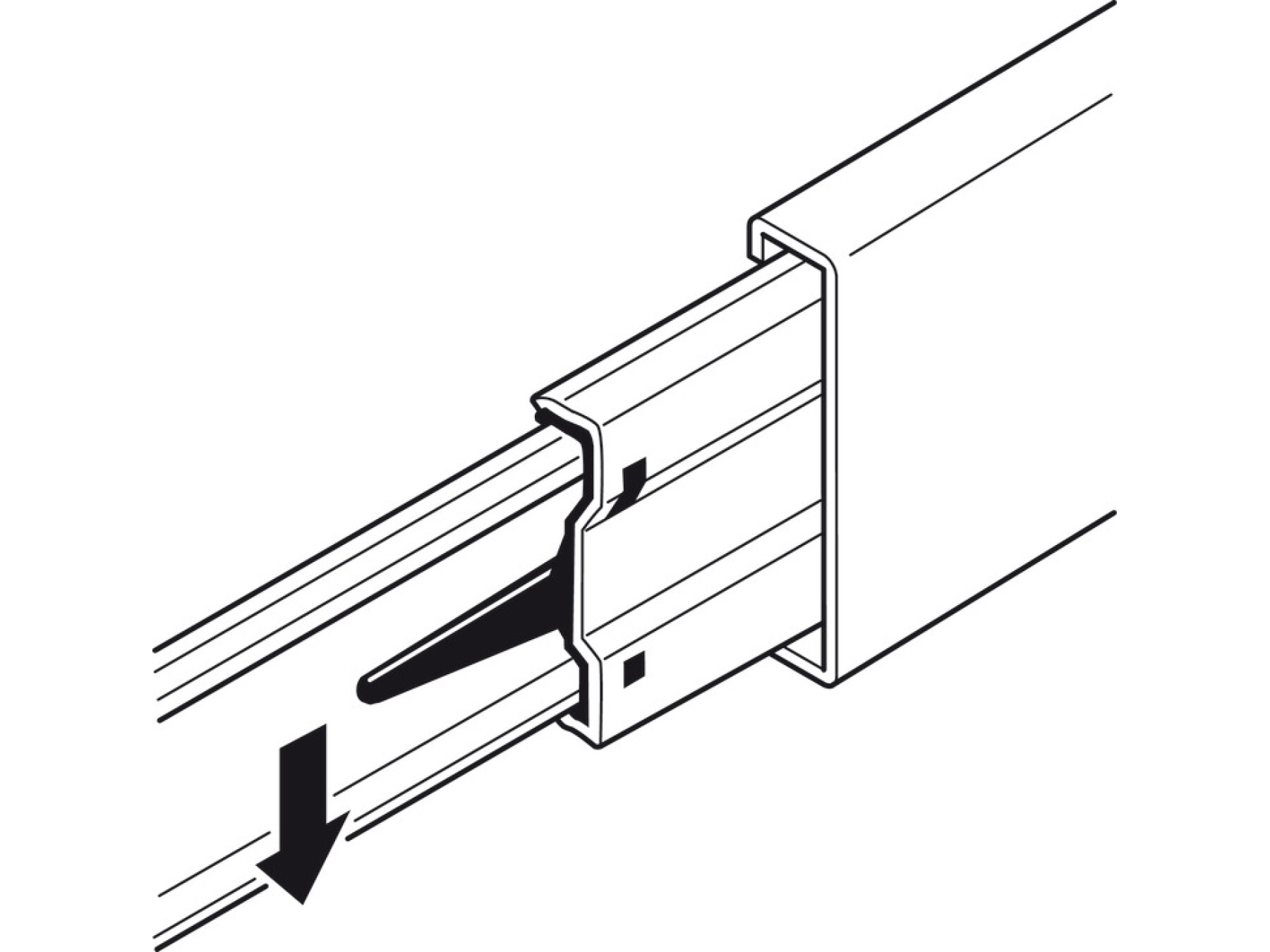

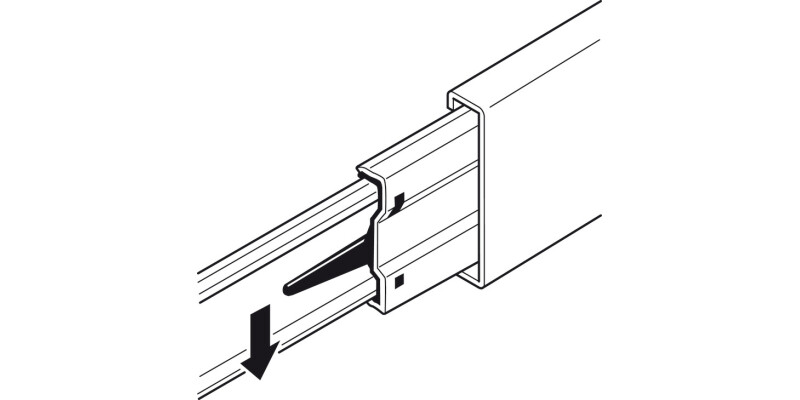

Release lever removal. The drawer can be removed using the release lever, which helps during cleaning, maintenance, or changing a drawer unit without damaging the runners.
Installed length is 600 mm. It is supplied for an installed length of 600 mm with an extension length of 600 mm, giving full out travel to match a 600 mm drawer runner space.
Yes. For easier installation, the runner can be disengaged using the release lever, which simplifies setup and later servicing compared with fixed runners.
Some fasteners are ordered separately. The product order reference notes that you should order M4 bolts and Hospa pan head 4.0 mm screws separately, so check your project pack before installation.
