Cruciform Mounting Plate, Combi, Hospa Screw Fixing, for Slide On Häfele Metalla

Product Details

What is this mounting plate used for?

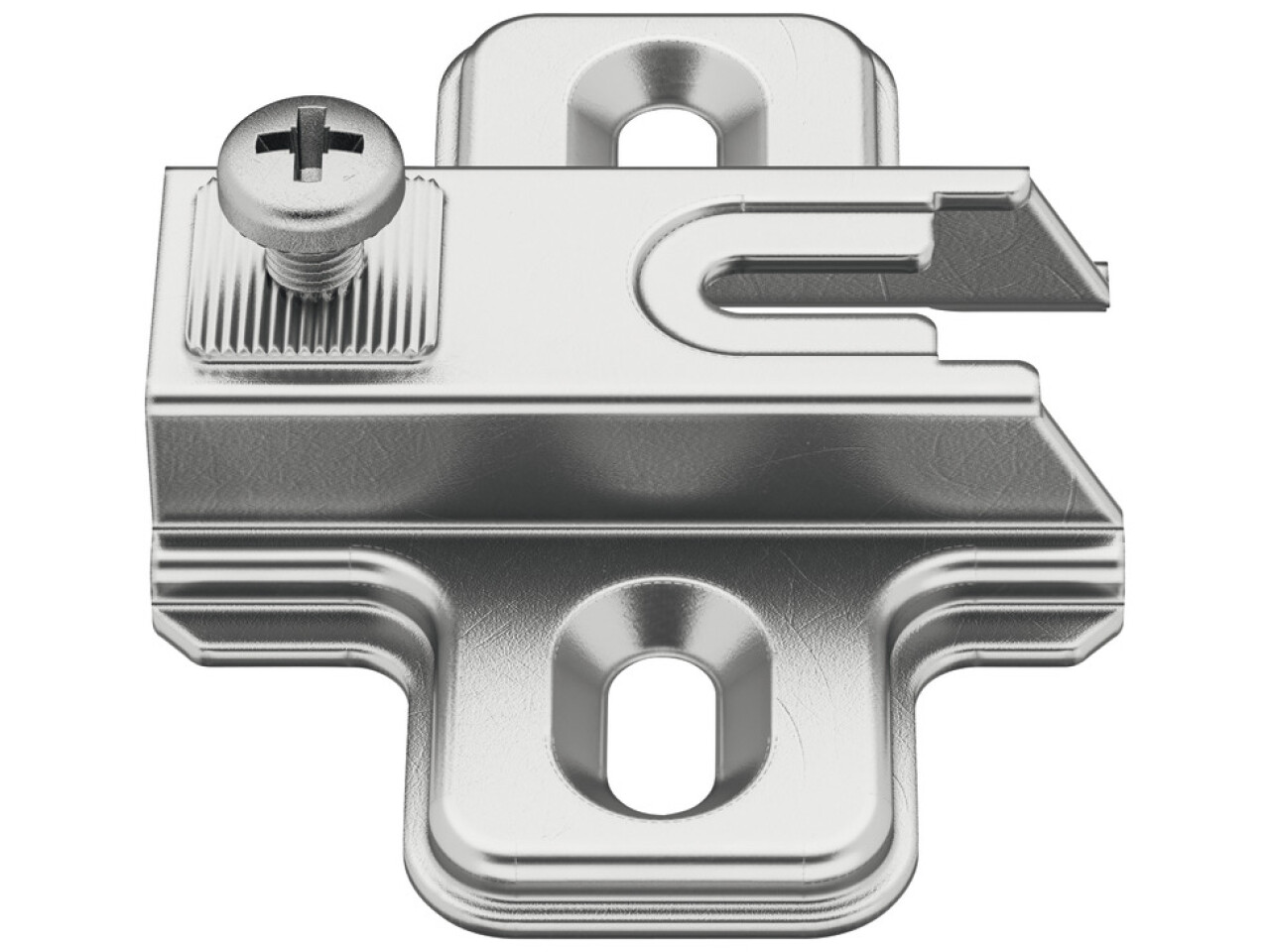

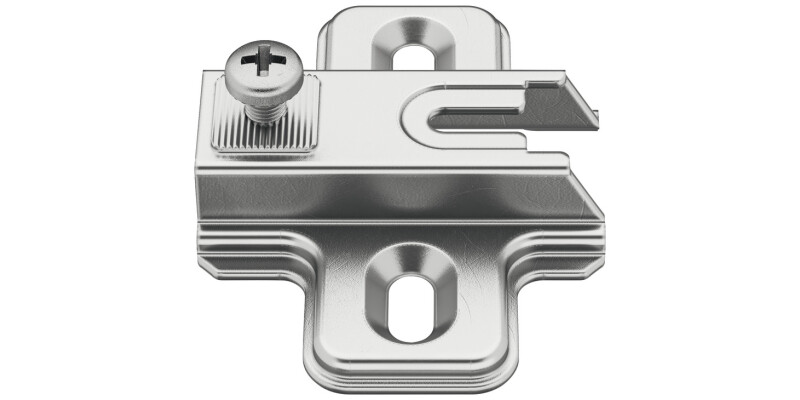

311.03.101 is a cruciform mounting plate designed for use with Häfele Metalla 310 A concealed hinges. It provides the correct base for screwing the hinge into the cabinet door for a neat concealed fit.

Does it suit my Häfele Metalla 310 A hinges?

This plate is for Häfele Metalla 310 A and matches the required mounting plate version for that system. If your hinge model is part of the Metalla 310 A range, this is the correct style of mounting plate to use.

What material and finish should I expect?

The mounting plate is made from steel and finished in a nickel plated coating. This helps the plate resist wear in normal indoor furniture use and gives a consistent appearance during installation.

How do I fix it to the cabinet, and what screws do I need?

It uses a slide on system A and is intended for screw fixing with chipboard screws. Please note the order reference indicates you should purchase the Ø 3.5 mm countersunk screws separately.

Is height adjustment possible after installation?

Yes. Height adjustment is available via a slot with ±2 mm adjustment, using the one part plate setup. This makes fine positioning easier once the cabinet door is in place.

What screw spacing and edge distances are required?

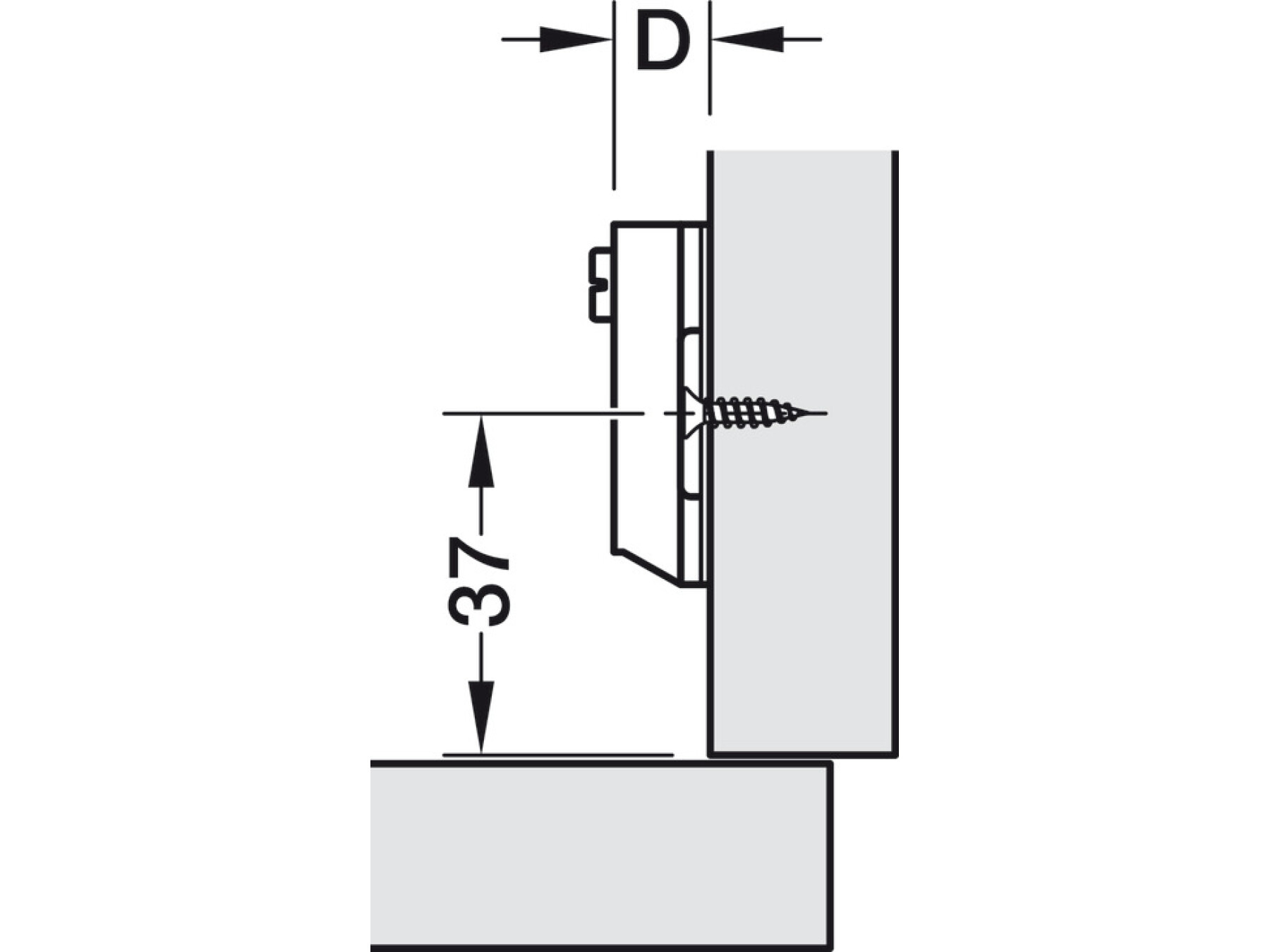

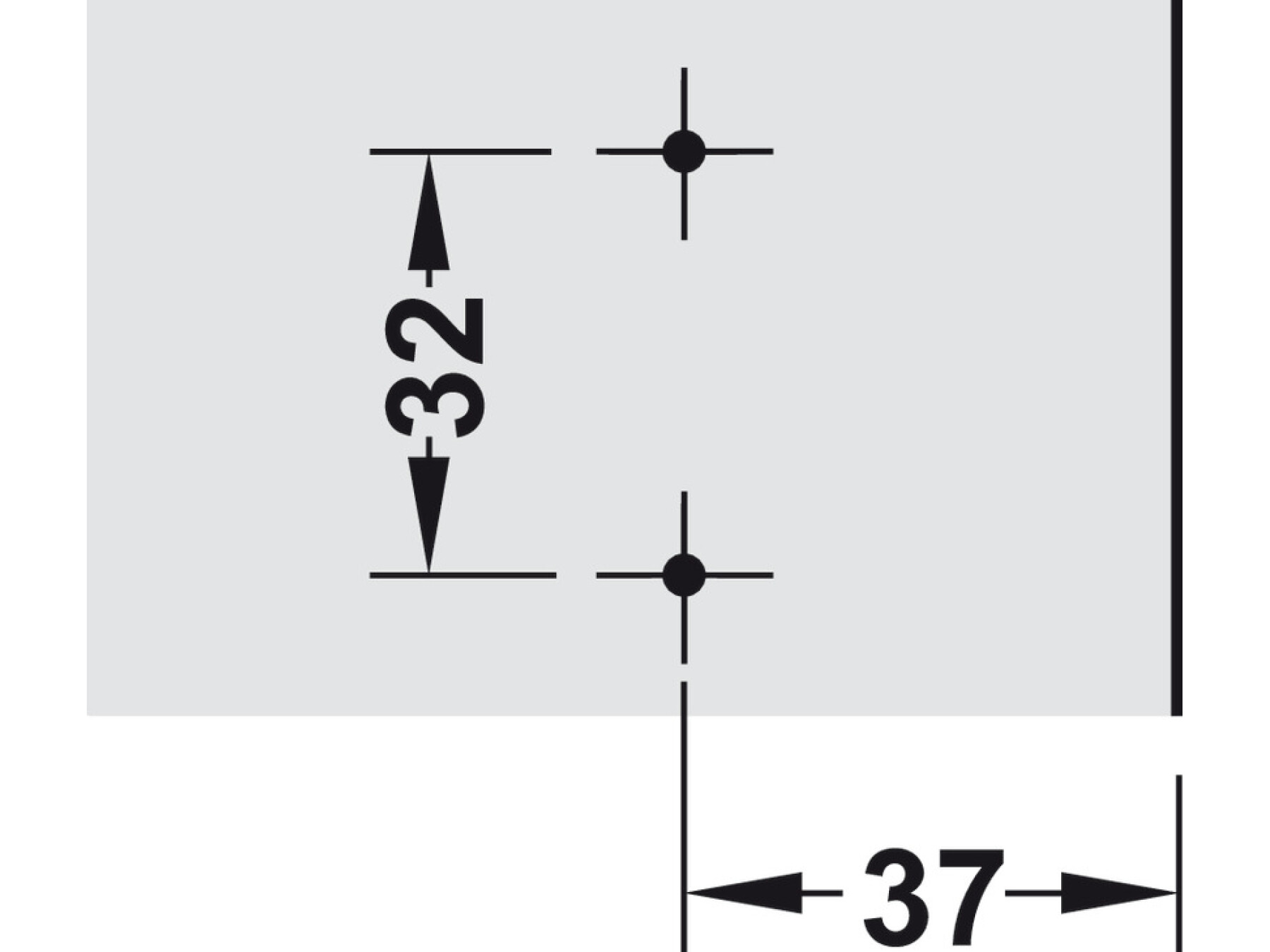

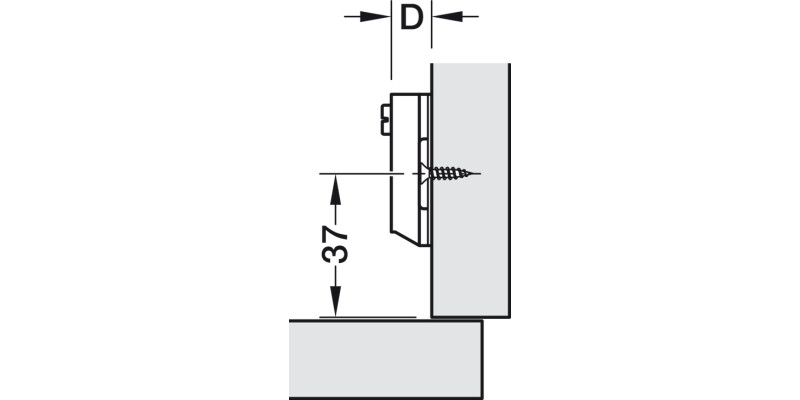

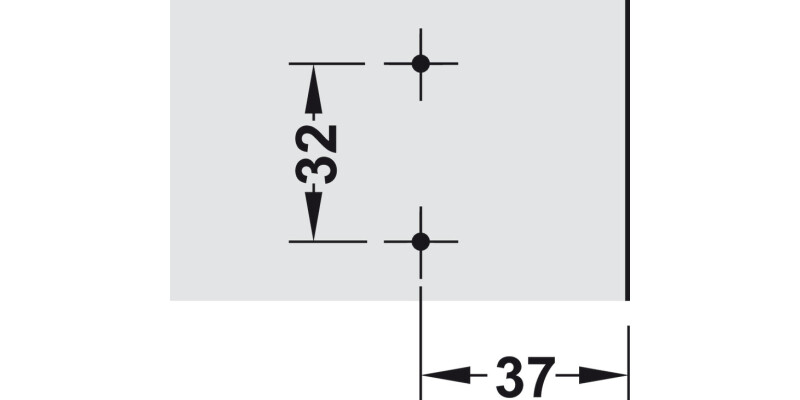

For correct installation, the recommended screw distance is 32.00 mm and the edge distance is 37.00 mm. Matching these dimensions helps the hinge sit correctly and reduces the risk of misalignment.

Which type of concealed hinge setup is it compatible with?

It is suitable for a matching Metalla 310 A concealed hinge application, including the specific suitable hinge reference: Metalla A straight slide full overlay 110° concealed hinge 311.88.530. Using the correct pairing helps ensure smooth operation and consistent door alignment.
