Concealed Cup Hinge and Inline Mounting Plate Set, 110° Standard, for 14 - 22 mm

Product Details

Concealed Cup Hinge and Inline Mounting Plate Set, 110° Standard, for 14 - 22 mm. is a premium concealed cabinet hinge solution designed for clean, modern furniture builds. Built for wooden doors, this For wooden doors, With soft close, screw fixing cup, 45/9.5, nickel plated hinge set brings smooth closing comfort and a refined, nickel-plated finish that complements a wide range of living and commercial cabinetry.

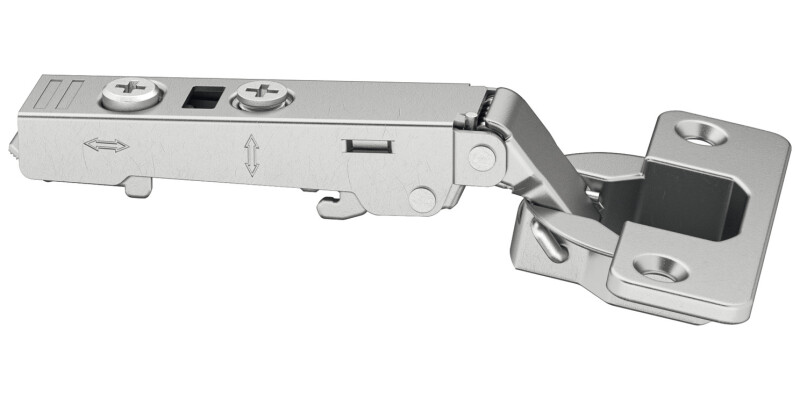

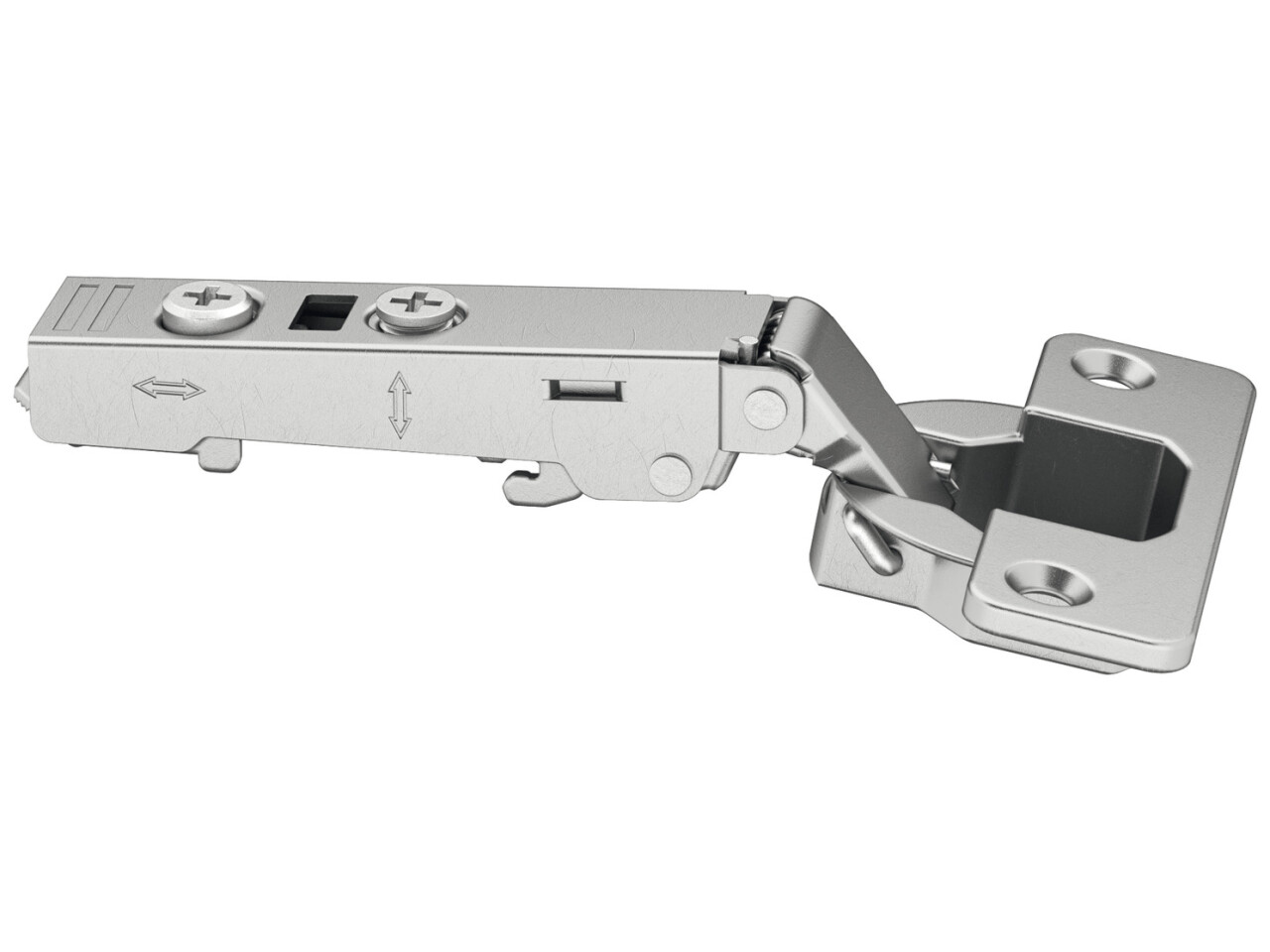

Reliable performance for standard applications: ideal for furniture and cabinet doors where dependable alignment and gentle closing matter. The M310 hinge features an automatic closing spring plus a soft closing mechanism, helping doors shut quietly and consistently every time.

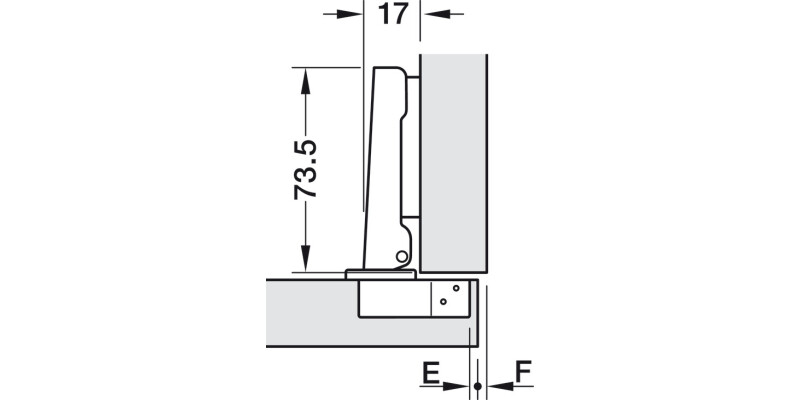

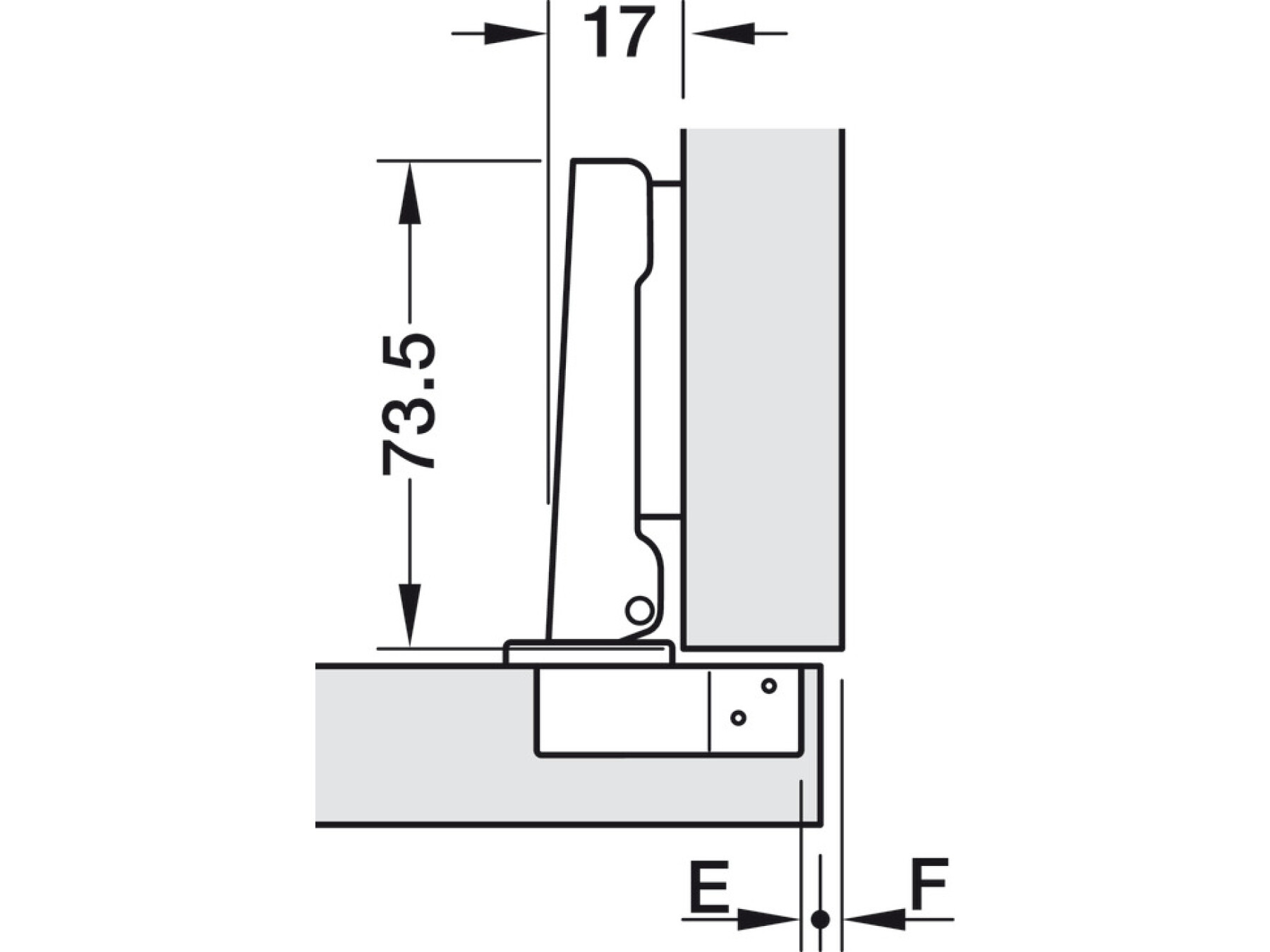

Engineered for flexibility and easy installation: made from durable steel, the hinge offers a generous 110° opening angle and a 35.00 mm cup drilling size. The screw-fixing cup ensures secure mounting, while the drilling pattern 45/9.5 supports proper fit and stability. Fine-tune your door positioning with side adjustment ±3 mm, height adjustment ±2 mm (via mounting plate), and depth adjustment ±2 mm.

What’s included (Part No: 483.02.245): the set includes 2x hinges, 2x mounting plates (height 0 mm), and 8x wood screws. Installation is straightforward with a quick fixing system from door to cabinet.

Peace of mind with Hafele protection: enjoy the Hafele Lifetime Guarantee (25 years) and upgrade your cabinet hardware to a hinge system that feels as good as it looks—choose the M310 Hinge+Inline Plt Set today.

Set consists of:
2x Hinges

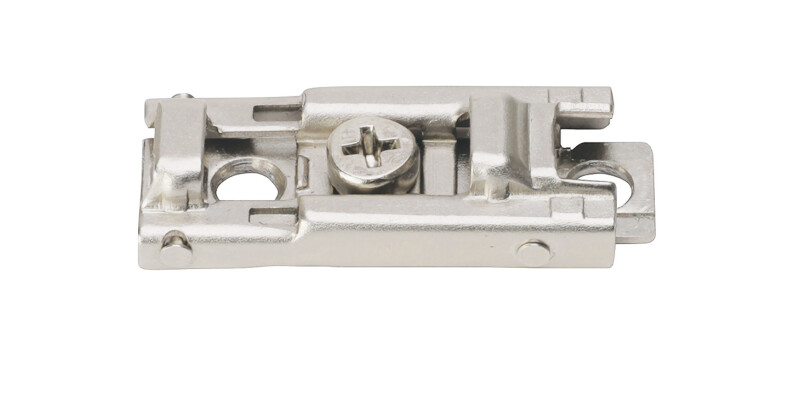

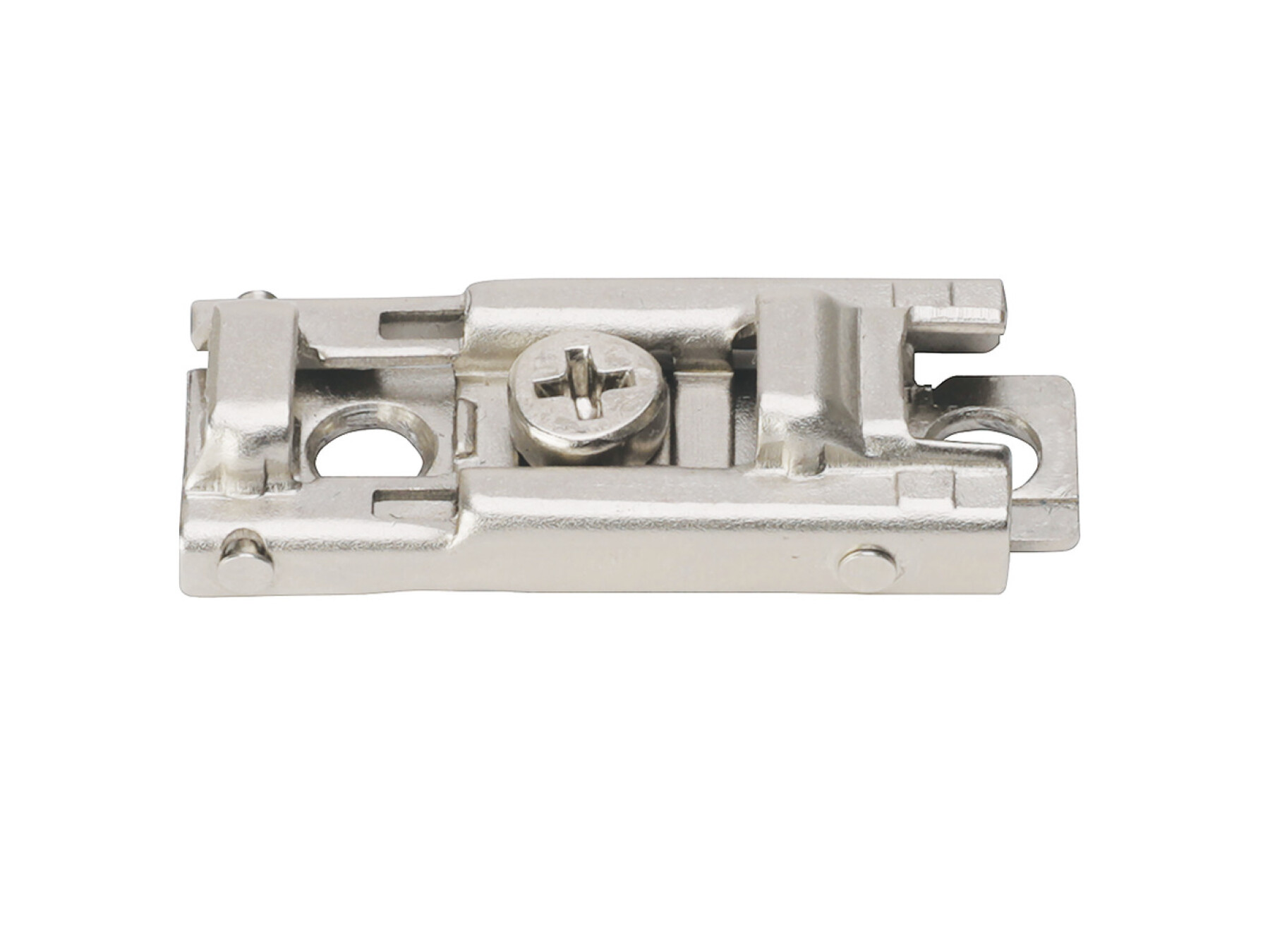

2x Mounting plates, height 0 mm
8x Wood screws
