Concealed Cup Hinge, 155°, Full Overlay Mounting, for 14 - 24 mm Thick Doors, Qu

Product Details

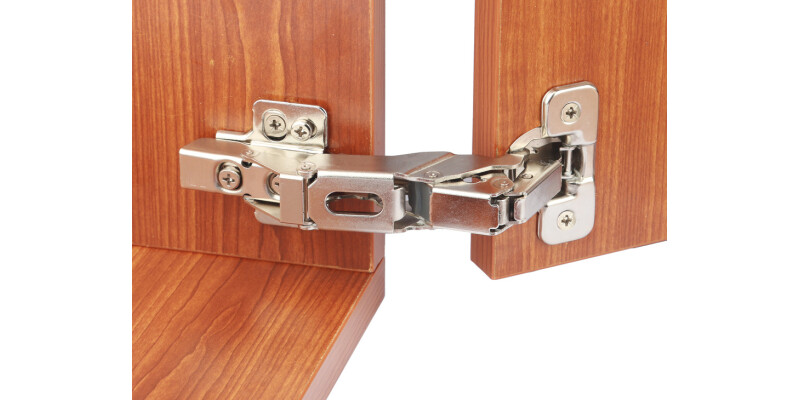

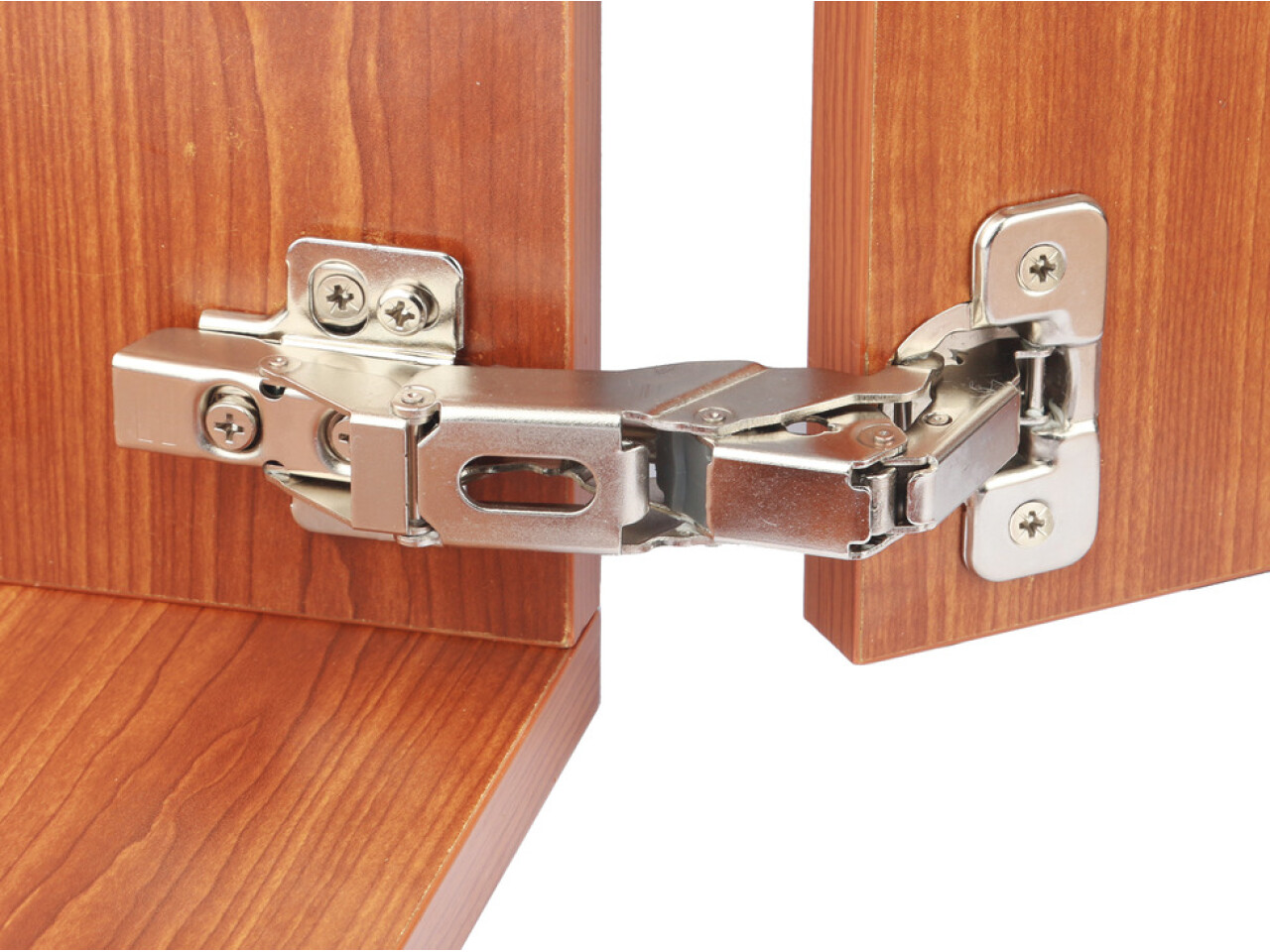

Concealed Cup Hinge, 155°, Full Overlay Mounting, for 14 - 24 mm Thick Doors, Qu (Part No: 311.63.739) is a dependable concealed cup hinge designed for cabinet doors that need smooth, space-saving operation—especially when you’re fitting internal pull outs or extending trays. With its nickel plated finish and reliable construction, this hinge delivers a clean, professional look while supporting everyday use in both living and commercial spaces.

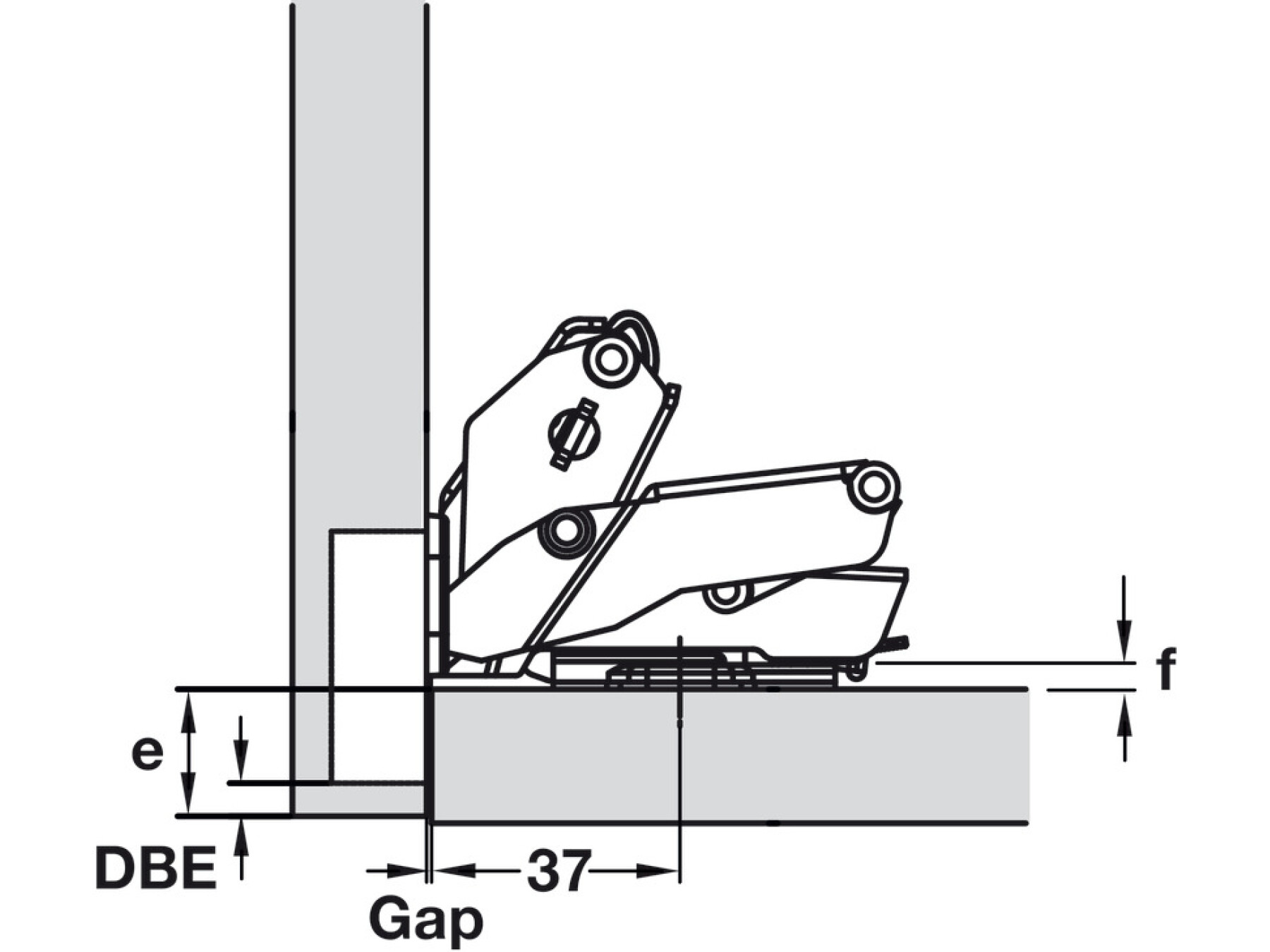

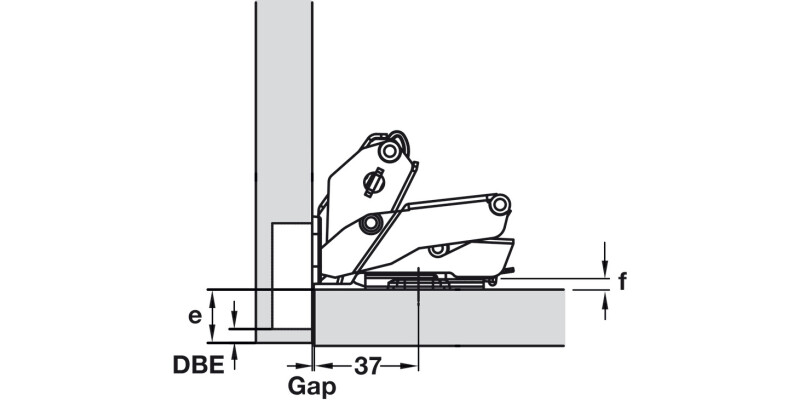

This concealed hinge version features a full overlay design, creating a seamless front alignment when the door is closed. The straight crank type helps provide consistent performance and stability, making it a smart choice for wood cabinet doors with cup drilling during assembly.

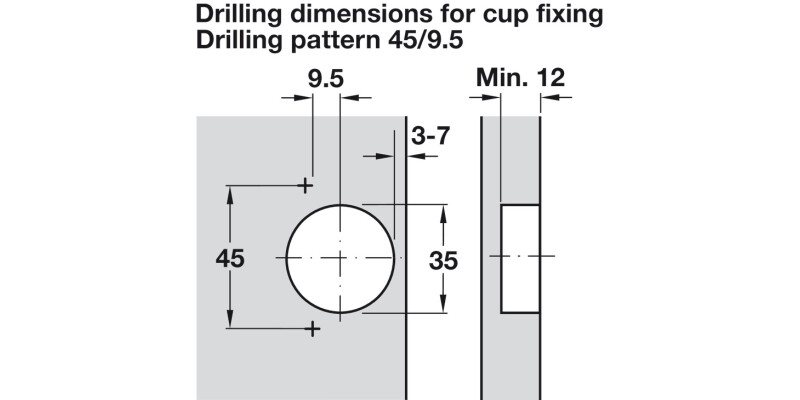

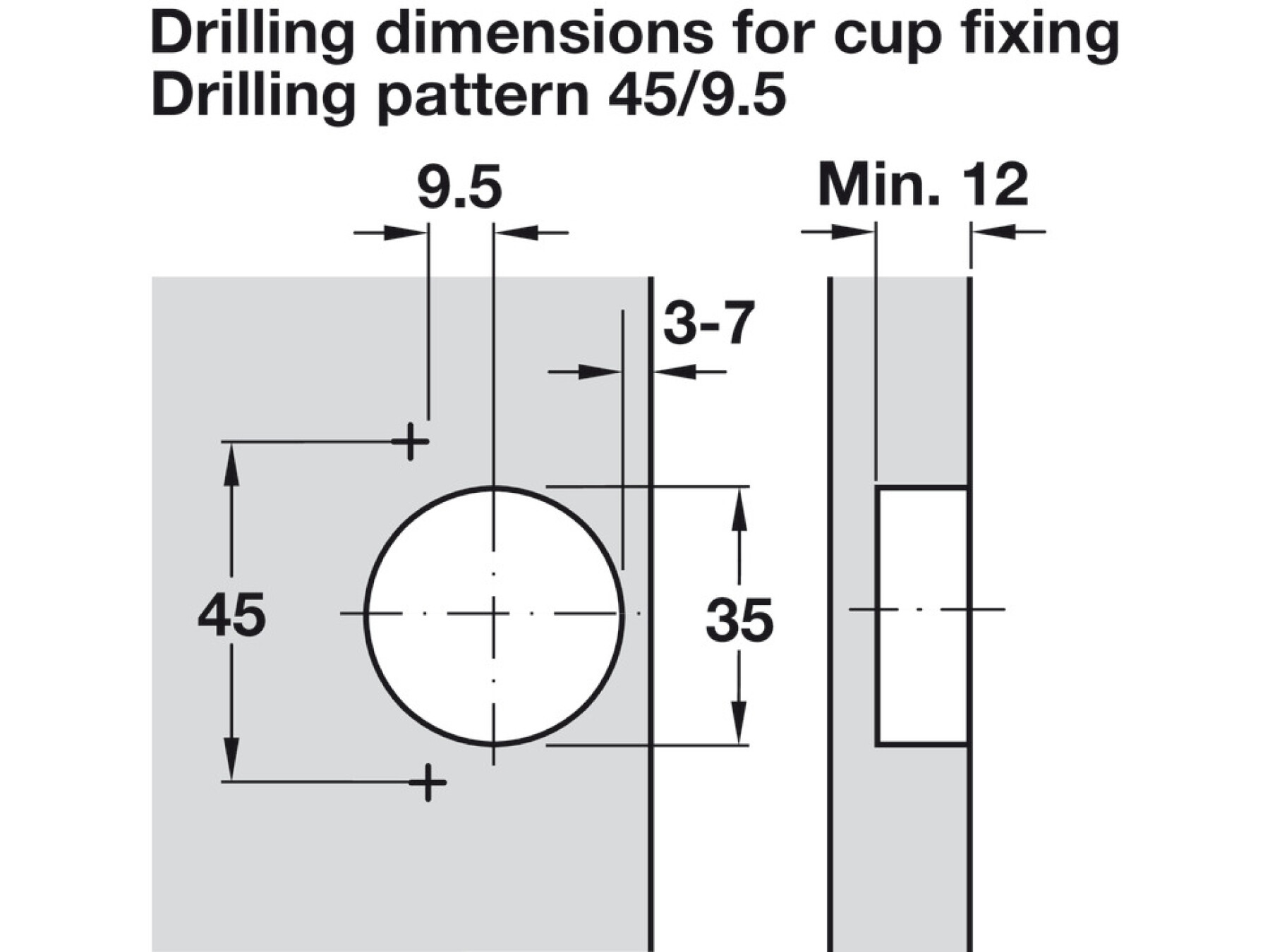

Built from steel, the hinge offers a comfortable 155° opening angle for convenient access to cabinet contents. Cup drilling is sized at Ø 35.00 mm with a 12.00 mm drilling depth, using the 45/9.5 drilling pattern for accurate installation. The cup is for screw fixing, and the assembly process is streamlined with cup drilling included.

Fine-tune the fit with practical adjustment facilities: side adjustment ± 3 mm, height adjustment ± 2 mm (via mounting plate), and depth adjustment 2.5 mm. And because you’re building for the long run, enjoy the added reassurance of the Hafele Lifetime Guarantee (25 years).

If you want concealed cabinet hardware that’s strong, precisely adjustable, and finished for lasting appeal, choose Concealed Cup Hinge, 155°, Full Overlay Mounting, for 14 - 24 mm Thick Doors, Qu.
