Concealed Cup Hinge, 155°, Full Overlay Mounting, for 14 - 24 mm Thick Doors, Qu

Product Details

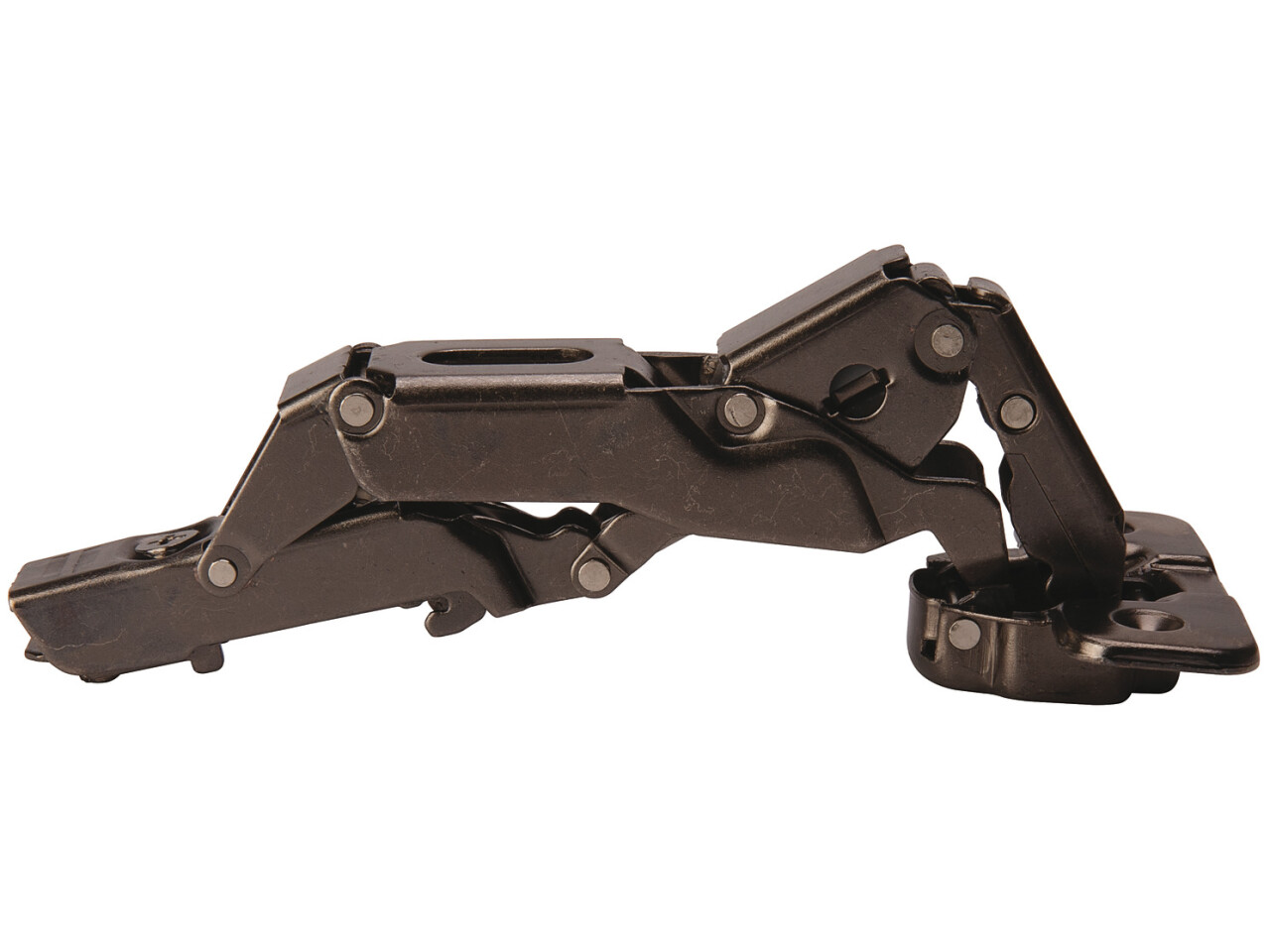

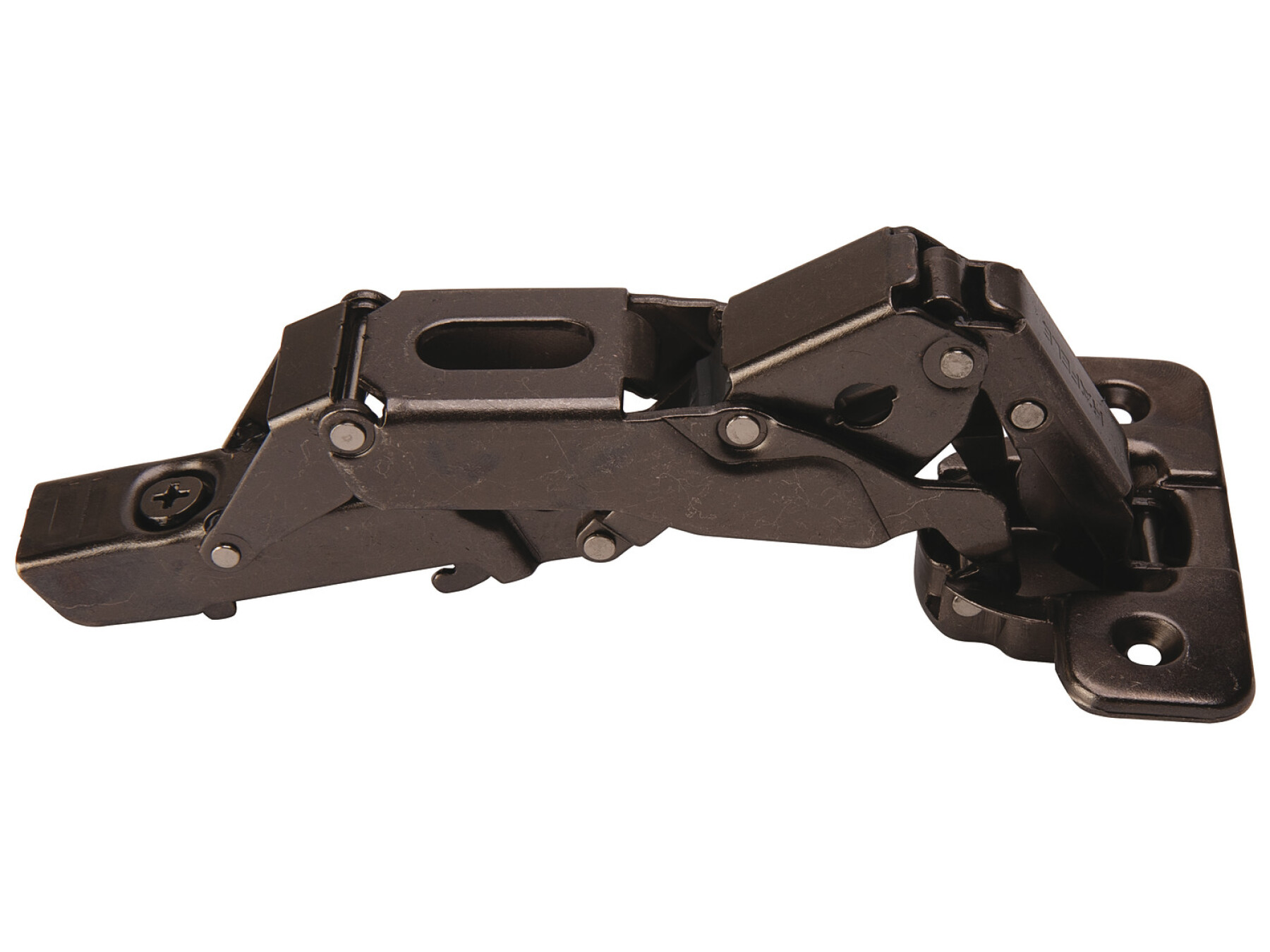

Concealed Cup Hinge, 155°, Full Overlay Mounting, for 14 - 24 mm Thick Doors, Qu. (Part No: 311.63.840) is a high-performance concealed cabinet hinge designed for smooth, reliable operation—ideal for cabinets with internal pull outs or extending trays. If you want a clean, professional look with outstanding usability, this concealed hinge version delivers the precision and comfort you’re after.

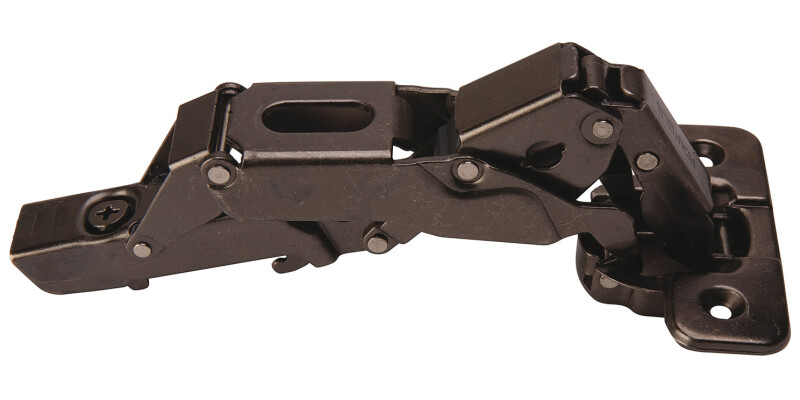

Built for full overlay applications, this Black nickel plated hinge offers an elegant finish that blends seamlessly with modern cabinet fronts. The straight crank type supports consistent alignment and effortless movement, while the soft close feature helps doors glide shut quietly—reducing slam and wear over time.

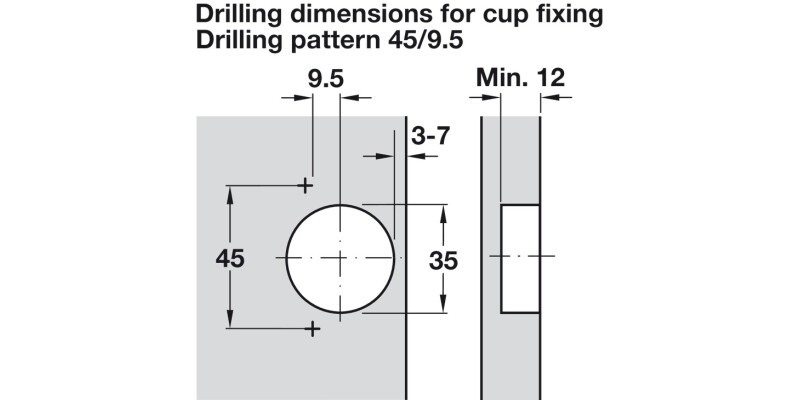

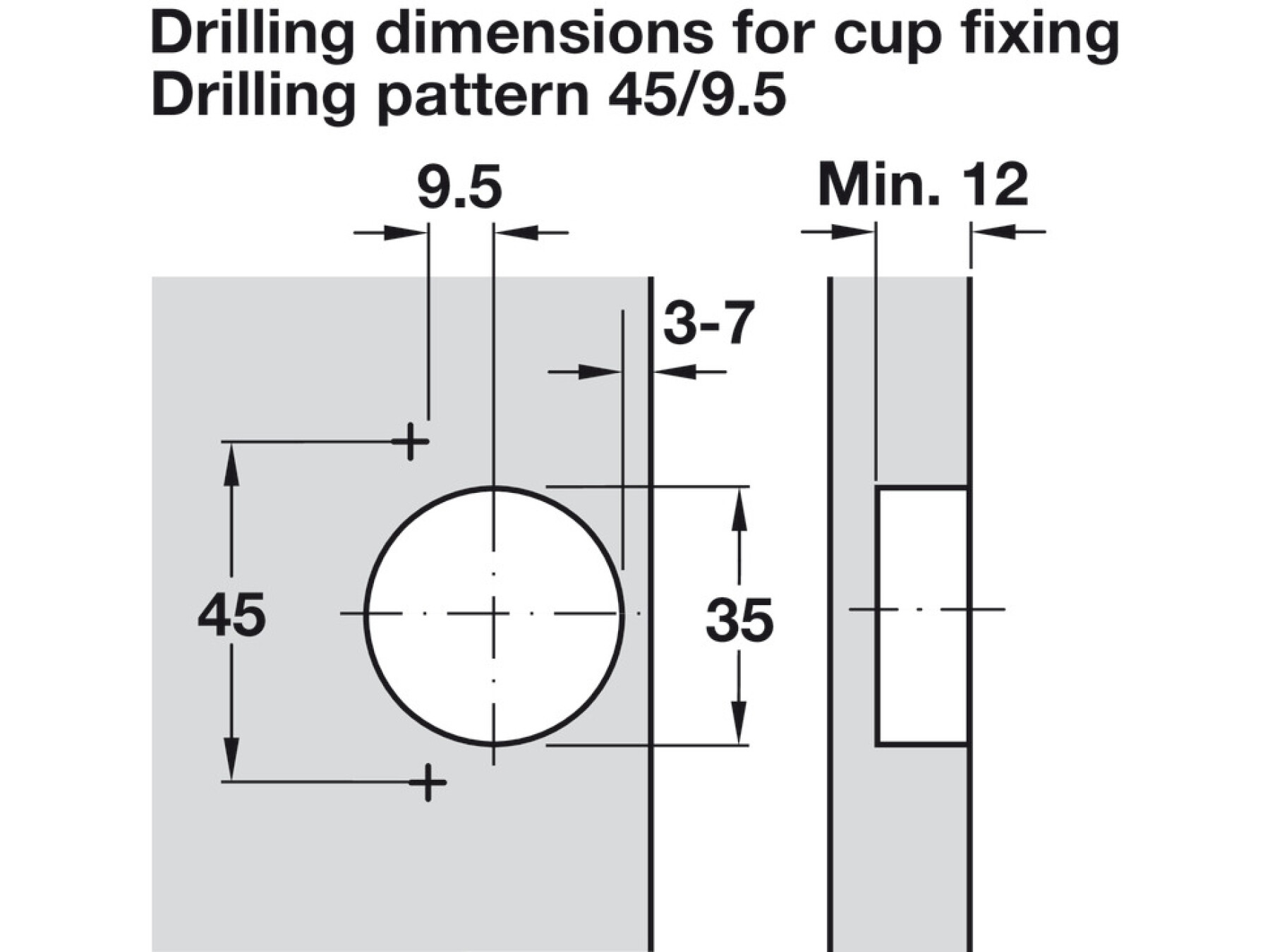

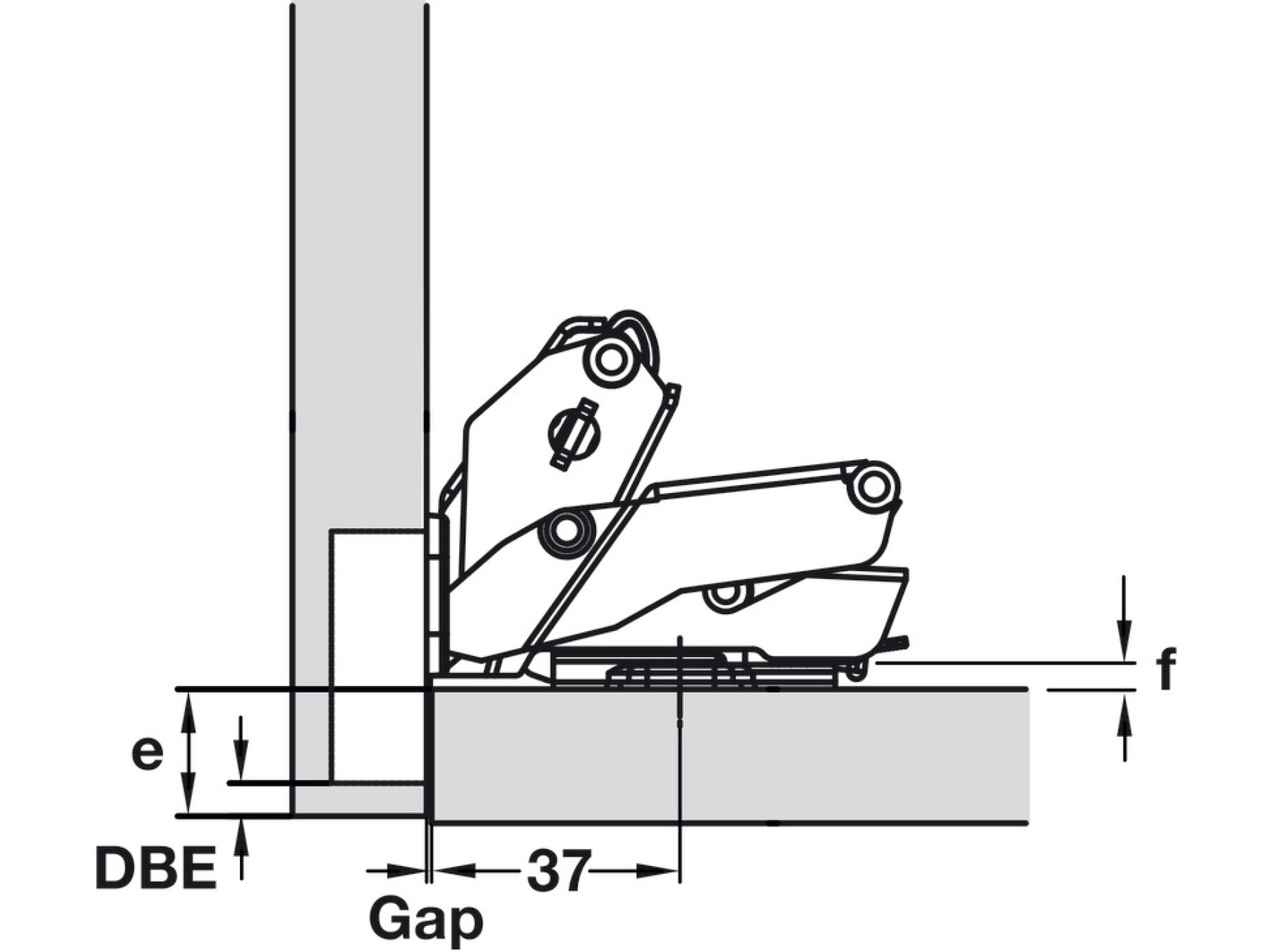

Crafted from durable steel, the hinge is engineered for wood doors and comes ready for assembly with cup drilling. The cup drilling diameter is 35.00 mm, with a drilling depth of 12.00 mm. Its drilling pattern of 45/9.5 makes installation straightforward for compatible setups.

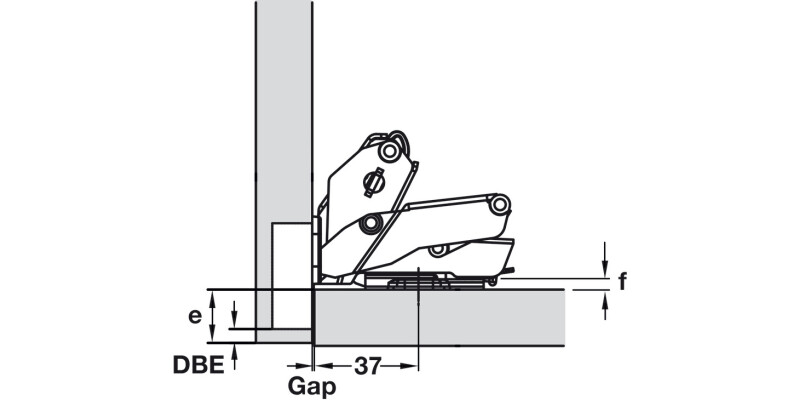

Enjoy generous adjustability for a perfect fit: side adjustment ± 3 mm, height adjustment ± 2 mm (via mounting plate), and depth adjustment 2.5 mm. With an impressive 155° opening angle, your pull-out systems and extending trays gain more practical access—making everyday use easier.

Choose the Concealed Cup Hinge, 155°, Full Overlay Mounting, for 14 - 24 mm Thick Doors, Qu. and benefit from the Hafele Lifetime Guarantee (25 years), giving you confidence in long-term performance for both living and commercial furniture solutions.
