Concealed Cup Hinge, 110 Standard, for 14 - 22 mm Thick Doors, Full Overlay, Hä (Product Part No:... Read More

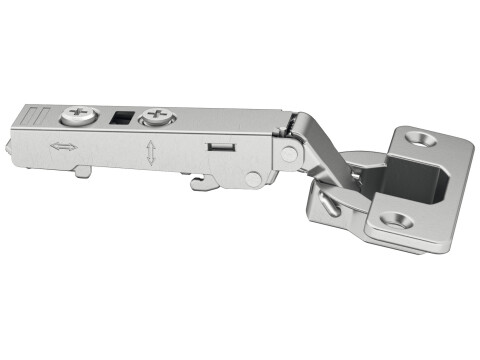

Concealed Cup Hinge, 110 Standard, for 14 - 22 mm Thick Doors, Full Overlay, Hä (Product Part No: 311.60.918) is a premium concealed cabinet hinge designed for smooth, reliable door operation in both living and commercial interiors. Built for wooden doors, this unsprung hinge features a nickel plated finish and a screw-fixing cup for a secure, professional fit.
Engineered for precision, the hinge is ideal for full overlay applications, giving you that clean, modern look where the door sits flush over the cabinet frame. With a straight crank and an impressive 110° opening angle, it offers excellent access for everyday use—perfect for kitchens, wardrobes, and utility cabinetry.

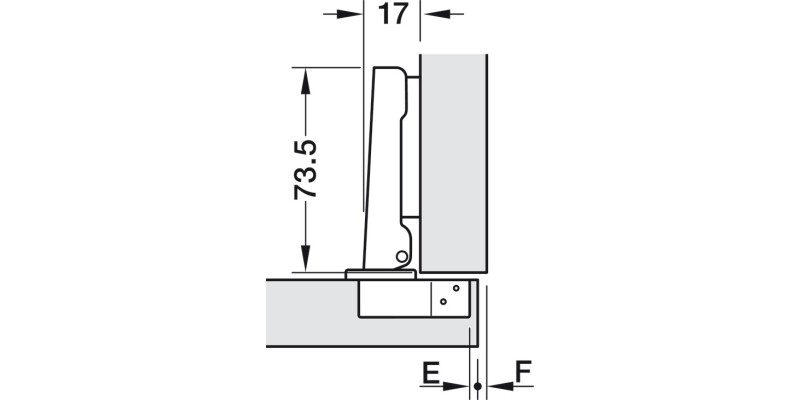

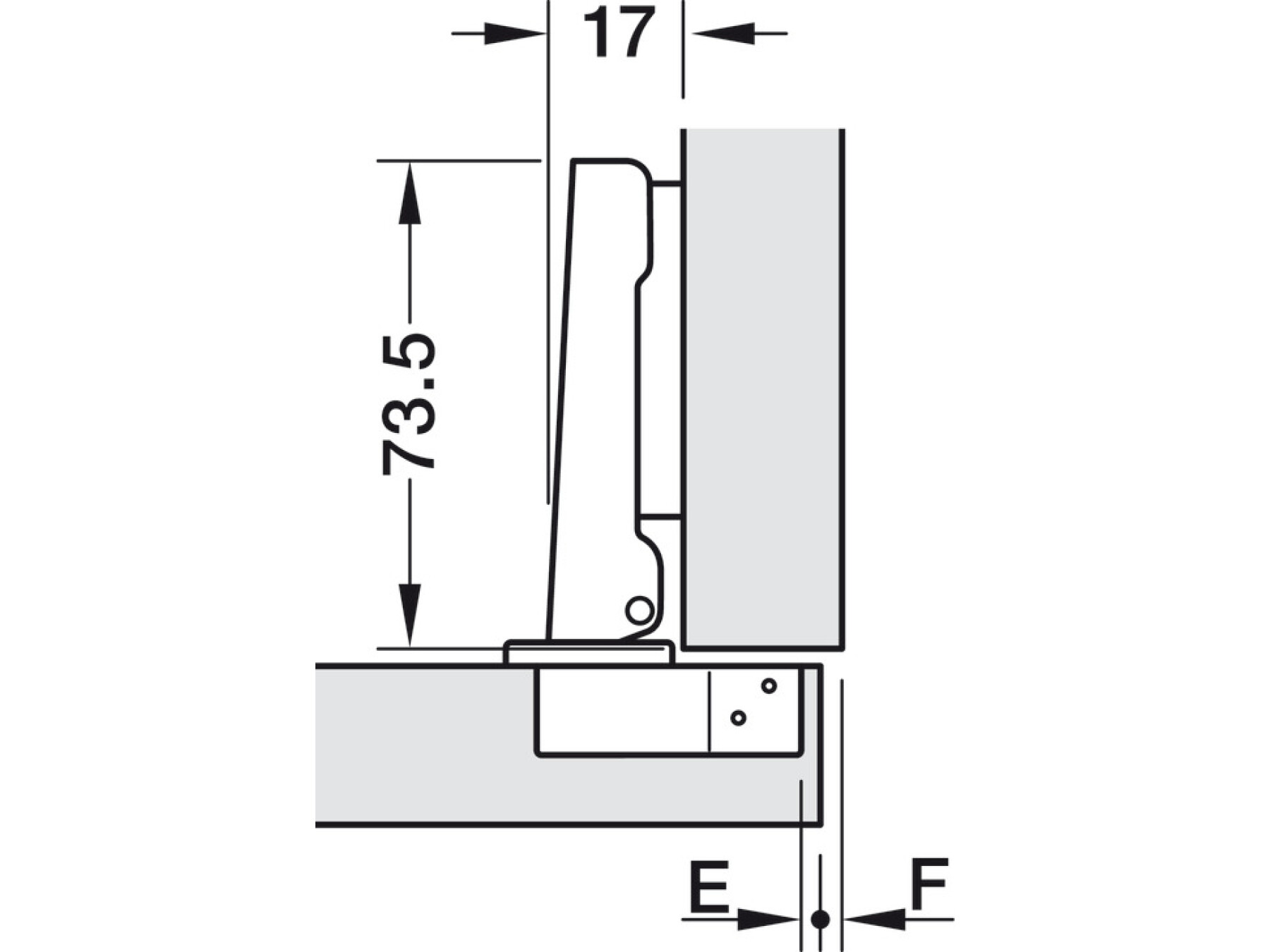

Designed for easy installation, the hinge comes with cup drilling (cup diameter 35.00 mm) and a 12.00 mm cup drilling depth. Cup fixing is for screw fixing, while the adjustment system makes fine-tuning simple: side adjustment ±3 mm, height adjustment ±2 mm via the mounting plate, and depth adjustment ±2 mm.

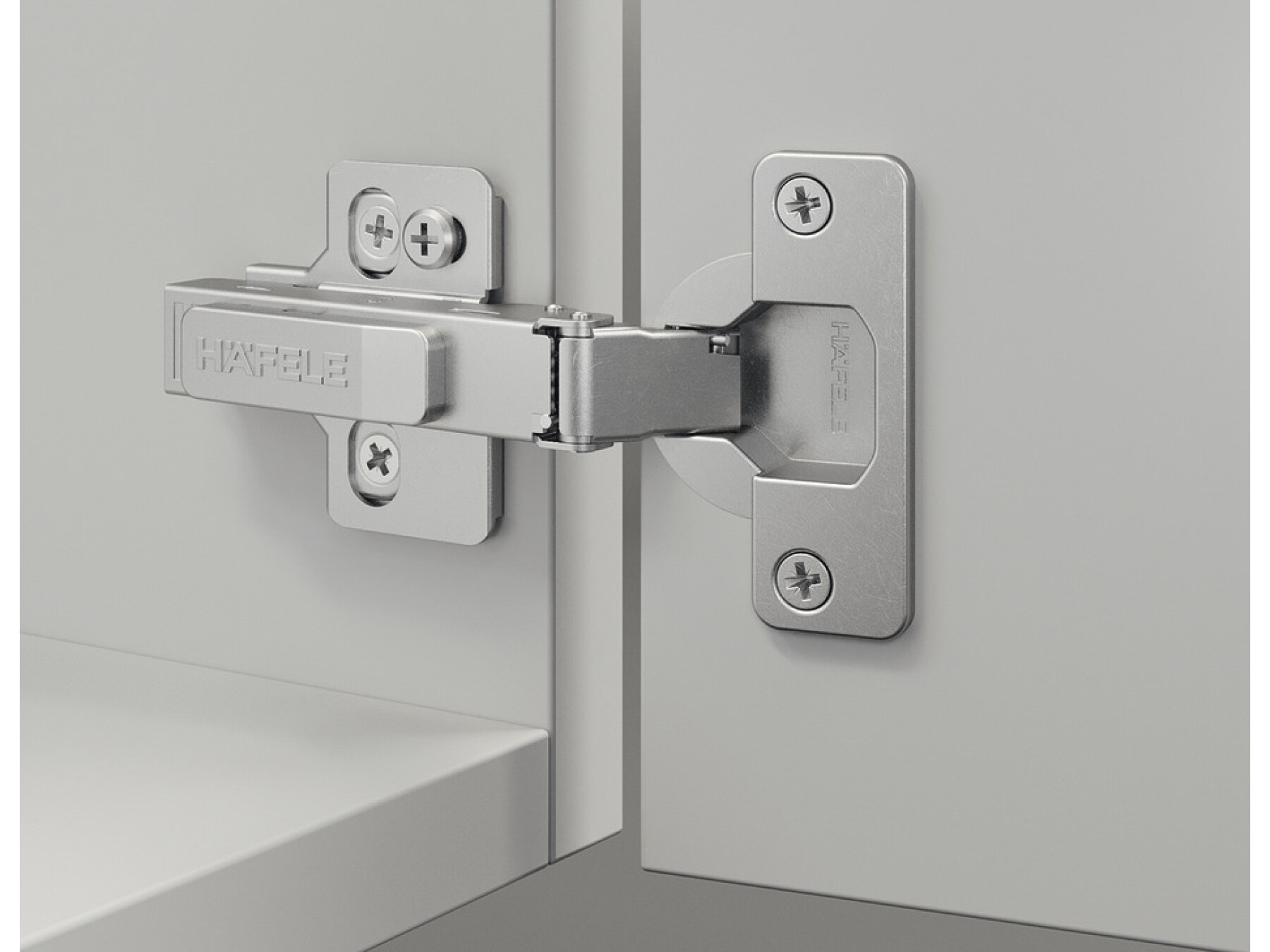

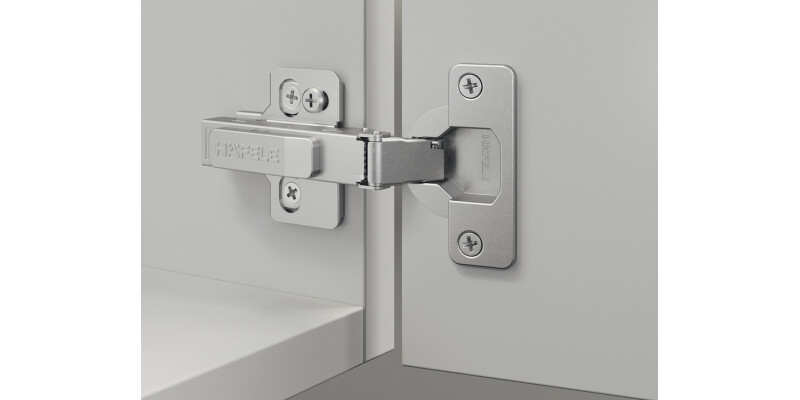

For quick, confident mounting, the M310 110D Hinge supports door-to-cabinet installation using the SM quick fixing system. Crafted from steel, it’s made to withstand daily demands and comes with a Hafele Lifetime Guarantee (25 years) for added peace of mind.
Order reference: Mounting plate and Hospa 3.5 mm countersunk screws must be ordered separately.
For wooden doors
Door to cabinet for quick fixing with SM quick fixing system
Order mounting plate and Hospa 3.5 mm countersunk screws separately
Yes. The M310 110D Hinge is designed for wooden doors and uses a cup drilling approach for concealed installation in the cabinet system.
48/6 refers to the hinge cup and fixing arrangement size used for cabinet door preparation. This helps ensure you have the correct drilling pattern and alignment when fitting the hinge.
Yes. This is a concealed full overlay hinge version, meaning the door sits over the cabinet frame when closed. It is a common choice for modern cabinet designs where the door covers the front edges.
110 degrees is the specified opening angle. This gives a wide access position while still fitting neatly into a concealed hinge layout.
Yes. You get side adjustment of plus or minus 3 mm, height adjustment of plus or minus 2 mm, and depth adjustment of plus or minus 2 mm, allowing you to fine tune alignment once the door is mounted.
This hinge is designed with an unsprung concealed cup and uses screw fixing for the cup attachment. That typically suits standard cabinet drilling and helps maintain a secure hold for everyday door use.
Please note the order reference instruction: the mounting plate and 3.5 mm countersunk screws are supplied separately, so you will need to purchase these items alongside the hinge to complete the installation.
Yes. It comes with a Hafele Lifetime Guarantee of 25 years, which provides reassurance for long term use in living and commercial furniture applications.
