Concealed Cup Hinge, 110° Standard, for 14 - 22 mm Thick Doors, Full Overlay, Hä

Product Details

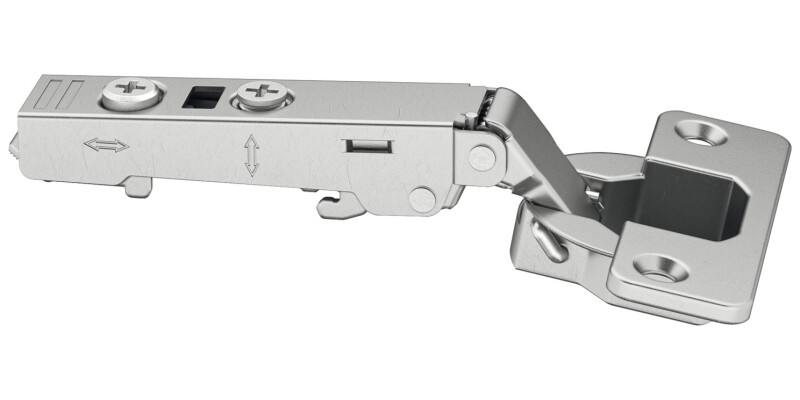

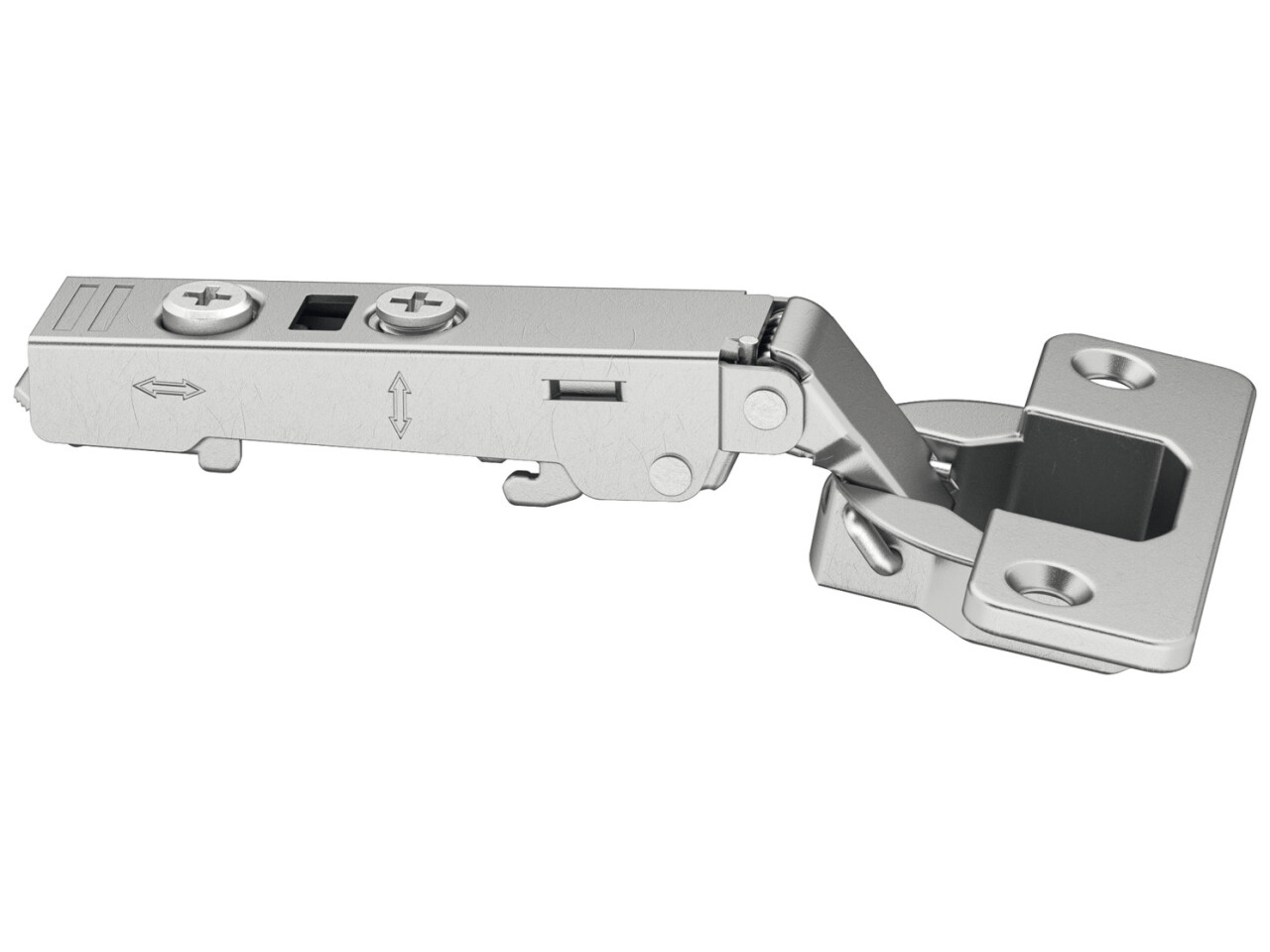

Concealed Cup Hinge, 110° Standard, for 14 - 22 mm Thick Doors, Full Overlay, Hä. (Product Part No: 311.04.242) is a reliable concealed cabinet hinge designed for smooth, dependable everyday use in wooden door applications. If you’re building or upgrading furniture where a clean, hidden look matters, this full overlay concealed cup hinge helps deliver a neat alignment with a professional finish.

For wooden doors, this hinge combines a straight crank design with a generous 110° opening angle, making it ideal for kitchen cabinetry, wardrobe doors, and commercial furniture solutions. The nickel plated steel construction not only supports durability but also offers an attractive surface that complements modern interior styles.

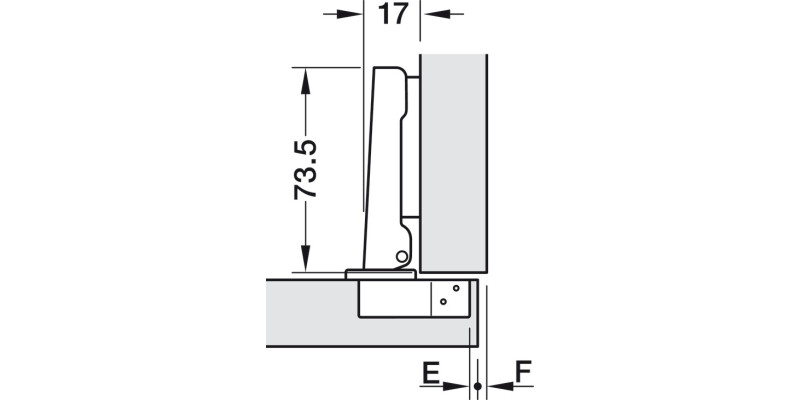

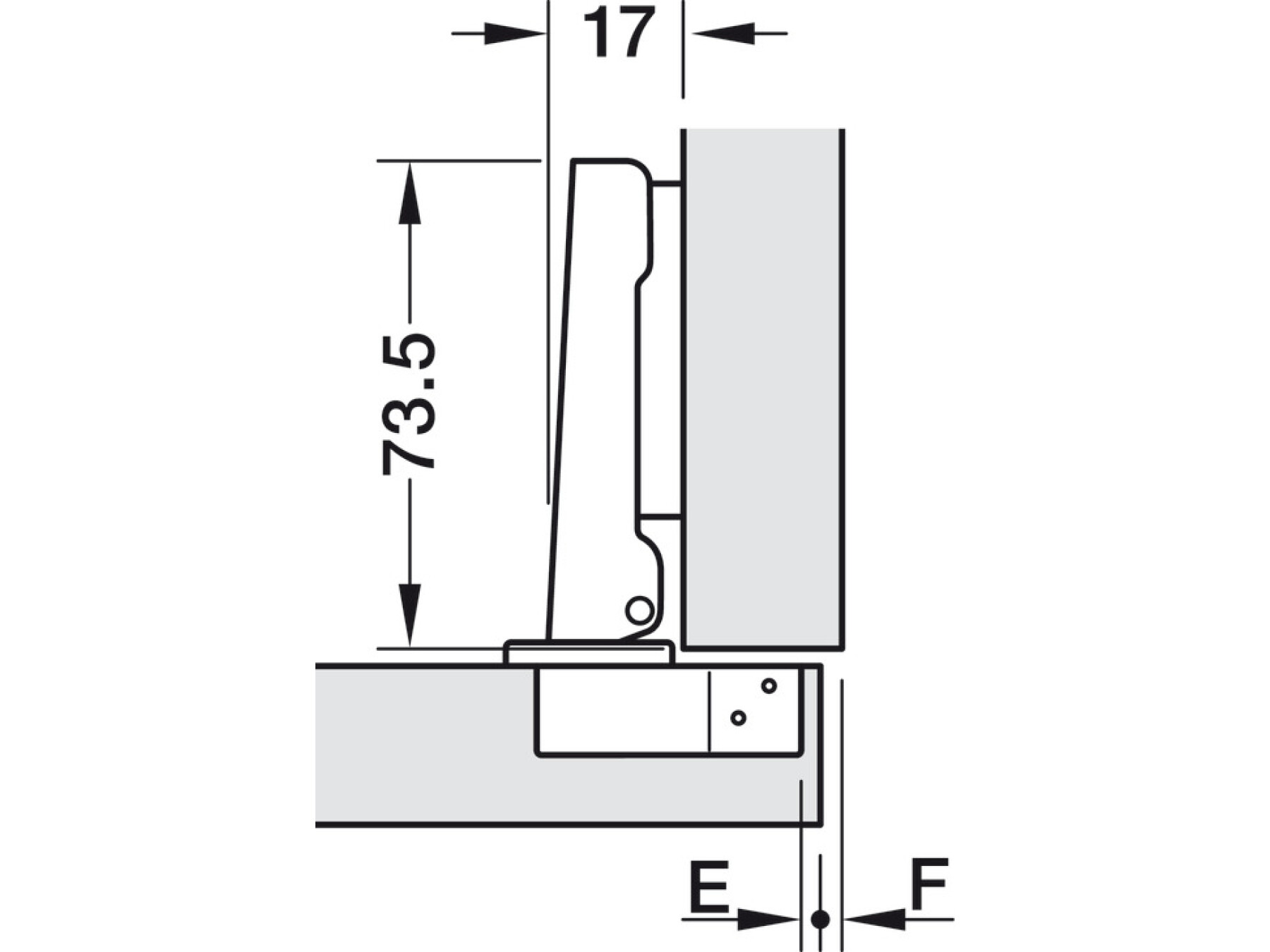

Designed for quick, secure installation, the hinge features cup drilling and a 35 mm cup diameter with a 12.00 mm drilling depth for accurate fitting. It supports screw fixing of the cup and includes adjustment facilities for easy fine-tuning: side adjustment ±3 mm, height adjustment ±2 mm (via mounting plate), and depth adjustment ±2 mm.

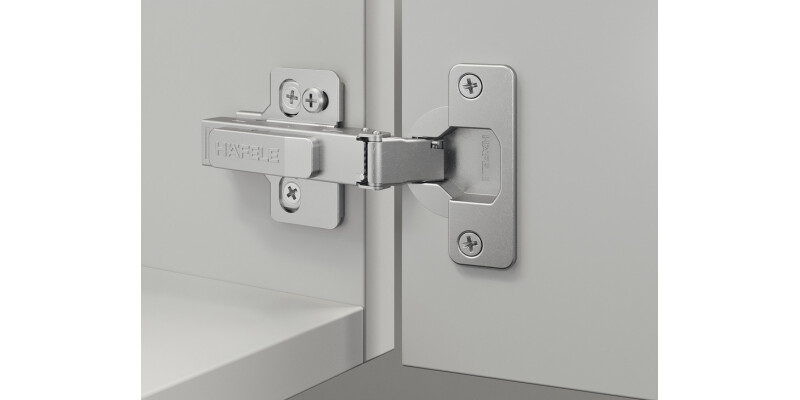

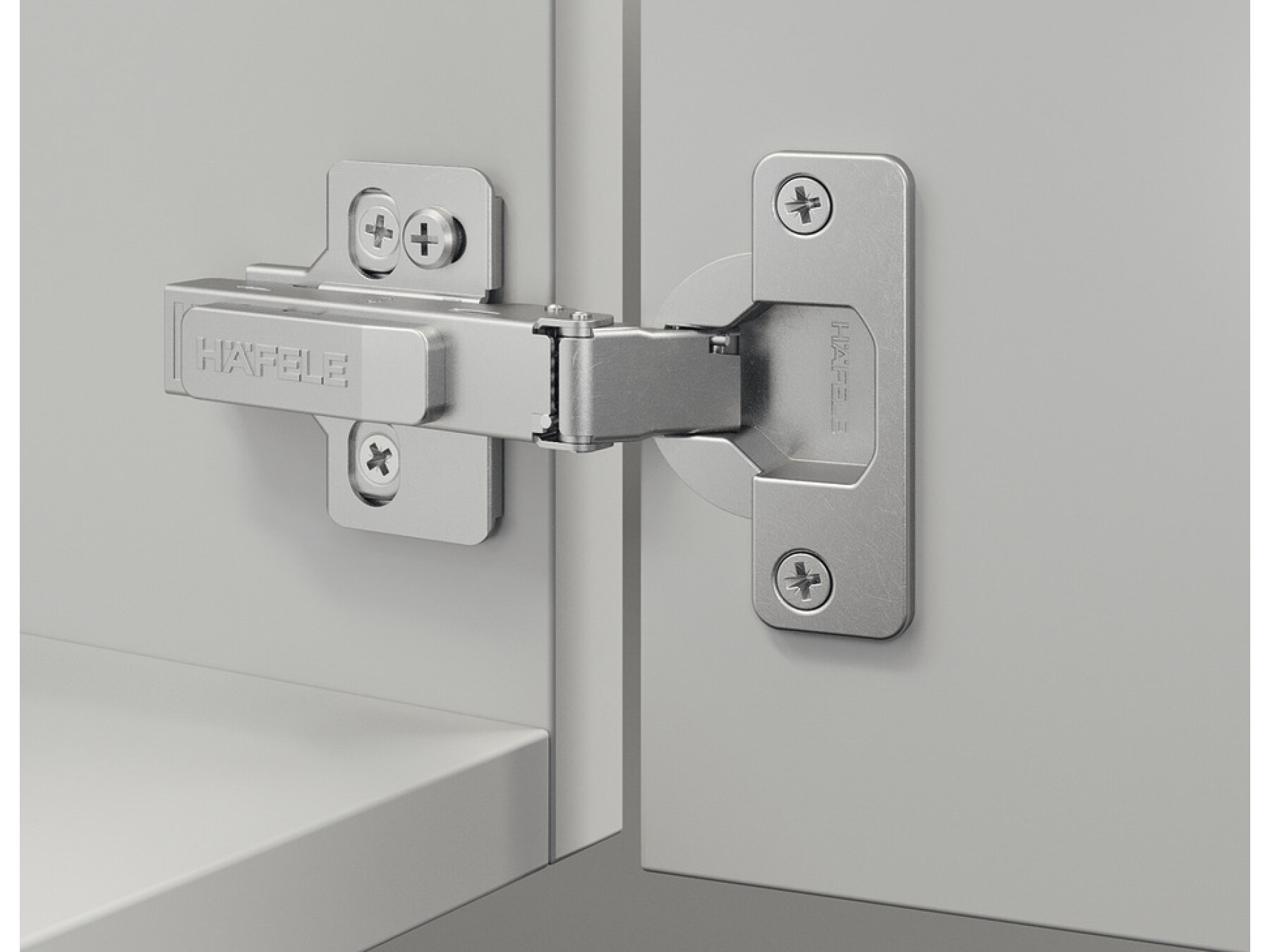

Choose this concealed hinge version in full overlay for a consistent door reveal, and enjoy installation that mounts the door to the cabinet for quick fixing with the SM quick fixing system.

Backed by the Hafele Lifetime Guarantee (25 years), the Concealed Cup Hinge, 110° Standard, for 14 - 22 mm Thick Doors, Full Overlay, Hä is a smart investment in long-lasting performance. Order reference note: mounting plate and Hospa 3.5 mm countersunk screws are required separately.

Order mounting plate and Hospa 3.5 mm countersunk screws separately
