LED Downlight 12 V, Rated IP 20, 3 Light Packed Set, Loox Compatible
Part Number: 833.88.767
Light colour 6500 K
Price:
£49.81
Per Item
LED Downlight 12 V, Rated IP 20, 3 Light Packed Set, Loox Compatible (Product Part No: 833.88.767) is a smart,... Read More
Product Information
Product Details
LED Downlight 12 V, Rated IP 20, 3 Light Packed Set, Loox Compatible (Product Part No: 833.88.767) is a smart, compact way to add bright, even illumination to your home or commercial space. Designed for use with 12 V systems, this high-output downlight set is ideal for kitchens, display areas, corridors and wherever you want crisp light without the bulk.
Featuring a clean 6500 K light colour, the LooxC LED DL delivers a cool, daylight-like brightness that helps enhance clarity and detail. It’s also built for efficient performance, with a 2.40 W wattage and an impressive A+ energy efficiency rating—helping you keep running costs under control.

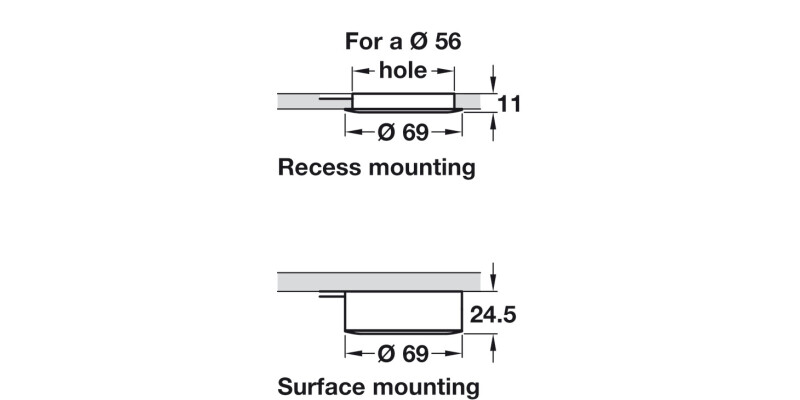

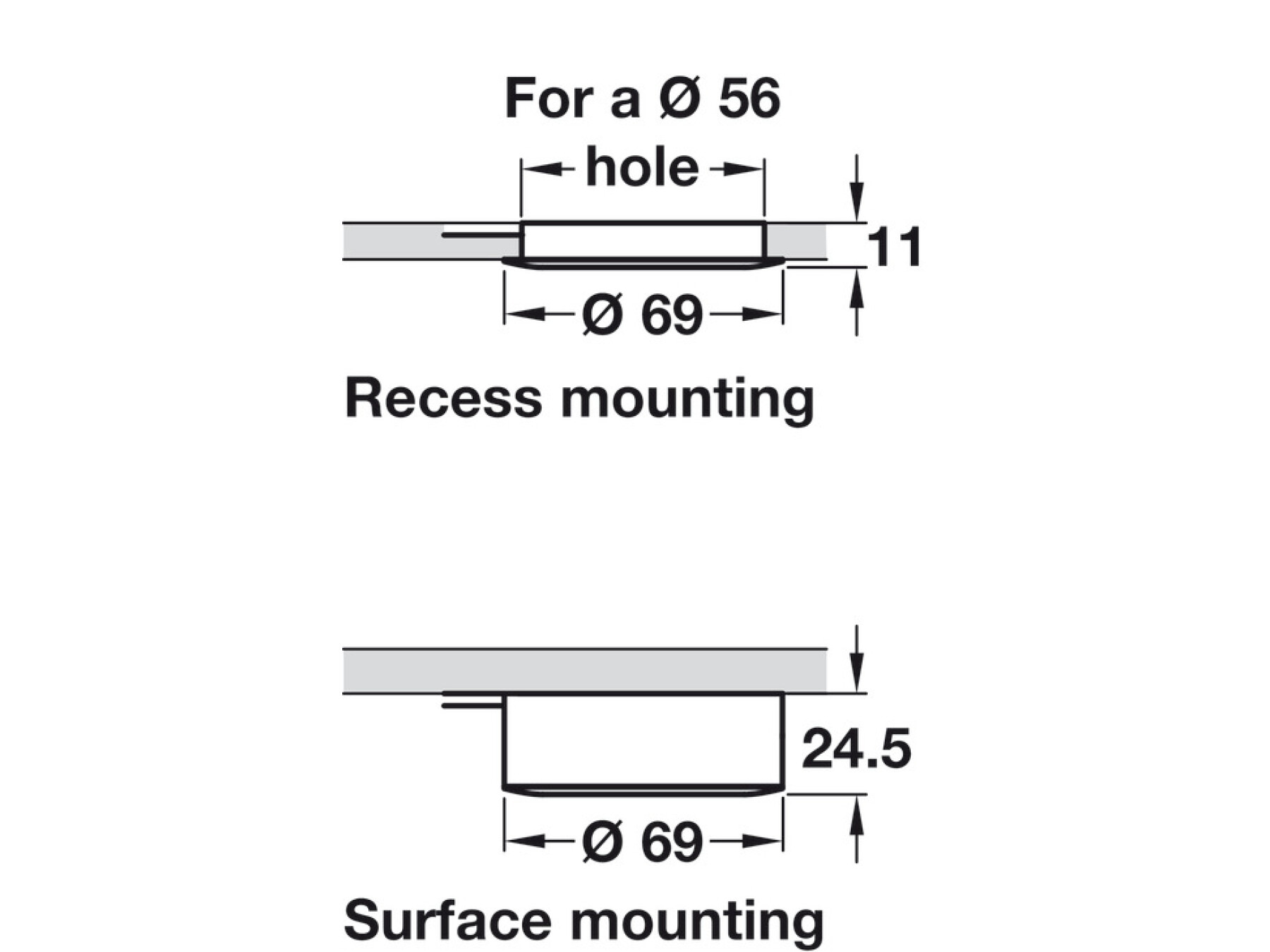

The downlights are engineered with a durable steel housing and a refined nickel plated, brushed finish for a modern look that blends easily with contemporary interiors. Each unit is made for a precise cut-out with a 56.00 mm drill hole, and installation is simple with press fit or screw fixing options.
For added convenience, the system is supplied with everything you need to get started, including connecting leads with Loox 12 V connectors, bezels, a Loox 12 V driver, mains lead and fixings. Please note: the product is not dimmable, and the order switch separately.
If you’re searching for reliable 12 V LED downlights with cool white performance and an elegant nickel finish, choose LED Downlight 12 V, Rated IP 20, 3 Light Packed Set, Loox Compatible—a dependable upgrade that delivers the brightness you want with efficient, long-lasting LED technology.
Specifications
Housing colour/finish
nickel plated, brushed
Nominal voltage
12.00 V
Wattage
2.40 W
Drill hole Ø
56.00 mm
Installation
For press fit, Screw fixing
Dimmable
no
Housing material
Steel
Weighted energy consumption
2.64 kWh/1000 h
Energy efficiency class
A+
Cable length
1,500.00 mm
Order reference
Order switch separately
Supplied with
Connecting leads with Loox 12 V connectors, bezels, Loox 12 V driver, mains lead and fixings
FAQ
Product Details
Is this LooxC LED downlight dimmable?
No, it is not dimmable. This downlight is designed for fixed output at 12 V, so it is not compatible with dimmer controls.
What drill hole size do I need to install the DL D56mm downlight?
You need a 56 mm cut out. The drill hole diameter is 56.00 mm, making it suitable for standard 12 V LED downlight openings.
Can I use it with a 12 V system?
Yes. The nominal voltage is 12.00 V, and it is intended for Loox 12 V installations. It should be powered using the appropriate Loox 12 V driver.
How is the downlight fitted, press fit or screw fixing?
It supports both methods. Installation is for press fit and screw fixing, giving you flexibility depending on the ceiling material and desired security.
What light colour temperature will I get?
6500 K cool white. This downlight provides a 6500 K light colour, which is typically bright and crisp for tasks and general illumination.
What is the power usage and energy efficiency like?
2.4 W per downlight. The wattage is 2.40 W. Its weighted energy consumption is 2.64 kWh per 1000 hours with an A plus energy efficiency rating.
Does it come with the required driver and connectors?
It is supplied with key Loox 12 V installation items, but you may need the switch separately. The pack includes connecting leads with Loox 12 V connectors, bezels, a Loox 12 V driver, mains lead, and fixings. The order reference notes that the order switch is sold separately.
