LED Spot Light 24 V, Ø 180 mm, Monochrome, Rated IP20, Loox5 LED 3066
LED Spot Light 24 V, Ø 180 mm, Monochrome, Rated IP20, Loox5 LED 3066 (Part No: 833.77.294) is a sleek,... Read More
Product Details

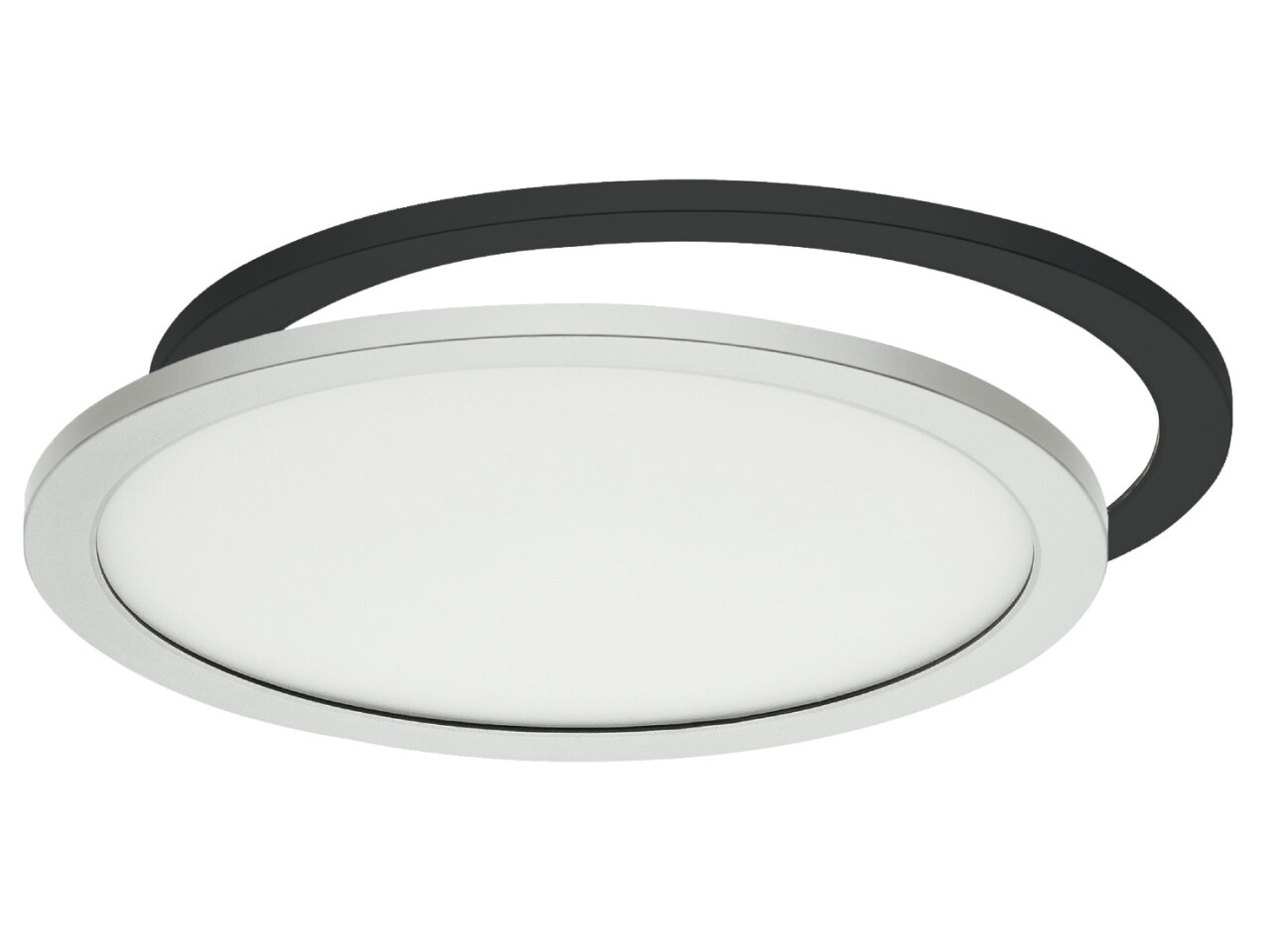

LED Spot Light 24 V, Ø 180 mm, Monochrome, Rated IP20, Loox5 LED 3066 (Part No: 833.77.294) is a sleek, efficient LED spot light designed to bring even, comfortable illumination to everyday spaces. With its plastic housing and modern silver/black finish, this discreet 180mm fitting blends effortlessly into cabinet and kitchen interiors while delivering bright, reliable performance.
Offering a cool white output at 4,000 K, the Loox5 LED3066 creates a clear, practical light for tasks like food prep, reading labels, and finding items quickly. Built with 7 LEDs, it delivers a luminous flux of 550 lm with high luminous efficacy of 84 lm/W, helping you achieve strong results without unnecessary power use.
Designed for smooth integration, the unit operates on 24 V (nominal) and features 6.5 W of power. It’s also dimmable, so you can fine-tune brightness to suit the mood and the moment. For quality you can see in the colour, the Loox5 LED3066 has a Ra > 90, helping colours look natural and true.
With an opal white diffuser for comfortable glare control and an IP20 degree of protection, it’s ideal for indoor cabinet lighting. The fitting is screw fixed (dimension Ø x H: 180 x 7 mm) and includes a 2,000mm cable. Enjoy peace of mind with the Hafele Lifetime Guarantee (7 years).
Order note: Loox5 24 V driver and mains lead must be ordered separately, and the switch is also sold separately.
Specifications
Colour temperature
Light colour
Nominal voltage
Wattage
Number of LEDs
Luminous flux
Luminous efficacy
Housing colour/finish
Energy efficiency class
Diameter
Dimmable
Area of application
For uniform illumination in cabinets and kitchens
Housing material
Diffuser material
Diffuser colour/finish

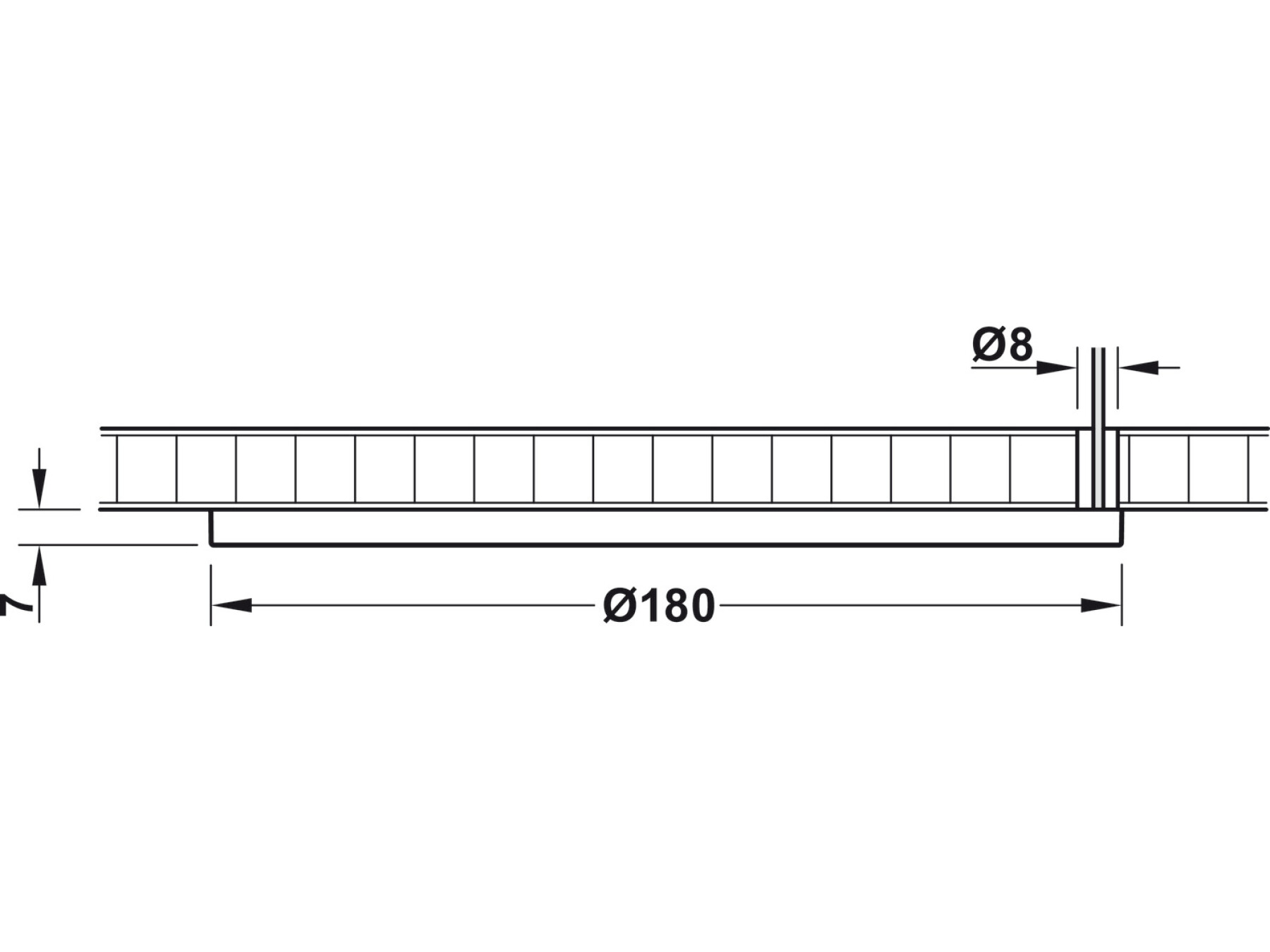

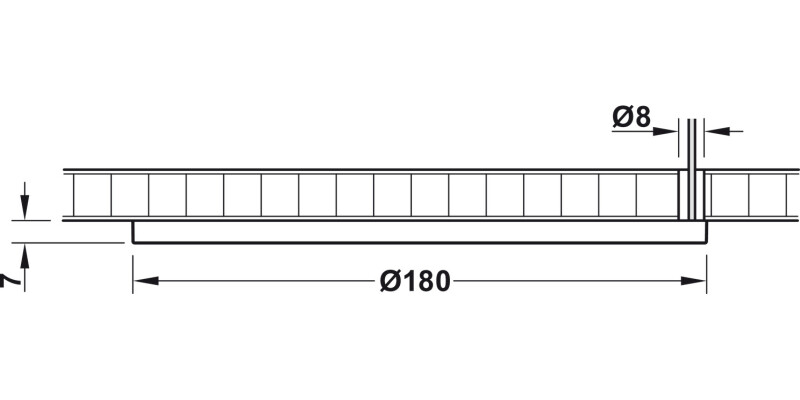

Dim. (Ø x H)
Colour rendering index Ra
Colour rendering index R9
Degree of protection
Installation
Cable length
Hafele Lifetime Guarantee
Installation note
Only install interchangeable frames after installation
Order reference
Order Loox5 24 V driver and mains lead separately
Order switch separately
Product Details
Is this Loox5 LED spotlight suitable for cabinet lighting and kitchens?
Yes. This LED spot light is designed for uniform illumination in areas like cabinets and kitchens, helping you create an even, comfortable light rather than hot spots.
What colour temperature will the light produce?
You get a cool white 4000 K output, which is a popular choice for task lighting because it gives a clear, neutral appearance that works well in kitchens and work areas.
Does it connect to a 24 V system?
Yes. The light is a 24 V LED module. For installation, you will need the correct Loox5 24 V driver and the mains lead, which are ordered separately.
Can it be dimmed?
Yes. It is dimmable, which is useful if you want to adjust brightness for different tasks or to create a softer ambience.
What level of protection does it have and where can it be used?
It has an IP20 rating, which means it is suitable for dry indoor use such as internal cabinet applications. It is not intended for damp or wet locations.
How is it installed and does it come with a long lead?
It is designed for screw fixing during installation. The product also includes a 2.0 m cable length, giving you flexibility when positioning the light in the cabinet.
Will I need to order anything else for the full system?
Yes. The light is part of the Loox5 range and you should order the Loox5 24 V driver and mains lead separately. You can also order the switch separately if needed, so you can build the control setup that suits your installation.
