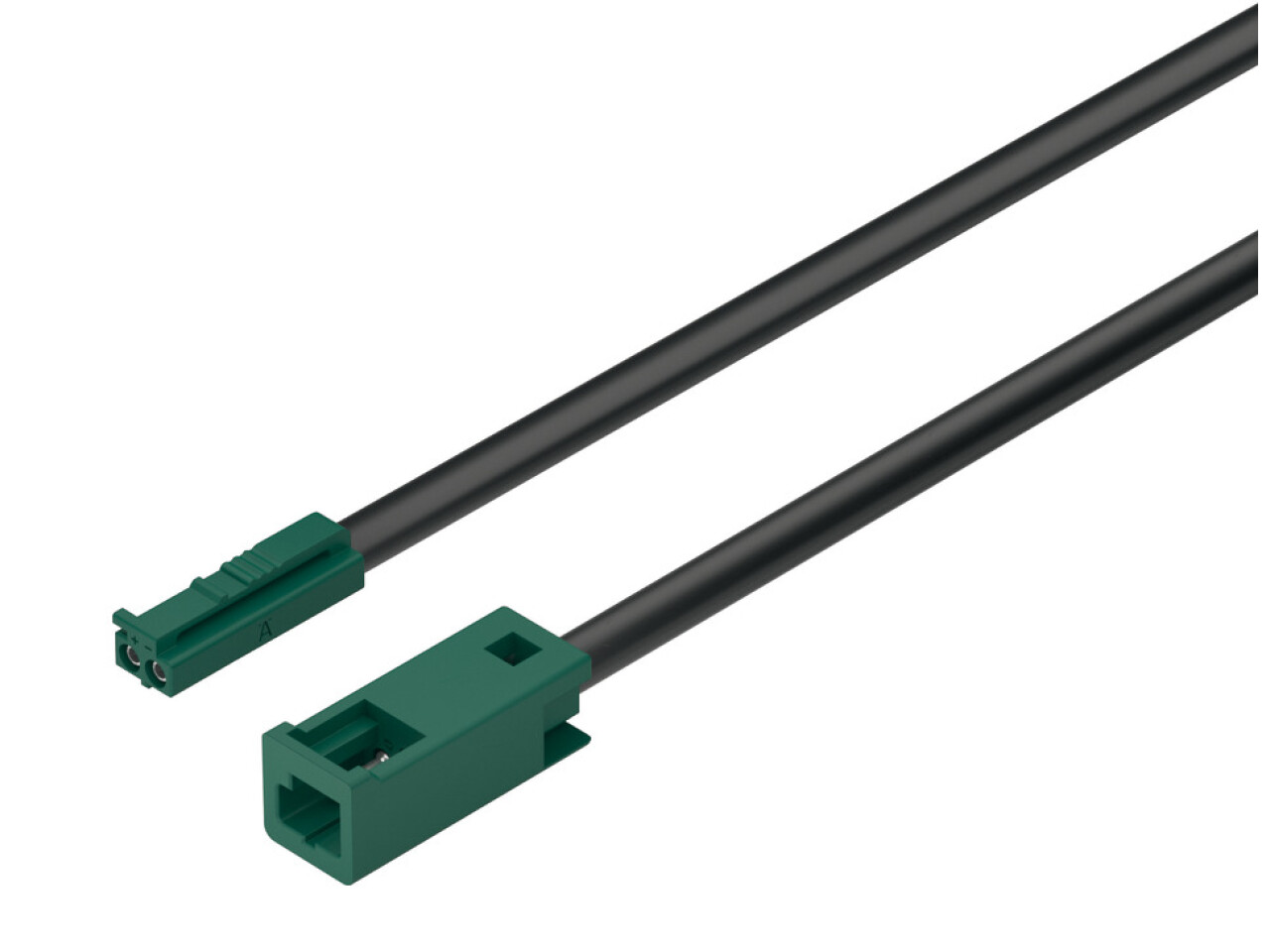

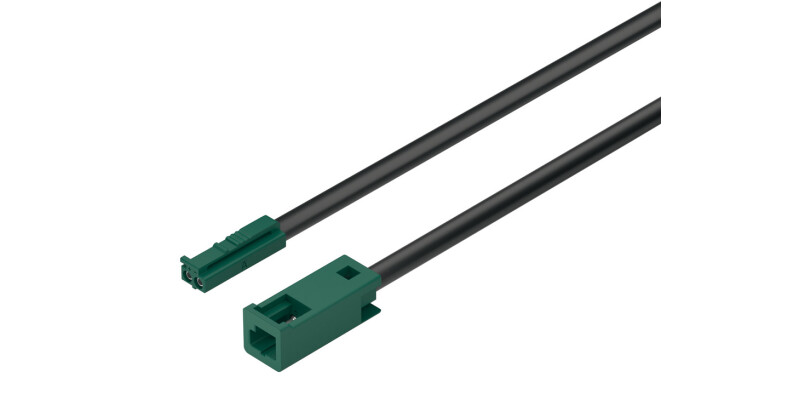

LED Extension Lead, for use with Loox 24 V Monochromatic Lights and Drivers
Part Number: 833.95.719
5 A, 18 AWG, Length 500 mm
Price:
£1.97
Per Item
LED Extension Lead, for use with Loox 24 V Monochromatic Lights and Drivers (Product Part No: 833.95.719) is the... Read More
Product Information
Product Details
LED Extension Lead, for use with Loox 24 V Monochromatic Lights and Drivers (Product Part No: 833.95.719) is the ideal solution when you need a neat, reliable connection for your Loox5 24V LED lighting setup. Designed for flexibility in installation, this LED extension lead helps you extend your power reach without compromising on safety or performance.

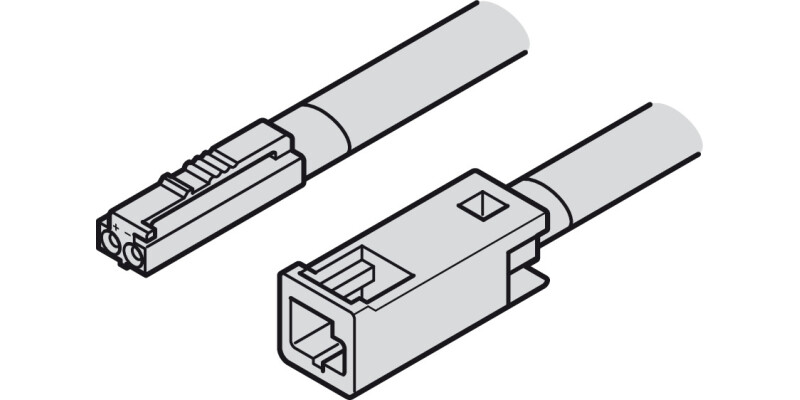

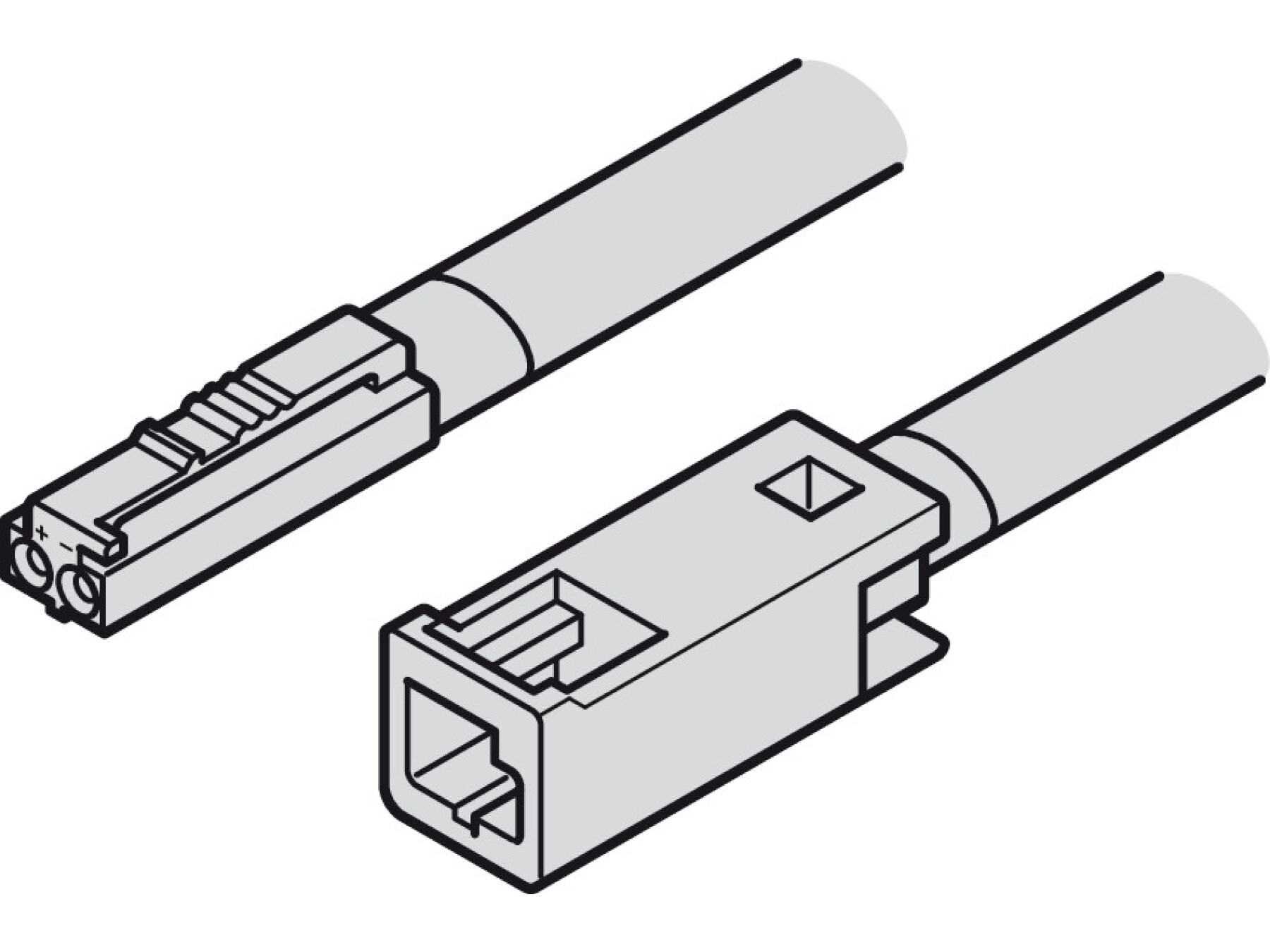

With the included Loox5 2-pin 24 V plug and socket, this extension lead is built for smooth compatibility with your system’s 2-wire technology. It’s rated at 5 A and uses a robust 18 AWG wire cross section for dependable current carrying capacity—perfect for monochromatic lighting and other suitable 2-core consumers and distributors.
At just 500 mm (0.5 m) long, it’s a practical choice for tidy cable runs, clean routing, and professional-looking finishes in kitchens, wardrobes, display areas, and more. The extension lead features monochrome / MW 2-wire technology and is supplied as 1x Extension lead, 1x plug/1x socket for straightforward installation.
Technical highlights include a 24.00 V nominal voltage, 2 leads, and connector drill hole sizes of Ø 8.00 mm for the plug and Ø 13.00 mm for the socket. To support long-term peace of mind, it carries a Häfele Lifetime Guarantee of 7 years, making this a smart, future-ready addition to your lighting project.
Choose the LED Extension Lead, for use with Loox 24 V Monochromatic Lights and Drivers when you want a compact extension lead that’s easy to use, correctly rated, and built for reliable 24V LED installations.
Specifications
Colour system
monochrome or MW 2-wire-Technology
Input ports
1 x plug, Loox5 2-pin 24 V
Output ports
1 x socket, Loox5 2-pin 24 V
Nominal voltage
24.00 V
Current carrying capacity
5.00 A
Wire cross section AWG
18.00
Area of application
For monochromatic lights and other 2-core constumers and distributors
Number of leads
2.00

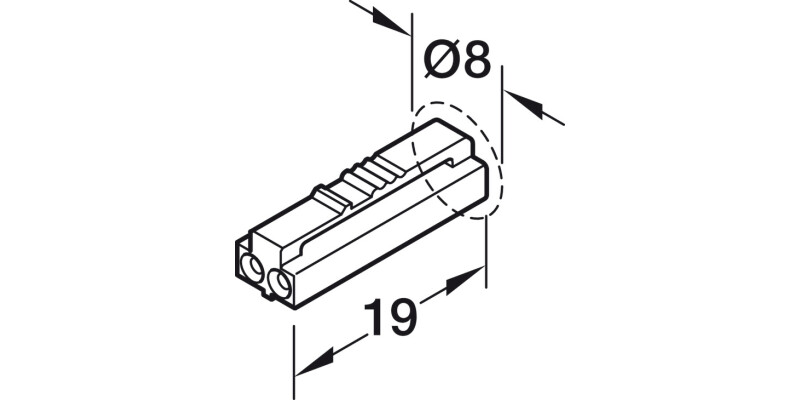

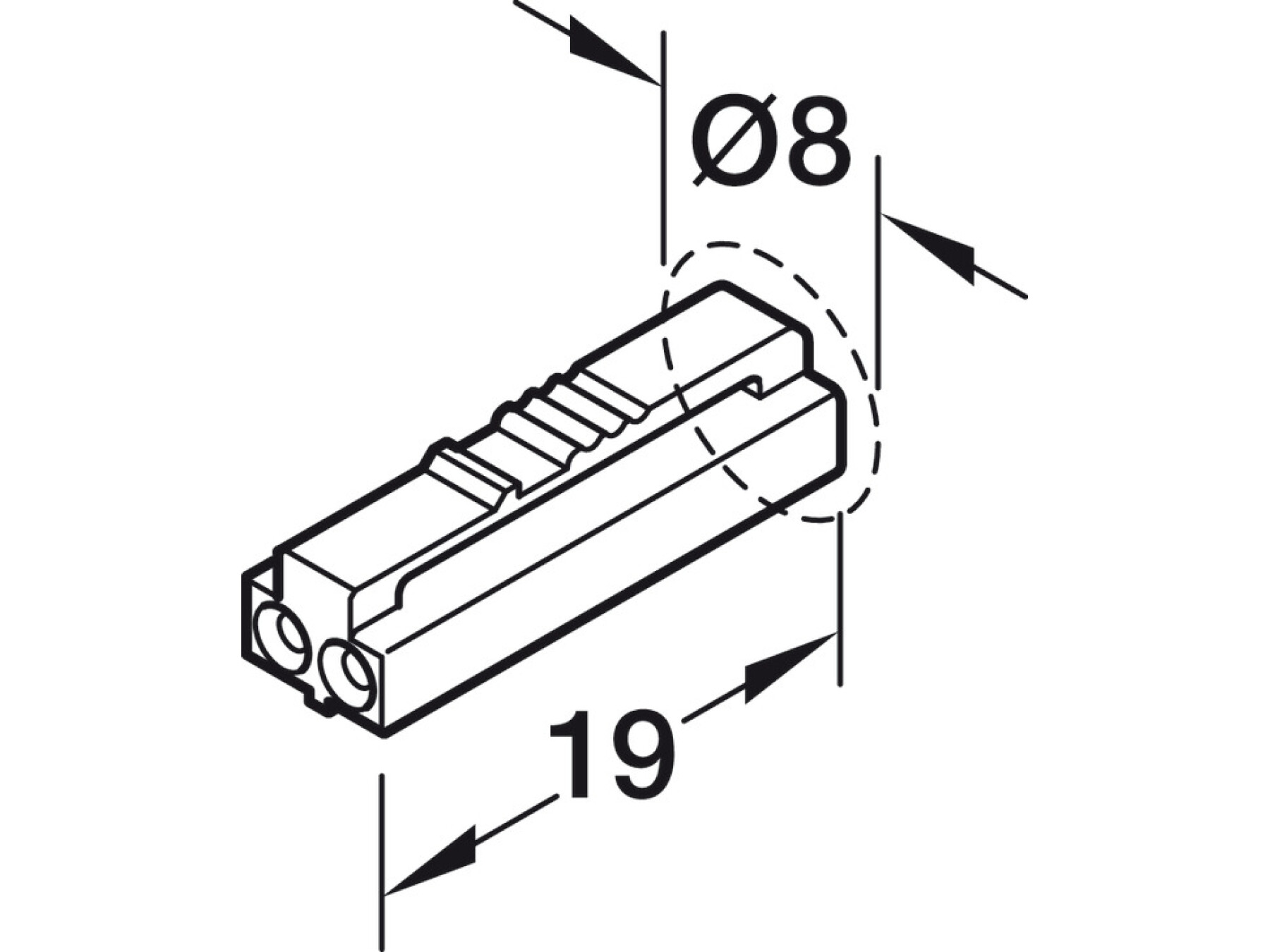

Plug drill hole Ø
8.00 mm

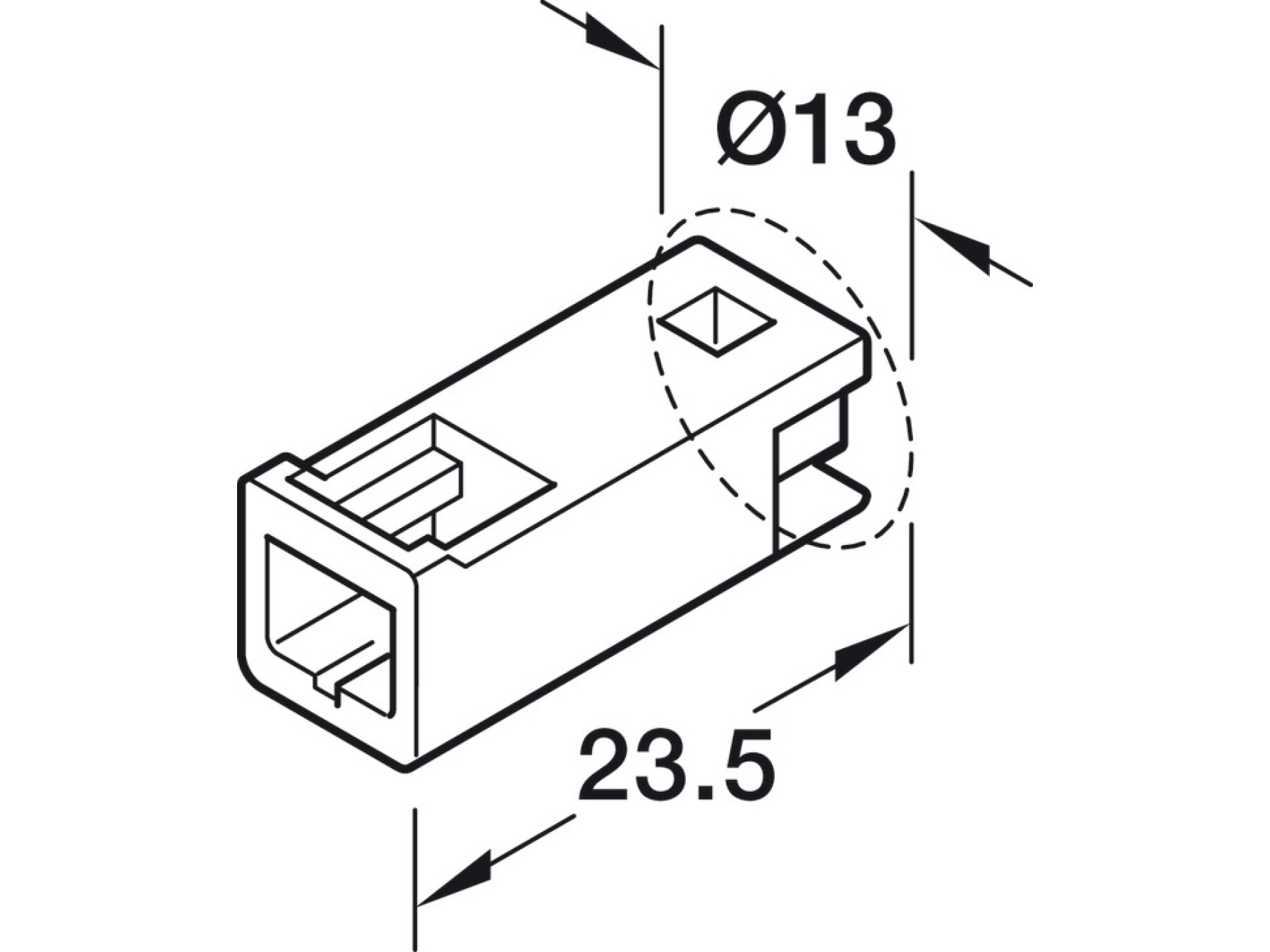

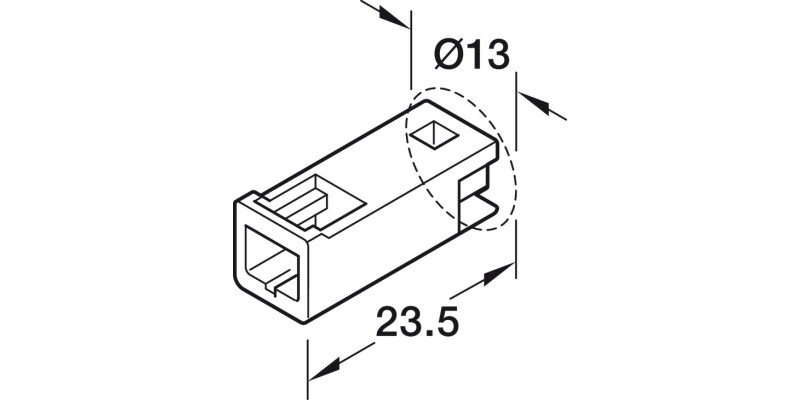

Socket drill hole Ø
13.00 mm
Hafele Lifetime Guarantee
7 years
Supplied with
1x Extension lead, 1x plug/1 socket
FAQ
Product Details
What is the Loox5 LED Extension Lead 24V used for?
This 24V Loox5 extension lead (500 mm) is designed to extend Loox5 2 pin 24 V LED lighting connections and other compatible 2 core accessories and distributors. It helps you reach the correct position without needing to change your existing Loox5 wiring setup.
Will this extension lead match my Loox5 lights?
It is made for Loox5 2 pin 24 V systems. The lead includes one Loox5 2 pin plug and one Loox5 2 pin socket, so you can connect straight through when your lighting uses the same Loox5 24 V two pin format.
What electrical rating should I check before installing?
The lead is rated for up to 5 A at 24 V, with 18 AWG conductor size. Before installation, ensure the total current of your LEDs and any connected devices stays within the 5 A limit.
How long is it and how much extra reach does it give?
The cable length is 500 mm which is ideal for bridging moderate gaps between a driver position and a run of Loox5 LED fittings. It is also useful for tidying layout by keeping connections close to where they are needed.
Does the plug and socket require specific mounting hole sizes?
Yes, the lead provides guidance on drill hole sizes: the plug drill hole is 8.0 mm and the socket drill hole is 13.0 mm. Checking these dimensions beforehand can make installation faster and help you avoid fitment issues.
What does the Hafele lifetime guarantee cover?
This product includes a Hafele Lifetime Guarantee of 7 years. If you are choosing a Loox5-compatible extension lead for a long term lighting installation, this added coverage can help you buy with confidence.
Is this extension lead supplied with the connectors I need?
Yes. It is supplied as a complete lead with one extension lead and one Loox5 plug and socket pair, ready to connect your 24 V Loox5 lighting components without needing additional parts.
