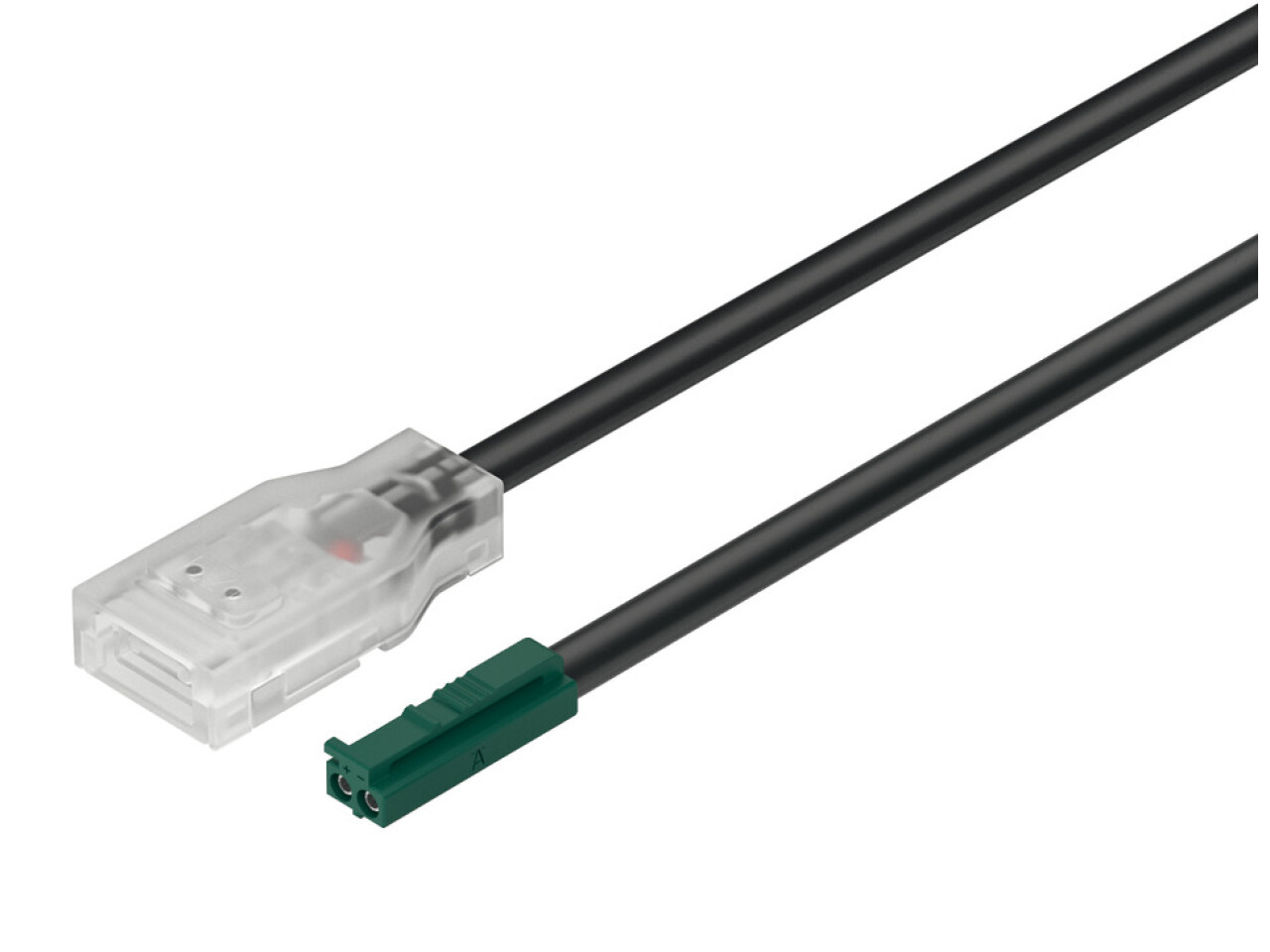

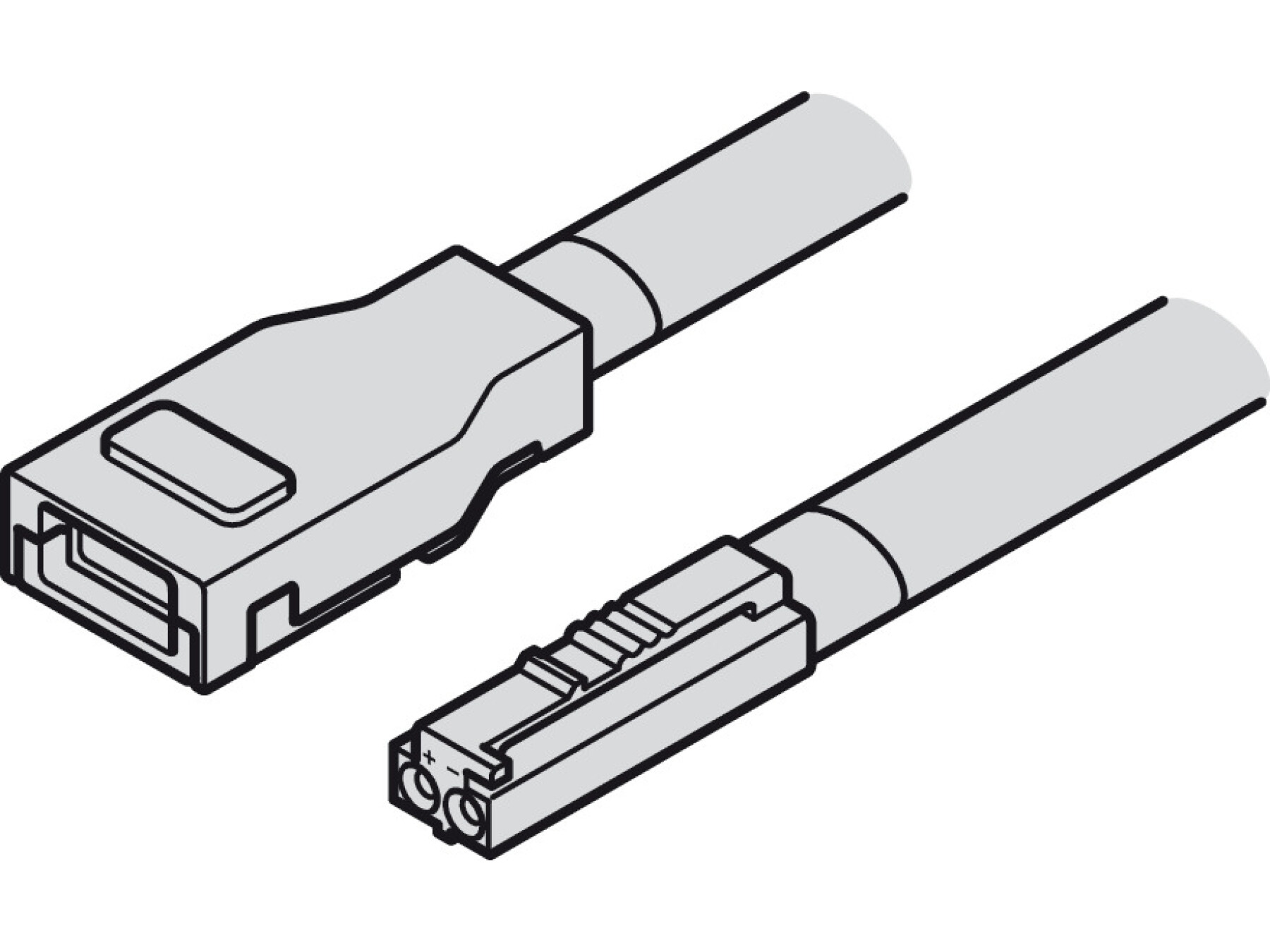

Driver to Light Lead, for 24 V Loox5 LED Monochromatic Strip Lights

Product Details

Will this Loox5 LED lead work with 8 mm LED silicone strip lights?

Yes. The Loox5 LED 8 mm IP44 C lead is designed specifically for use with Loox5 LED silicone strip lights in the 8 mm range. It is intended for connecting the driver to your strip for a tidy, reliable installation.

What voltage and wire specification does the lead use?

It operates at 24 V and uses 18 AWG cable. The lead is rated for 5 A current carrying capacity, which helps ensure compatibility with correctly specified 24 V LED systems.

How long is the driver to light connection cable?

The cable length is 2000 mm (2.0 m). This is a practical distance for most typical under cabinet, display, or feature lighting runs where the driver is located nearby.

Is this lead protected for damp or splash-prone locations?

It has IP44 protection, which means it is suitable for areas where splashes or damp conditions may occur, compared with basic indoor leads. Always ensure the overall LED system and fitting positions are installed according to the strip and driver requirements.

What plug or connector should I expect to receive?

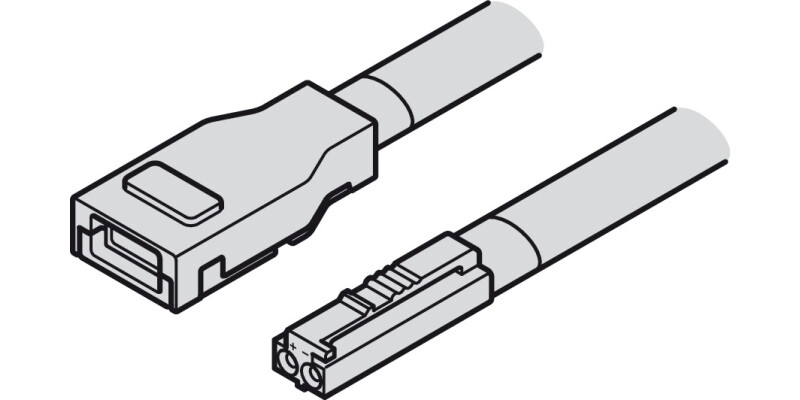

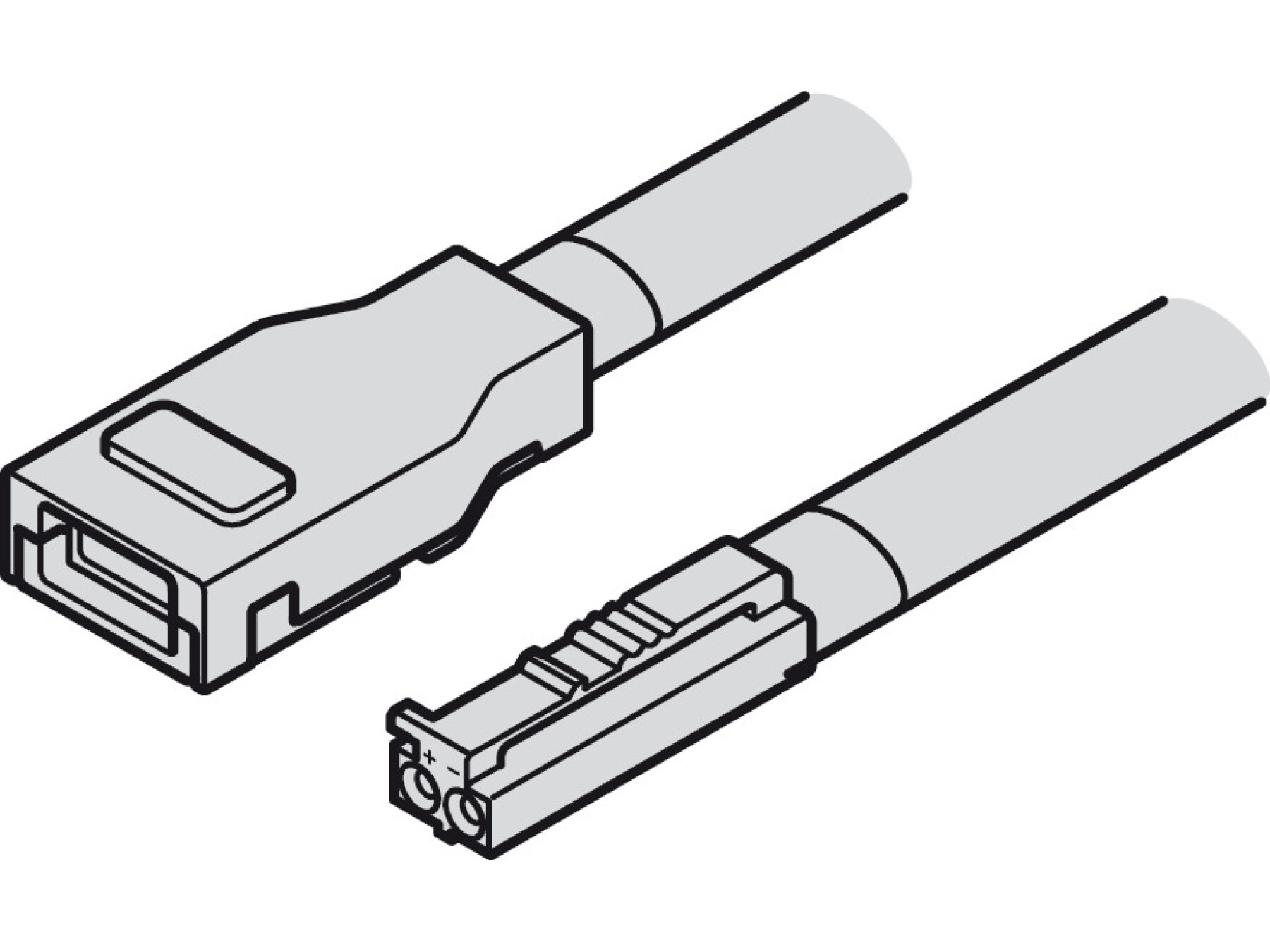

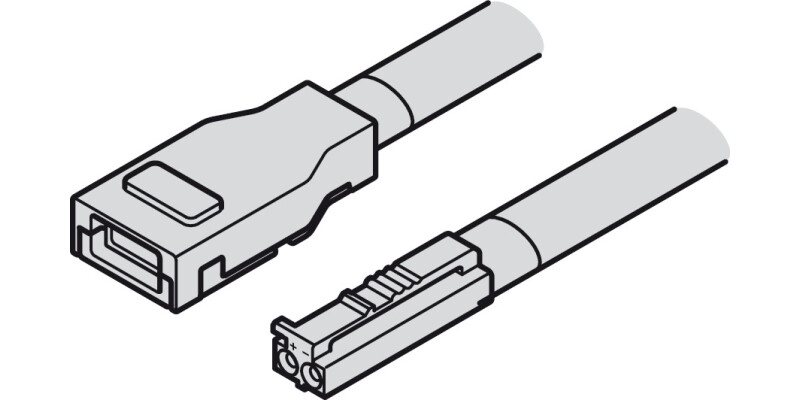

It is supplied with 1x lead plug or clip for connection to compatible Loox5 LED strip systems. If you already have the Loox5 8 mm strip, this lead is made to match that connection style for easier set up.

Are there guidance details for drilling or mounting the lead?

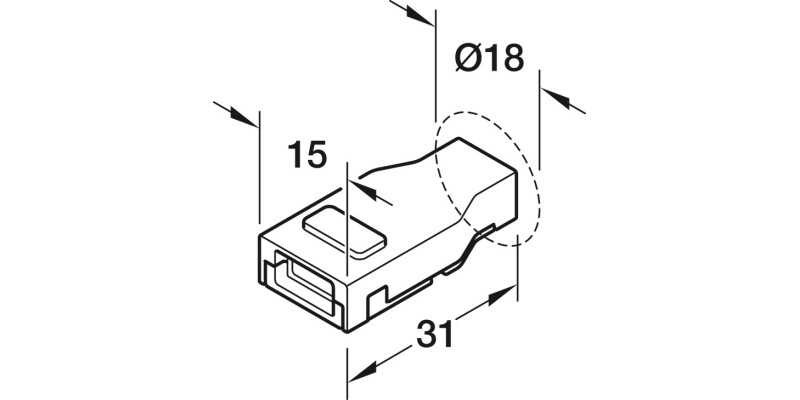

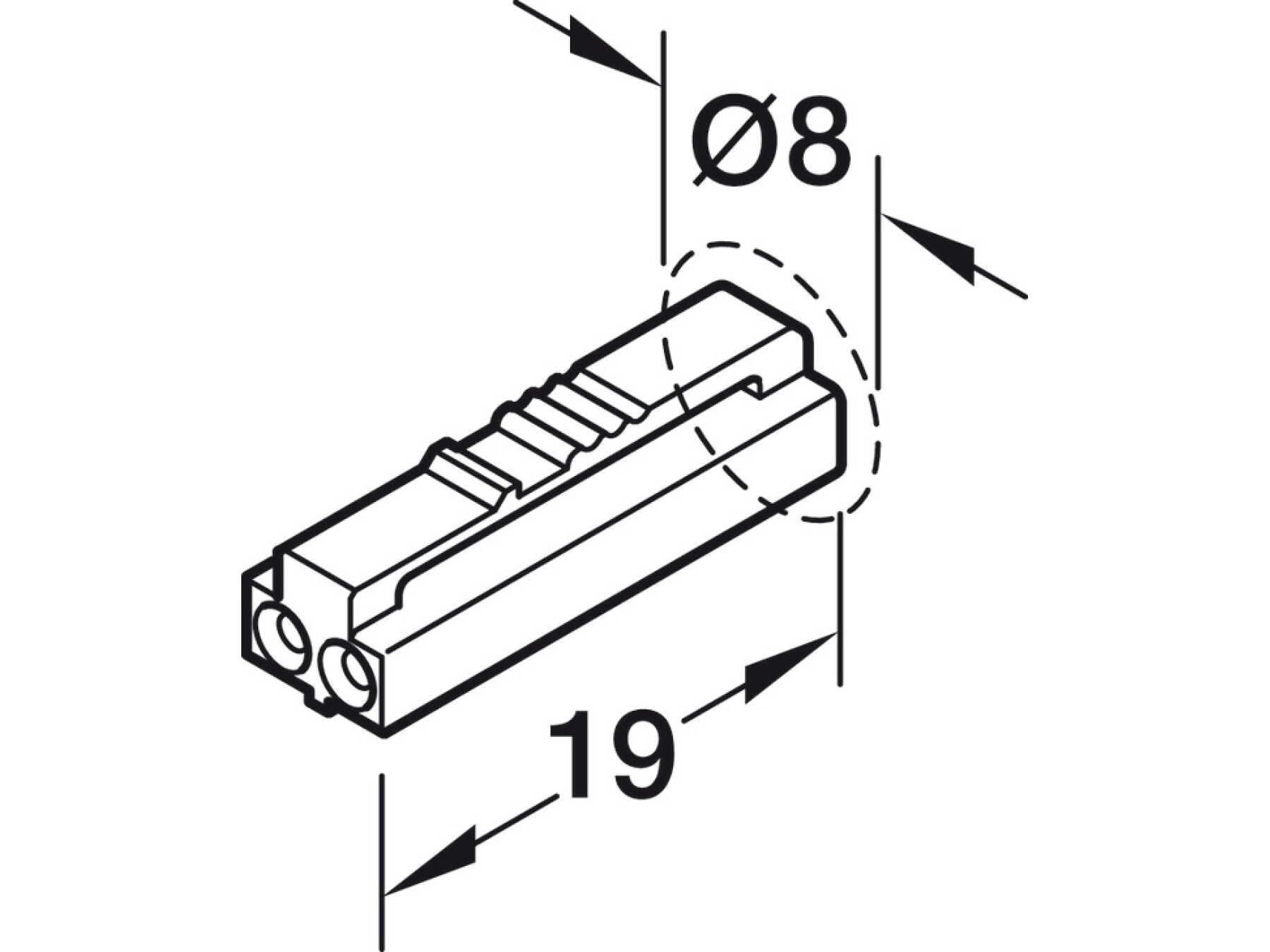

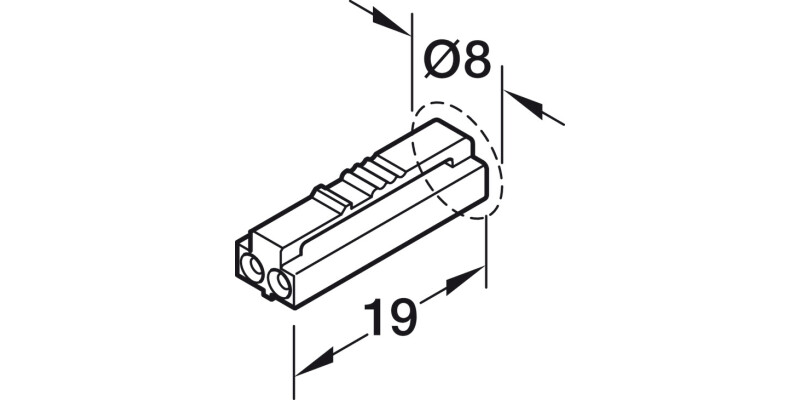

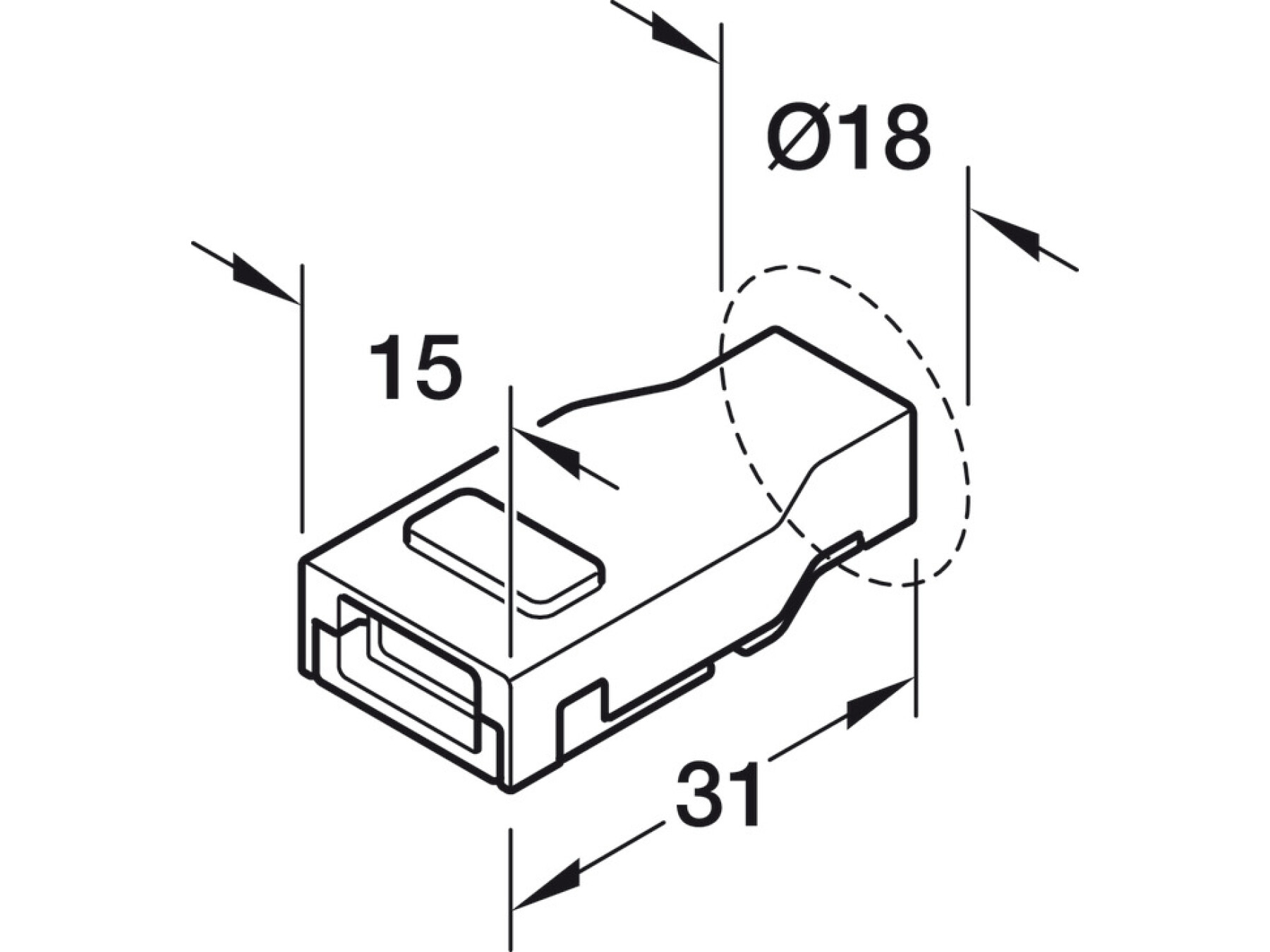

Yes. The connector system uses defined drill sizes, including a plug drill hole diameter of 8 mm and a clip drill hole diameter of 18 mm. Using these measurements helps achieve a secure fit and neat cable routing during installation.

Is there a warranty or lifetime guarantee?

Yes. The product includes a Hafele Lifetime Guarantee of 7 years, giving additional reassurance for long term use when the system is installed and used as intended.
