Interconnecting Lead, IP20, for Monochrome and COB LED Strip Lights, 8 mm, Loox5 (Part No: 833.75.766) is the... Read More

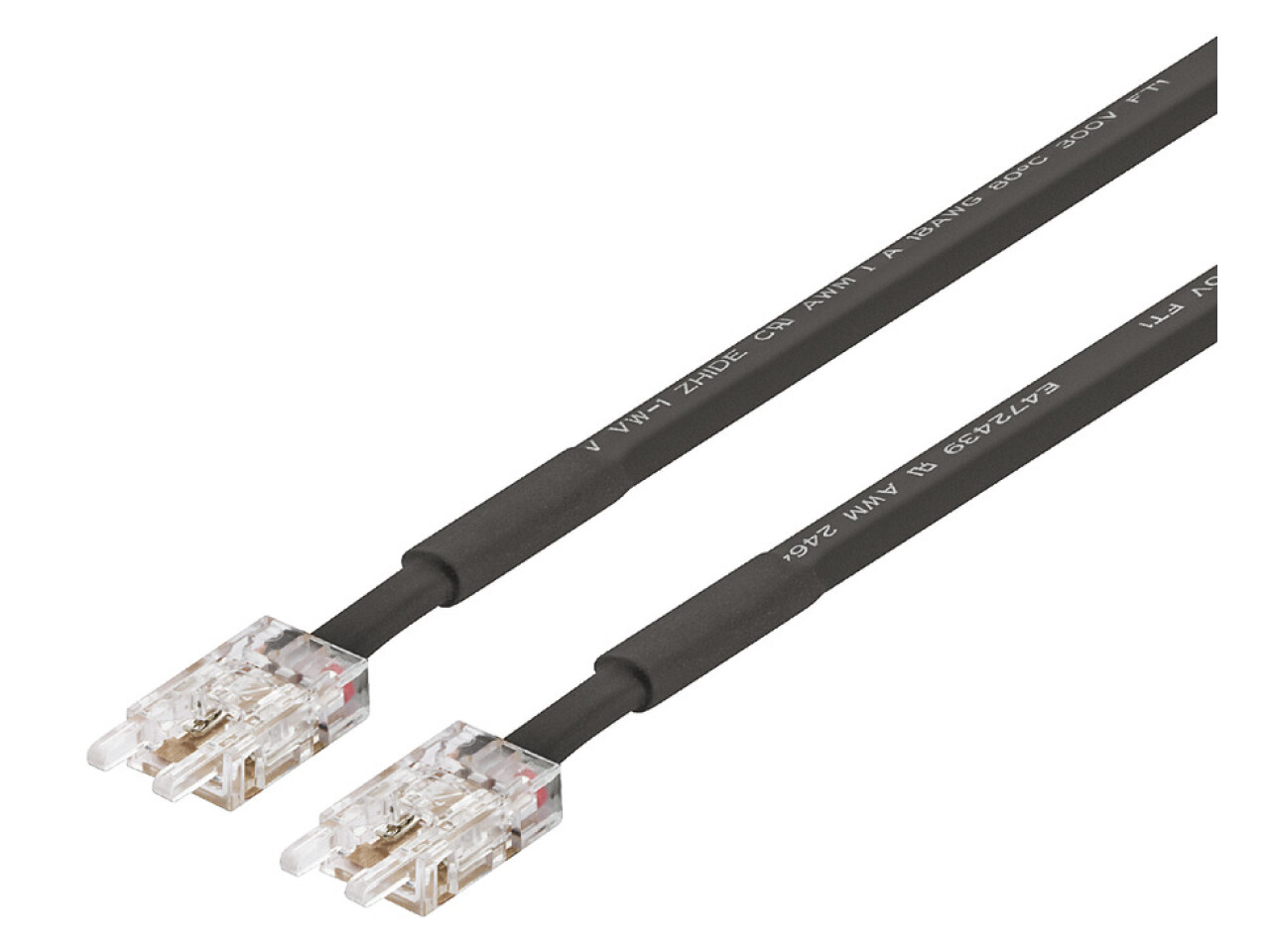

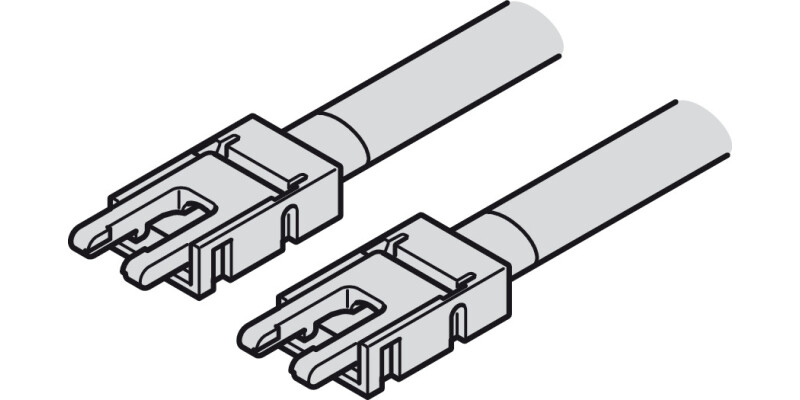

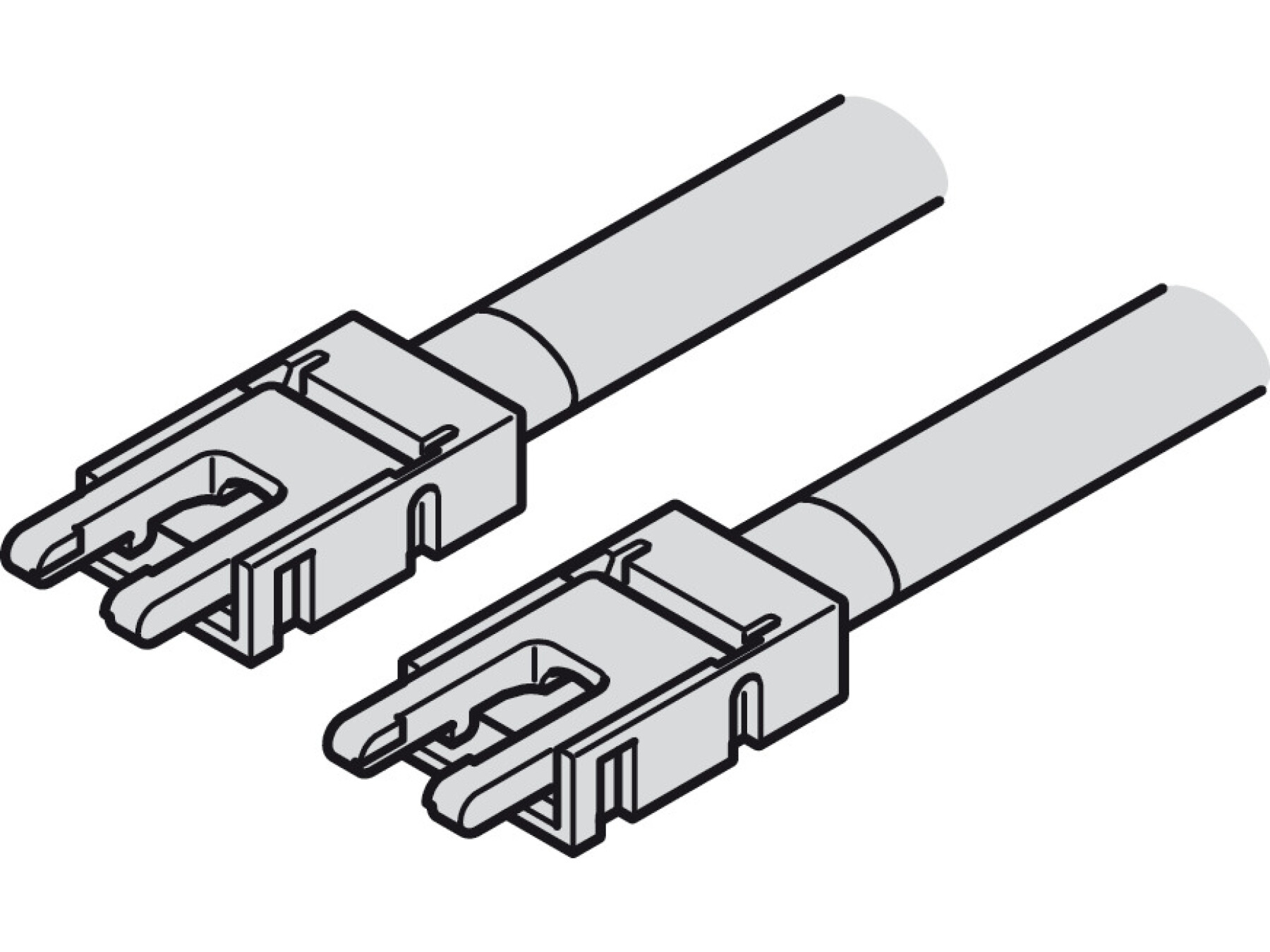

Interconnecting Lead, IP20, for Monochrome and COB LED Strip Lights, 8 mm, Loox5 (Part No: 833.75.766) is the ideal interconnecting lead for creating clean, reliable LED strip installations. Designed specifically for Loox5 systems, this lead helps you connect two compatible 8 mm monochrome COB LED strip lights with a secure, tidy finish—perfect for kitchens, shelving displays, wardrobes and other discreet lighting projects.
Operating on 24 V power with a robust 5 A current capacity, the Loox5 2.0 m lead gives you the flexibility to plan your lighting runs while maintaining consistent performance. With a total length of 2000 mm, it’s a practical solution for extending lighting lines without messy wiring.

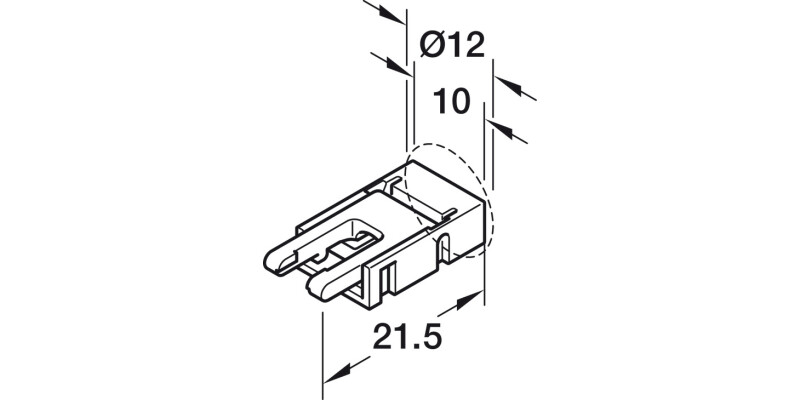

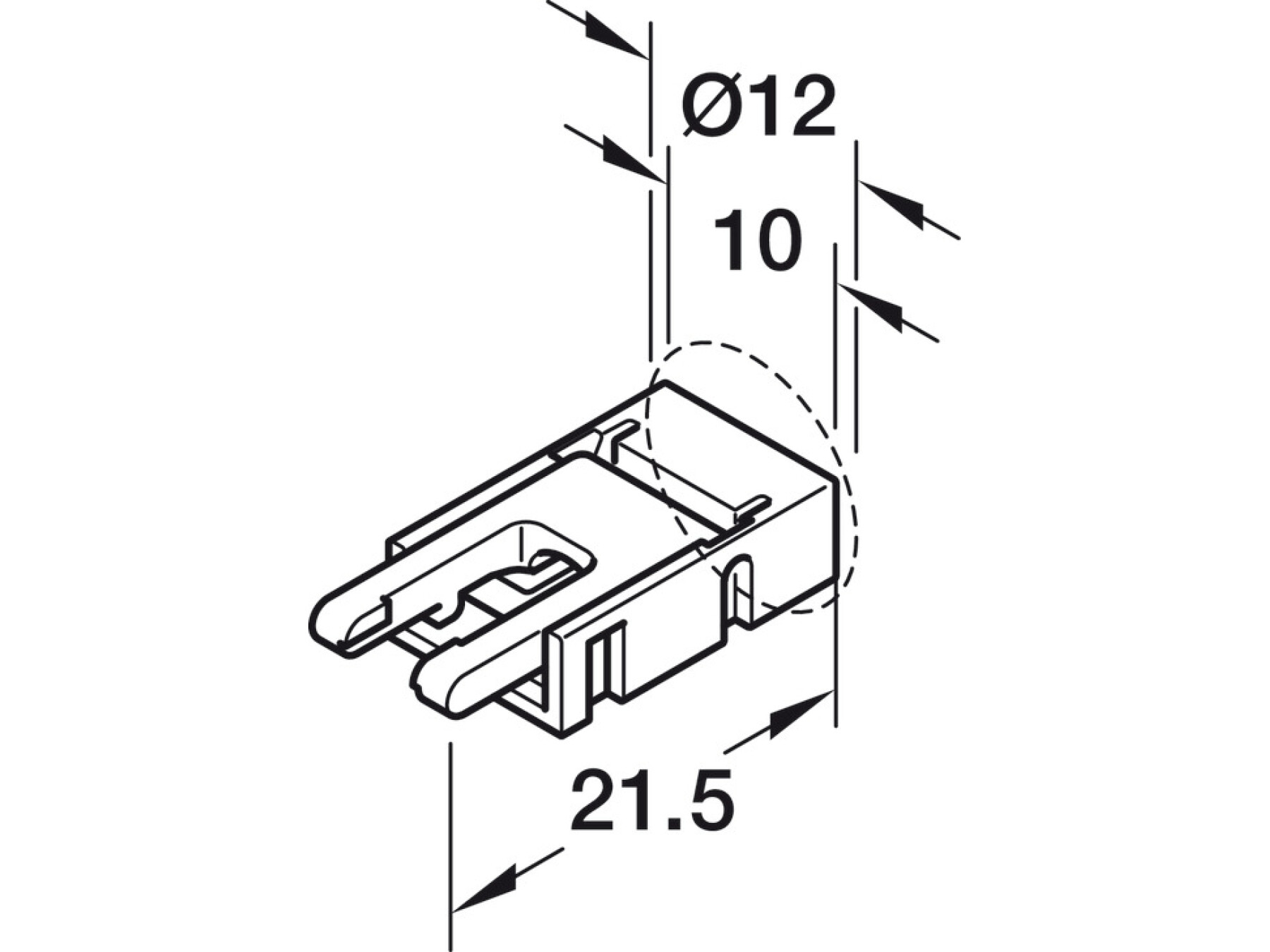

The lead features a 2-wire monochrome connection system and is built for a straightforward install. It includes 1 x clip as the input connection and 1 x clip as the output connection, with a clip width of 10.00 mm for a secure fit. The clip drill hole requirement is Ø 12.00 mm, while the wire cross section is AWG 18 to support stable current carrying.
Constructed from plastic, this IP20 rated lead is suitable for indoor use. Supplied with 1x lead plug/clip, it’s ready to integrate into your Loox5 setup.
Choose confidence with the Häfele Lifetime Guarantee (7 years) and enjoy a neat, professional connection between your Loox5 LED strips.
for connecting two LED strip lights
1x Lead plug/clip
Yes. This interconnecting lead is designed for 24 V Loox5 LED strip connections and supports a current rating of up to 5 A, making it a practical choice when extending or linking compatible 8 mm LED strip runs.
The lead uses a clip style connection that is made to attach to Loox5 8 mm LED strip lights. The clip width is 10 mm, helping provide a secure physical connection between two strip sections.
Yes. It is intended for connecting two LED strip lights using a two lead, two wire arrangement, so you can join compatible strip sections together in line.
The lead length is 2000 mm. This gives you up to 2 metres of flexible reach between two connected strip locations, which is often useful for furniture runs, recessed display edges, or cabinet lighting where the driver and strip sections are spaced out.
This lead is rated IP20, meaning it is intended for indoor use and is protected against contact with fingers while not designed for wet or dusty environments. It is a good option for typical interior lighting applications.
The lead uses a wire cross section of 18 AWG. Combined with the 5 A current carrying capacity, this helps ensure the lead is appropriately sized for compatible Loox5 24 V connections.
The product is supplied with 1 x lead plug or clip, so you have the connection piece needed to join the Loox5 8 mm LED strip lights.
