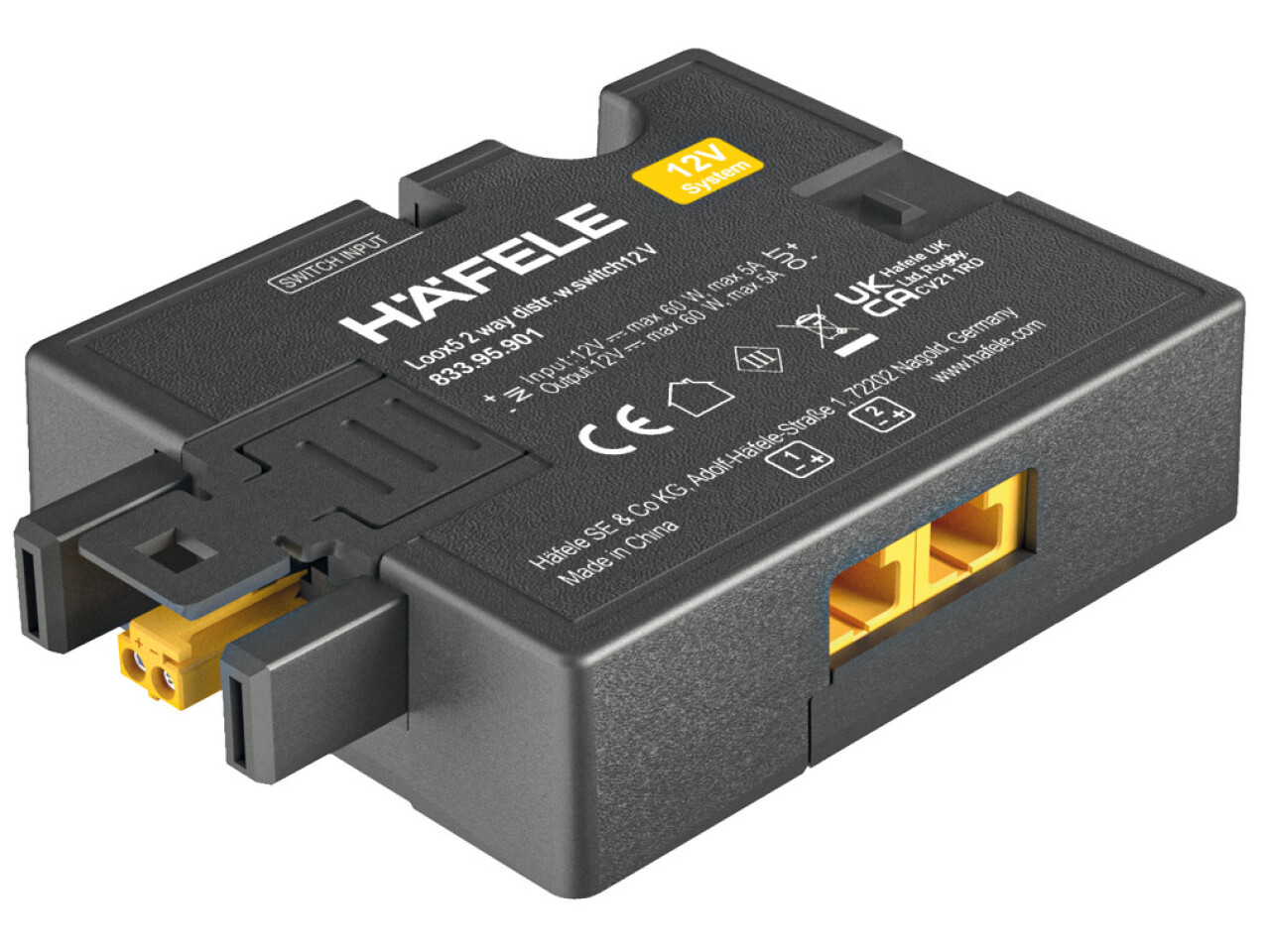

Distributor 12 V, 2-Way, with Switching Function for 1 Switch, Loox5

What does the switching function do on the Loox5 2 Way Distr Swt Box?

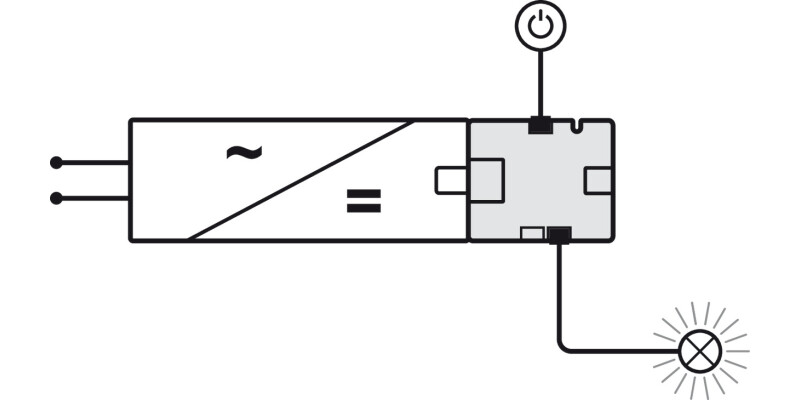

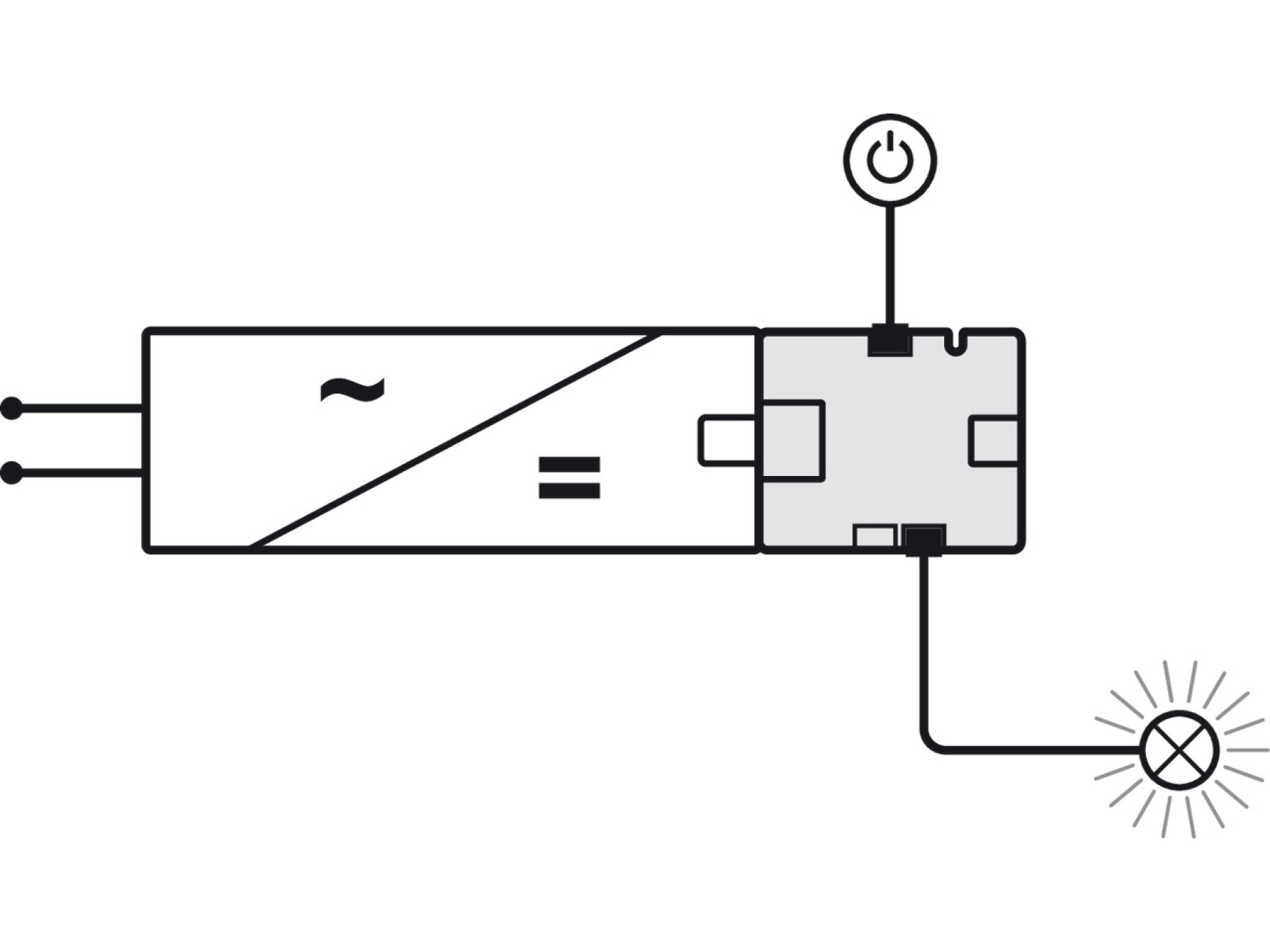

The switching function lets you control two separate 12 V output points from one Loox switch input. This is helpful when you want to switch multiple low voltage lights or devices together while using a compact distribution box. You can use the box for applications where a single switch controls more than one output.

How many 12 V connections does this distributor box support?

The Loox5 2 Way Distr Swt BoxBox provides one Loox5 2 pin 12 V plug as the input and two Loox5 2 pin 12 V sockets for the connected outputs. There is also one control input socket designed for a Loox switch connection.

What is the maximum wattage and voltage rating for the outputs?

The distributor is rated for 12 V operation with a maximum connected wattage of 60 W. To stay within specification, ensure the total load of the connected devices does not exceed 60 W. If you are unsure, add up the wattage of each connected light or driver and compare it to the limit.

Can I connect two different light runs to the same switch?

Yes. Because it is a two output distributor with a switching function, you can feed two separate output sockets from one control input. This makes it suitable for scenarios such as one switch controlling two zones or two separate lighting points from the same 12 V supply.

How small is the box and where can it be installed?

The compact size, at 50 x 50 x 16 mm, makes it suitable for tidy installation in common Loox5 low voltage systems. Its small form factor helps reduce the space needed when routing cables, but always ensure you allow enough clearance for connections and follow your installation layout.

Is the Hafele Lifetime Guarantee applicable to this product?

This Loox5 distributor box includes a 7 year Hafele Lifetime Guarantee. That guarantee gives reassurance on the product performance over time, which can be particularly valuable for concealed or hard to access lighting installations.

What is the part number if I am ordering for a specific project?

The product part number is 833.95.901 and the product name is Loox5 2 Way Distr Swt BoxBox 12 V 60 W. If you are matching parts across a project, using the part number helps ensure compatibility and correct ordering.
