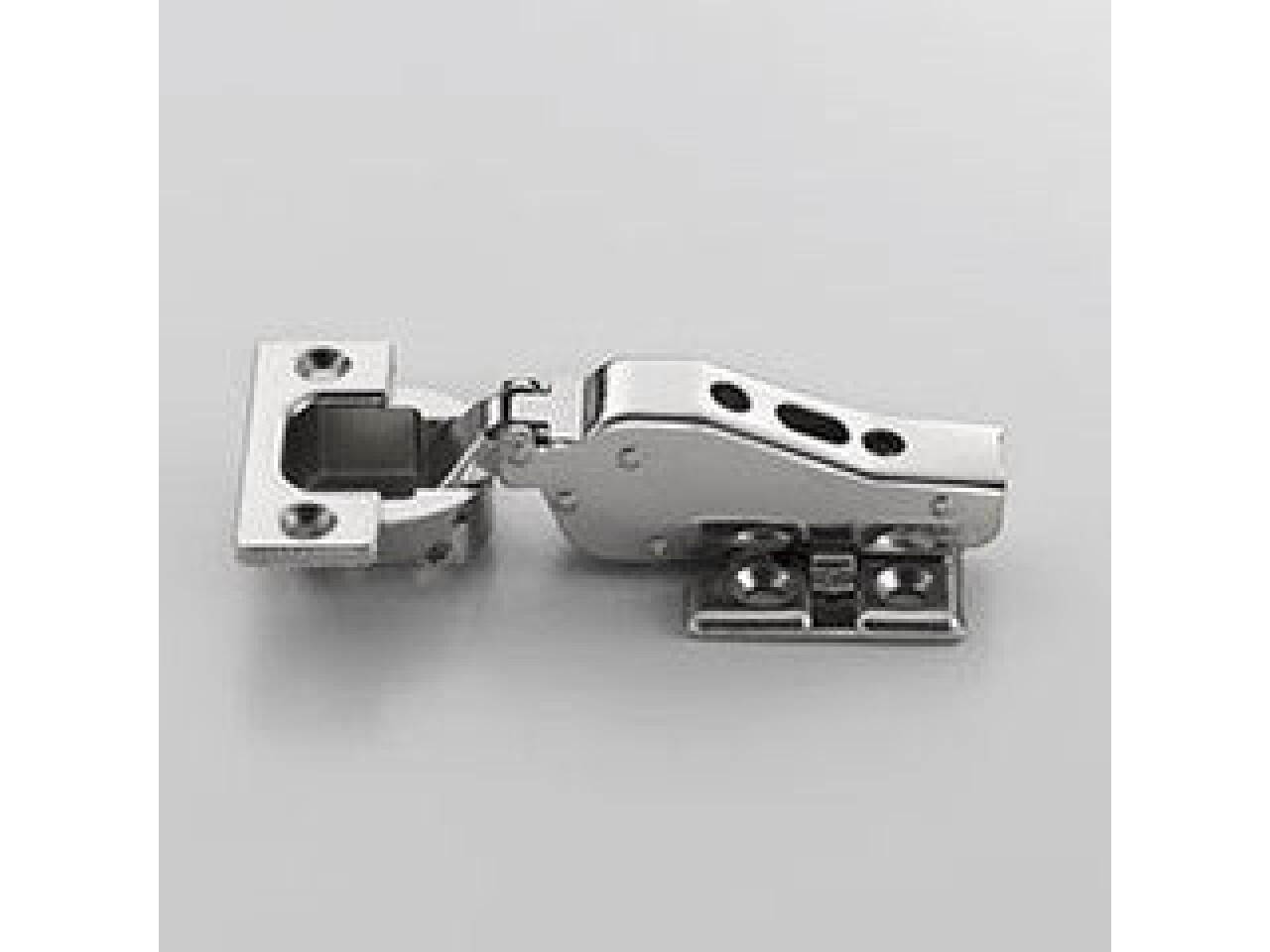

Heavy duty concealed cabinet hinge 95° with 16mm overlay [40mm cup hinge]

Product Details

Is this a concealed hinge or a surface mounted flap stay?

This is a concealed cabinet hinge designed for flap applications, using a 40 mm cup hinge with a 16 mm overlay. It sits inside the cabinet door so the mechanism is mostly hidden from view when the flap is closed.

What does the 16 mm overlay mean for door alignment?

16 mm overlay refers to how much of the cabinet opening the flap door covers. Choosing the correct overlay helps ensure the door sits evenly and closes with a consistent reveal across the cabinet run.

Will the hinge fit a 40 mm boring in my cabinet door?

Yes, it is a 40 mm cup hinge system. If your door has been bored for a 40 mm hinge cup, this part will be the correct type for that layout.

Is the hinge suitable for heavier doors and commercial use?

It is a heavy duty concealed cabinet hinge, intended to handle demanding furniture applications. If your flap door is substantial in size or weight, this hinge is a sensible choice compared with lighter duty options.

What part number should I order to avoid compatibility issues?

Order Sugatsune J95-16 to match the exact specifications for the 16 mm overlay heavy duty 40 mm cup hinge. Using the correct part number helps prevent misalignment and fitting problems.

How do I confirm the hinge category I need for a flap fitting?

This sits within flap fittings and flap stay style hardware for cabinet flap installations. If you are upgrading or replacing hinge units for a flap door that requires a concealed cup hinge with overlay, this product line is specifically aligned to that use.

Can this hinge be used when fitting living and commercial furniture together?

Yes. Its heavy duty design makes it suitable for both living and commercial solutions where consistent performance is important. If you are standardising hardware across residential and workplace cabinetry, this part can help keep the build uniform.
