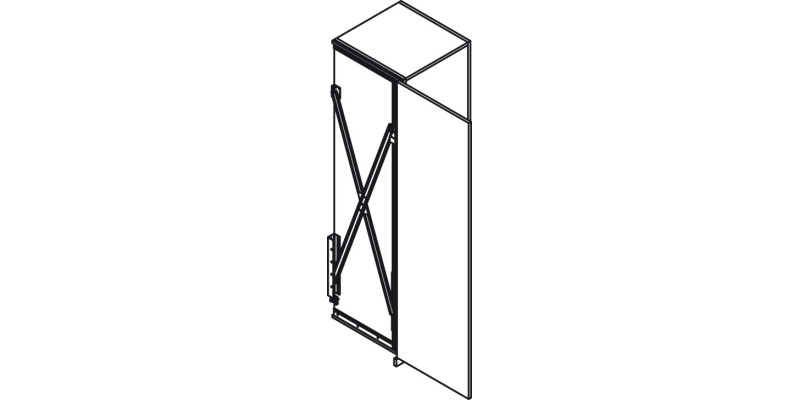

Complete Set, for Pivot Sliding Cabinet Doors, Soft Closing, Hawa-Concepta

Product Details

Is this complete set suitable for my door height?

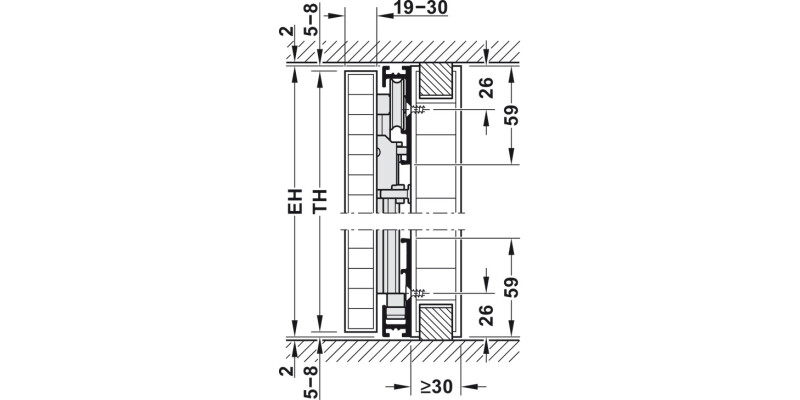

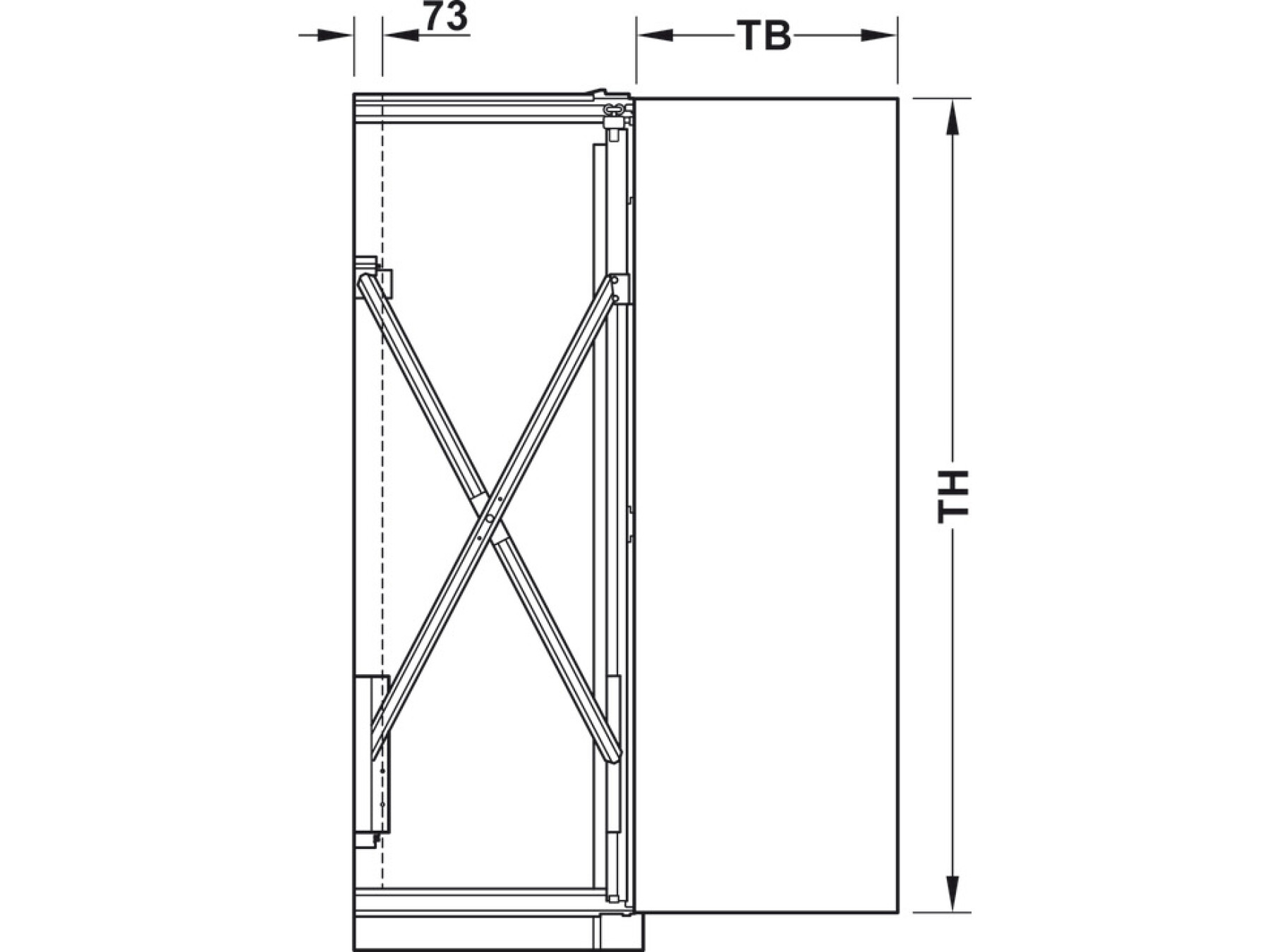

This Hawa Concepta 50 SC Set is designed for vertical use with a door height in the range 2301 to 2850 mm. If your measurement falls within this range, it should match the intended geometry of the track and running gear.

What is the maximum door weight it can carry?

The set is rated for a maximum door weight of 50 kg. To stay within the rating, make sure the door construction and hardware weight are consistent with your intended total door weight.

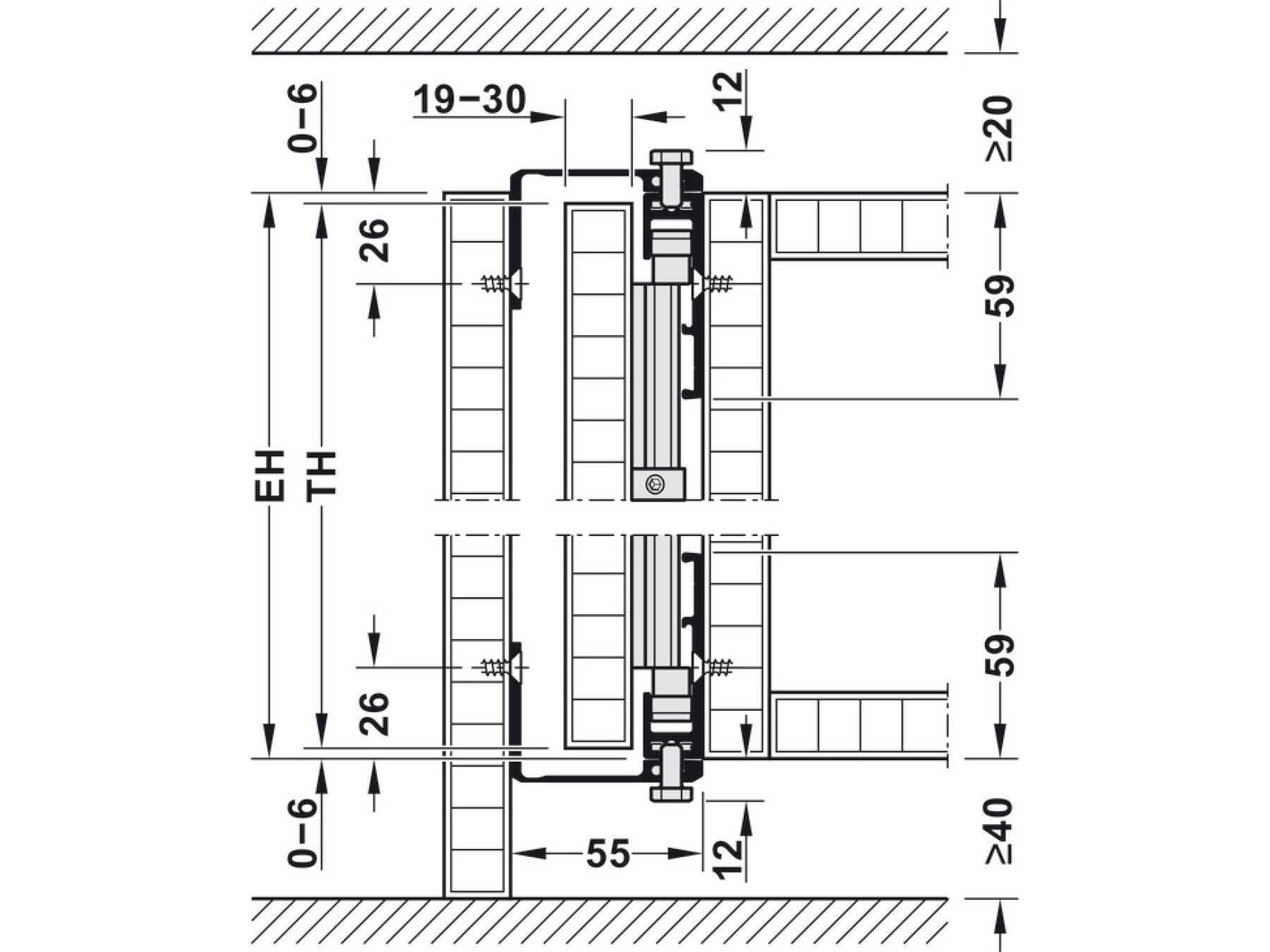

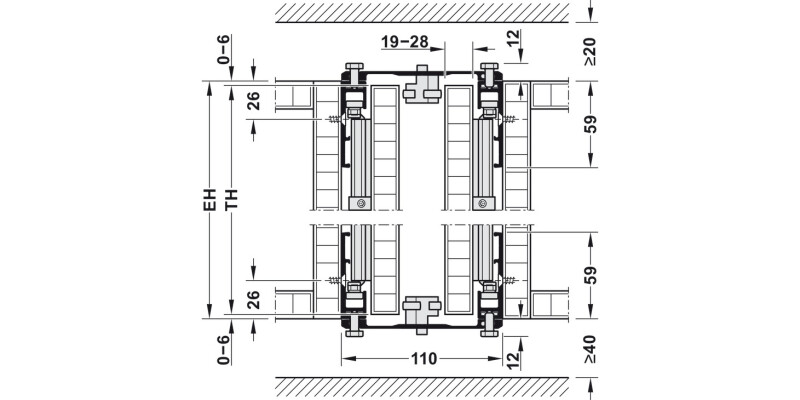

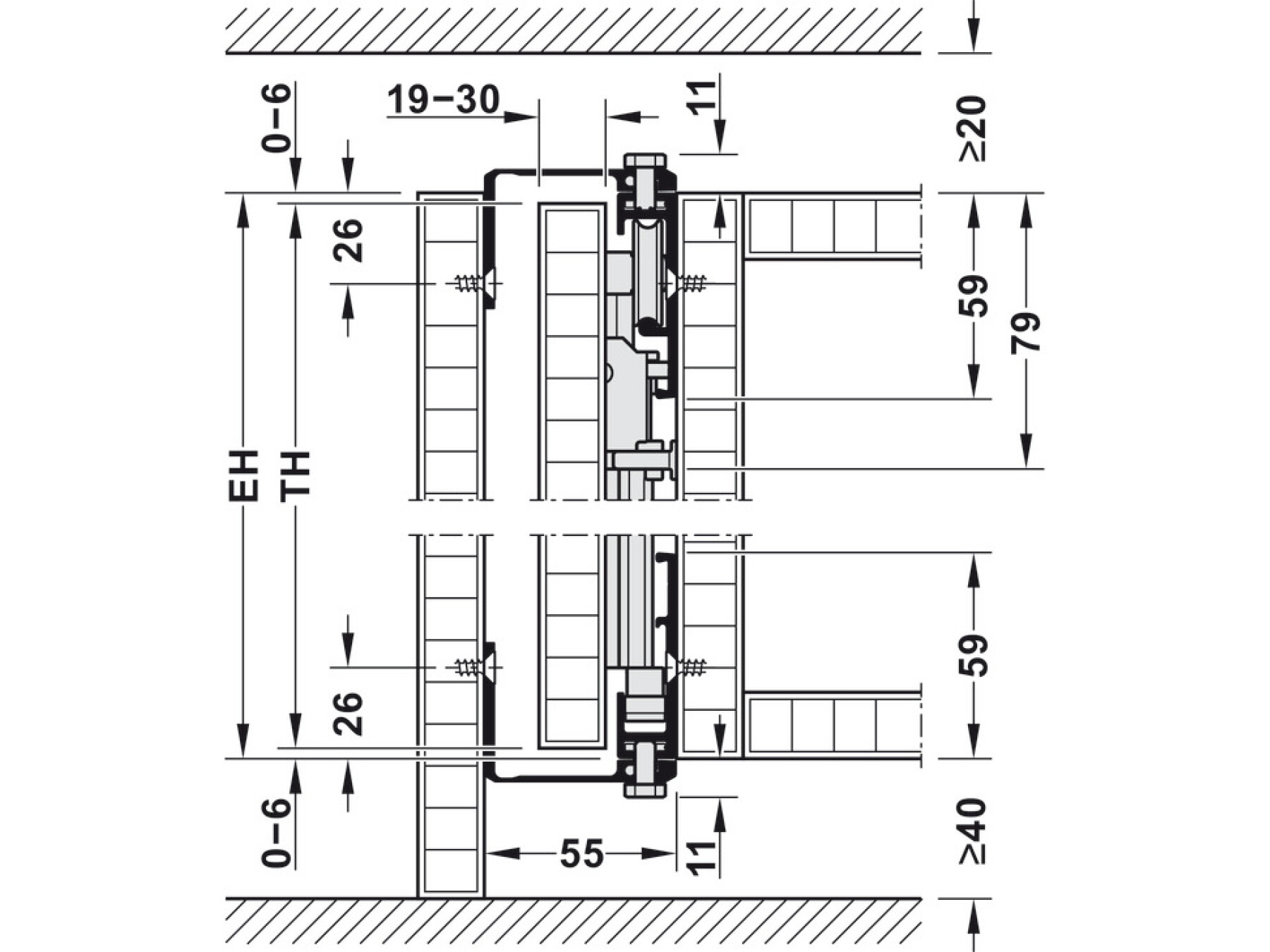

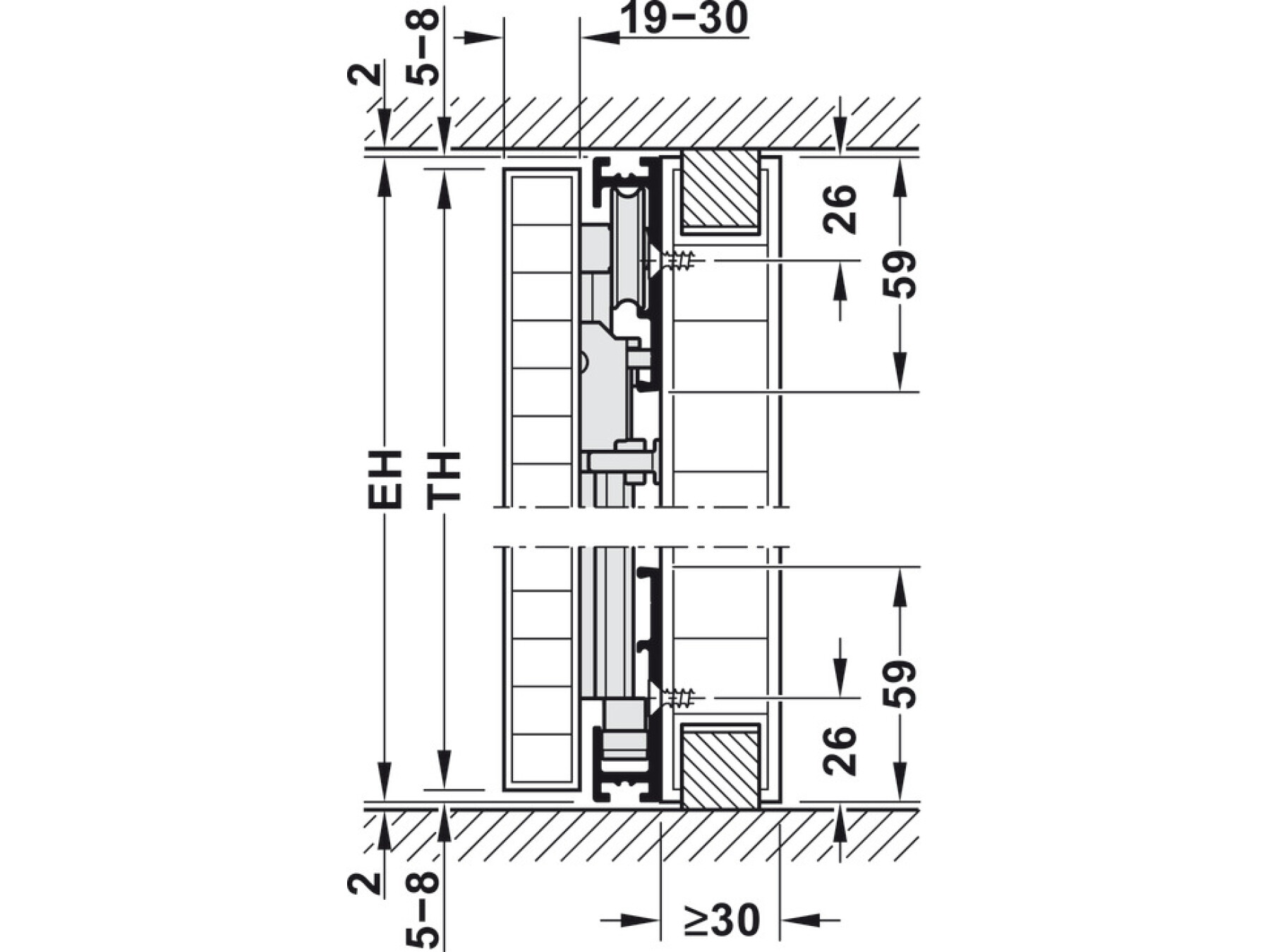

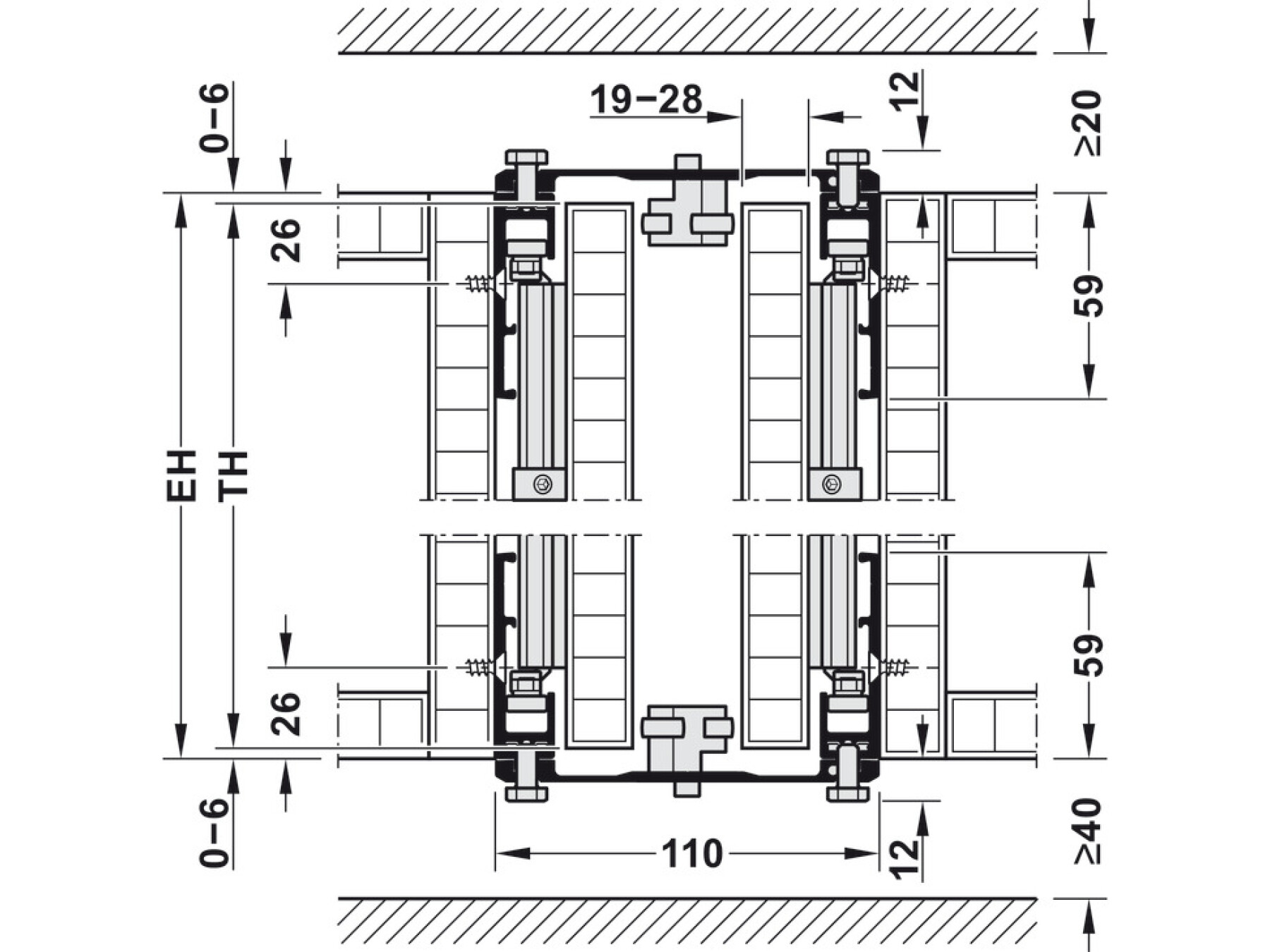

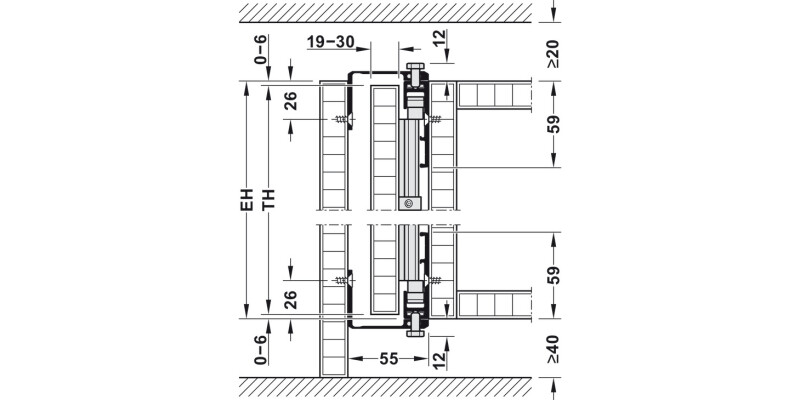

Will it work with wood doors and what thickness can I use?

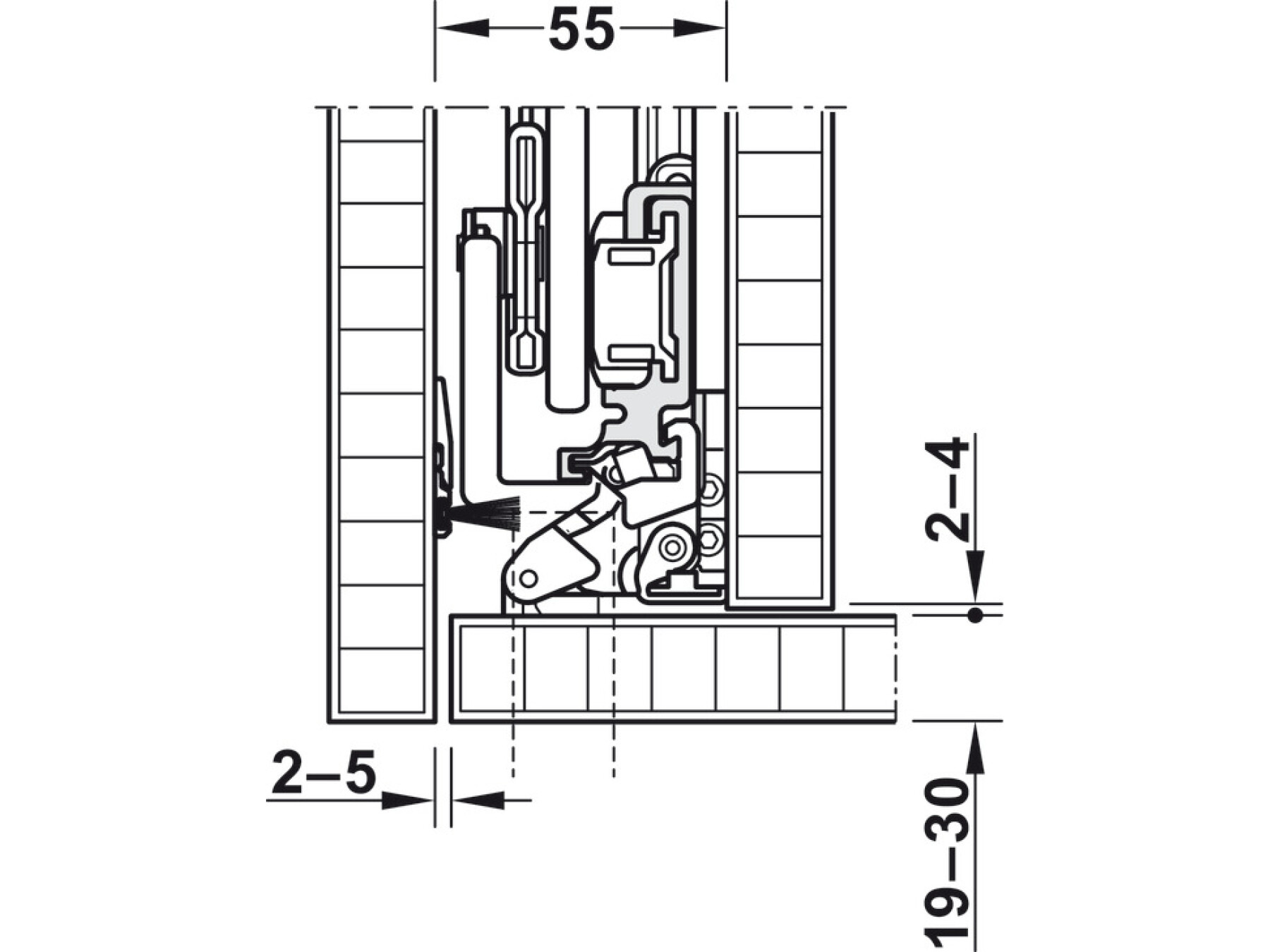

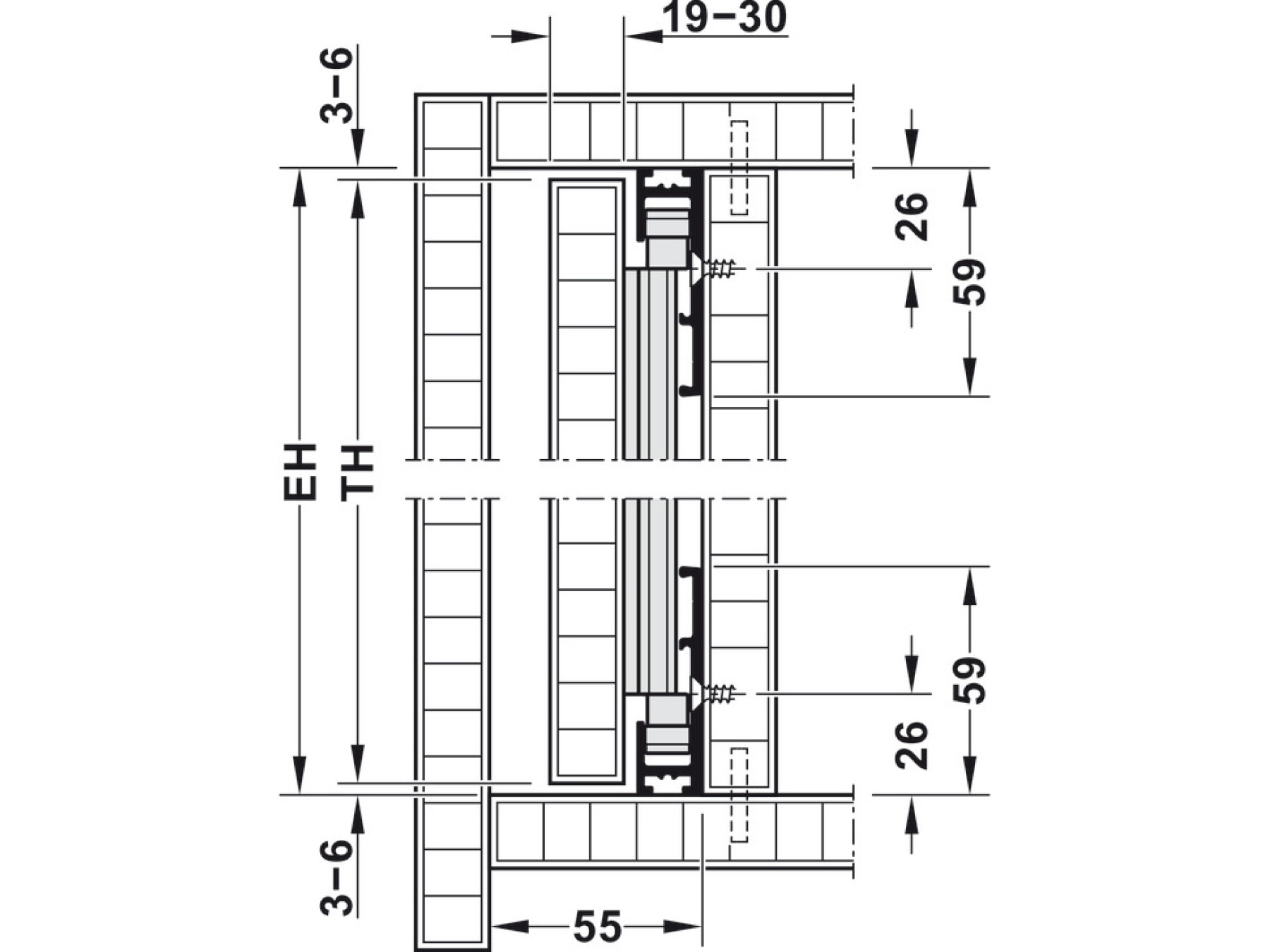

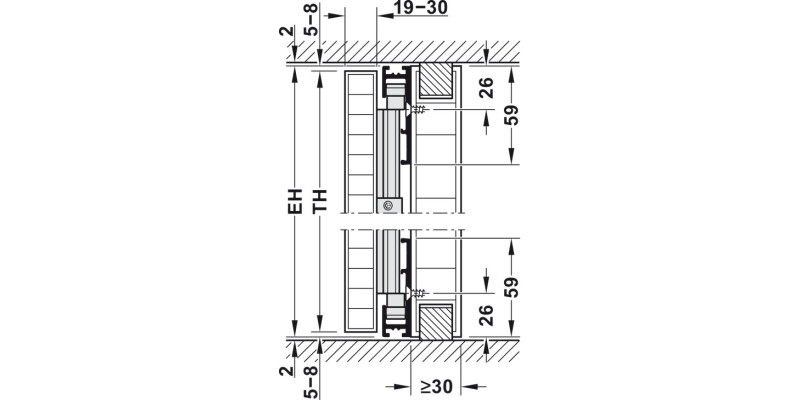

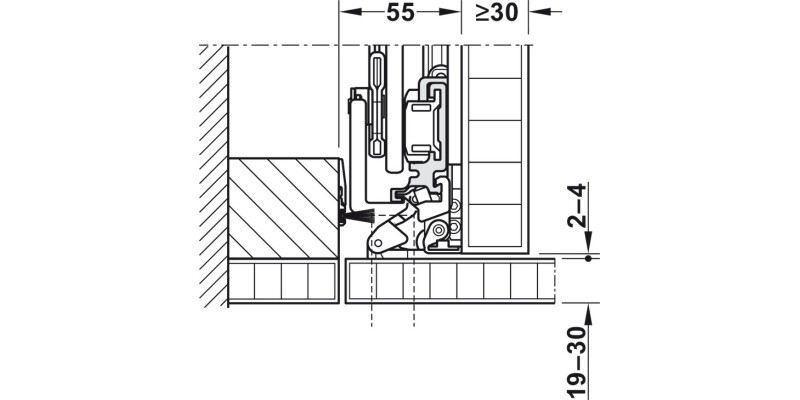

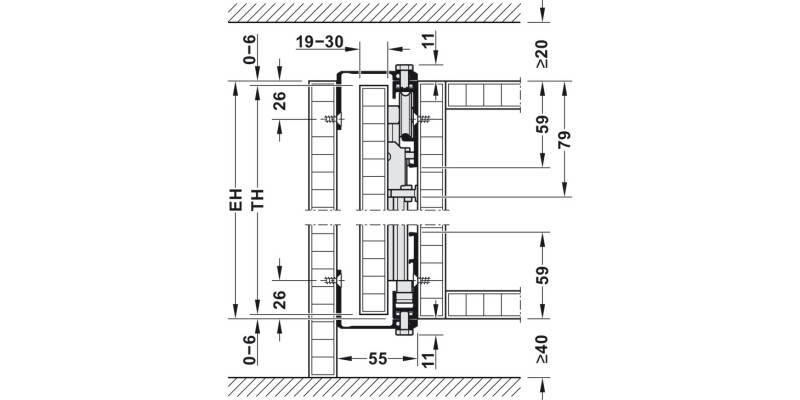

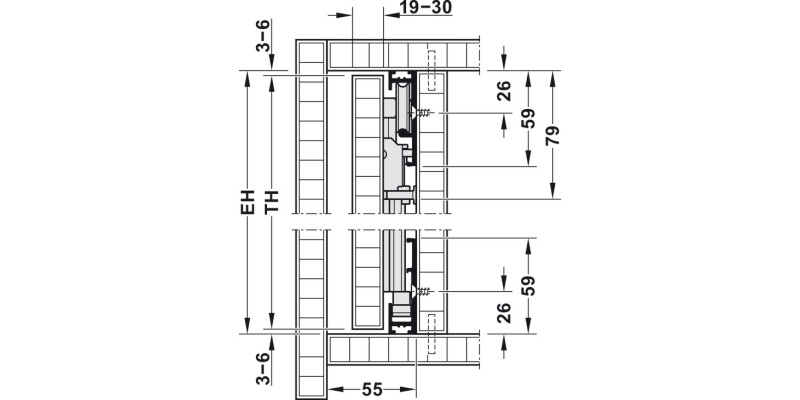

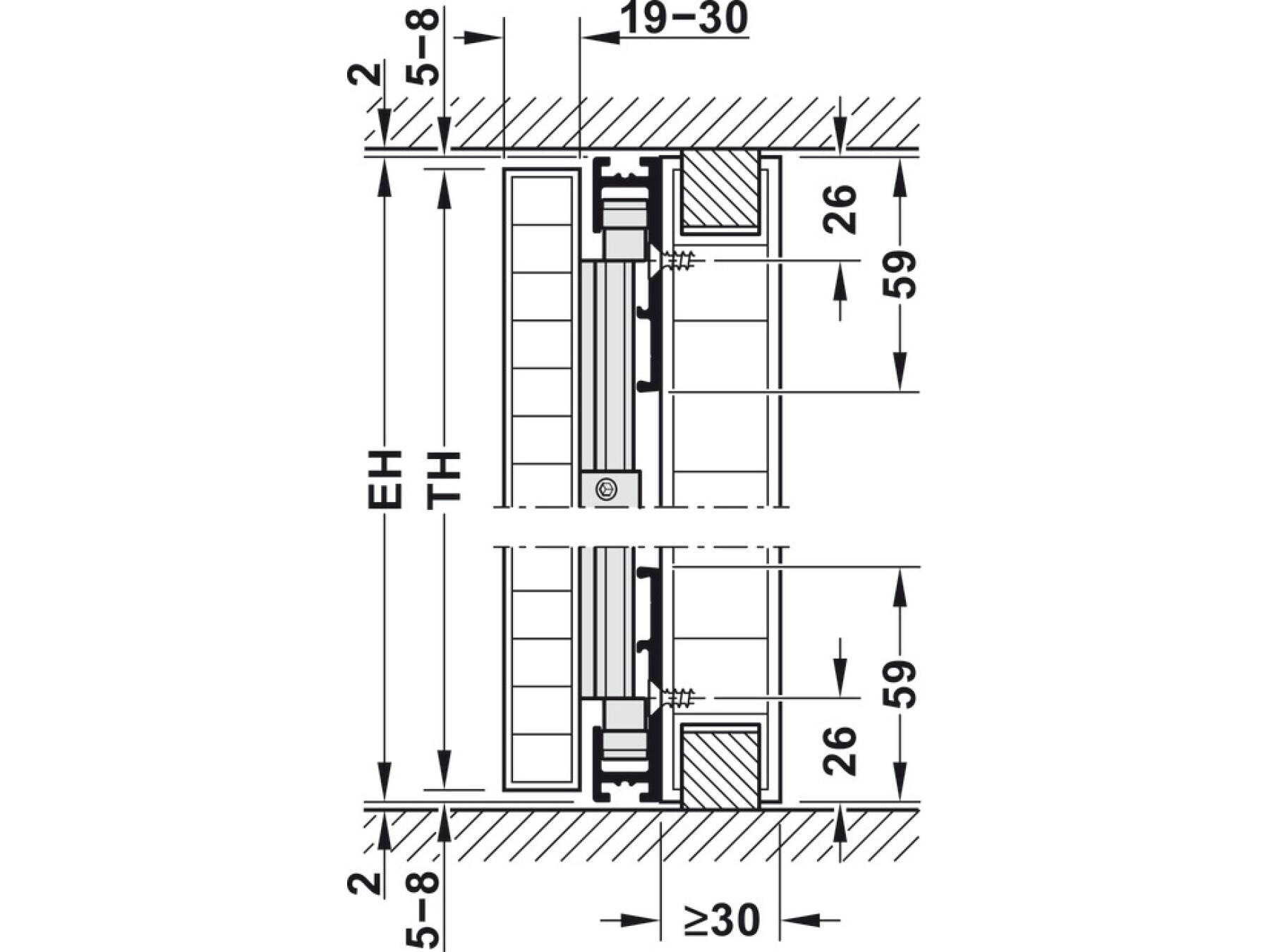

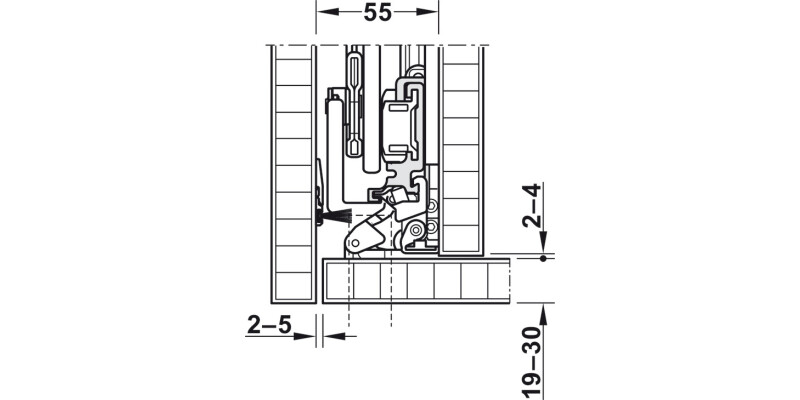

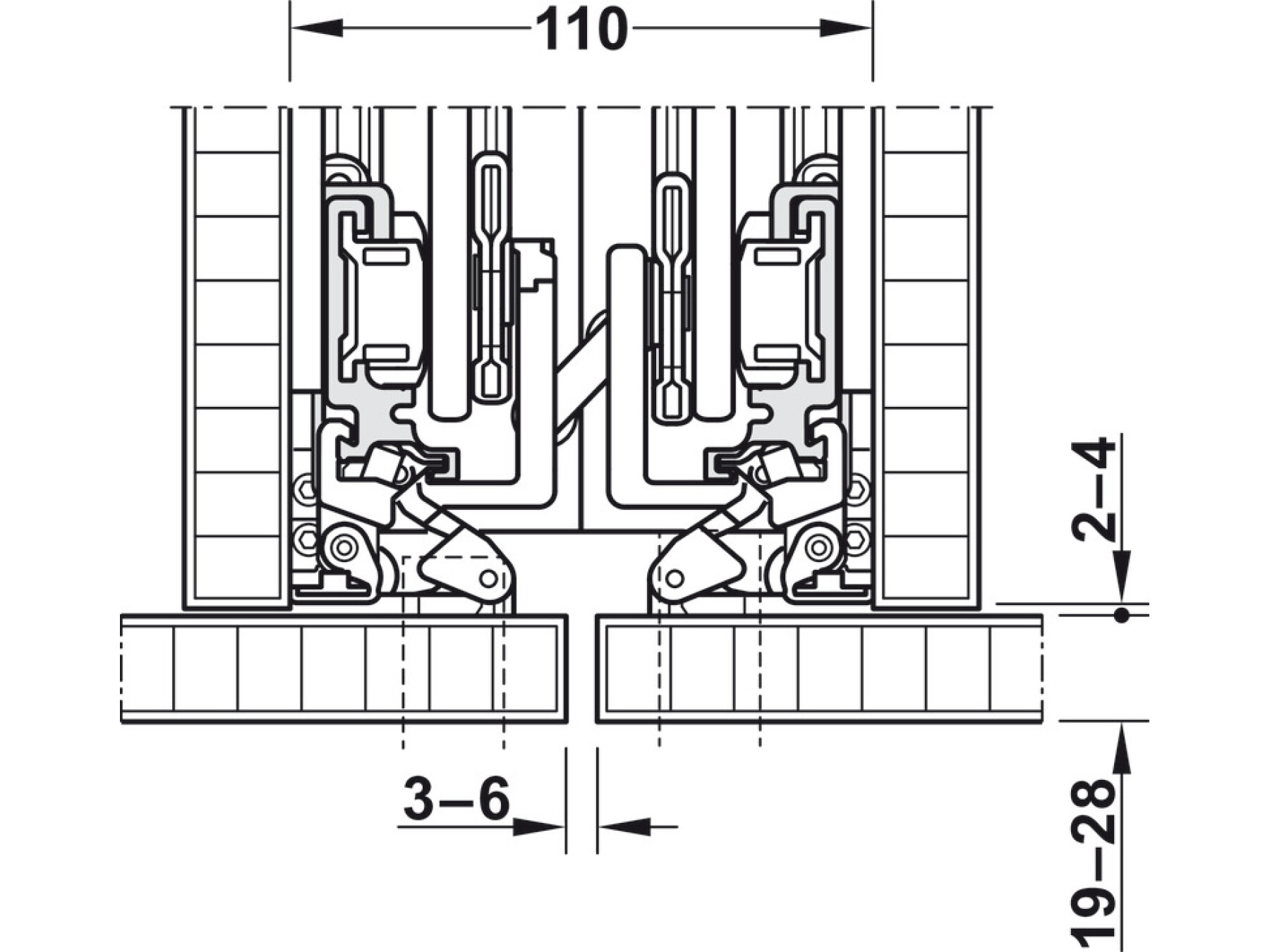

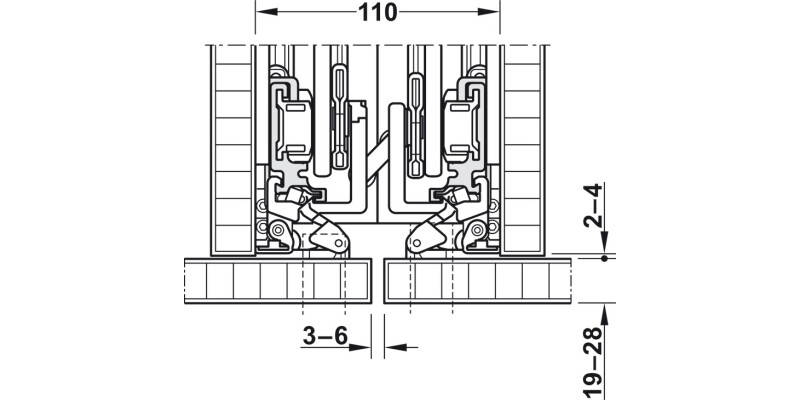

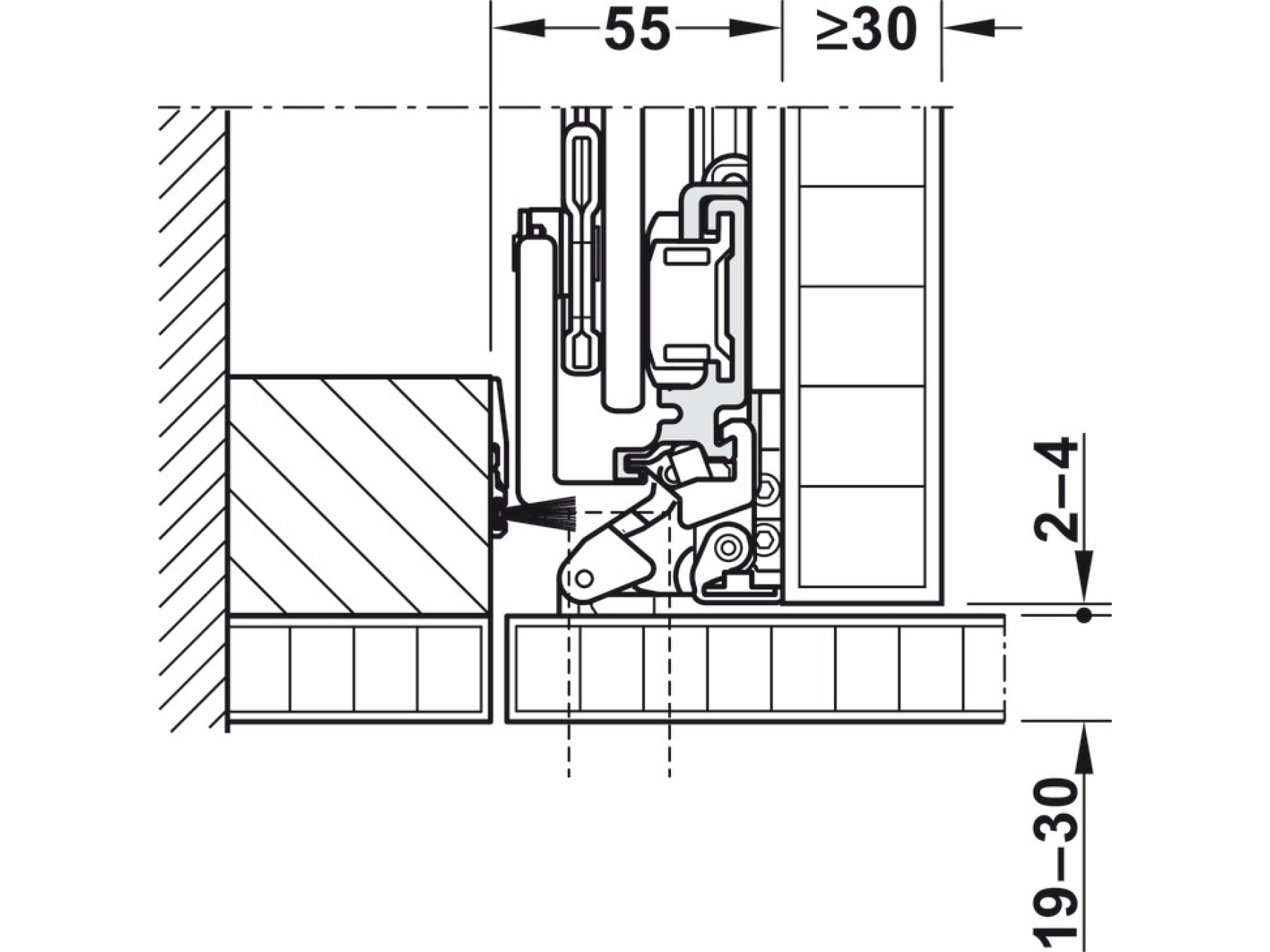

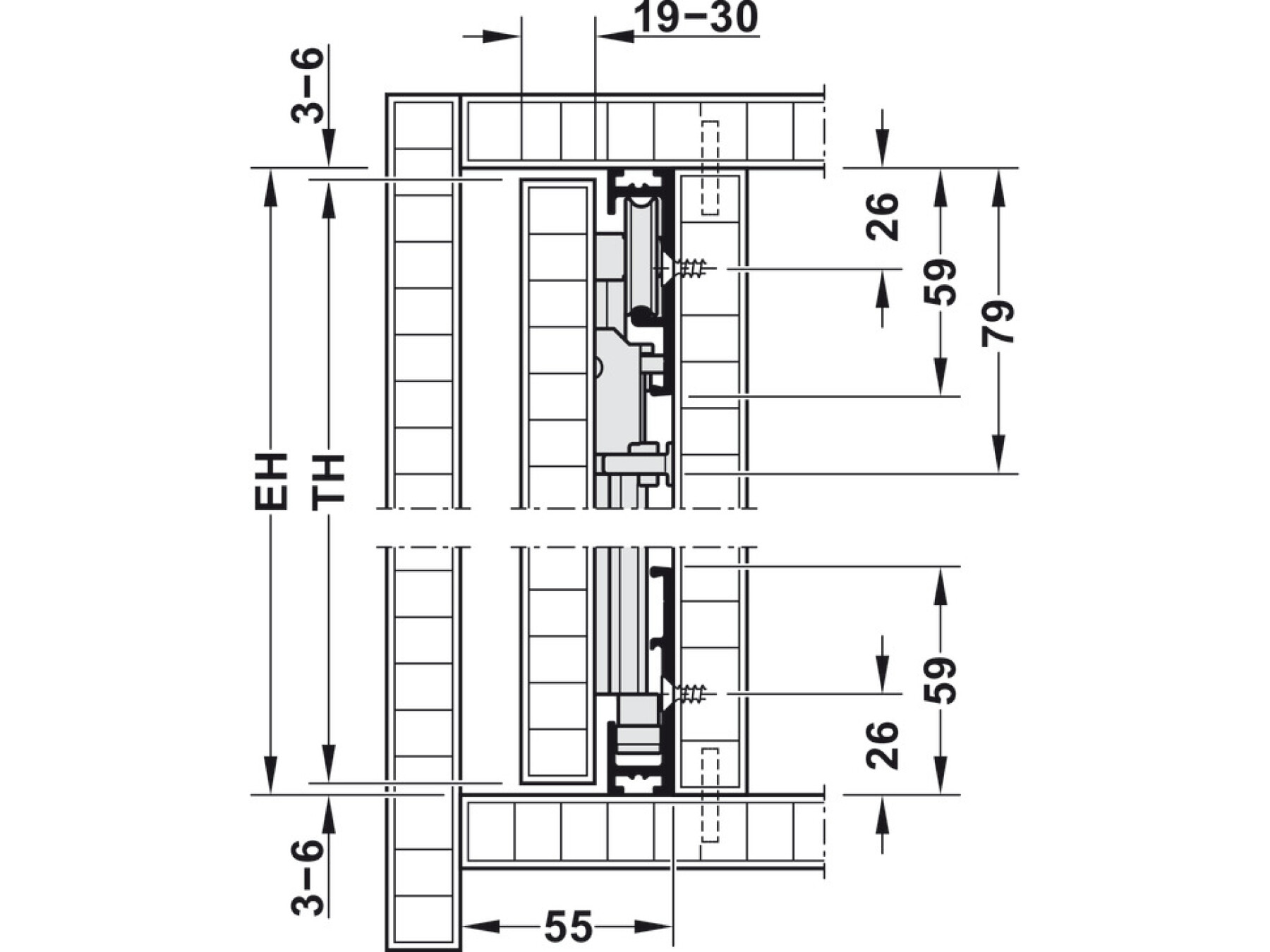

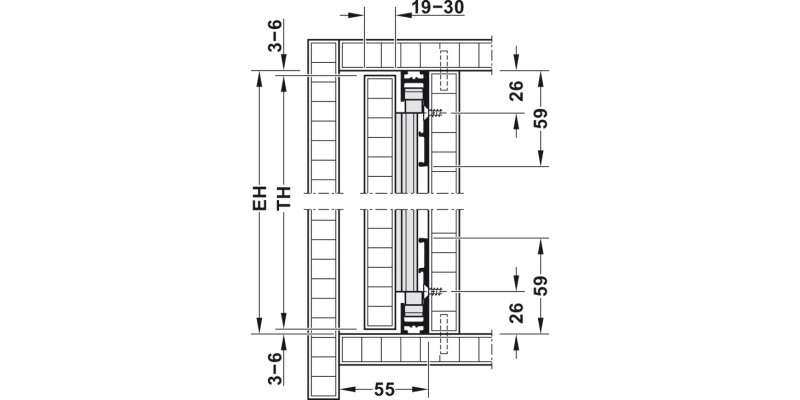

This gear set is intended for wood doors. It supports door thicknesses of 19 to 30 mm, and for rebated doors the range is 30 to 50 mm. Using the correct thickness helps ensure reliable fixing and smooth running.

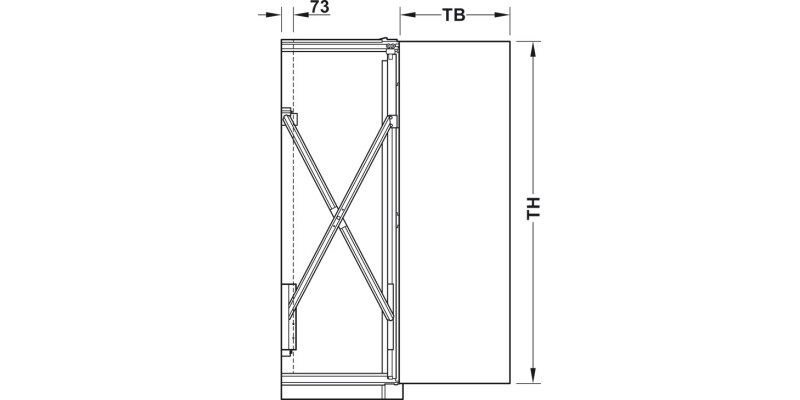

How wide can the door be?

The system is suitable for door widths of 300 to 900 mm. If your door sits near the ends of this range, it is still important to confirm the door weight and thickness match the recommended limits.

Does it include soft closing hinges?

Yes. The set uses hinges with a soft closing mechanism. This helps reduce slamming and improves closing comfort, particularly on larger, heavier sliding and folding doors.

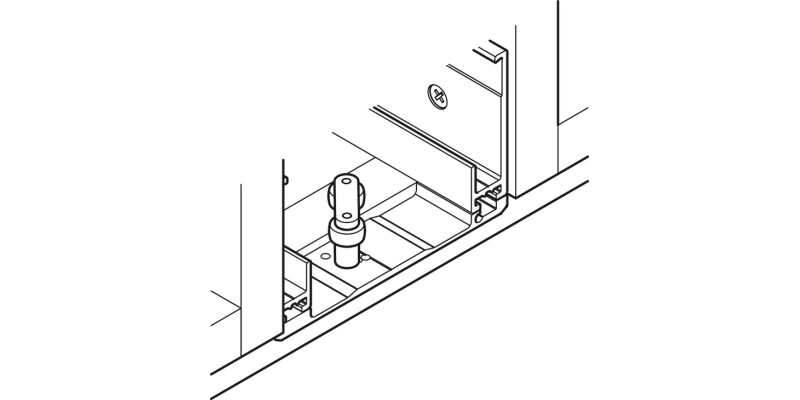

How many rollers does the 50 kg version use?

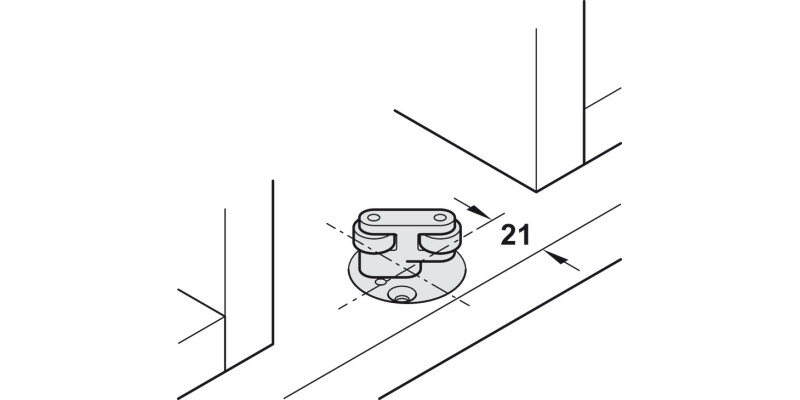

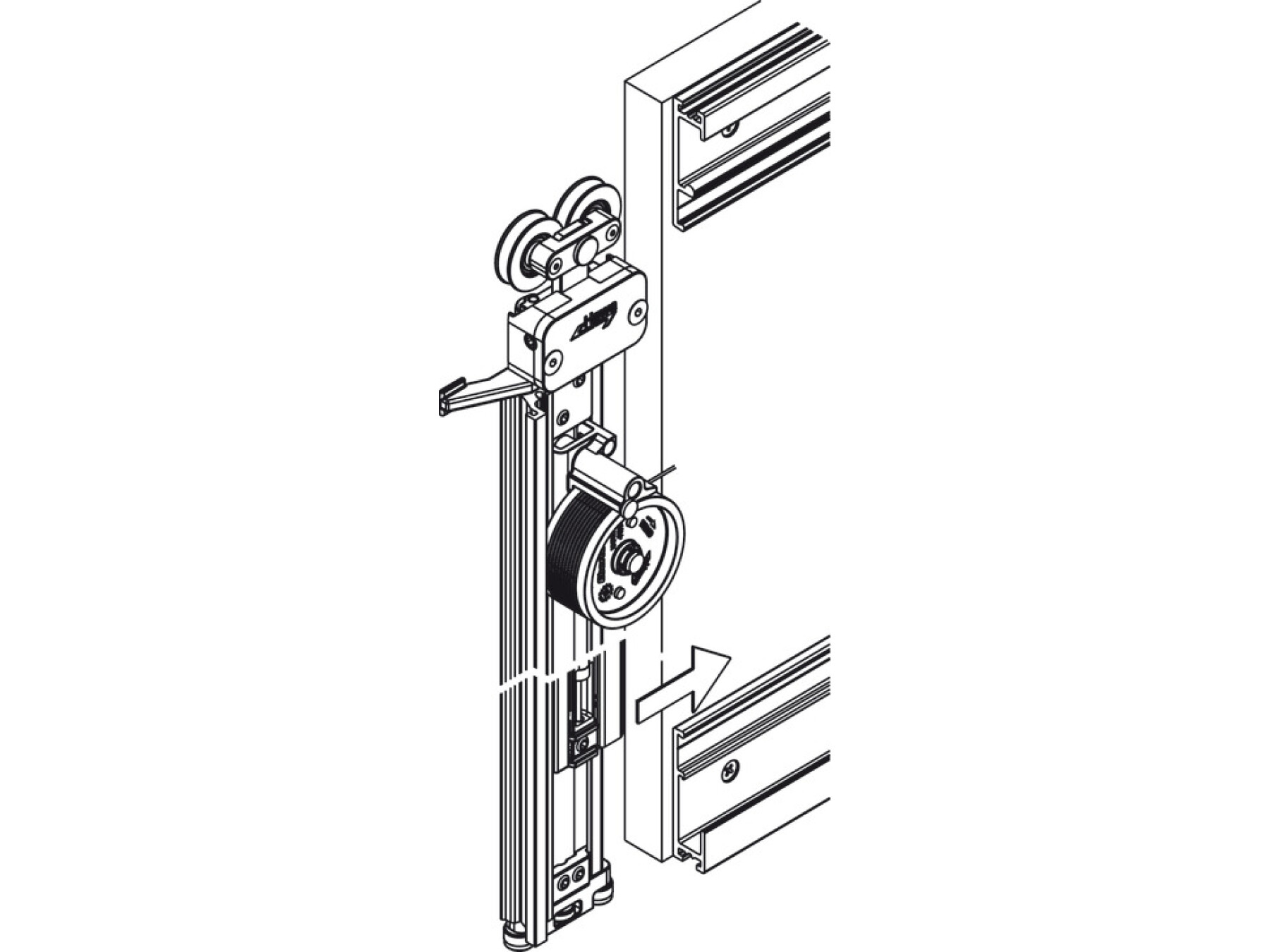

For the 40 and 50 kg running gear versions, the set uses 2 rollers. The rollers are designed to be guided by ball bearings to support smooth travel under load.

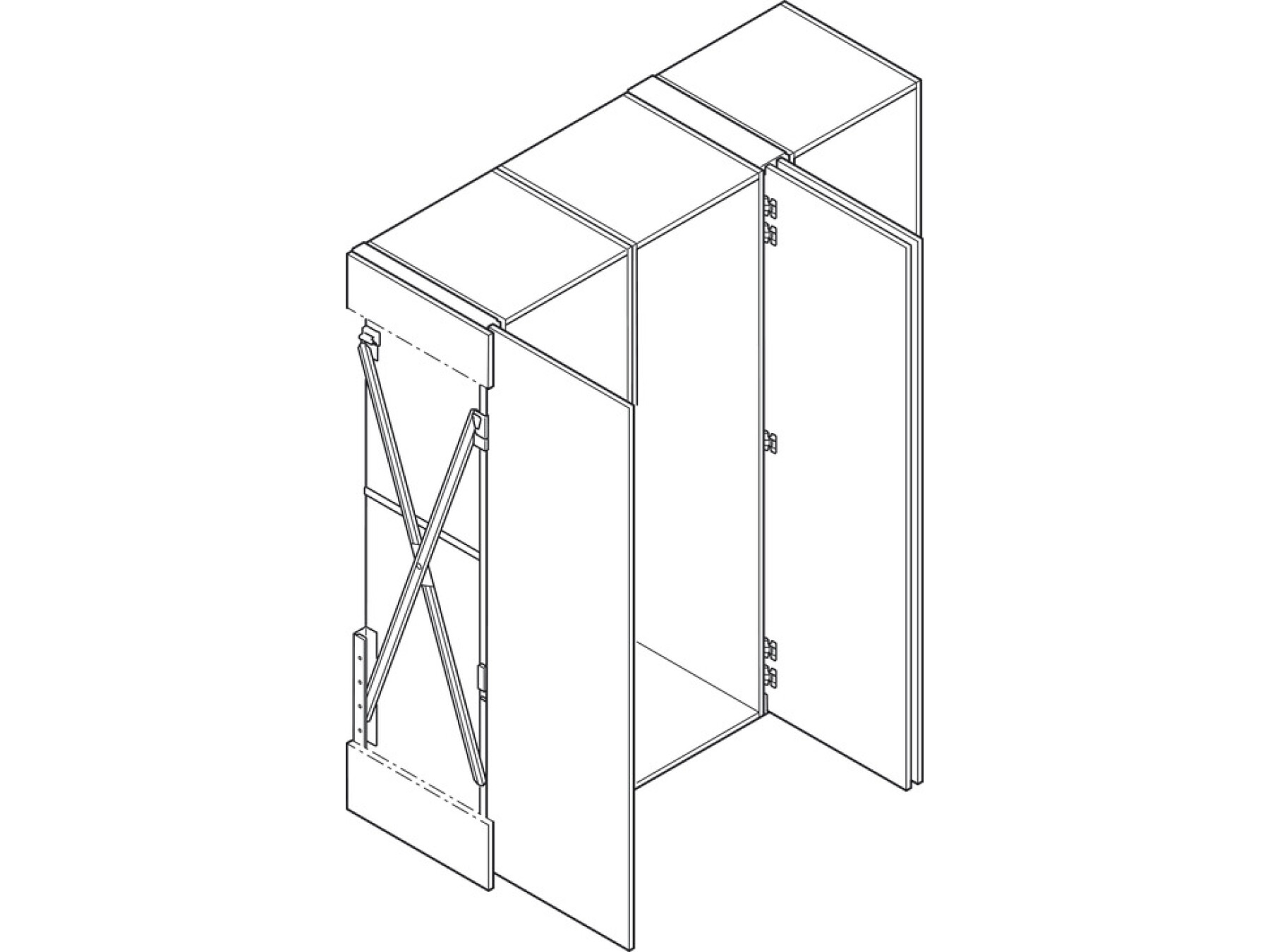

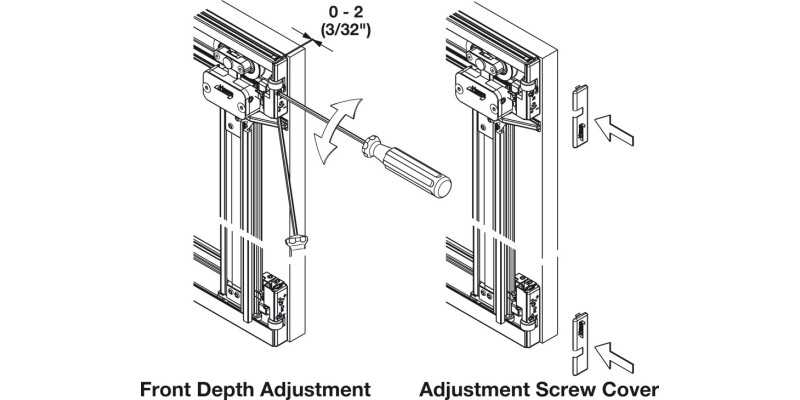

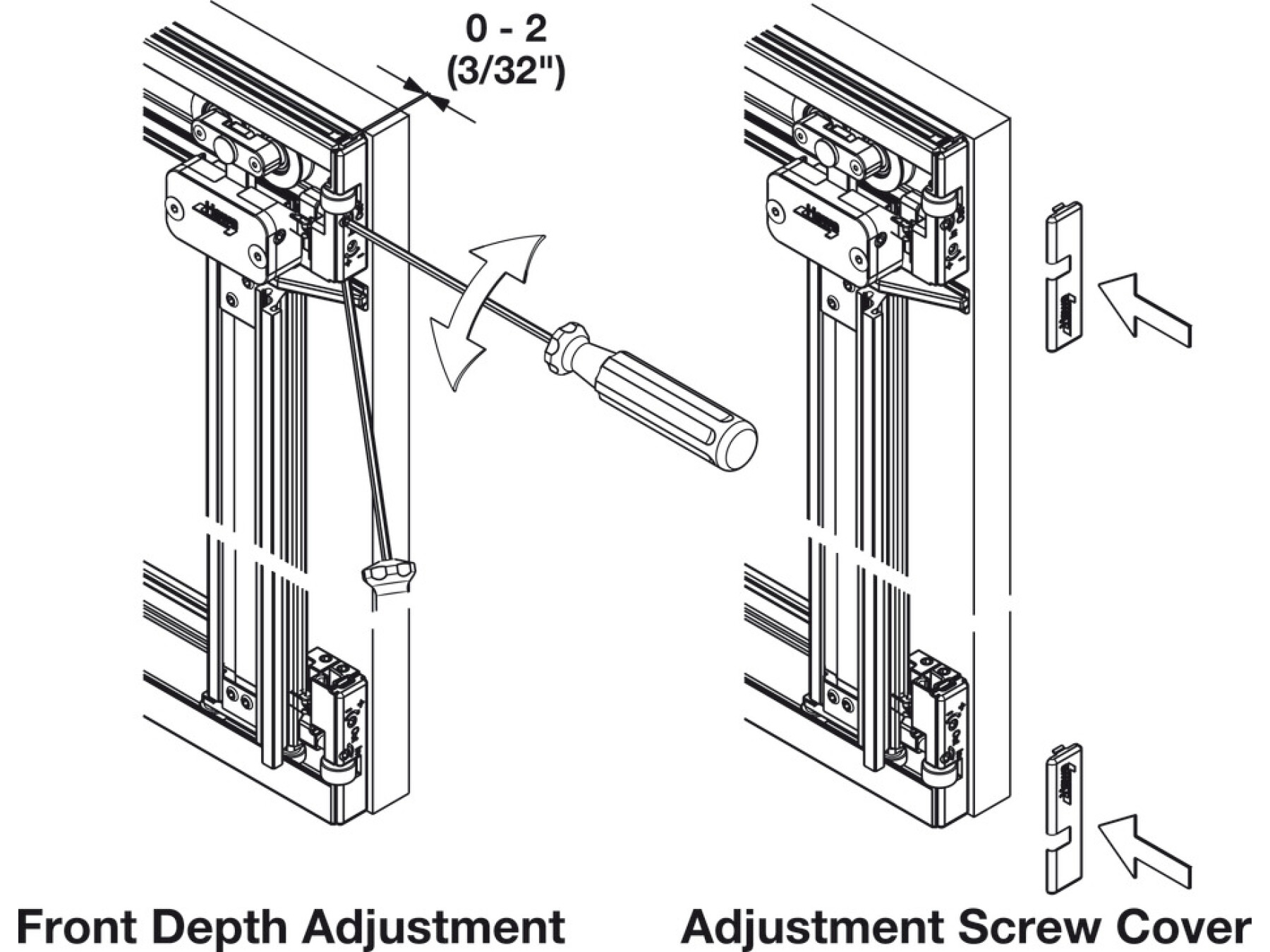

How is the set installed and fixed to the door and frame?

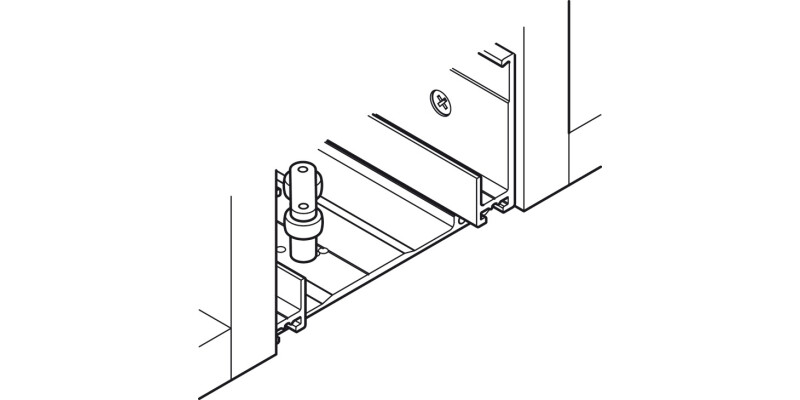

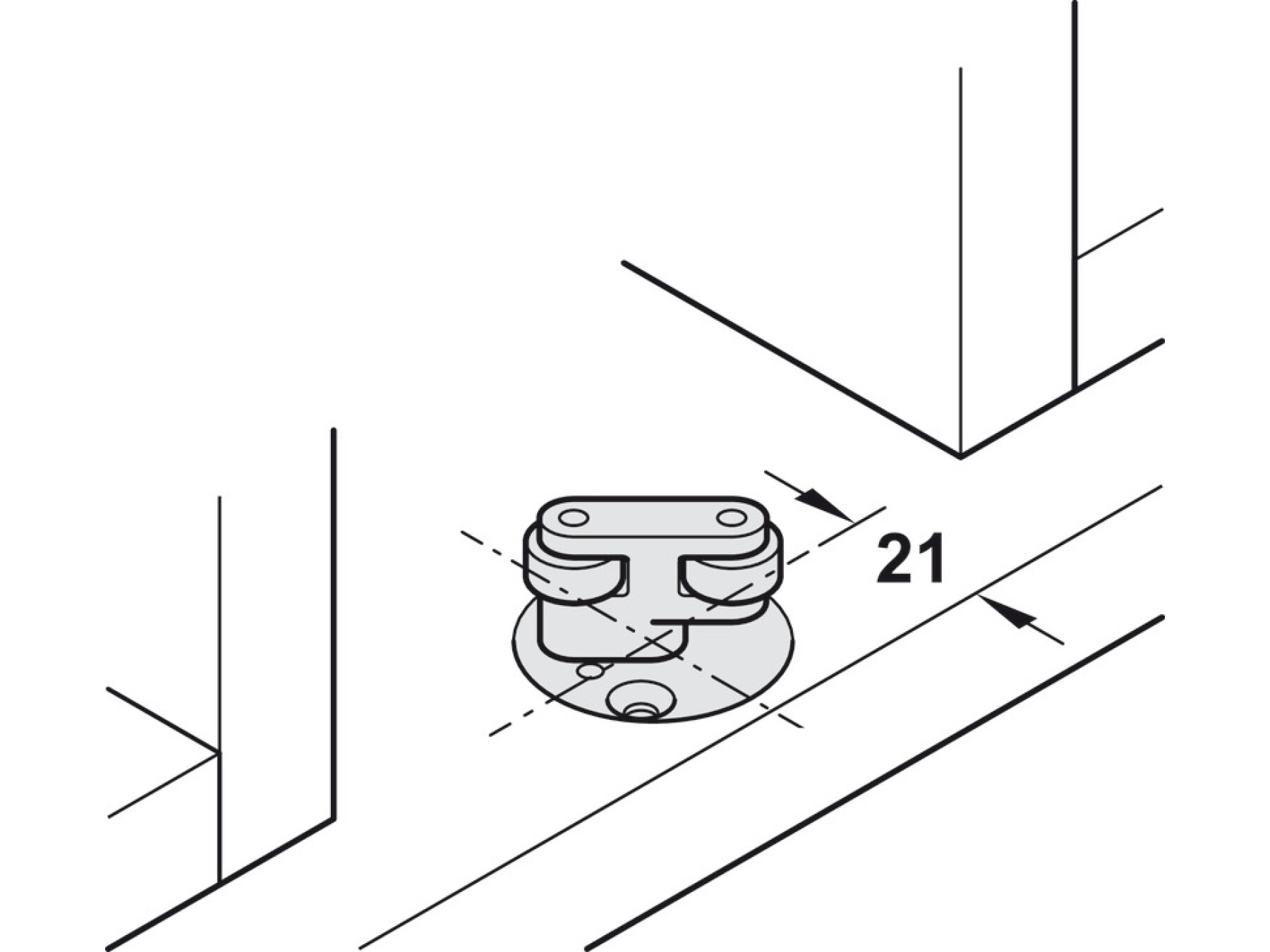

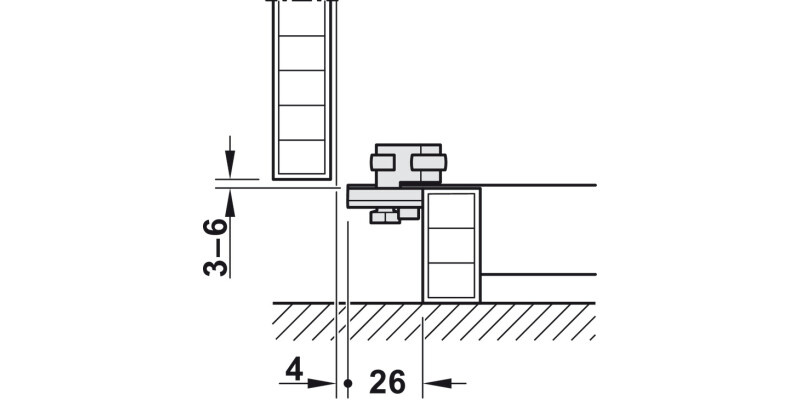

Installation is done using screw fixing. Correct alignment and secure screw fixing are important for smooth operation, especially when moving larger doors within the 2301 to 2850 mm height range.

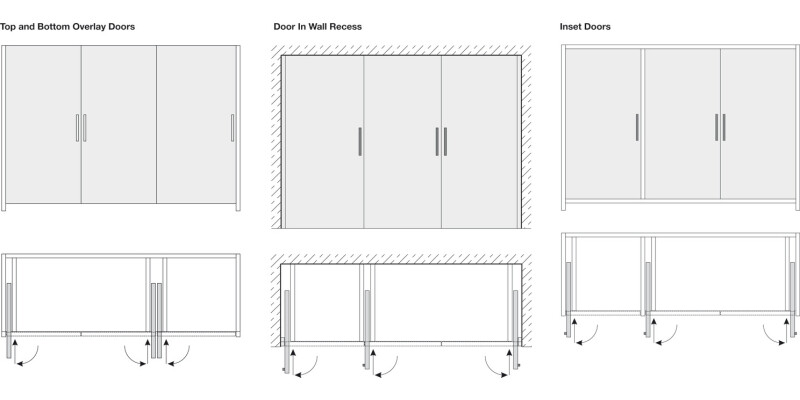

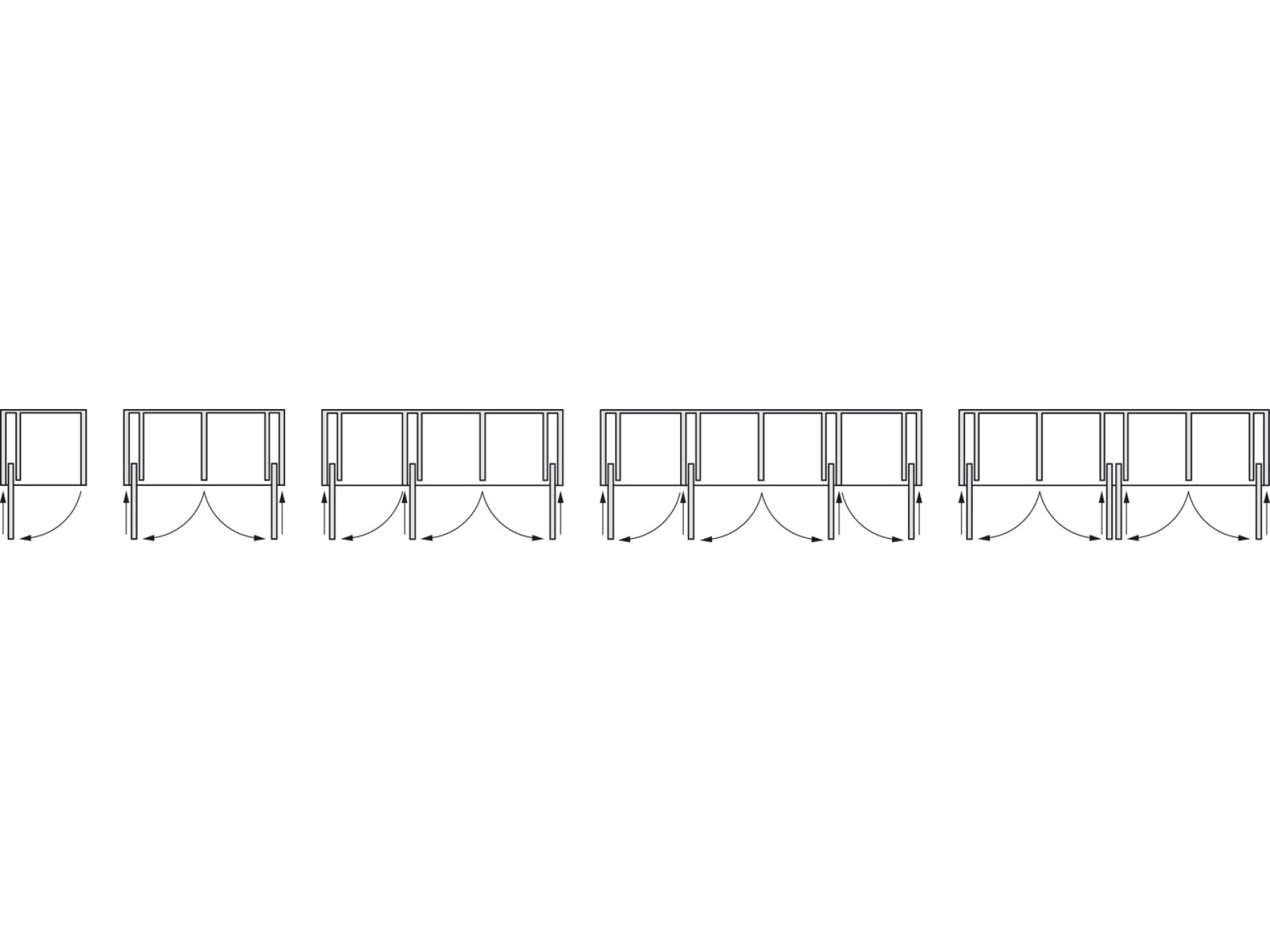

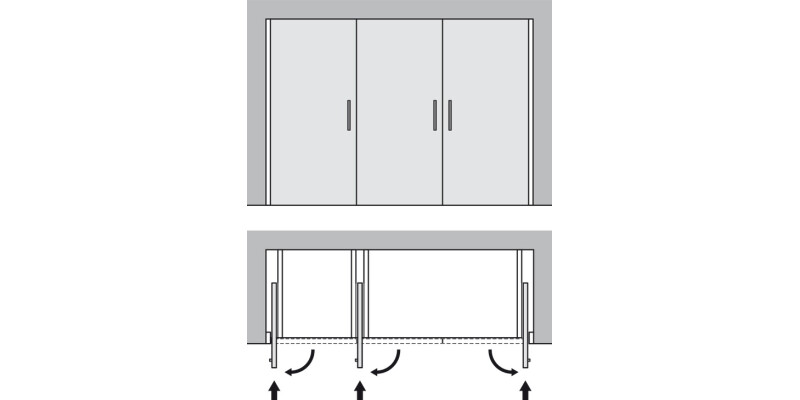

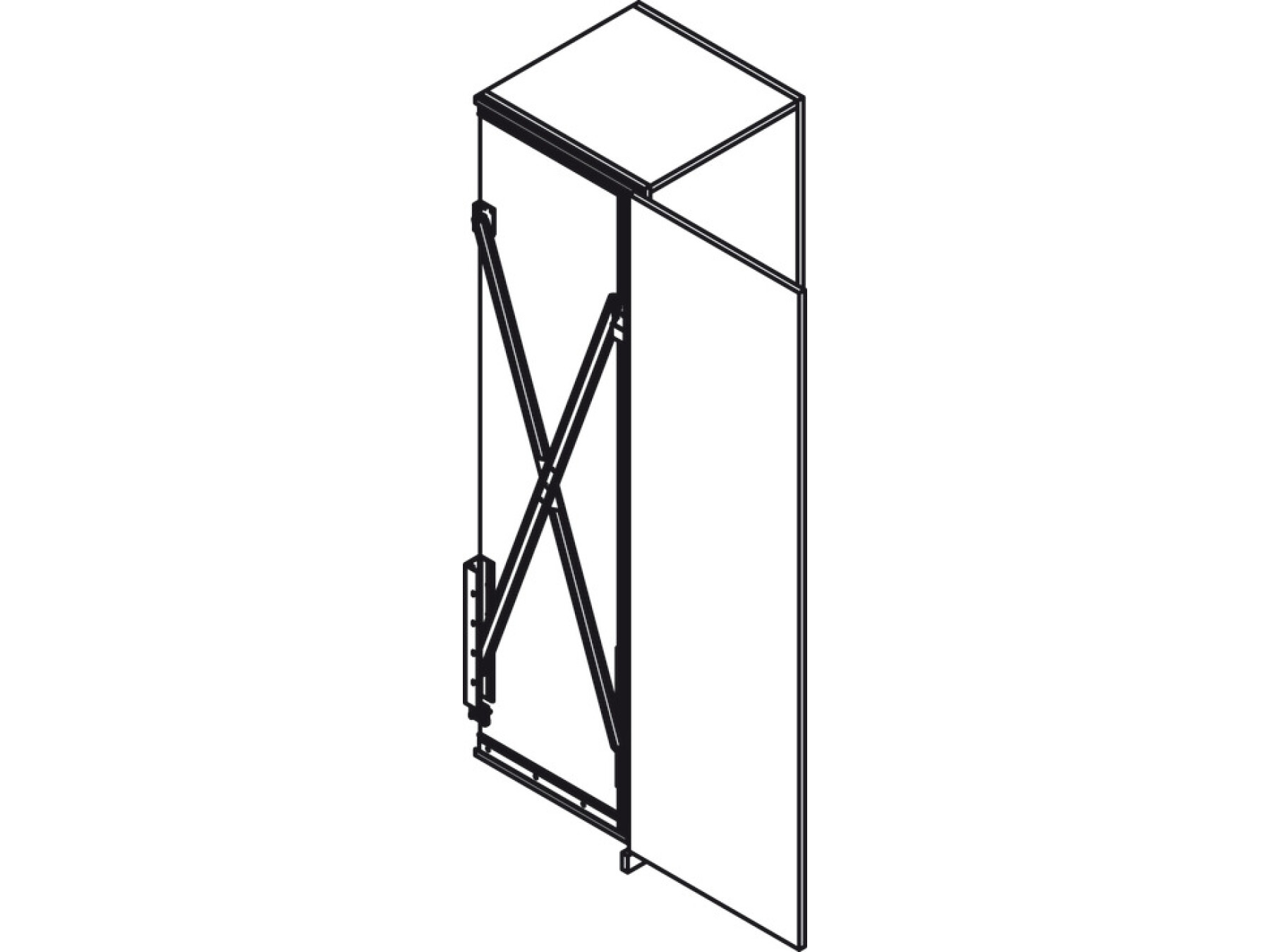

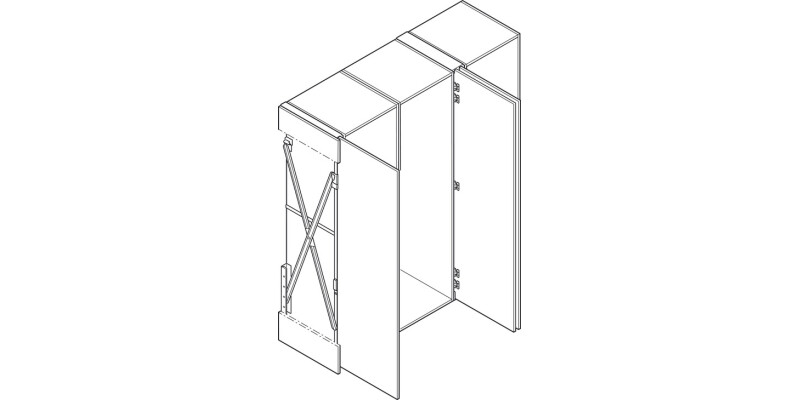

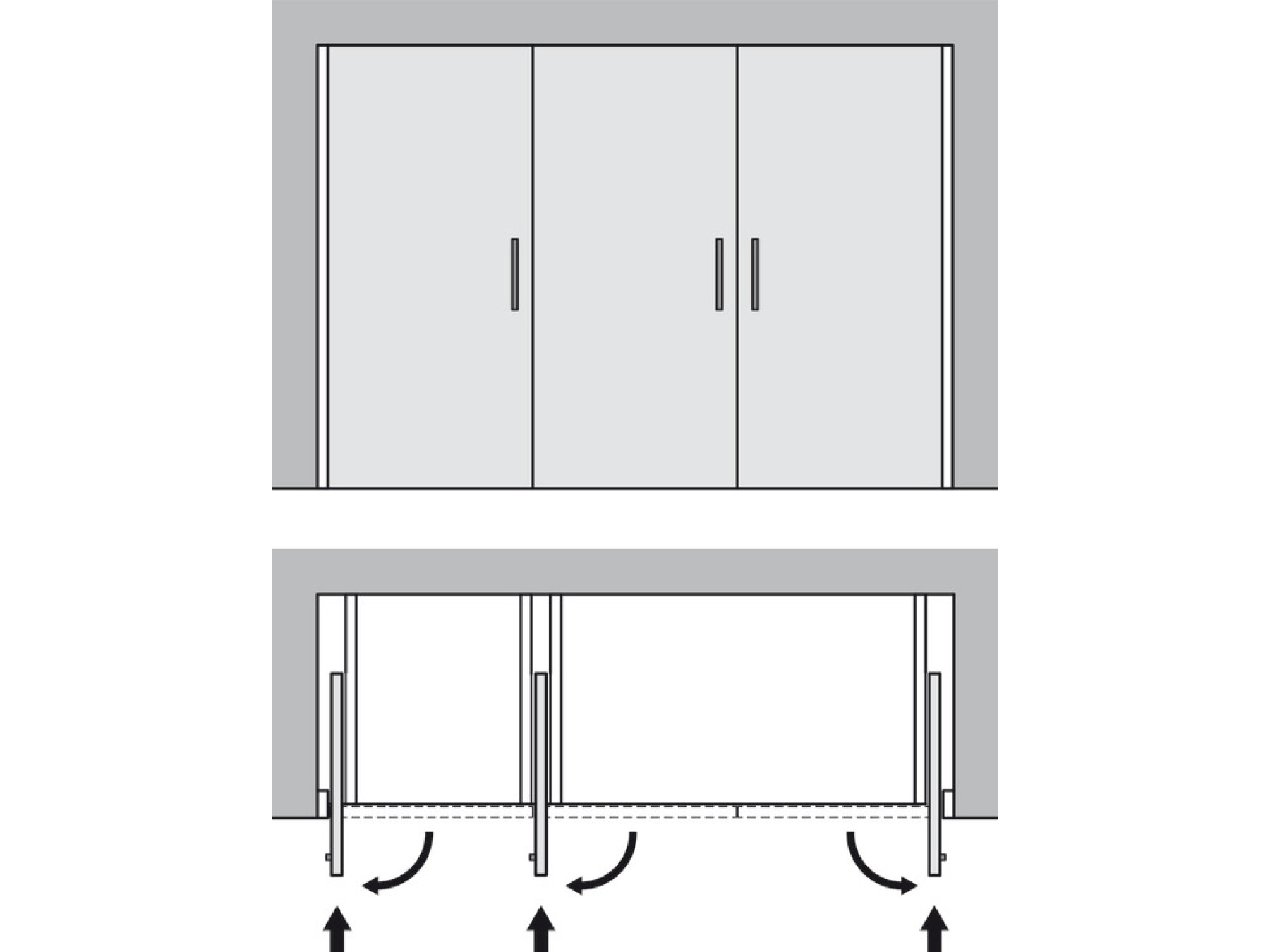

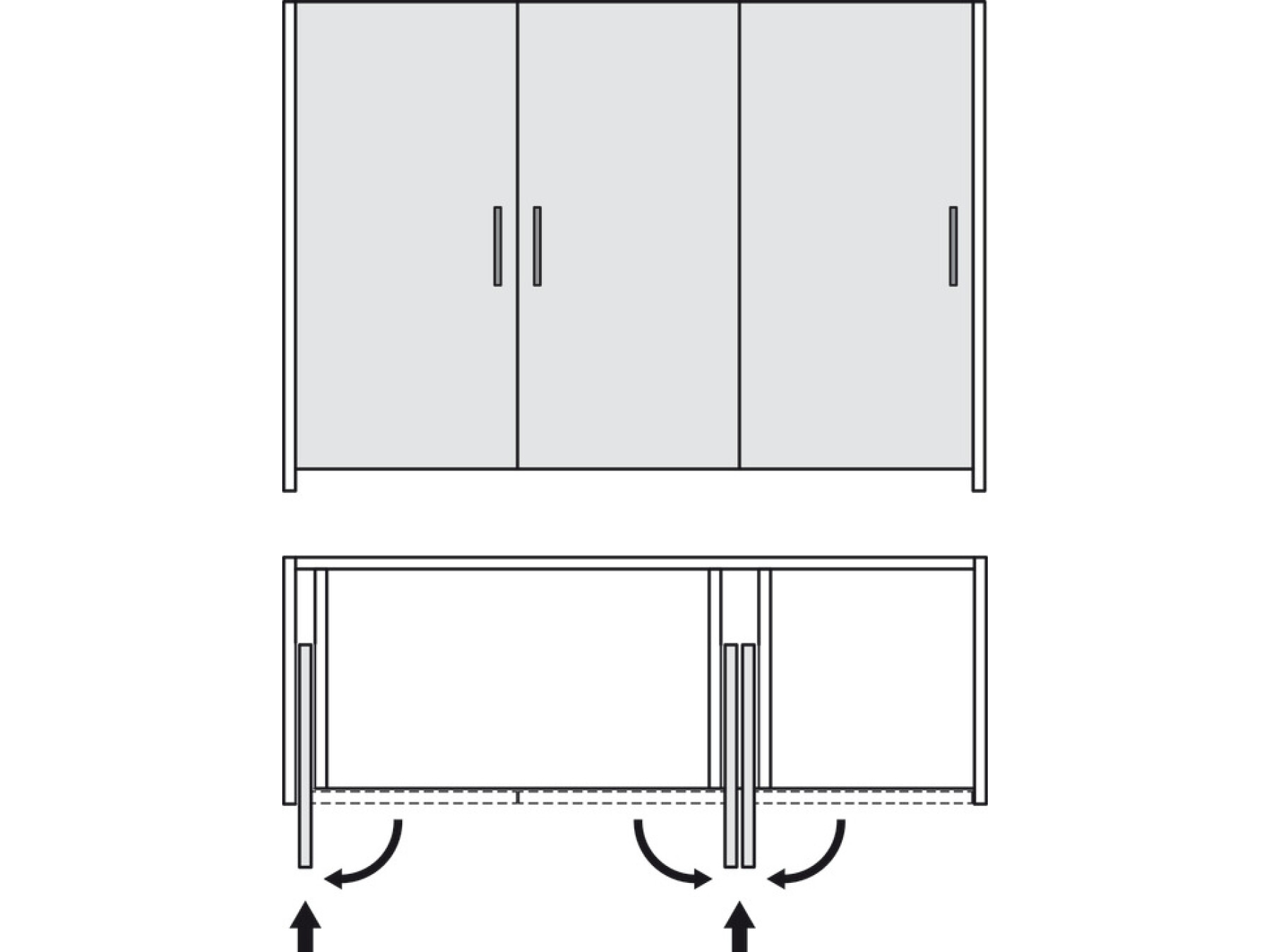

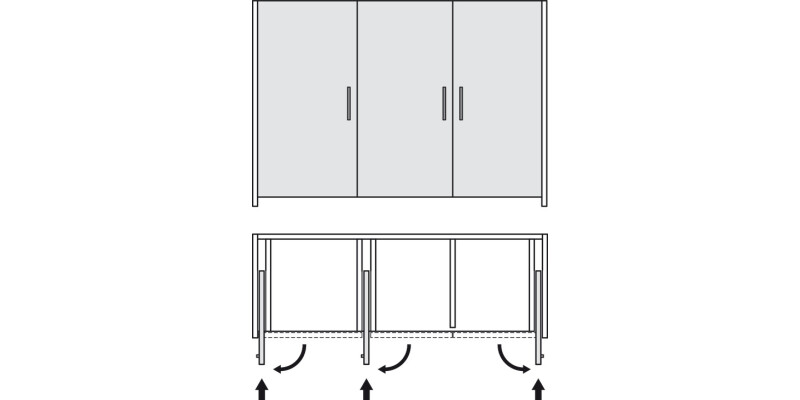

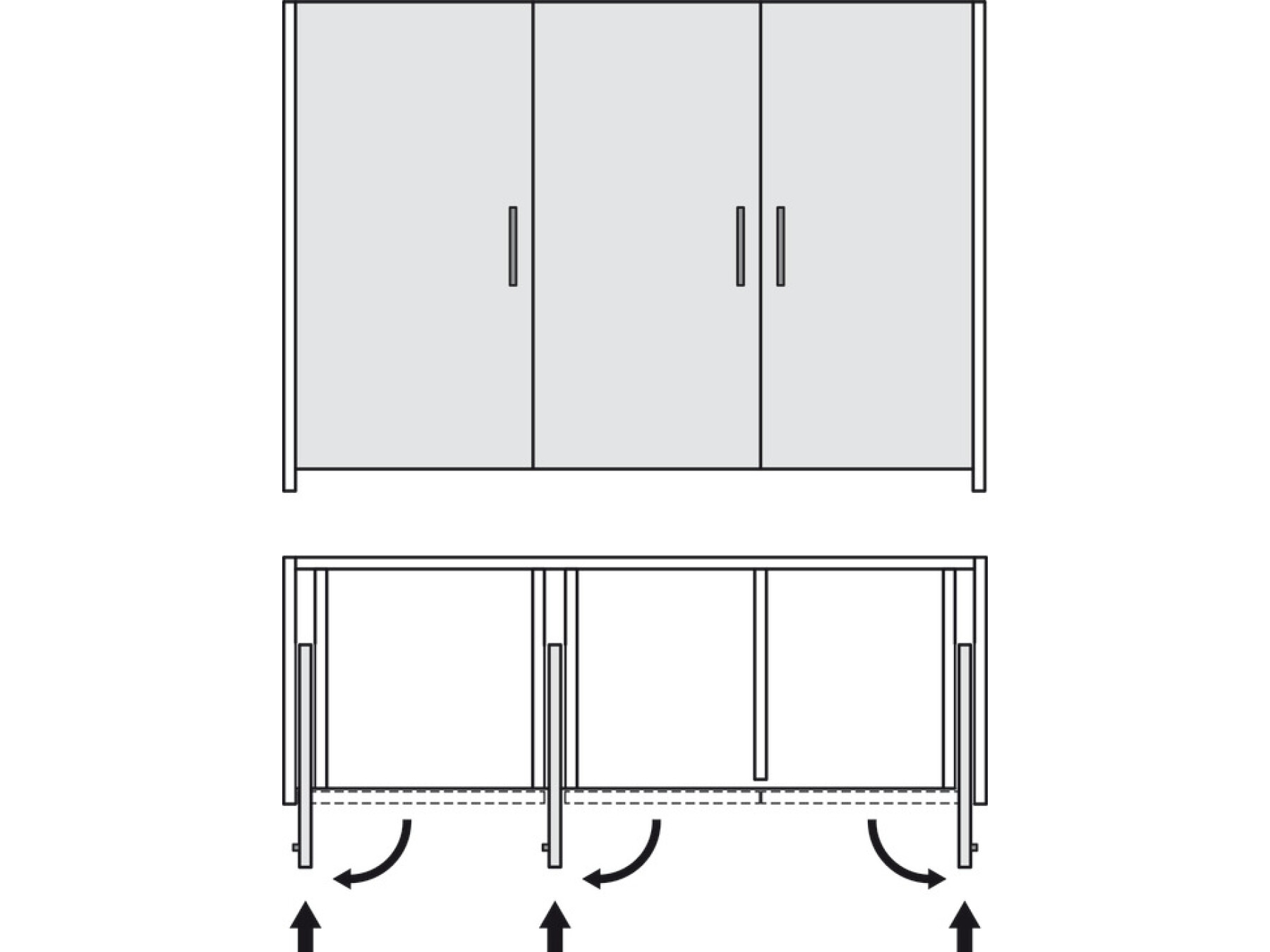

Where is this best used, sliding or folding applications?

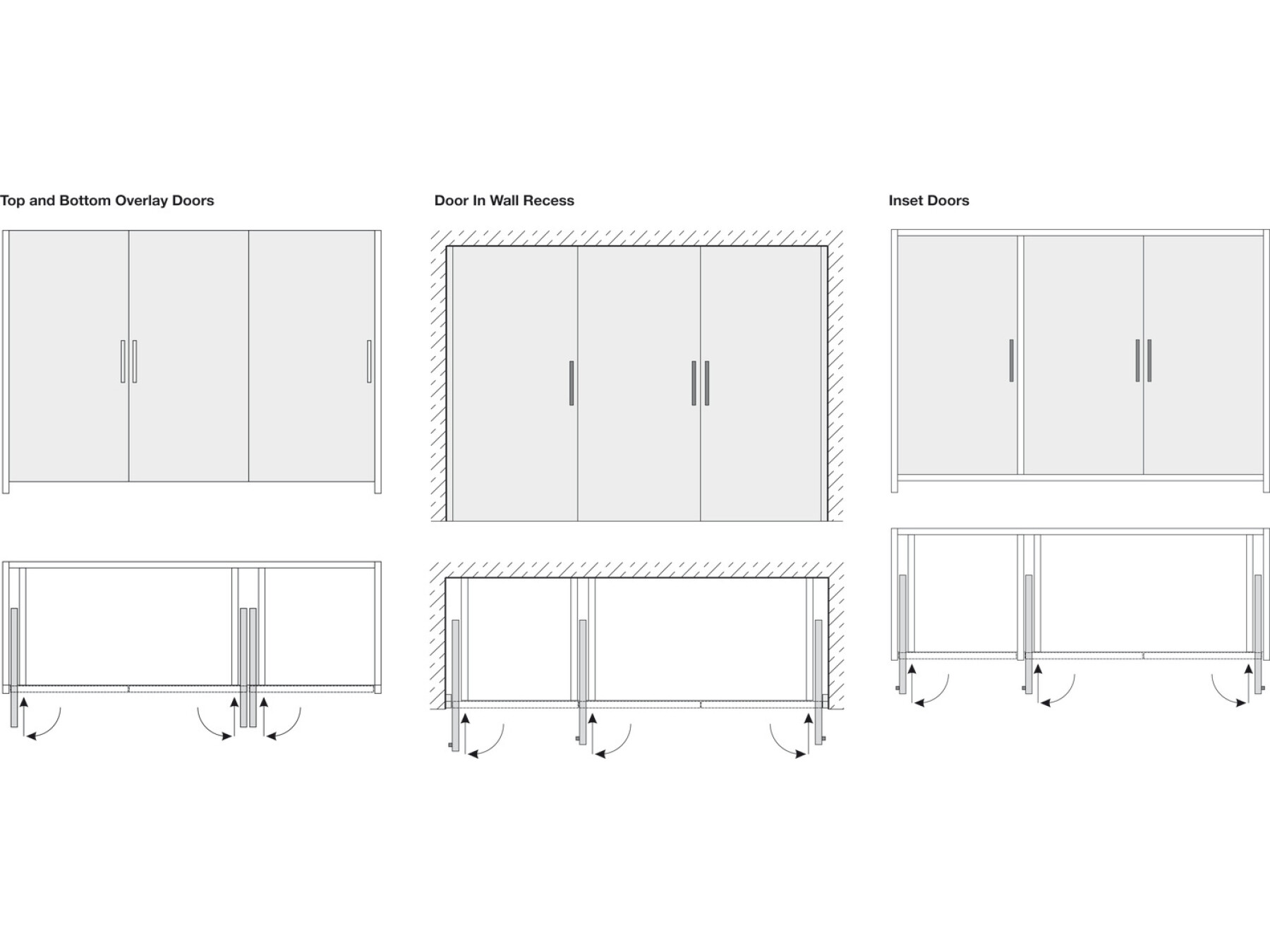

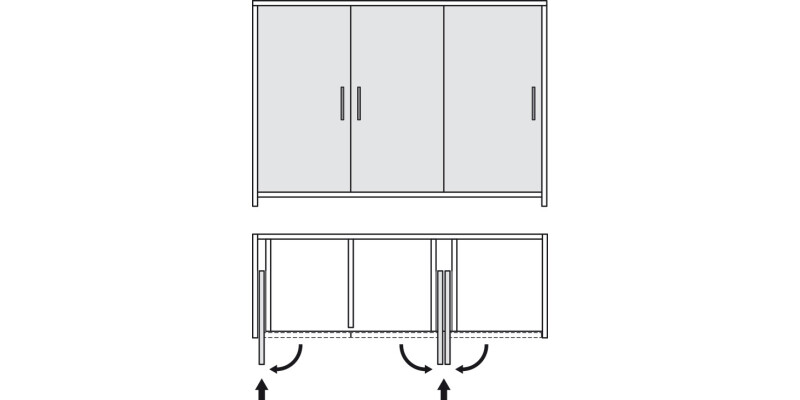

This is a heavy duty solution for sliding and folding doors. Choose it when you want dependable performance and controlled movement on vertical doors, particularly where stability and quiet running matter.

If your project matches the recommended door height, weight, thickness, and width, the Hawa Concepta 50 SC Set 2301 to 2850 mm 50 kg (Part No 408.30.593) is a strong, practical choice for finishing your sliding or folding installation neatly and confidently.
