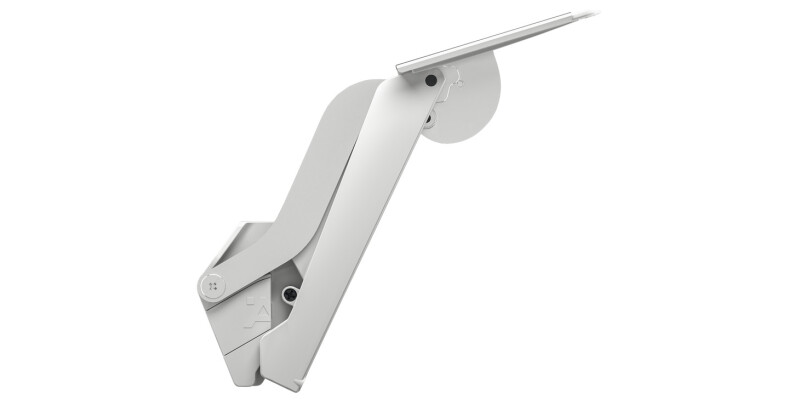

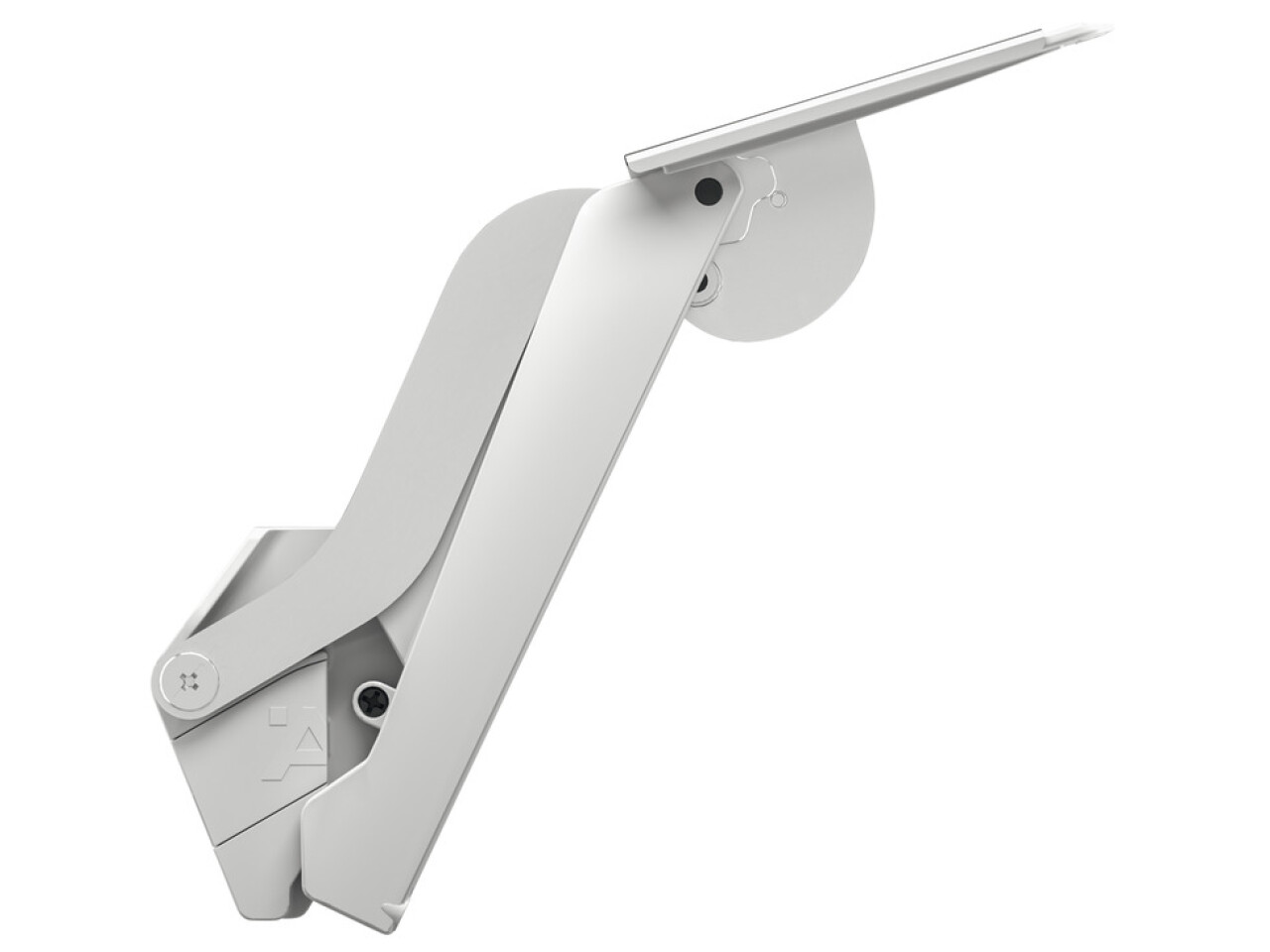

Single Door Flap Fitting, Complete Set, Free Space 1.8 Push
Single Door Flap Fitting, Complete Set, Free Space 1.8 Push (Part No: 372.27.708) is a smart, space-saving flap... Read More
Product Details

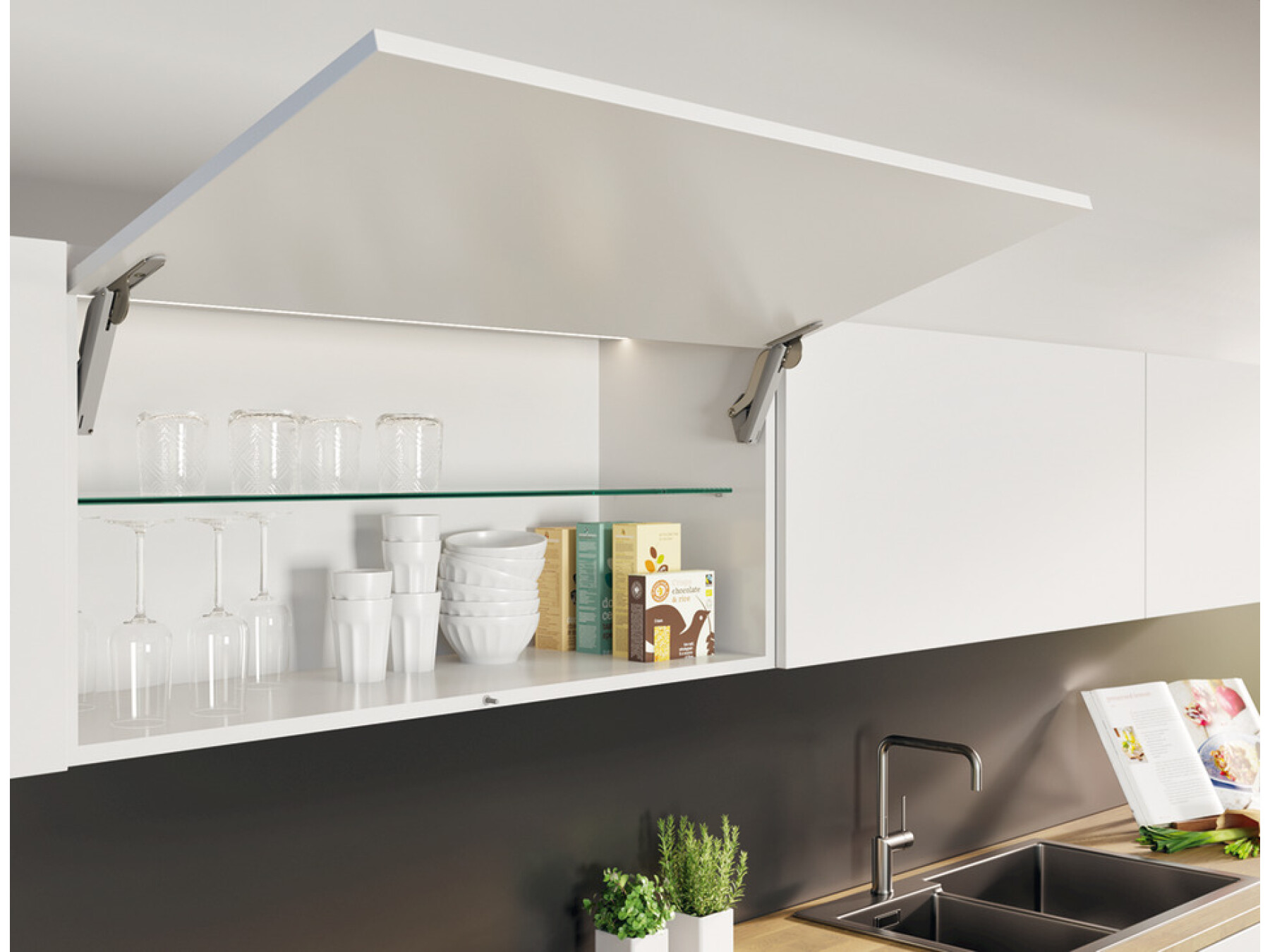

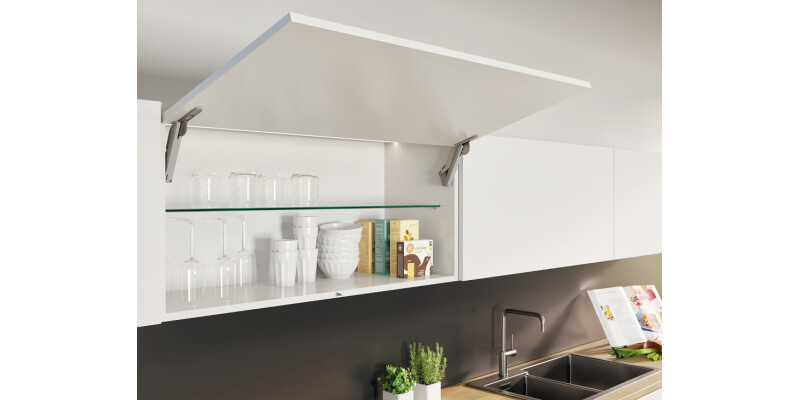

Single Door Flap Fitting, Complete Set, Free Space 1.8 Push (Part No: 372.27.708) is a smart, space-saving flap fitting designed for a cleaner look and smoother everyday use. Ideal for modern kitchens, living areas, and commercial cabinetry, this Model E pto set in white brings reliable performance to single-door flap applications—perfect when you want a neat front with no visible handle.
With an opening angle of 90° or 107°, the Free Space flap stay system helps you achieve the access you need while keeping operation effortless. It’s built for stay flap applications without handle where the front height is up to 650 mm (Push-to-Open), making it especially suitable for practical, high-traffic furniture installations.
Designed for one-piece flaps made from wood or featuring an aluminium frame, this version supports frame widths from 45 mm and cabinet sizes up to 1,800 mm wide, with flap heights from 225–650 mm. Installation depth is 63.00 mm, and you’ll benefit from fine adjustment options including height, side alignment, tilting angle, holding power, and release distance on the push catch.
Durable by design: the housing uses plastic for stability, while the front fixing bracket and support lever are steel. The lever arm is nickel plated for a premium finish. Plus, this product is covered by the Hafele Lifetime Guarantee—25 years.
Upgrade your flap system with the dependable performance of the Single Door Flap Fitting, Complete Set, Free Space 1.8 Push—choose smooth, handle-free access in a crisp white finish.
Specifications
Area of application
For all stay flap applications without handle with front height up to 650 mm (Push-to-Open)
Version
For one-piece flaps without handles, made of wood or with aluminium frame, from frame width 45 mm
Material
Housing: Plastic
Front fixing bracket and support lever: Steel
Colour/finish
Lever arm: Nickel plated
Lid material
Flap type
Opening angle
For cabinet width
For cabinet height
Installation depth
Adjustment facility
Height, side, tilting angle, holding power, release distance on push catch
Hafele Lifetime Guarantee
For lid height
Product Details

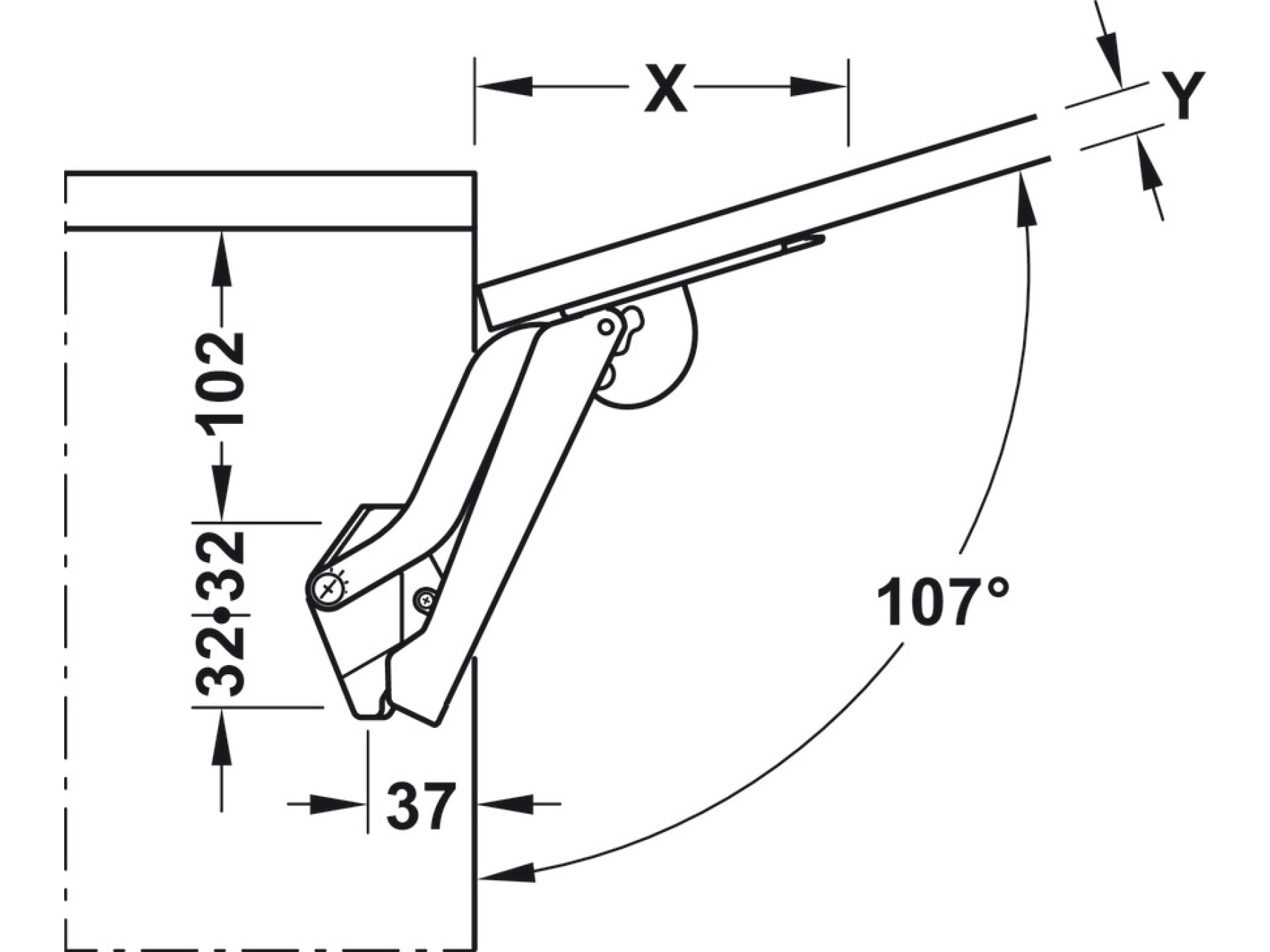

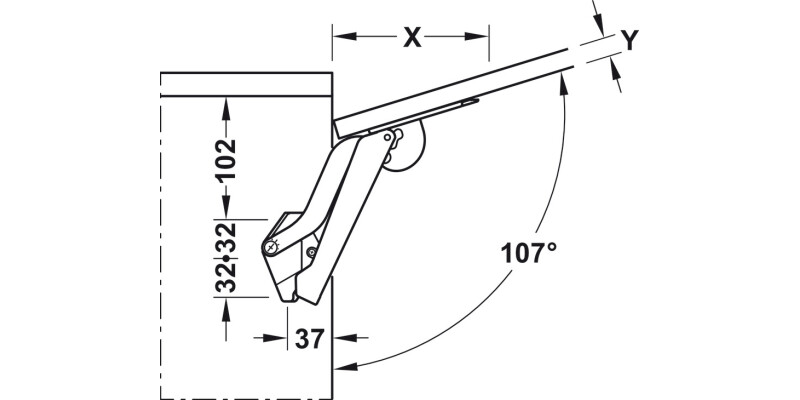

Which opening angle does this flap fitting support?
This Free Space flap fitting (Model E pto) is designed for either 90° or 107° opening angles, depending on how you configure the application in your cabinet layout. Check the opening angle you need before installation to ensure it matches your clearance and door swing requirements.
Is this suitable for push to open, without a handle?
Yes. It is intended for stay flap applications without a handle where the front height is up to 650 mm, including push to open style operation. If you are fitting a one piece flap, this model is built for that typical setup.
What cabinet sizes can this single door flap fitting handle?
It is suitable for cabinets with a cabinet width of up to 1,800 mm and a cabinet height range of 225 mm to 650 mm. This range helps ensure the fitting is appropriate for both residential and light commercial flap applications.
Will it work with one piece flaps and what frame width is required?
This model is for one piece flaps without handles, including wood flaps or flaps with an aluminium frame, when the frame width is from 45 mm. If your flap design differs, you may need a different version of the fitting.

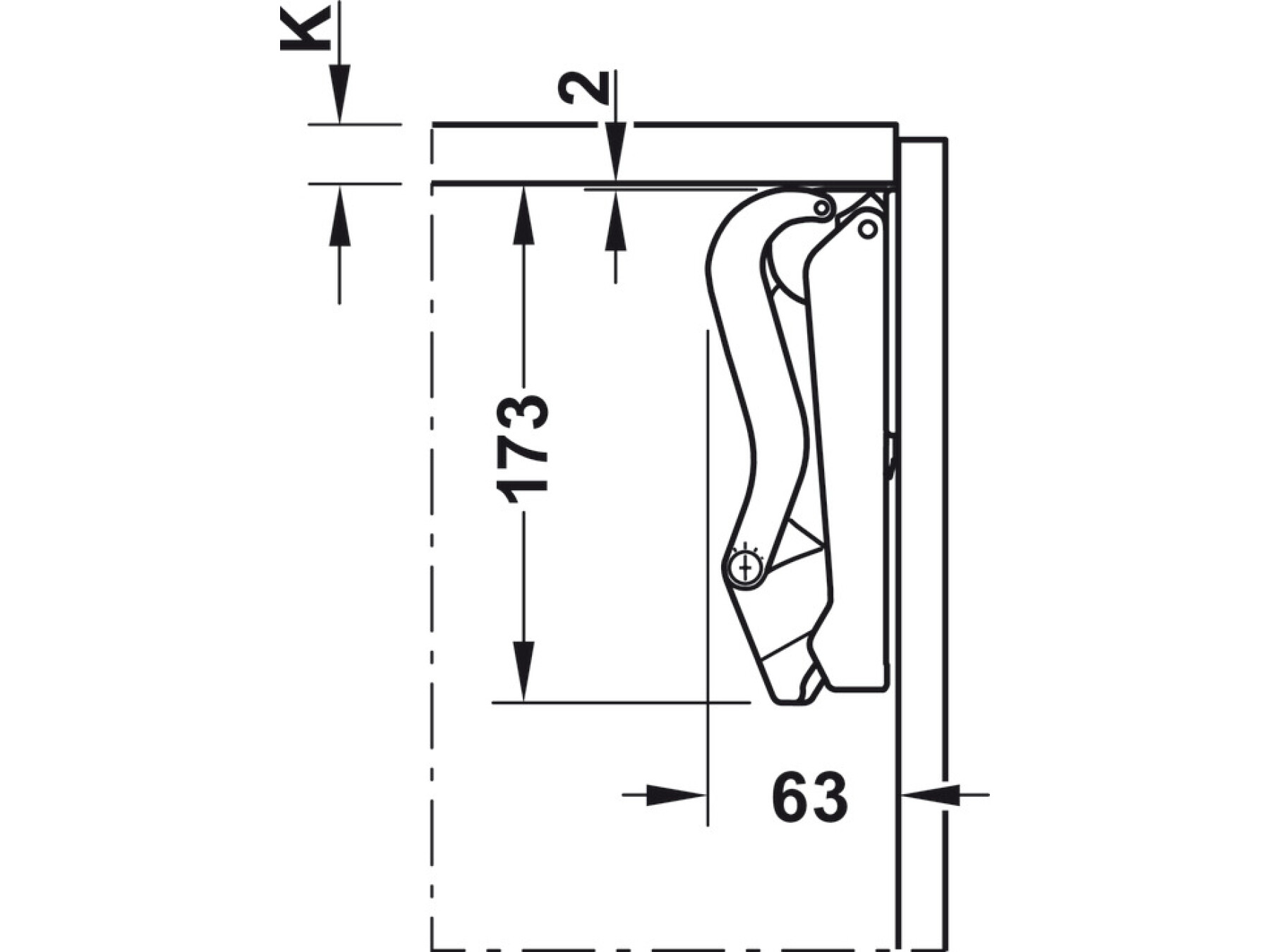

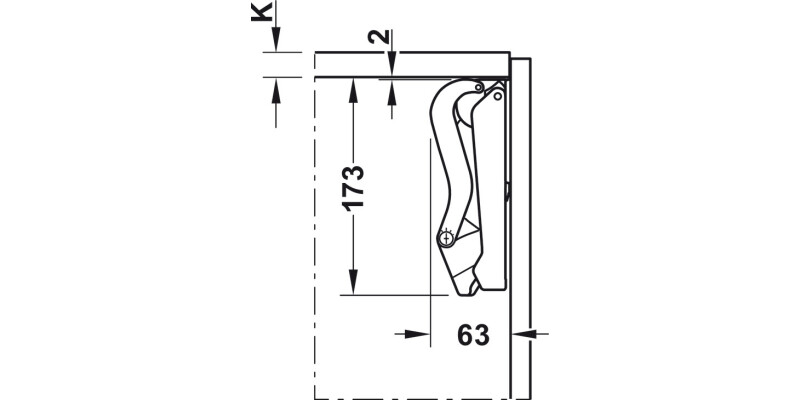

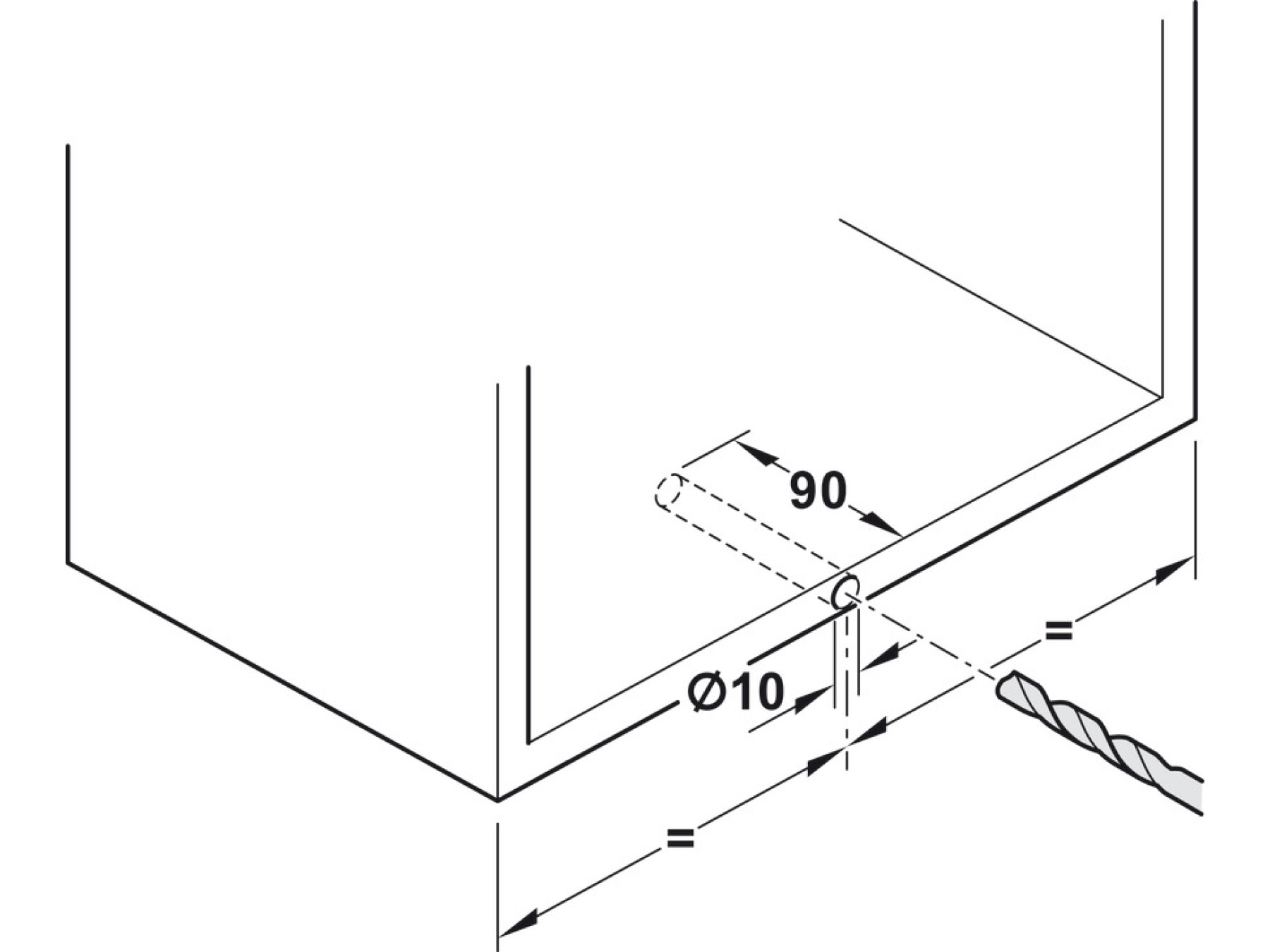

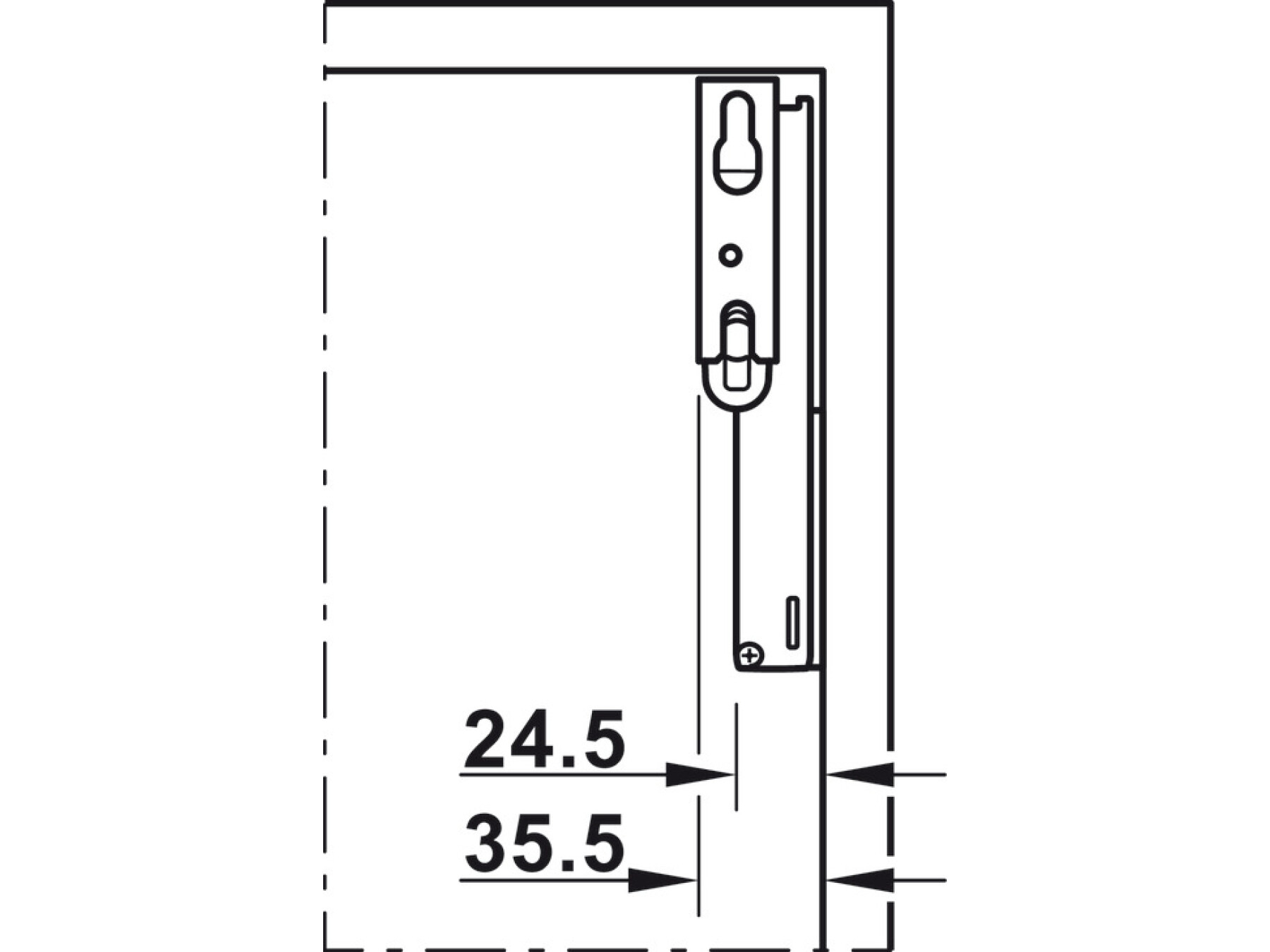

How is it installed and what installation depth should I allow?
The required installation depth is 63.00 mm. Planning for this depth during fitting helps prevent clashes with cabinet panels and makes it easier to align the flap correctly.
What adjustments are available after fitting?
Once installed, you can fine tune performance using the built in height adjustment, side adjustment, tilting angle adjustment, holding power, and release distance on the push catch. These adjustments are helpful for achieving smooth opening and reliable hold.
Is there a warranty and how long is coverage?
Yes. The Free Space flap fitting comes with a Hafele Lifetime Guarantee of 25 years. Choosing a reputable brand like this is especially useful for keeping hinge and stay performance consistent over time.
What finish and materials should I expect?
The housing uses plastic with a steel front fixing bracket and support lever. The lever arm is nickel plated, and the fitting is supplied in white to suit common cabinet colour schemes.
