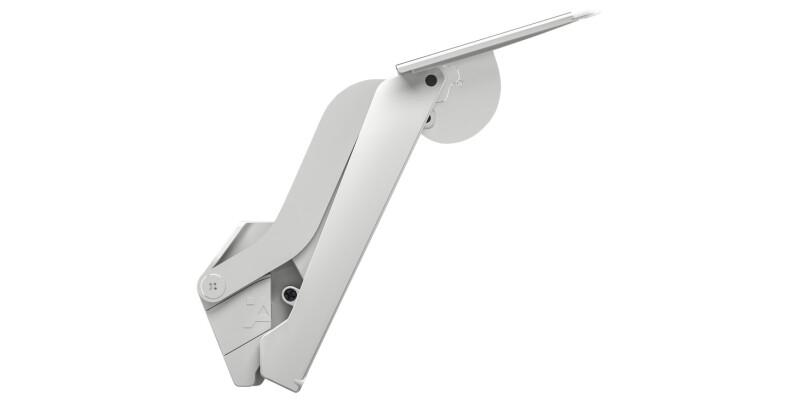

Single Door Flap Fitting, Complete Set, Free Space 1.8 Push

Product Details

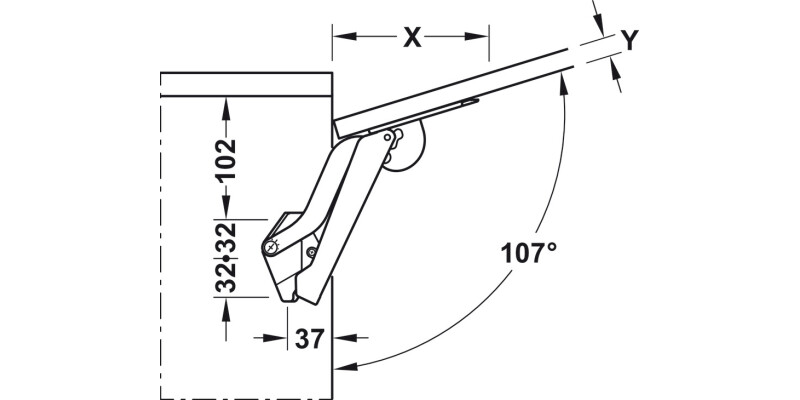

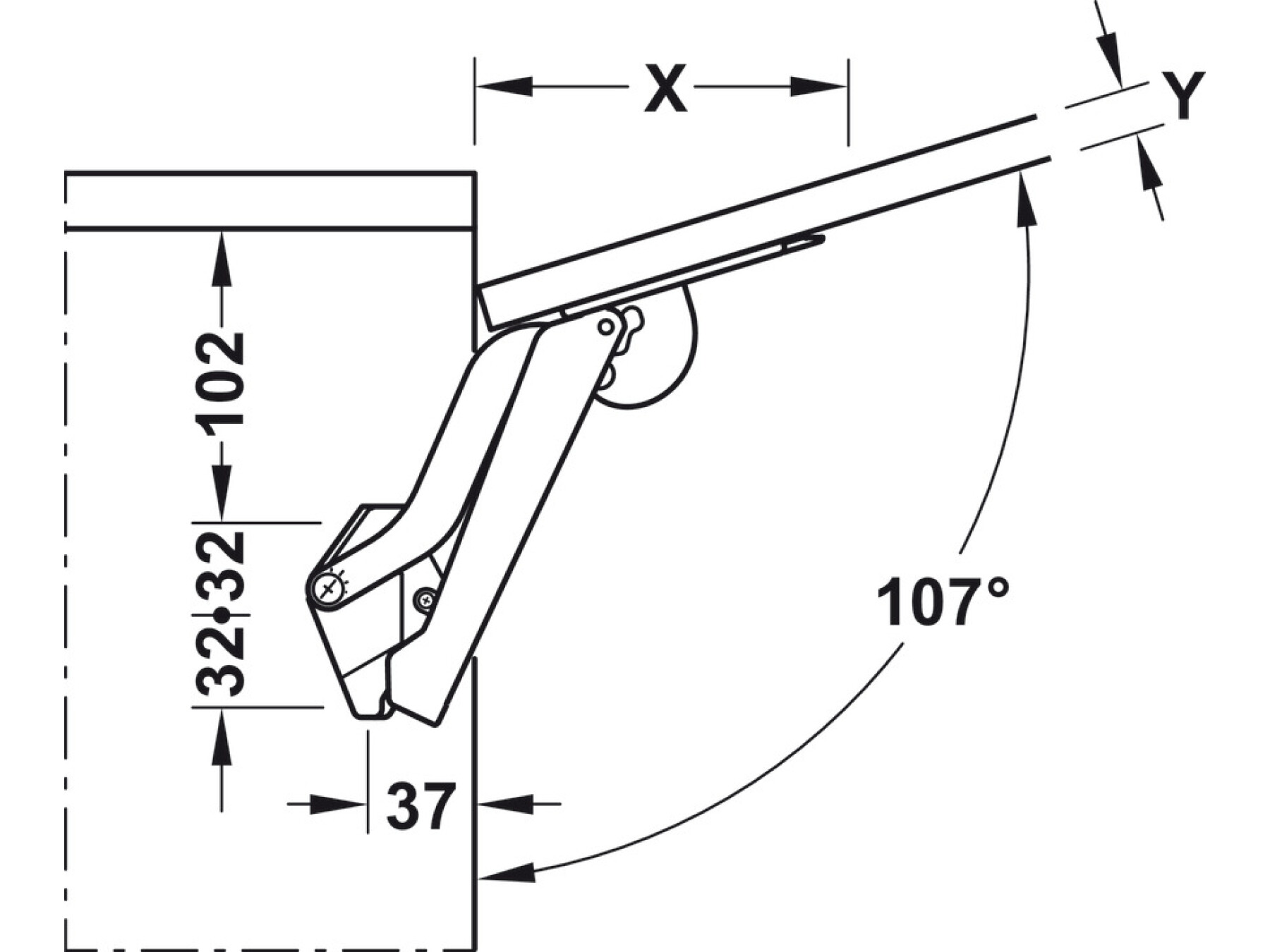

Which opening angle does the Free Space 1.8 PTO single door flap fitting offer?

This model supports 90° or 107° opening angles. The correct angle helps you match the stay to your cabinet layout and the space available for the door to swing fully open.

Is this suitable for push to open flap applications?

Yes. It is designed for stay flap applications without a handle using a push-to-open setup for front heights up to 650 mm. If your flap uses a handle, you should choose a different stay variant.

What flap sizes is the 372.27.705 compatible with?

It is intended for cabinet widths of up to 1,800 mm and cabinet heights of 225 to 650 mm. It is also suitable for one piece flaps from a frame width of 45 mm.

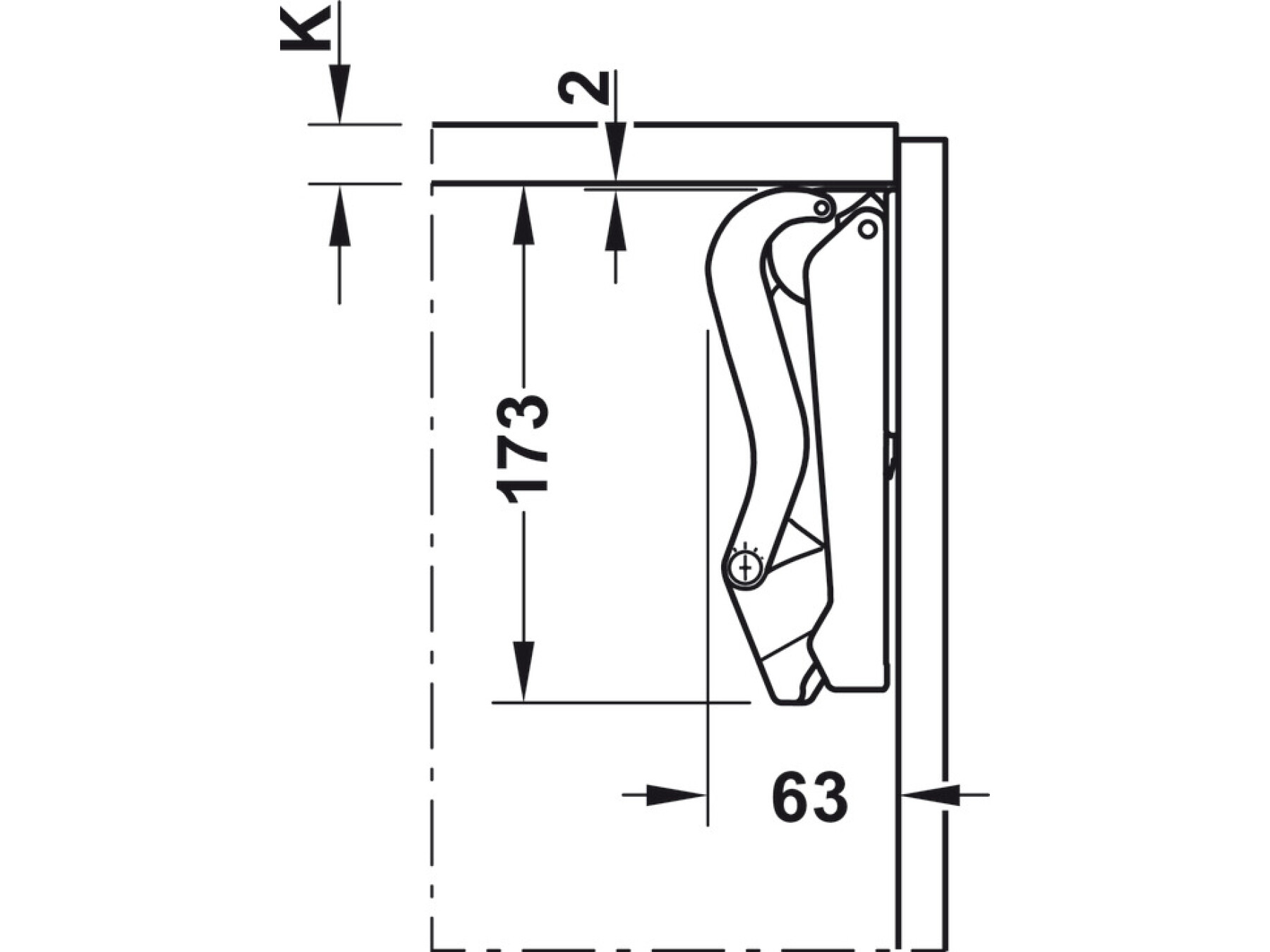

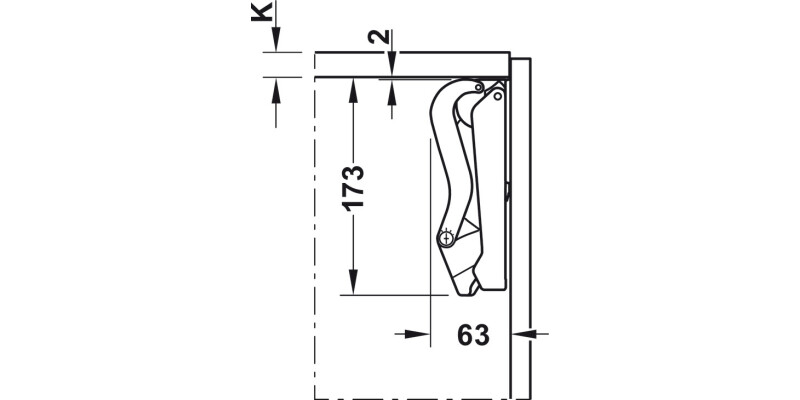

How much installation depth will I need to allow?

The fitting specifies an installation depth of 63.00 mm. Checking this before you drill or route helps ensure smooth mounting and proper operation.

Can it be used with wood flaps or aluminium framed flaps?

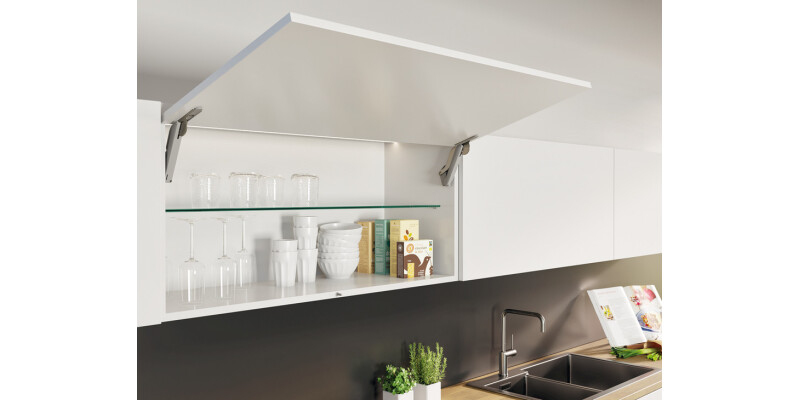

Yes. The stay is suitable for one piece flaps made of wood or flaps with an aluminium frame. This makes it a practical choice for a range of flap designs in living and commercial furniture.

What adjustments can I expect after installation?

You can fine tune the installation for height, side positioning, tilting angle, holding power, and release distance when using the push catch. These adjustments make it easier to achieve consistent closing and open behaviour.

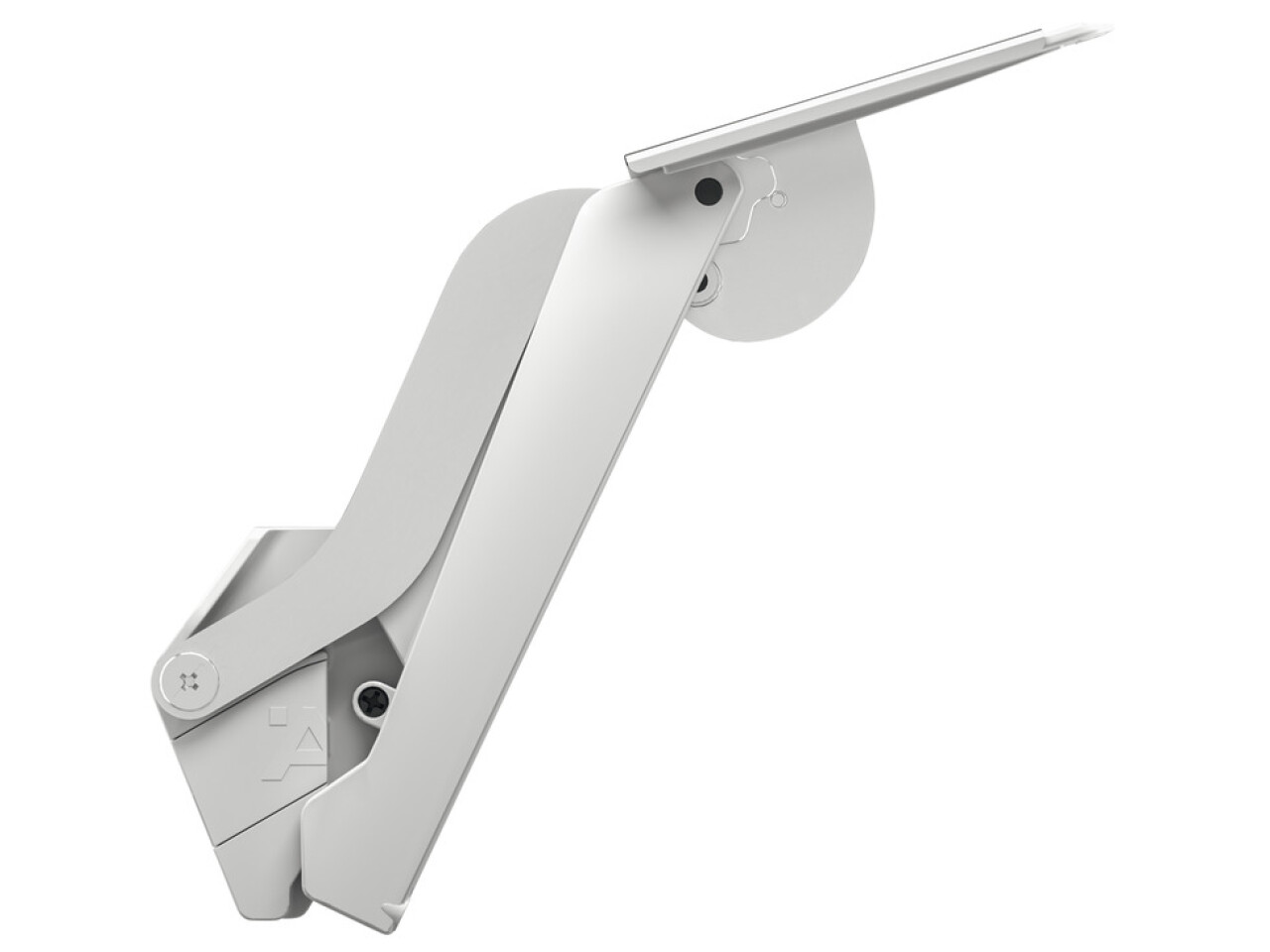

What colour and finish does the lever arm have?

The product comes in white, and the lever arm is nickel plated. This combination is often chosen to blend with modern flap hardware while keeping a durable, tidy finish.

Is there any warranty or guarantee on this flap fitting?

Yes. It is covered by the Hafele Lifetime Guarantee for 25 years. Choosing a matched flap fitting set can also reduce the chances of misalignment and early wear.
