Single Door Flap Fitting, Complete Set, Free Space 1.8 Push

Product Details

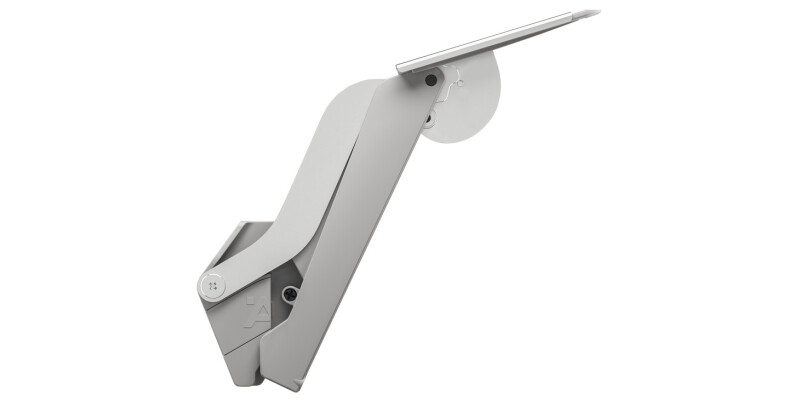

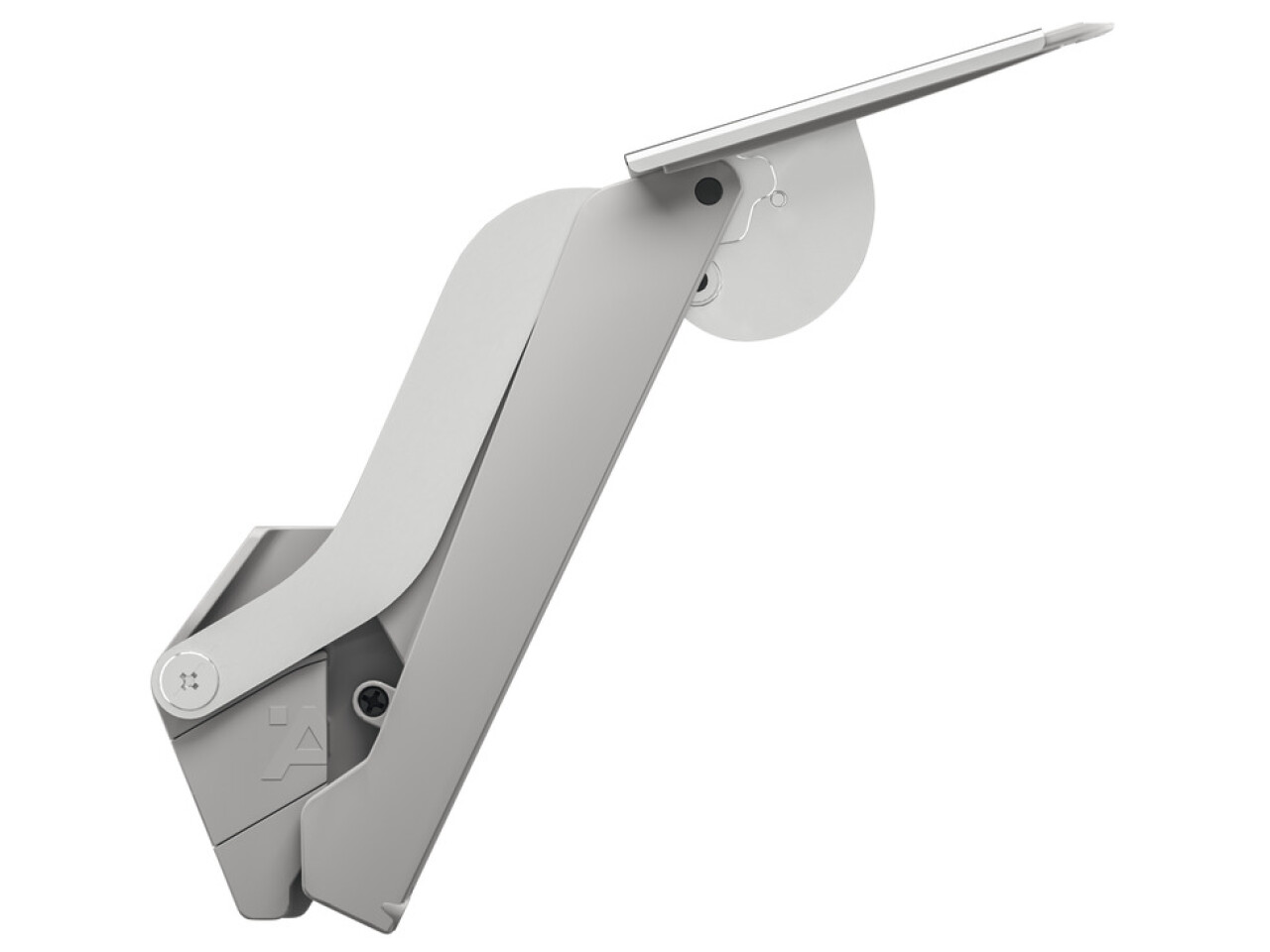

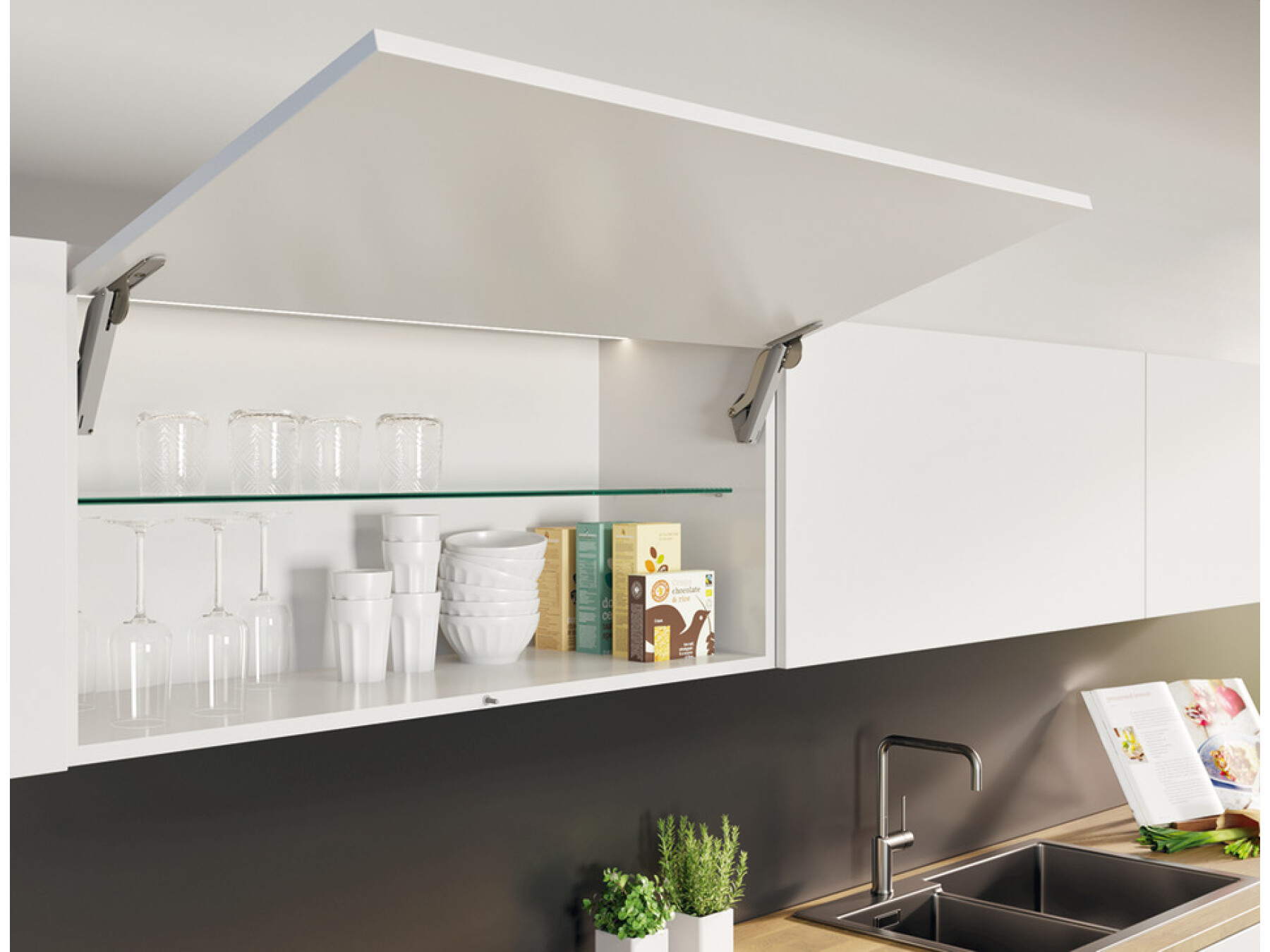

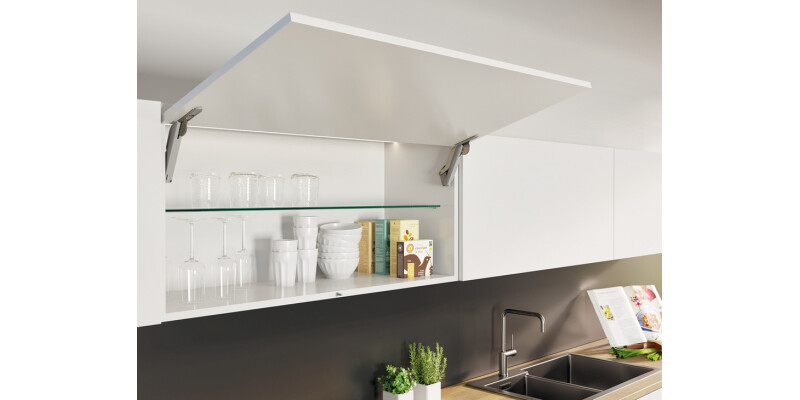

Single Door Flap Fitting, Complete Set, Free Space 1.8 Push (Part No: 372.27.505) is a sleek, light grey flap fitting and stay set designed to deliver smooth, controlled movement for single-door flap applications. Ideal for modern living and commercial furniture, this 90° or 107° opening angle model B pto (push-to-open) set helps you create a clean front look—no handle required.

Built for reliable flap performance, the Free Space fitting is intended for stay flap applications without handles with a front height up to 650 mm. It’s a great choice for one-piece flaps made of wood or with an aluminium frame, with a frame width of 45 mm—perfect for quality cabinetry and well-finished furniture designs.

The housing is made from plastic, while the front fixing bracket and support lever are steel for dependable strength. For a refined appearance, the lever arm is nickel plated, matching the light grey aesthetic of the set.

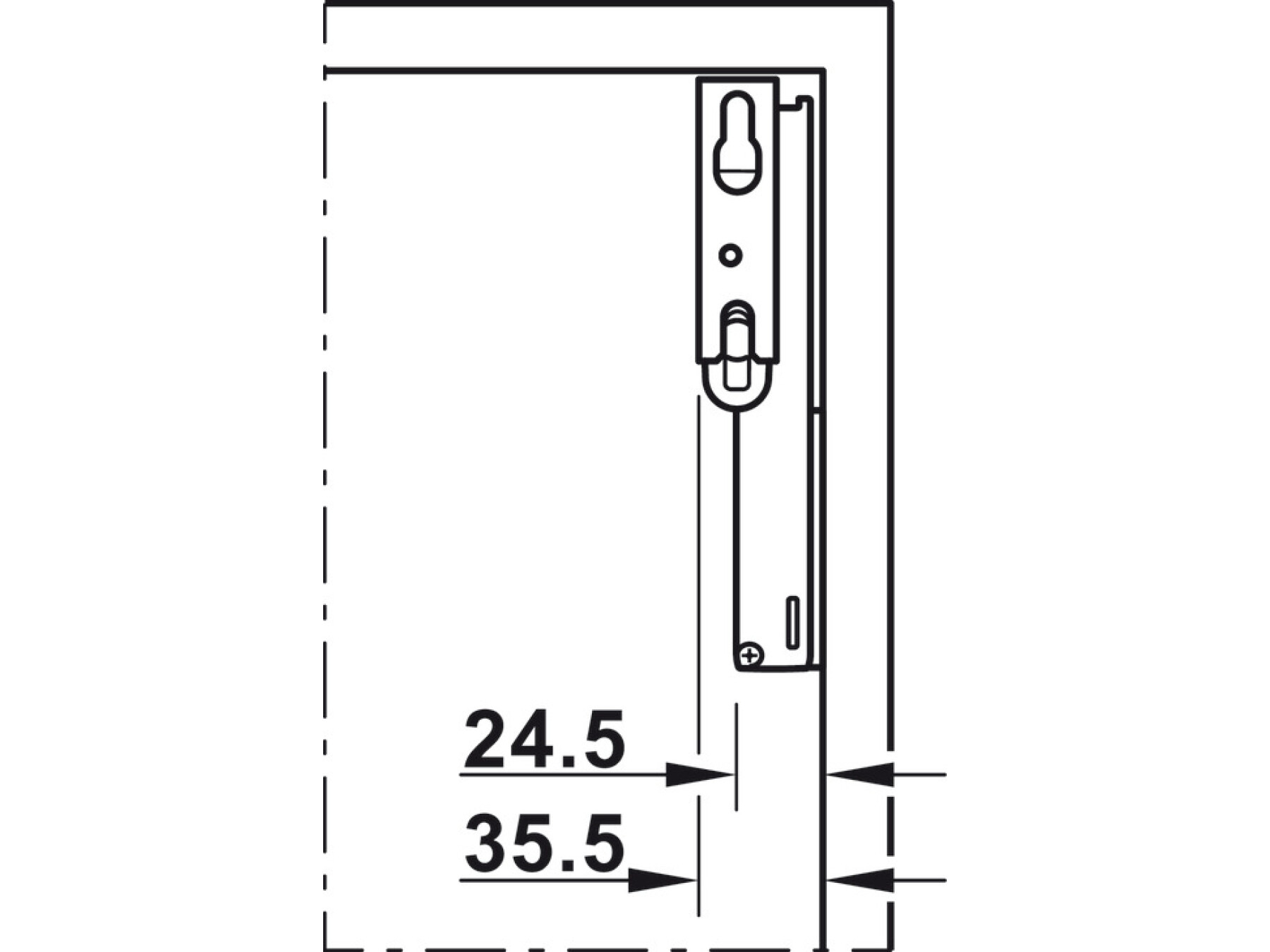

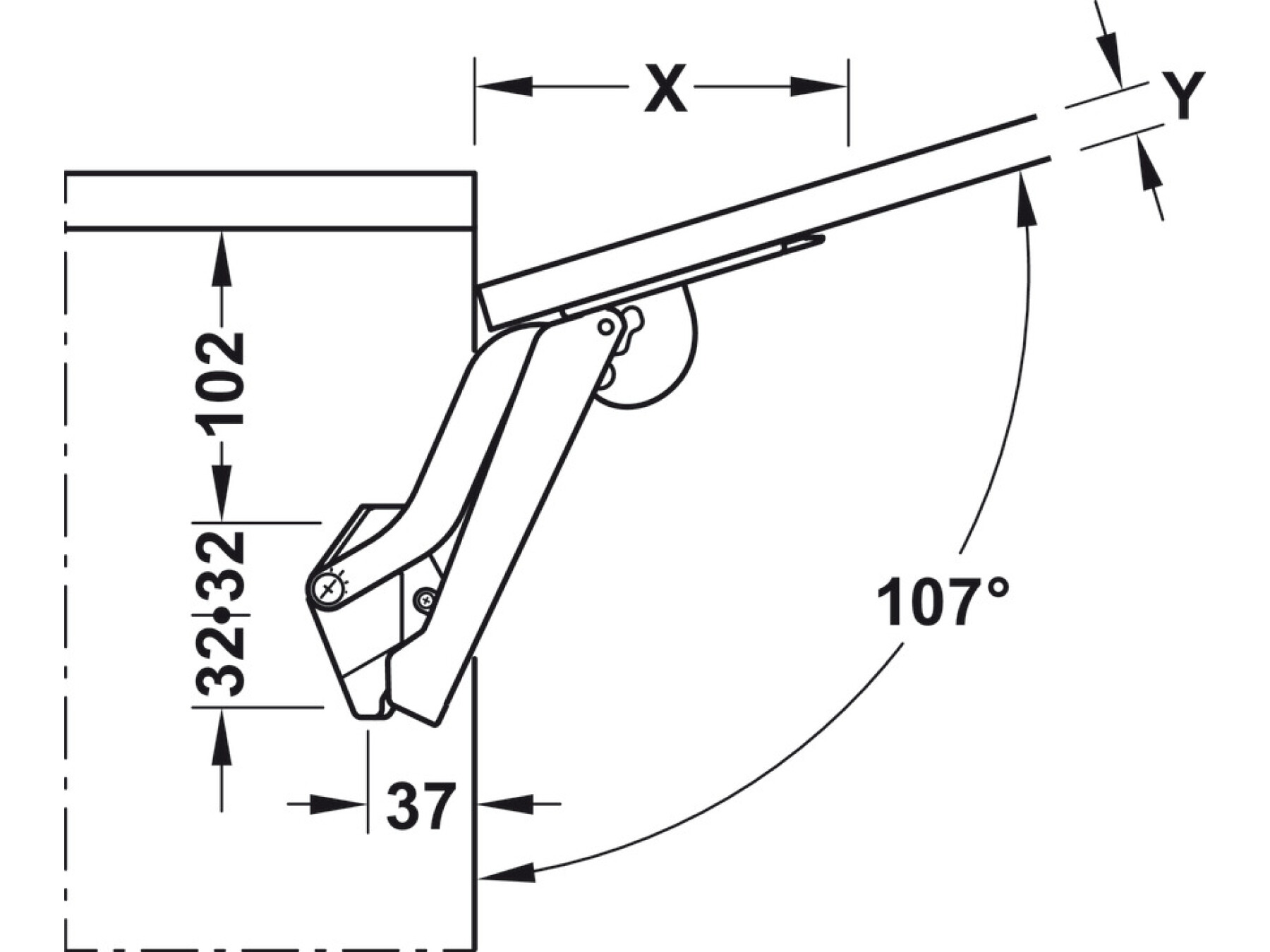

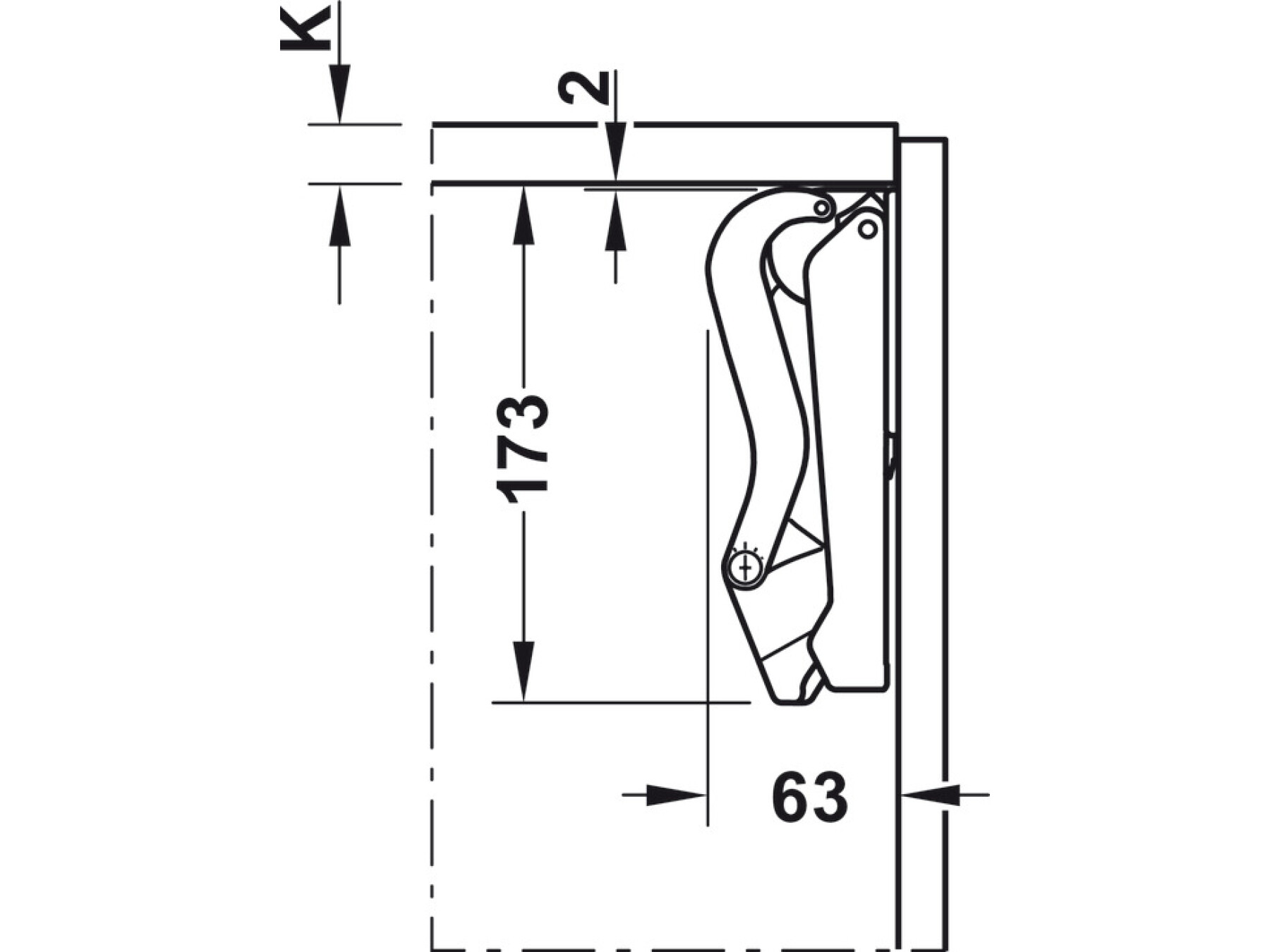

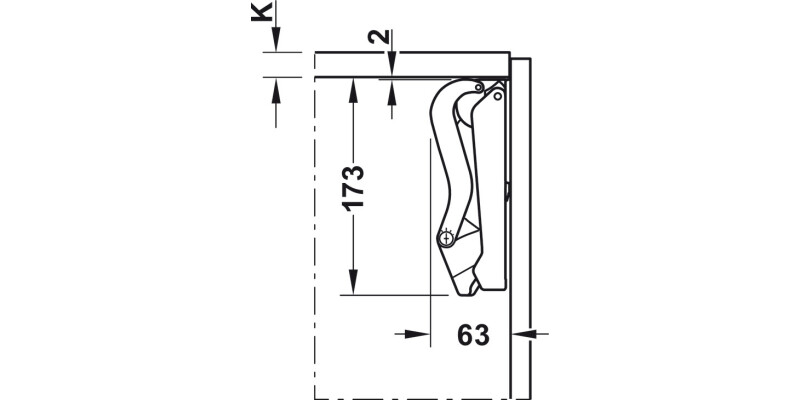

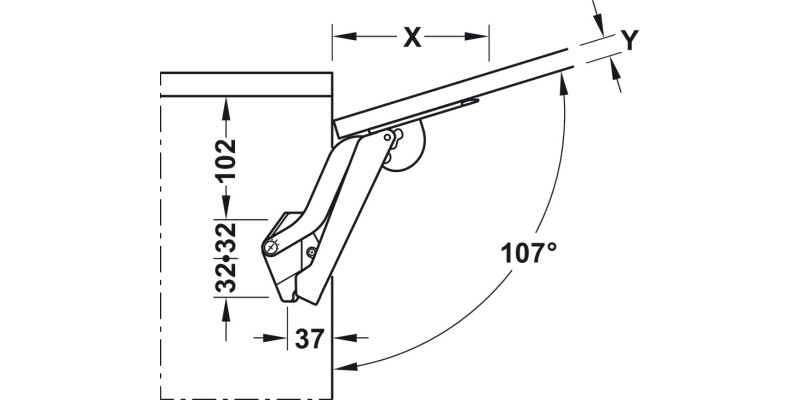

Choose the opening that suits your layout: this comp set supports 90° or 107° opening angles. It’s suitable for cabinet widths up to ≤ 1,800 mm and cabinet heights of 225–650 mm, with an installation depth of 63.00 mm.

Fine-tune your installation thanks to the built-in adjustment capability including height, side, tilting angle, holding power, and the release distance on the push catch. Plus, you can enjoy peace of mind with the Häfele Lifetime Guarantee (25 years).

Upgrade your flap doors with Free Space—order now to achieve smooth push-to-open operation, consistent holding, and a premium finish in every use.
