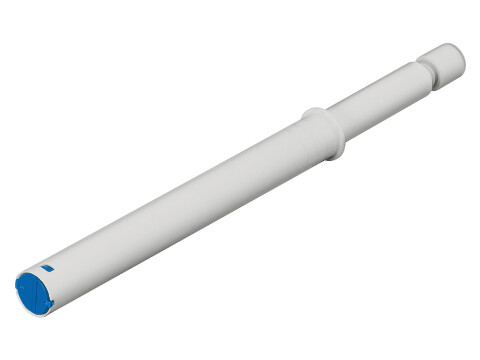

Door Catches, for Mounting in Drilled Hole, for Free Flap 1.7 and 3.15
Part Number: 372.91.502
For mounting in a drilled hole Ø 10 x 90 mm, Model: Type 3, ejection force 26-48 N, light grey
Price:
£3.67
Per Item
Door Catches, for Mounting in Drilled Hole, for Free Flap 1.7 and 3.15 (Product Part No: 372.91.502) is a... Read More
Product Information
Product Details
Door Catches, for Mounting in Drilled Hole, for Free Flap 1.7 and 3.15 (Product Part No: 372.91.502) is a practical, space-saving door catch designed for smooth everyday operation in both living and commercial furniture applications. Supplied in a light grey finish, this flap fitting & stay solution helps keep hinged flap doors neatly closed while making release quick and controlled.
Ideal for cabinet and furniture designers, the catch is built for mounting in a drilled hole Ø 10 x 90 mm. With a 26–48 N ejection force, it provides dependable holding power—perfect for flaps that need a confident latch without feeling stiff or hard to operate.
Easy installation makes this option especially convenient. It can be installed into a drilled hole (Ø 10 mm) or slid into a screw-on housing if you prefer a housing-based approach. For a neat, accurate fit, the drilling depth is 90 mm.
Built from durable plastic, the mechanism includes depth adjustment < 4 mm and a precise release distance of 2 mm, helping you fine-tune alignment for clean closure and consistent performance.
Need a reliable long-term solution? This product is backed by the Hafele Lifetime Guarantee (25 years)—a strong choice for customers who want quality flap hardware that lasts.
Order reference note: If required, order the screw-on housing separately to complete your installation.

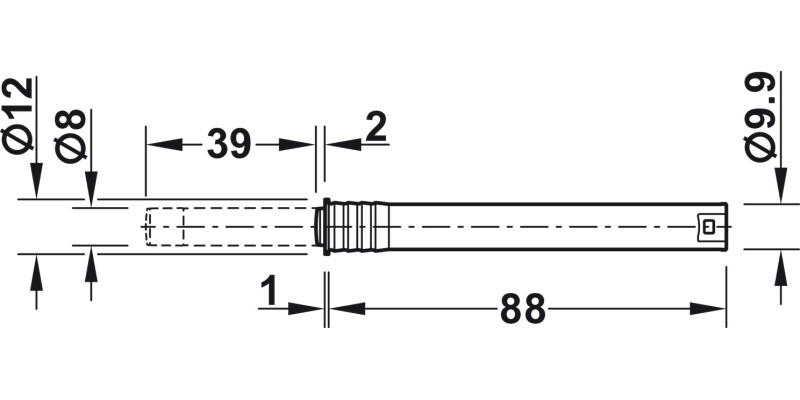

Specifications
Travel
39.00 mm
Installation
For mounting in drilled hole ⌀ 10 mm or sliding into screw-on housing
Material
Plastic
Adjustment facility
Depth adjustment: <4 mm
Release distance
2 mm
For drill hole Ø
10.00 mm
Drilling depth
90.00 mm
Hafele Lifetime Guarantee
25 years
Order reference
Order screw-on housing separately if required
FAQ
Product Details
Which drill hole size and depth does this flap push catch require?
This model is designed for a 10 mm diameter drilled hole with a 90 mm drilling depth. Ensuring the correct hole size helps the catch sit properly and work reliably.
Can the catch be fitted by sliding into a housing, or does it only work with drilled holes?
It can be mounted by either placing it into a drilled hole or sliding it into a screw on housing. If you are using the housing method, you should order the screw on housing separately if it is not already included.
What ejection force does Type 3 provide?
The Type 3 flap push catch has an ejection force of 26 to 48 N. This range is suitable for controlled release of furniture flaps, but the actual feel depends on your installation and flap setup.
Is there any adjustment after installation?
Yes, there is depth adjustment of less than 4 mm. You can fine tune the fit to help the flap align correctly and ensure consistent latching and release.
How far does the catch release during operation?
The release distance is 2 mm. This short, controlled movement is typical for flap catches and helps provide a neat, dependable latch action.
What colour and model should I choose for my project?
This part is the Type 3 model with a light grey finish. Choosing the correct type and colour helps you match the catch to your furniture components and maintain a clean overall appearance.
Does it come with a Hafele lifetime guarantee?
Yes. This product is covered by a Hafele Lifetime Guarantee of 25 years when used in accordance with the recommended installation and application.
Related Products
Recently Viewed
Part No: 372.90.115
Flap Stay, with Pull Cable, Plastic, Grass Kinvaro D-M
£32.42
(excl. VAT)
Part No: 372.27.702

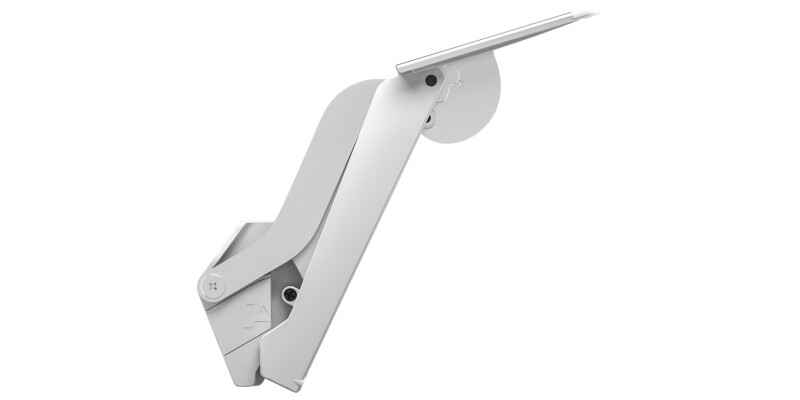

Single Door Flap Fitting, Complete Set, Free Space 1.11
