Push-Button Cylinder, for Central Locking, Ø 18 mm

Product Details

Push-Button Cylinder, for Central Locking, Ø 18 mm (Part No: 234.66.601) is a dependable, space-saving locking solution for everyday living spaces. Designed for a standard profile, this push-button cylinder delivers smooth, secure operation—ideal when you need reliable privacy and control without complexity.

Thanks to its practical design, the Push-Button Cylinder, for Central Locking, Ø 18 mm works beautifully for sliding doors or can be used as a central locking rotary lock in a lock panel. Whether you’re upgrading furniture hardware or specifying locks for commercial interiors, this cylinder brings consistent performance you can count on.

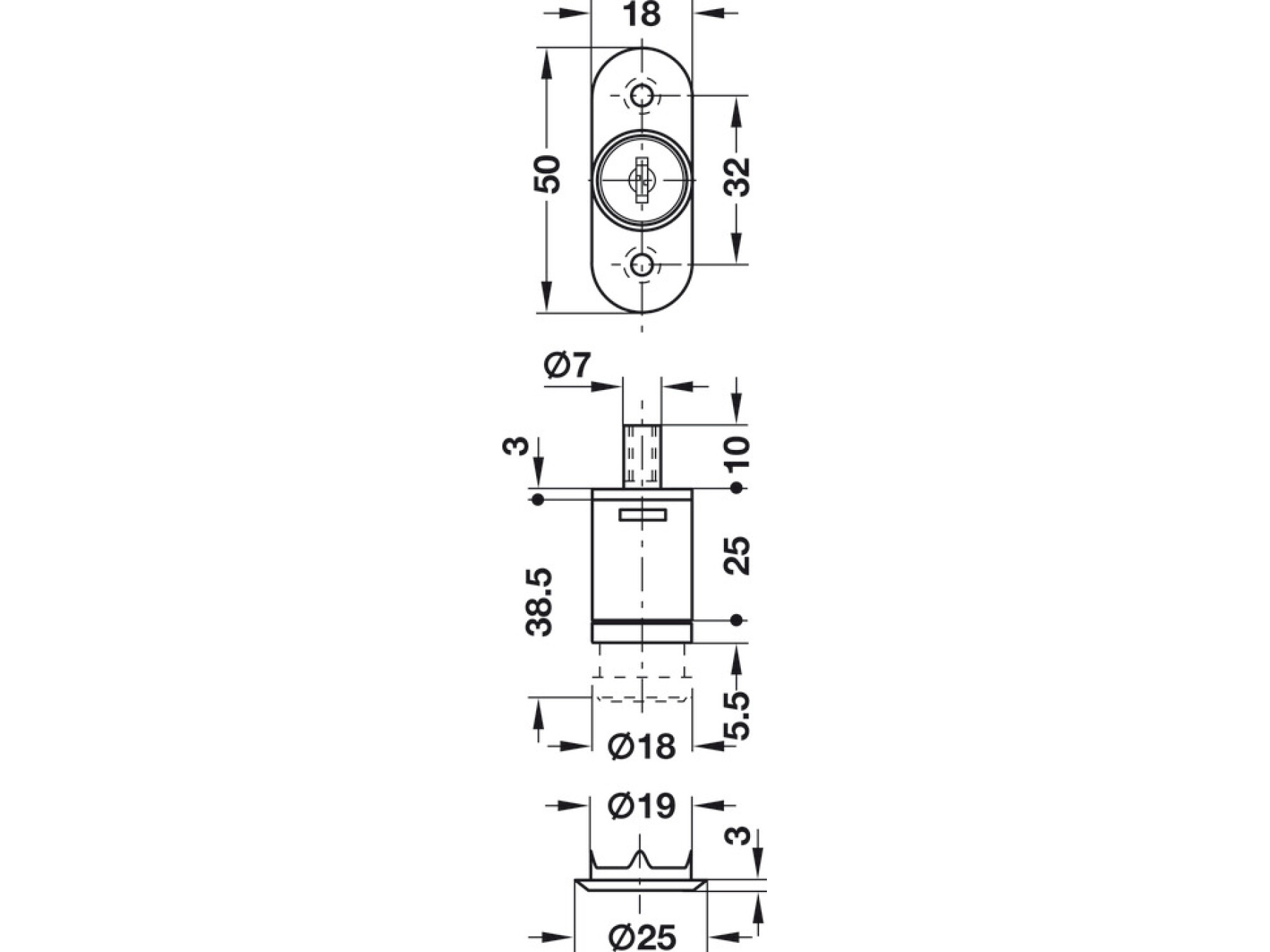

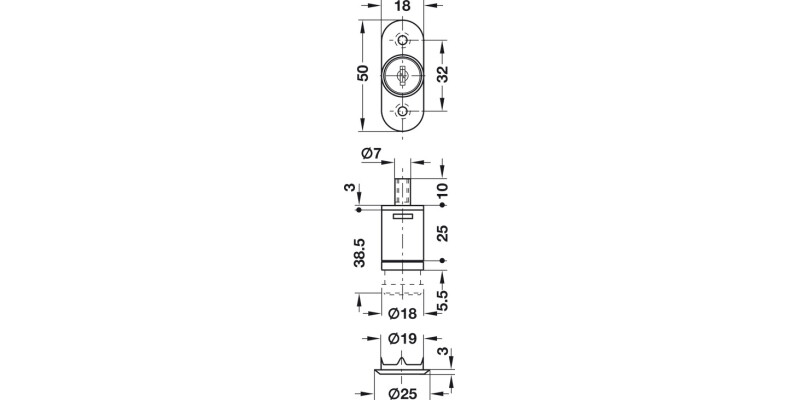

Built with quality materials, the lock features a zinc alloy body and a refined nickel plated, matt finish to complement modern cabinetry and furniture fittings. The round cylinder measures 18.00 mm diameter with a 25.00 mm cylinder length, and offers a 10.00 mm travel for confident locking action.

Mechanically, it uses a locking pin with M5 internal thread and operates with 6 plate levers for stable engagement. Installation is straightforward with screw fixing, making it a convenient choice for both installers and DIY upgrades.

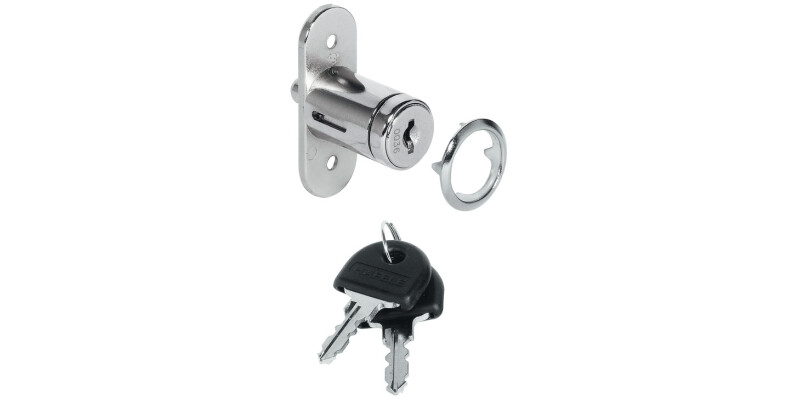

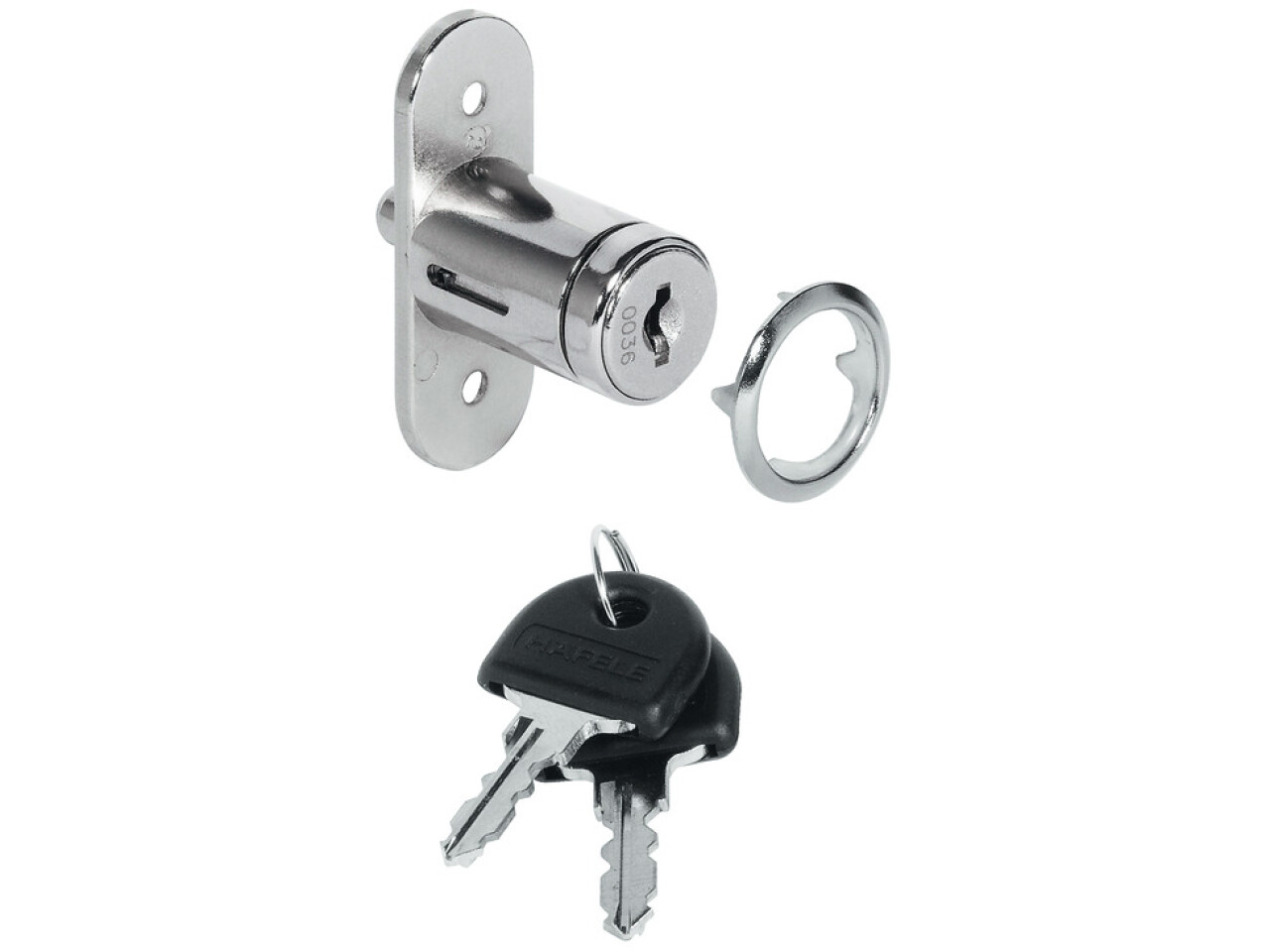

Included in the box: 1 push-button cylinder, 2 keys, and 1 cylinder rosette. With the SH 1–keyed alike subtitle, it’s a great way to simplify key management across compatible units—so you can buy once and enjoy smarter access every day.

1 push-button cylinder
2 keys
1 cylinder rosette
