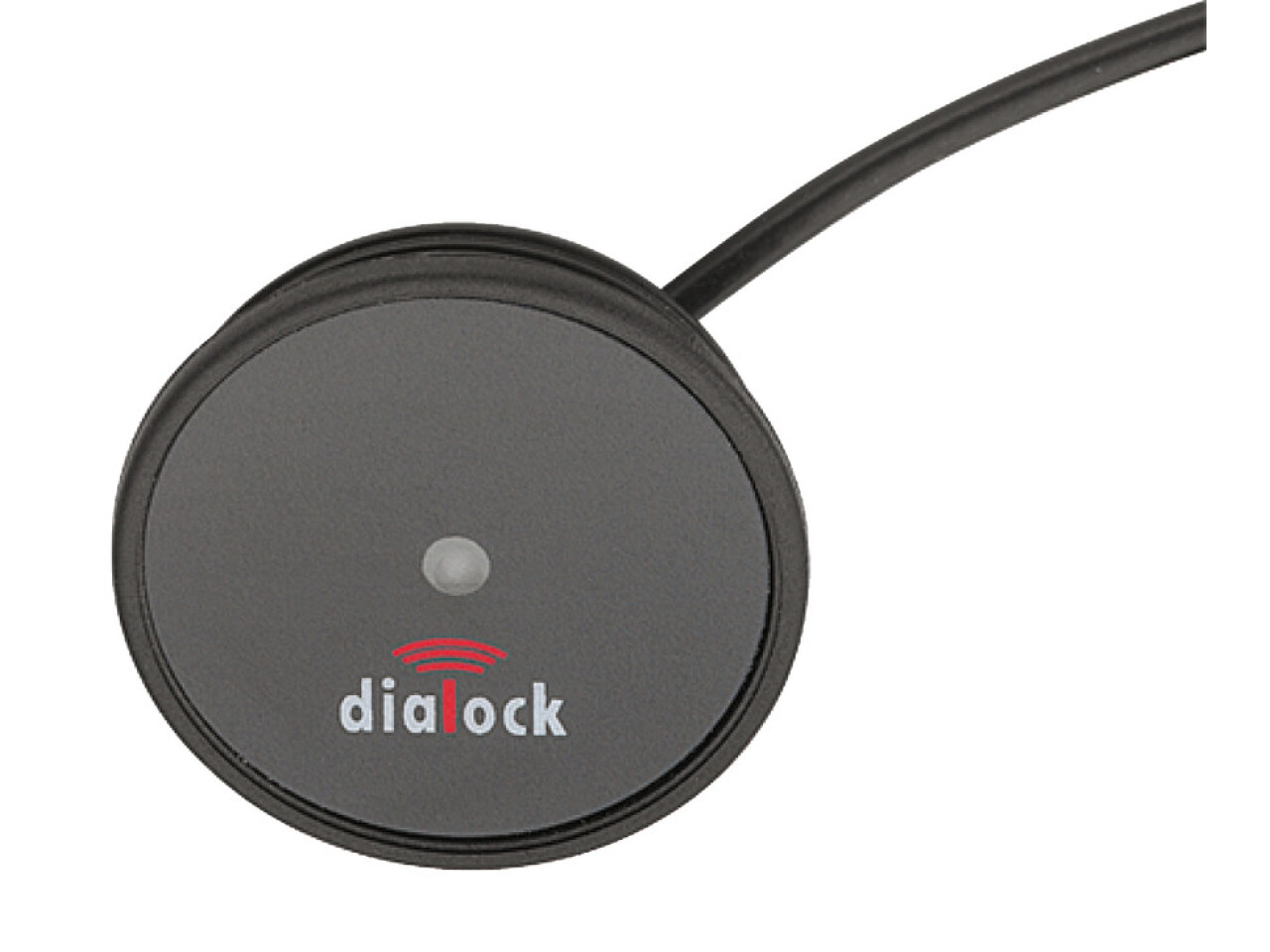

External Antenna, DFANT 200, Dialock

Name: External Antenna, DFANT 200, Dialock
SKU: 237.59.061
Price: 44.09 GBP
Availability: InStock

Part Number: 237.59.061

Lead length 3 m

Price:

£44.09

Per Item

VAT excluded

External Antenna, DFANT 200, Dialock (Part No: 237.59.061) is a premium external antenna solution designed to... Read More

Product Information

Product Details

External Antenna, DFANT 200, Dialock (Part No: 237.59.061) is a premium external antenna solution designed to strengthen connectivity for RFID-enabled door entry and access systems. With its lead length of 3 m, this antenna gives you the flexibility to position the read point exactly where it performs best—ideal for discreet installations in furniture and architectural ironmongery applications.

Optimised for reliable RFID reads, the DFANT 2 supports popular RFID technologies including MIFARE Classic EV1, MIFARE DESFire EV1/EV2, and Tag-it™ Iso. Whether you’re upgrading an existing access setup or building a new system, this antenna helps deliver consistent performance you can depend on.

Built for confidence in real-world conditions, it features a high degree of protection: IP67. That means added protection against dust and water exposure—supporting long-term reliability for installations where environmental factors matter.

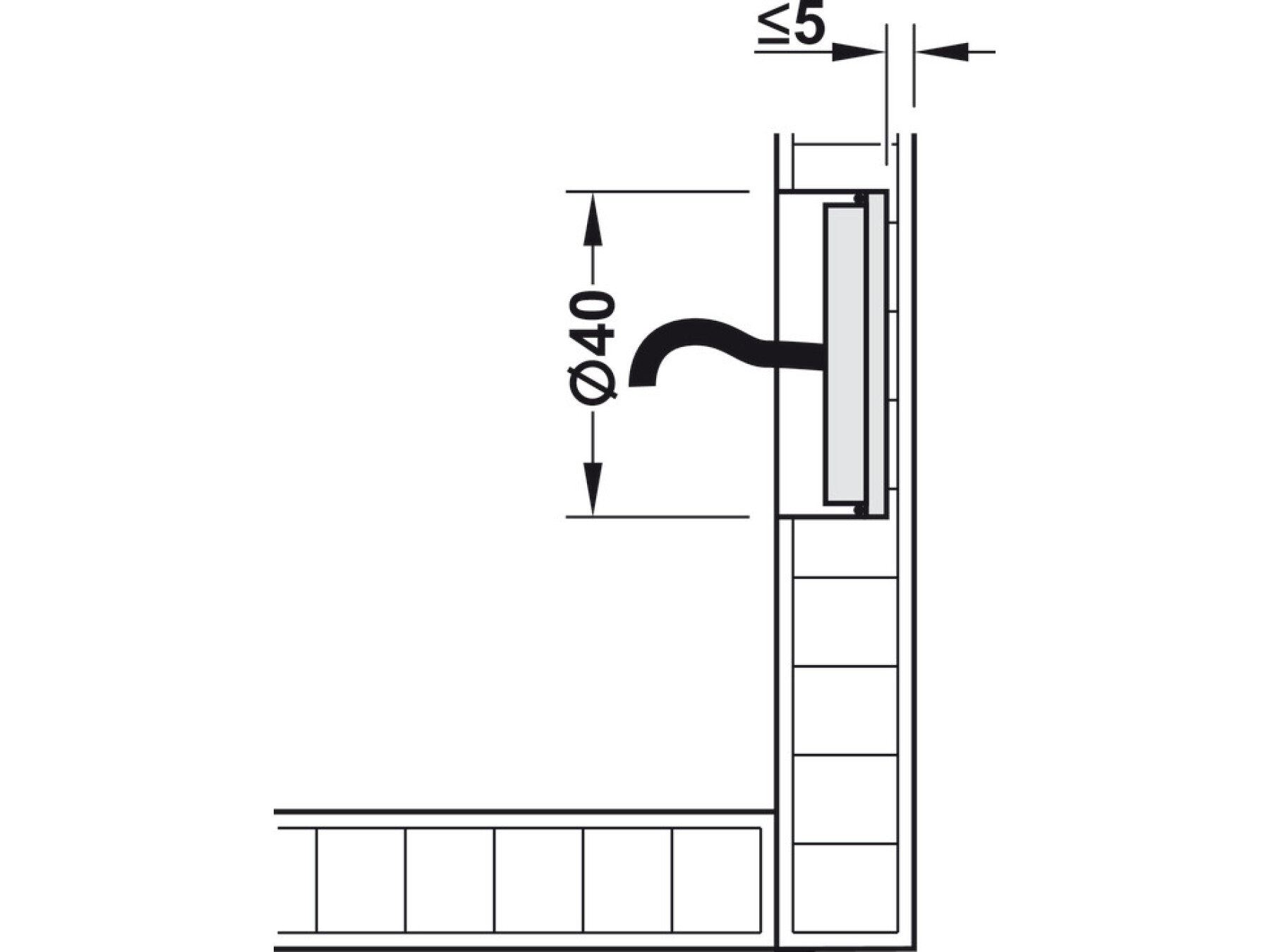

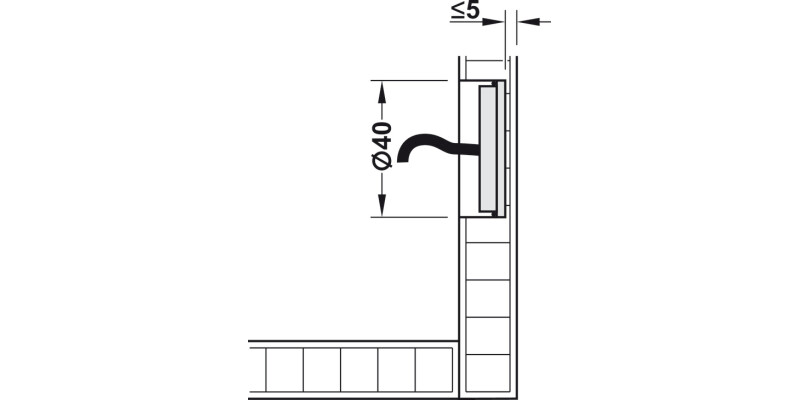

Easy, professional installation—the antenna is suitable for indoor use and is intended for recess mounting in a 35/40 mm drill hole. For best results, position the antenna as close as possible to the front, ensuring maximum read efficiency and smooth daily access.

If you’re looking to complete your door entry system with a dependable, installation-friendly external antenna, choose the External Antenna, DFANT 200, Dialock—and enjoy the confidence of strong RFID performance with a practical 3 m lead length.

Specifications

Area of application

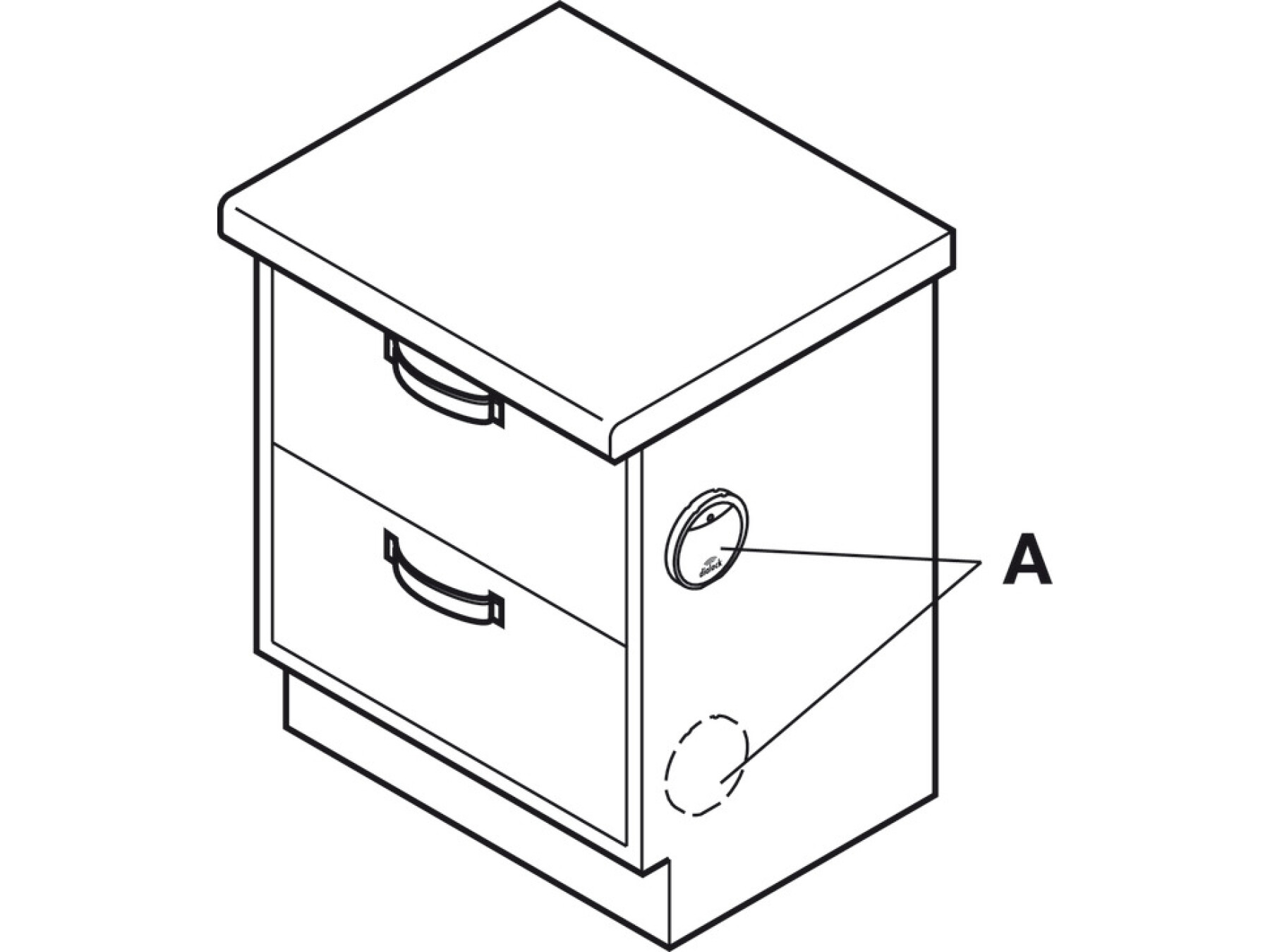

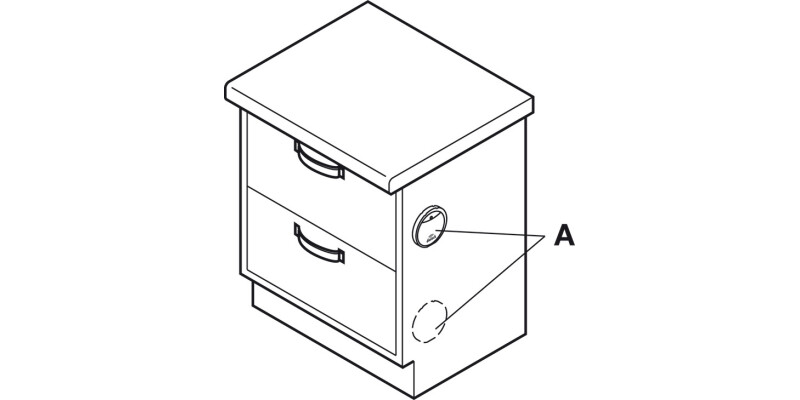

For indoor use, for installation in furniture

RFID technology

MIFARE Classic EV1, MIFARE DESFire EV1 / EV2, Tag-it™ Iso

Degree of protection

IP67

Installation

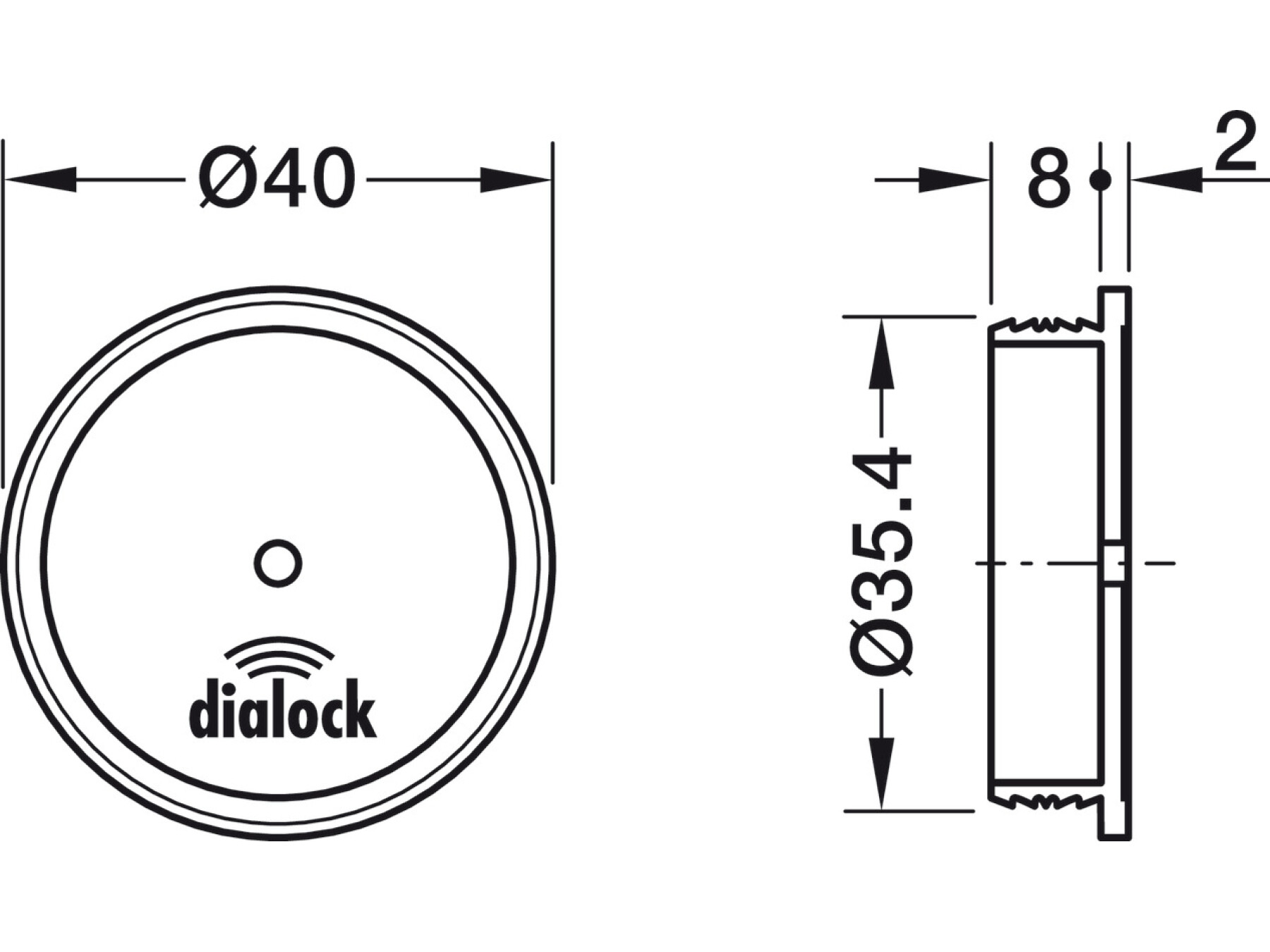

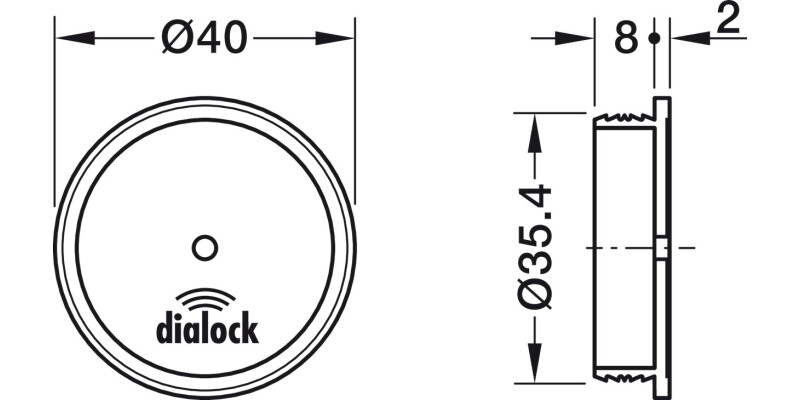

For recess mounting in a 35/40 mm drill hole, antenna as close as possible to the front

FAQ

Product Details

How long is the antenna lead on the Dialock DFANT 2 External Antenna?

The Dialock DFANT 2 comes with a 3 m lead length, giving you flexibility during installation and wiring, especially when positioning the antenna close to the point of use.

Is the DFANT 2 suitable for outdoor use, and what level of protection does it offer?

This external antenna has a high degree of protection, IP67, helping it withstand dust and water exposure for reliable performance in demanding environments.

Which RFID technologies and card types are supported?

It supports popular RFID technologies including MIFARE Classic EV1, MIFARE DESFire EV1 or EV2, and Tag it Iso, making it compatible with a wide range of access solutions.

Where should the antenna be installed for best read range?

For best performance, install it as close as possible to the front and recess mount it so it is properly positioned for the user to present their credential to the antenna.

How is the Dialock DFANT 2 installed in a door or furniture panel?

It is designed for recess mounting in a 35 or 40 mm drill hole, with the antenna placed within the cut out so it remains secure and aligned.

Can this external antenna be used indoors as well?

Yes. The antenna is suitable for indoor installation for fitting in furniture, so it can be used where access control needs a discreet, correctly positioned antenna.

Does the antenna need to be wired directly to the door entry system?

Because this is an external antenna with a 3 m lead, it is intended to be connected to compatible door entry systems to extend where the antenna is mounted, which can improve user convenience and installation flexibility.

Why choose an external antenna instead of mounting the antenna inside the system?

An external antenna placement helps you optimise reading by situating the antenna where credentials are presented most naturally. With IP67 protection and a 3 m lead, the Dialock DFANT 2 is a practical way to achieve dependable access control in the location that matters.
