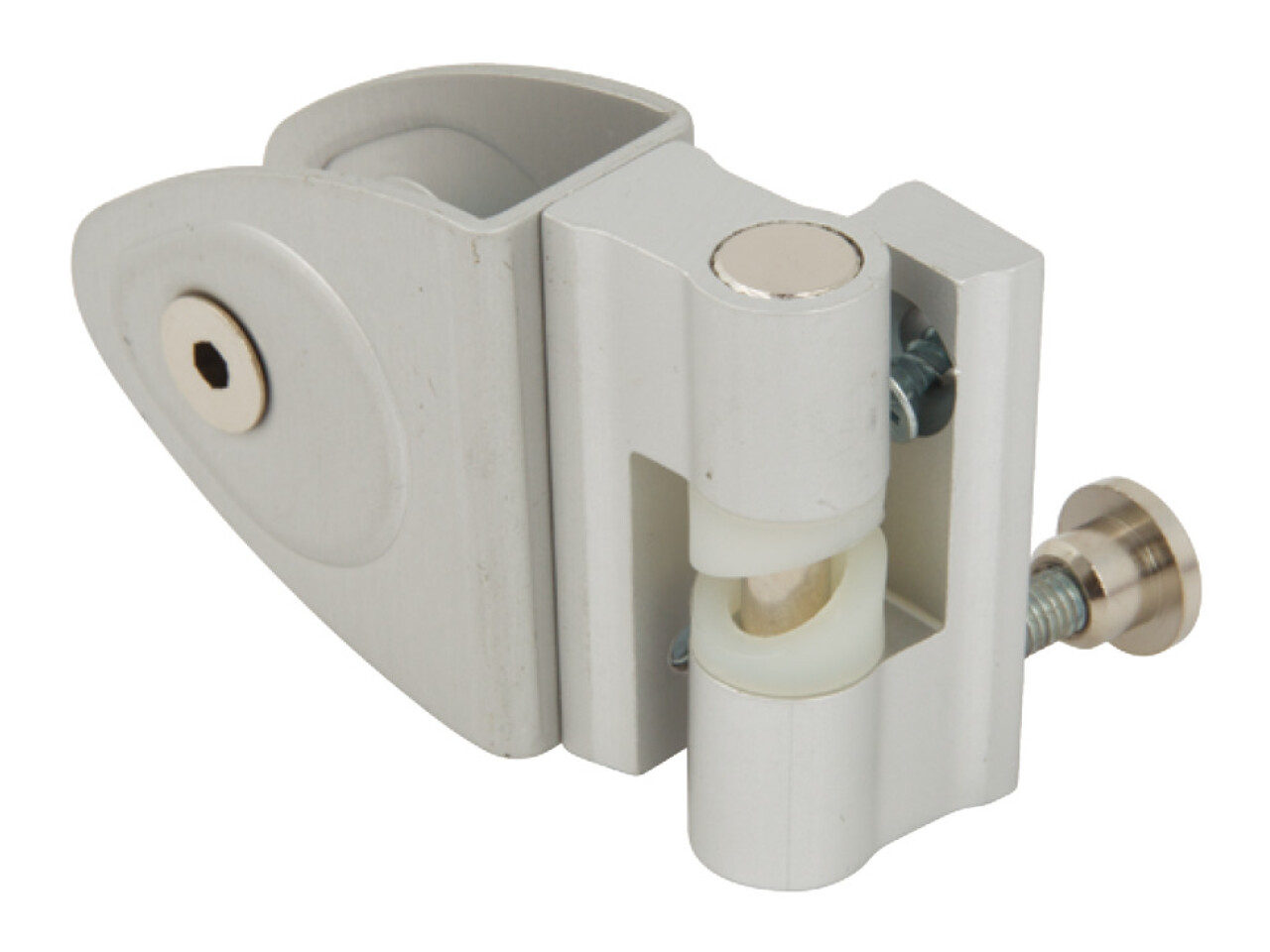

Butt Hinge, Rise and Fall, Challenger

Product Details

Is the Challenger Rise+Fall Butt Hinge suitable for 19 to 21 mm cubicle fittings?

Yes. This SAA butt hinge is designed for 19 to 21 mm cubicle fittings, making it a suitable choice for many common architectural ironmongery applications where that fixing thickness is specified.

What finish does the hinge have and will it suit a satin anodised look?

Satin anodised aluminium. The hinge is finished in satin anodised aluminium, which helps it blend with modern ironmongery schedules that specify a satin appearance.

How is the hinge installed and what fixing method does it use?

Screw fixing. The hinge is intended to be screwed in place, which is typical for butt hinges on doors and partition furniture. It is supplied with the appropriate fixings for installation.

Does this hinge provide a rise and fall adjustment for door alignment?

Yes, it is a Rise+Fall butt hinge. The rise and fall feature is designed to help with alignment adjustments after fitting, which can be useful when setting doors for consistent gaps and smooth operation.

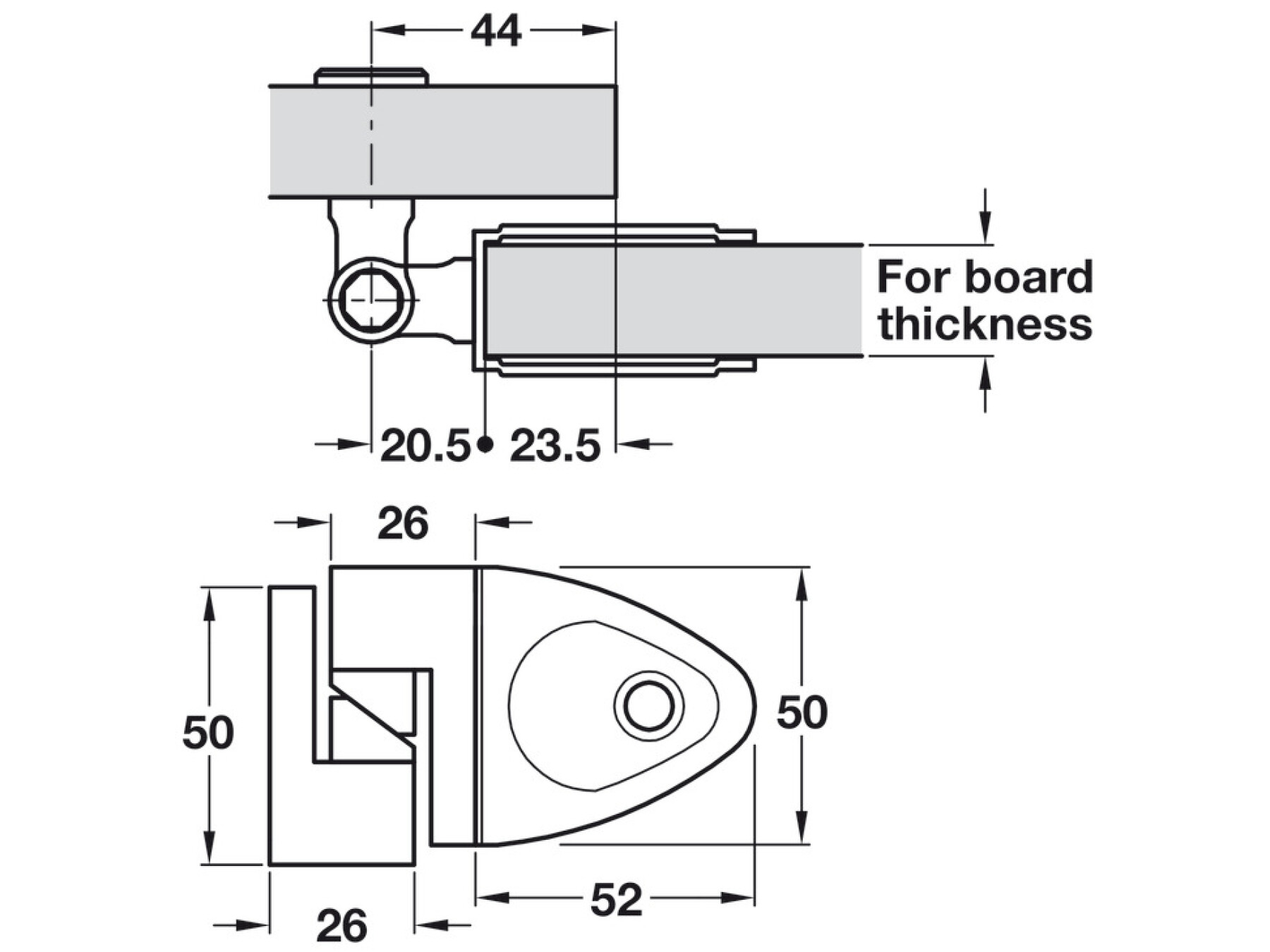

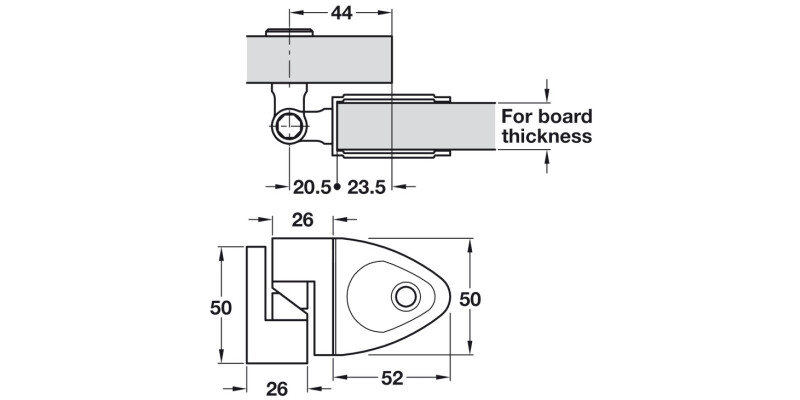

What are the overall size dimensions of the hinge leaf?

Height 50.00 mm and width 52.00 mm. These dimensions can help you confirm compatibility with the door and frame requirements before ordering. The aluminium construction also keeps the hinge suitable for architectural installations.

What is the product part number and how should I quote it?

Part number 980.07.005. When ordering spares or placing a replacement request, quote Challenger Rise+Fall Butt Hinge SAA, 980.07.005 to ensure you receive the correct model.
