Part No: 943.32.795
End Hanger Set, for Folding Patio Doors, Häfele Fold 100
£165.53
(excl. VAT)

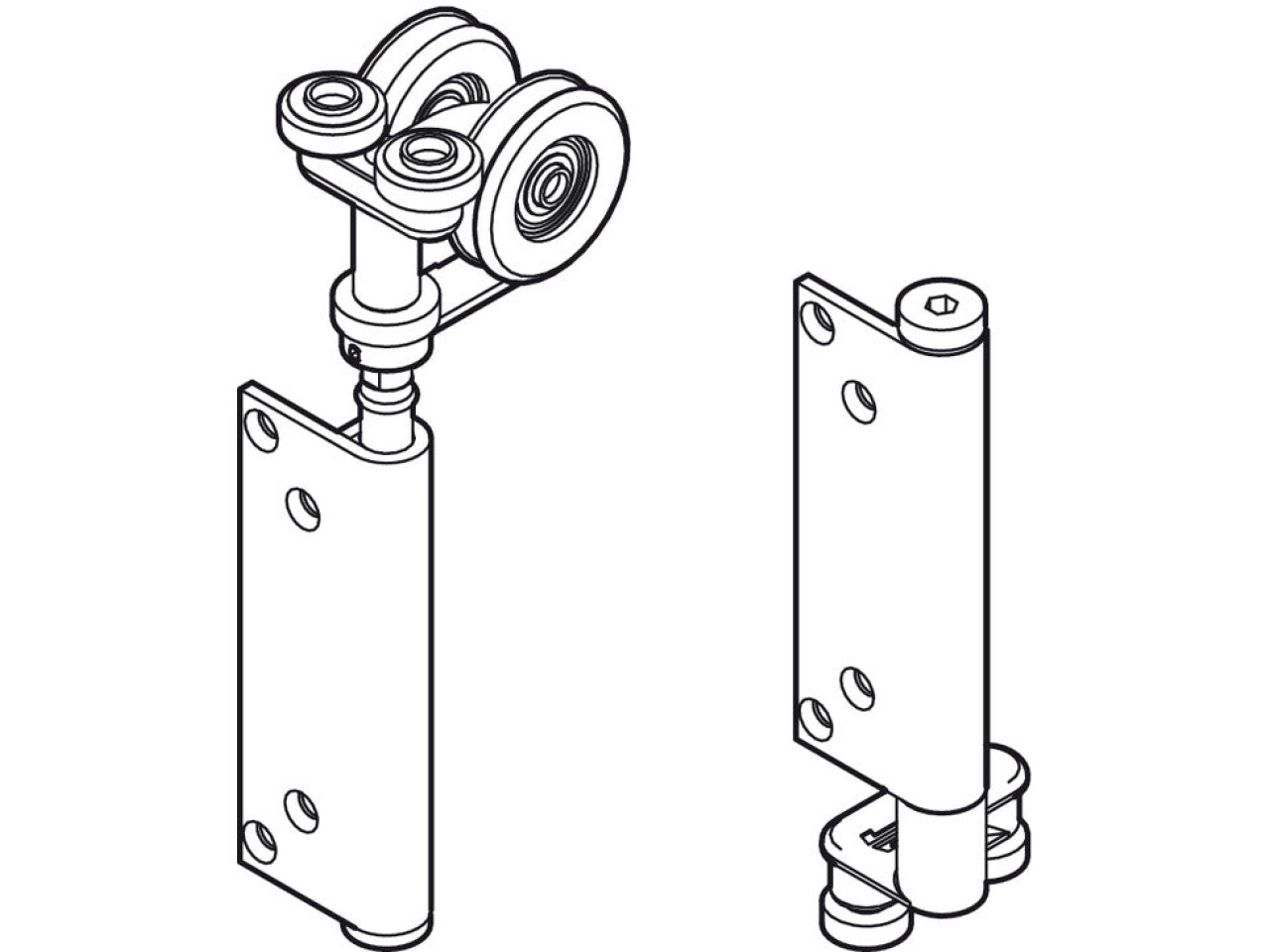

End Hanger Set, for Folding Patio Doors, Häfele Fold 100
Part Number: 943.32.794
Top hung, end folding system, Left hand, satin finish
Price:
£161.22
Per Item
End Hanger Set, for Folding Patio Doors, Häfele Fold 100 (Part No: 943.32.794) is a top-quality end folding... Read More
Product Information
Product Details
End Hanger Set, for Folding Patio Doors, Häfele Fold 100 (Part No: 943.32.794) is a top-quality end folding hardware solution designed for smooth, stable performance on heavy duty sliding and folding doors. If you’re planning a premium left-hand, top hung folding layout, this sliding & folding door gear helps you achieve a confident, controlled movement from day one.
Finished in an elegant satin look, this Top hung, end folding system uses folding hinges to deliver a compact fold as the door opens and closes—ideal for spaces where you want practicality without sacrificing appearance. Built for durability, the set is made from quality AISI 316 stainless steel, giving you excellent resistance and long service life.
SlidoFold 100 is engineered to suit doors up to 100 kg, with compatibility for door thickness of 45–68 mm. It supports door heights up to 3,300 mm and door widths up to 1,000 mm, making it a versatile choice for residential and commercial applications. The system is designed for screw fixing during door processing, and it includes the essential components you need to get started.
What’s included: Top hanger and bottom roller, along with fixings included. For added confidence, this product is supported by the Hafele Lifetime Guarantee (10 years).
Upgrade your sliding and folding door installation with the End Hanger Set, for Folding Patio Doors, Häfele Fold 100—choose reliability, effortless operation, and a premium satin finish.
Specifications
Material
Stainless steel, quality AISI 316
Folding hinge type
Folding hinge
Set consists of
Top hanger, Bottom roller
Suitable for
Standard security option
For door weight
≤100 kg
For door thickness
45 – 68 mm
For door height
≤3,300 mm
For door width
≤1,000 mm
Door processing
for screw fixing
Hafele Lifetime Guarantee
10 years
Order reference
Slido Fold 100 tracks and fittings to suit to be ordered separately
Supplied with
Fixings included
FAQ
Product Details
Is SlidoFold 100 End Hanger Set suitable for heavy doors?
Yes. This left hand top hung, end folding system is rated for door weights of up to 100 kg, making it suitable for many standard heavy duty sliding and folding door installations.
Which hinge type does this end hanger set use?
It uses a folding hinge. This is designed for end folding door configurations where the door panels fold neatly as they open and close.
What door sizes does this system support?
It is intended for doors up to 3,300 mm high, with door width up to 1,000 mm. It also suits door thickness in the range of 45 to 68 mm.
Does the set include everything needed to install it?
It is supplied as a set with fixings included. The set consists of top hanger and bottom roller, and you will need to order the matching Slido Fold 100 tracks and fittings separately using the relevant order references.
Is this end hanger set left hand or right hand?
This specific part is left hand. Please confirm your door swing and folding direction before ordering so you select the correct handed components for your end folding layout.
What corrosion resistance and finish can I expect?
It is made from stainless steel using quality AISI 316 for strong corrosion resistance. The product subtitle specifies a satin finish, which is often preferred for a clean, understated look on sliding and folding door hardware.
How reliable is the system over time?
Hafele Lifetime Guarantee applies. When installed correctly as part of the approved system, it is supported by a 10 year guarantee, giving you added confidence for long term use.
