Part No: 943.32.795
End Hanger Set, for Folding Patio Doors, Häfele Fold 100
£165.53
(excl. VAT)
End Hanger Set, Secure, for Folding Patio Doors, Häfele Fold 100-U
Part Number: 943.32.799
Top hung, end folding system, Left hand, gold finish
Price:
£195.01
Per Item
End Hanger Set, Secure, for Folding Patio Doors, Häfele Fold 100-U (Part No: 943.32.799) is built for... Read More
Product Information
Product Details

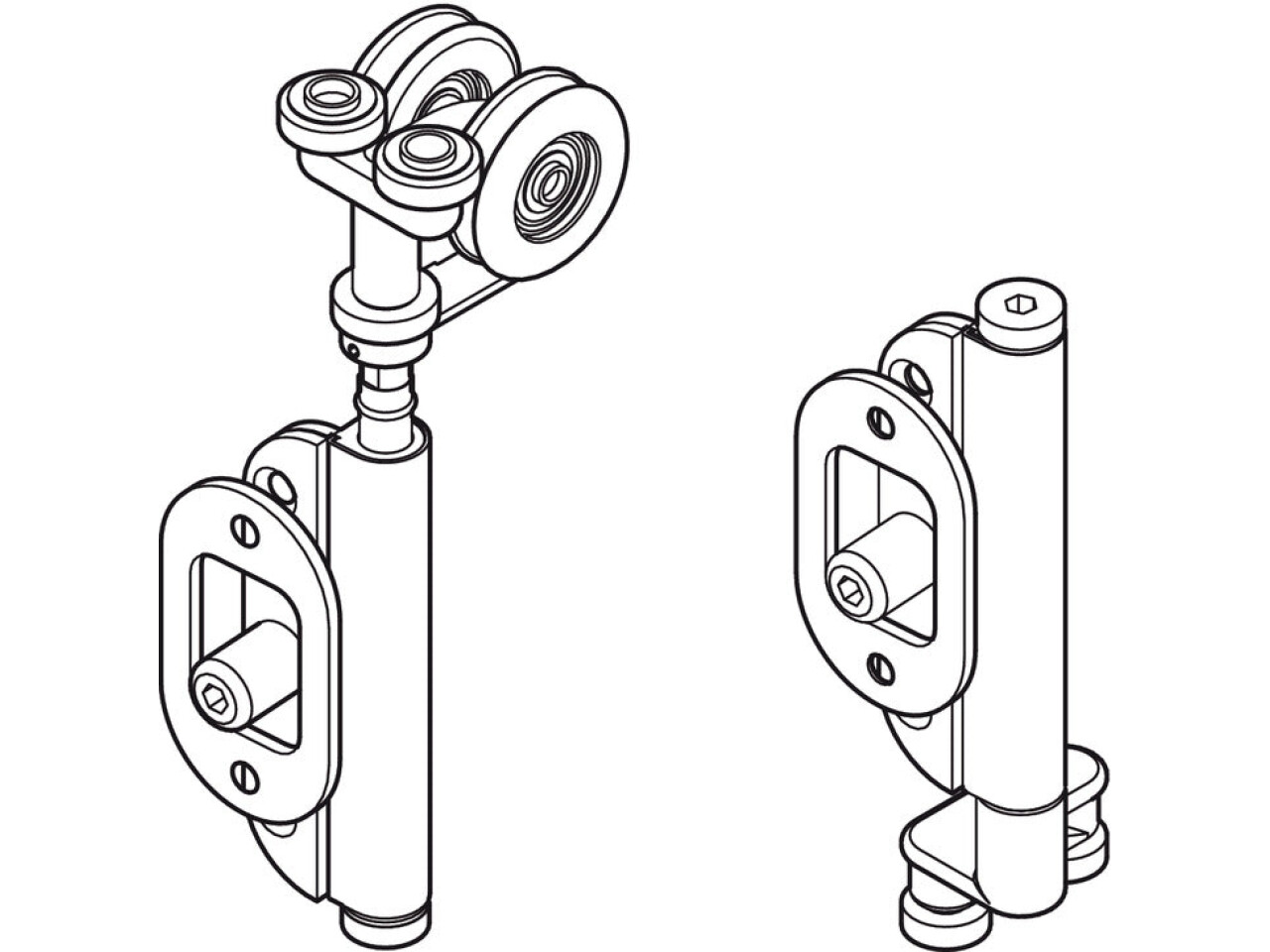

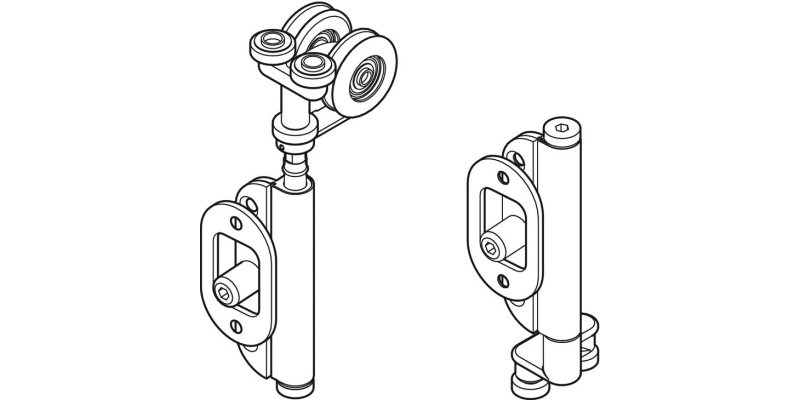

End Hanger Set, Secure, for Folding Patio Doors, Häfele Fold 100-U (Part No: 943.32.799) is built for demanding sliding and folding door applications where smooth operation and long-term reliability matter. Designed as a top hung, end folding system with a Left hand configuration and elegant gold finish, this heavy duty end hanger set helps your door glide effortlessly and fold neatly into place.
Crafted from quality AISI 316 stainless steel, the SlidoFold 100U end hanger is ideal for environments that require superior corrosion resistance and strength. The folding hinge design is engineered for doors that fold to the frame, giving you a clean, space-saving opening without compromising stability.
With a maximum door load of ≤100 kg, it’s a great choice for larger, heavier panels. It also accommodates a wide range of door dimensions: 45–68 mm thickness, up to ≤3,300 mm door height, and up to ≤1,000 mm door width. For installation, the system supports screw fixing for a secure fit and confident alignment.
Backed by the Hafele Lifetime Guarantee (10 years), SlidoFold 100U end hardware is a smart investment for premium performance. Order reference: Slido Fold 100-U tracks and fittings are supplied to be ordered separately, ensuring you can complete your setup precisely.
Upgrade your sliding and folding door project with SlidoFold 100U—strong, smooth, and made to last.
Specifications
Material
Stainless steel, quality AISI 316
Folding hinge type
Folding hinge
Suitable for
Doors folding to frame
For door weight
≤100 kg
For door thickness
45 – 68 mm
For door height
≤3,300 mm
For door width
≤1,000 mm
Door processing
for screw fixing
Hafele Lifetime Guarantee
10 years
Order reference
Slido Fold 100-U tracks and fittings to suit to be ordered separately
FAQ
Product Details
Is SlidoFold 100U suitable for heavy doors?
Yes. This end hanger system is designed for doors up to 100 kg, making it suitable for a range of robust sliding and folding door setups.
Will this work with doors that fold to the frame?
It is intended for doors folding to frame. The folding hinge design helps guide the door movement through the end folding action for top hung installations.
What door thickness and height ranges can this hardware be used with?
For best fit, the system suits door thicknesses of 45 to 68 mm and door heights of up to 3,300 mm. It is also commonly used where door widths are up to 1,000 mm.
Is this part left hand and what does that mean?
This is a left hand top hung end folding system. Left hand refers to the folding and operating orientation when viewed from the installing position, so choosing the correct hand helps ensure the door aligns correctly through the folding cycle.
How is the end hanger fixed to the door?
The unit is screw fixed for door processing. This makes it straightforward to mount to the prepared door ends using the appropriate fixing points for your door construction.
Does it include a track system, or is it only the end hanger?
This item is the end hanger set. SlidoFold systems also require tracks and other fittings, and the product information notes that the tracks and fittings are ordered separately to complete the full door running system.
What material and finish can I expect?
The hardware uses stainless steel, quality AISI 316 and is supplied with a gold finish. This combination is chosen for strength and a premium appearance suitable for demanding environments.
Is there any guarantee on the hardware?
Yes. The SlidoFold 100U system is covered by a Hafele Lifetime Guarantee with 10 years stated for this product line, giving extra confidence for long term use.
