Bottom Support Channel, for Folding Patio Doors, Häfele Fold 100-U
Part Number: 943.32.723
Top hung, end folding system, Length 2500 mm
Price:
£65.10
Per Item
Bottom Support Channel, for Folding Patio Doors, Häfele Fold 100-U (Part No: 943.32.723) is a robust bottom... Read More
Product Information
Product Details
Bottom Support Channel, for Folding Patio Doors, Häfele Fold 100-U (Part No: 943.32.723) is a robust bottom support solution designed for smooth, stable operation of sliding and folding doors. If you’re planning a top hung, end folding system, this SlidoFold 100U Btm Supp Channel with a 2,500 mm length helps keep door movement controlled, aligned, and reliable from day one.
This bottom support channel is engineered for performance under real-world use. It suits doors up to 1,000 mm in width and supports door weights of up to 100 kg, making it ideal for heavy-duty applications where stability matters. Manufactured from aluminium, it delivers strength without bulk, while the single-track design provides a clean, efficient installation setup.

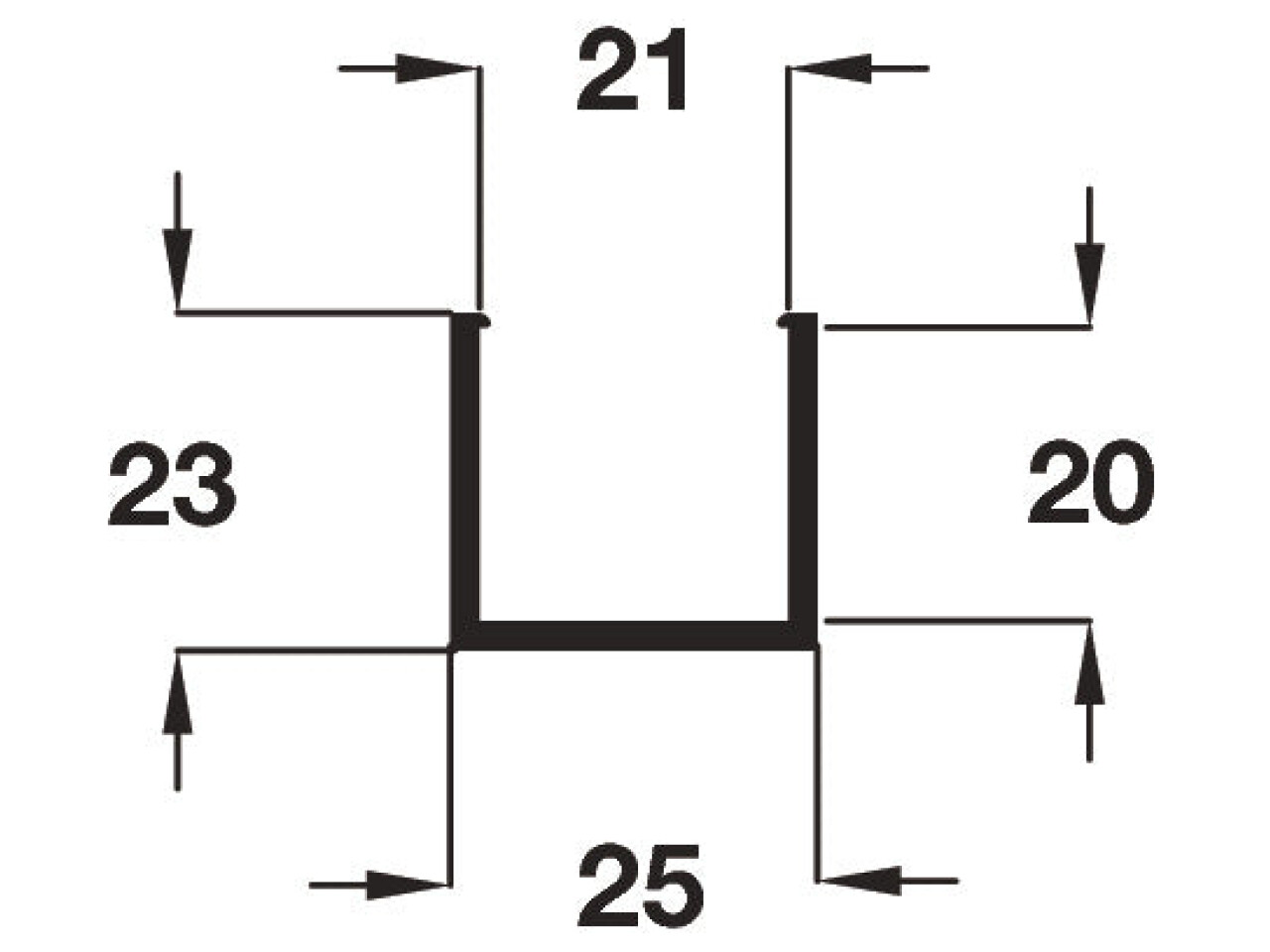

Designed for bottom positioning, the channel features a compact profile of 25.00 mm width and 23.00 mm height. Installation is straightforward with recess mounting, allowing for a neat finish that blends into the floor and supports the door system effectively.
Backed by the Hafele Lifetime Guarantee (10 years), the SlidoFold 100U bottom support channel is a smart choice for builders, fitters, and homeowners upgrading door hardware. Please note: Slido Fold 100-U tracks and fittings are ordered separately to complete the system.
Upgrade your sliding and folding door setup today—choose SlidoFold 100U Btm Supp Channel for confident, everyday smooth movement.
Specifications
Product category
Bottom Support Channel
For door width
≤1,000 mm
Width
25.00 mm
Height
23.00 mm
Material
Aluminium
Track version
Single
Position
bottom
For door weight
≤100 kg
Installation
Recess mounting
Hafele Lifetime Guarantee
10 years
Order reference
Slido Fold 100-U tracks and fittings to suit to be ordered separately
FAQ
Product Details
Is SlidoFold 100U Btm Supp Channel suitable for sliding and folding doors with a top hung setup?
Yes. This product is designed to work as a bottom support channel alongside an end folding system with a top hung arrangement. It helps keep the door aligned during movement, supporting smooth sliding and folding operation.
What door sizes and weights can this bottom support channel handle?
It is intended for doors with a maximum width of 1,000 mm and a maximum door weight of 100 kg. Choosing a compatible door size and weight helps ensure the system performs as intended.
How is this bottom support channel installed?
Installation is recess mounting for the bottom of the opening. Recess mounting helps provide stable support and keeps the channel seated correctly for the track and fittings it is used with.
Where does this channel sit in the overall door system?
Its position is specifically at the bottom of the door system. Used together with the matching tracks and fittings for the Slido Fold 100U range, it supports alignment through both sliding and end folding movement.
Do I need to purchase tracks and fittings separately?
Yes. The order reference notes that Slido Fold 100U tracks and fittings are to be ordered separately. This part is the bottom support channel component, so you will need the correct track and fittings to complete the complete door gear assembly.
What guarantee is available for SlidoFold 100U Btm Supp Channel?
It carries the Hafele Lifetime Guarantee of 10 years for this product. This provides reassurance for long term use when installed and used within the stated door size and weight limits.
What is the correct length version for this channel?
This specific item is supplied as a 2.5 m length bottom support channel for top hung, end folding applications. Using the correct length helps reduce the need for adjustments and supports a more accurate installation.
