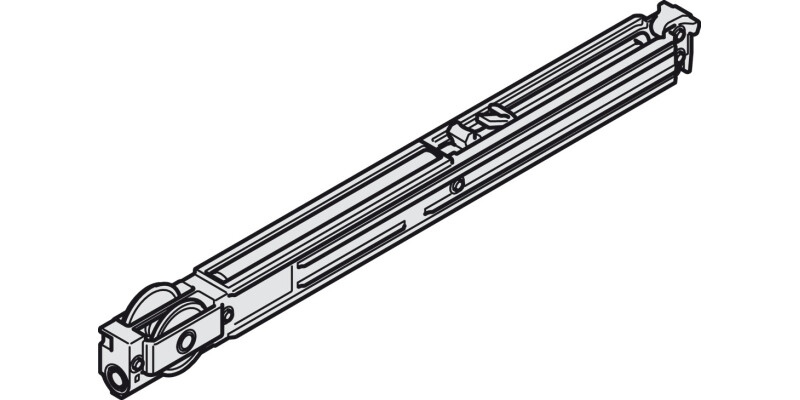

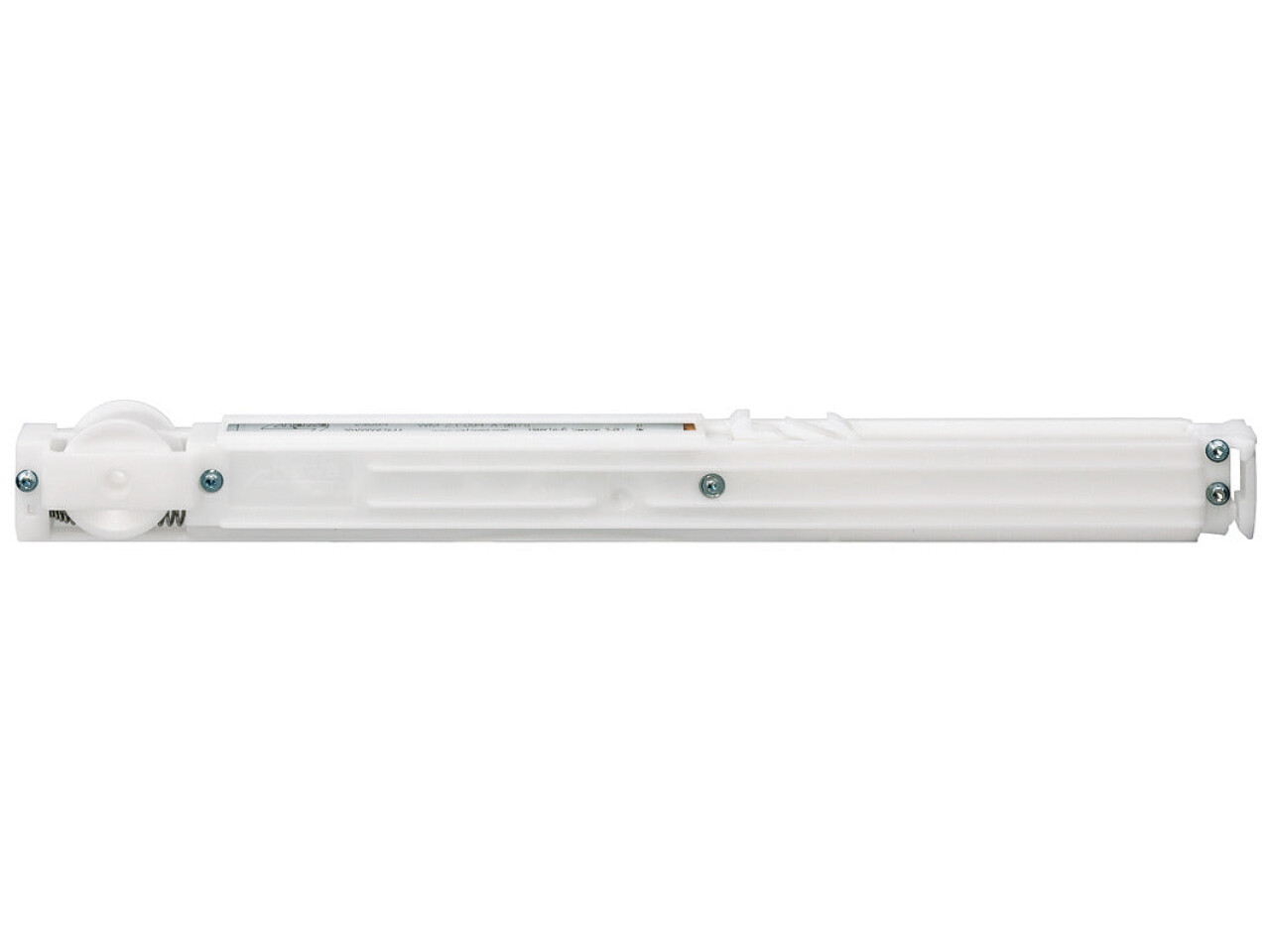

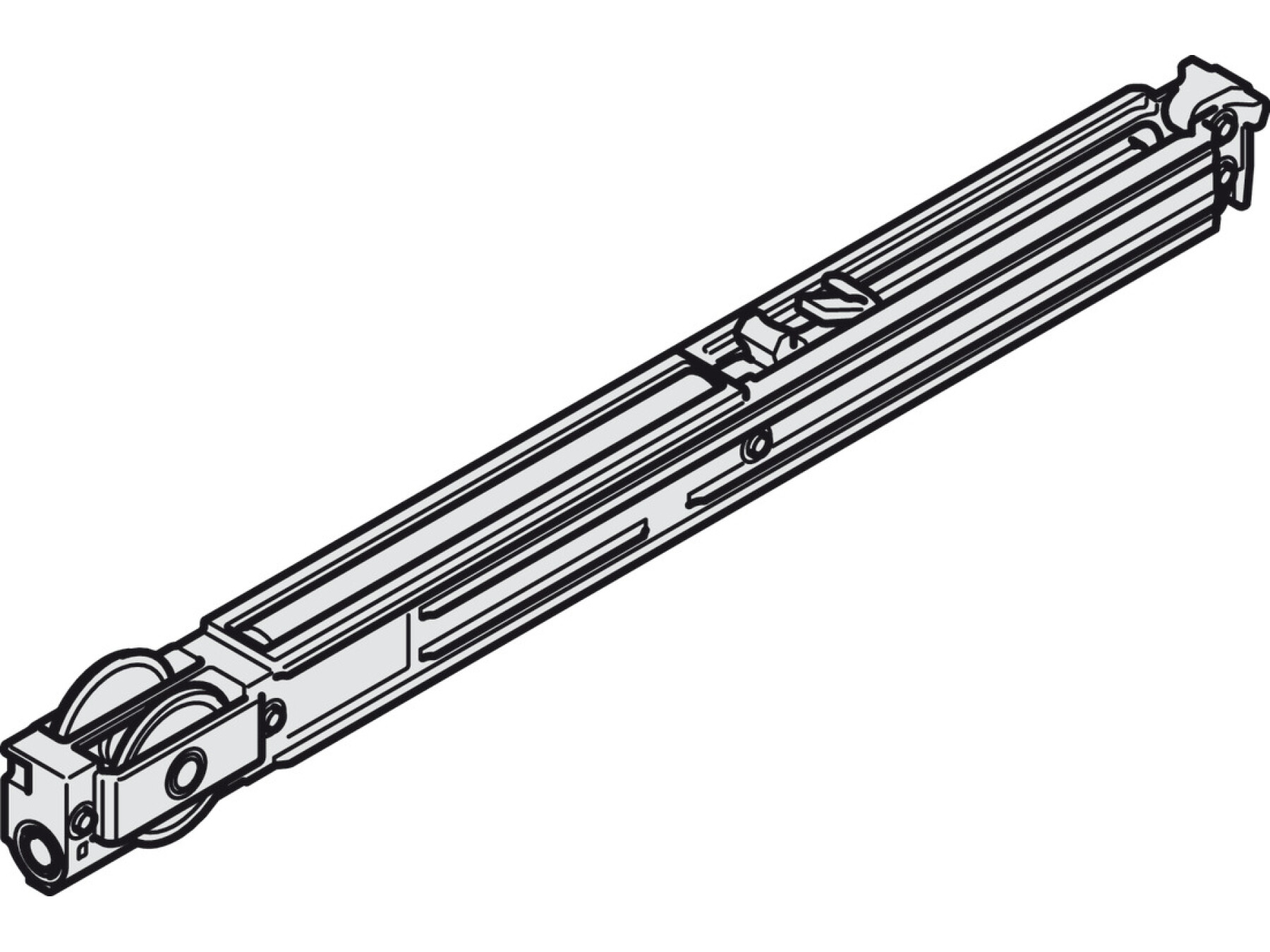

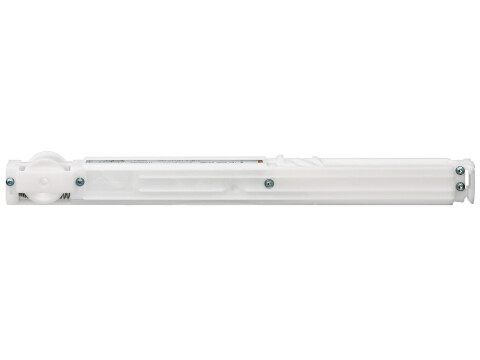

Hawa SoftMove for Junior 80 Systems
Part Number: 940.80.046
White finish
Price:
£169.61
Per Item
SoftMove gently decelerates sliding doors and draws them into their final position, with no door spring backFor... Read More
Product Information
Product Details
SoftMove gently decelerates sliding doors and draws them into their final position, with no door spring back
For installation in Hawa-Junior 80 top track, screw fixes to carriage of Junior 80 trolley hanger (not included)
Can be installed on both sides (min. door width: for both sides 1030 mm, for one side 690 mm)
White plastic with Ø 14 mm hydraulic metal damper
A second track buffer (940.80.040) is required where the soft and self closing mechanism is installed on both sides. Please order separately.
Specifications
Soft and self closing mechanism type
Soft and self closing mechanism
For door weight
≤80 kg
For door thickness
≥26 mm
Colour/finish
White
Area of application
Wooden and glass interior doors
Suitable for
Wooden doors: Hawa Junior 80/Z, 80/B, 80/B-Pocket/Glass doors: Hawa Junior 80/GP, 80/GL, 80/GS, 80/G
For door material
Wood, Glass
Closing direction
double-sided, one-sided
For glass thickness
8 – 12.7 mm
Installation
For screw fixing
Order reference
Tracks, fitting sets and accessorie to be ordered separately
Supplied with
Drilling template and instructions for precise and simple installation
