Folding Door Hinge, 40 x 29 mm, for Panel to Panel Joint

Folding Door Hinge, 40 x 29 mm, for Panel to Panel Joint

Name: Folding Door Hinge, 40 x 29 mm, for Panel to Panel Joint
SKU: 354.14.709
Price: 0.69 GBP
Availability: InStock

Part Number: 354.14.709

Polished nickel plated steel

Price:

£0.69

Per Item

VAT excluded

Folding Door Hinge, 40 x 29 mm, for Panel to Panel Joint. (Product Part No: 354.14.709) is a premium choice for... Read More

Product Information

Product Details

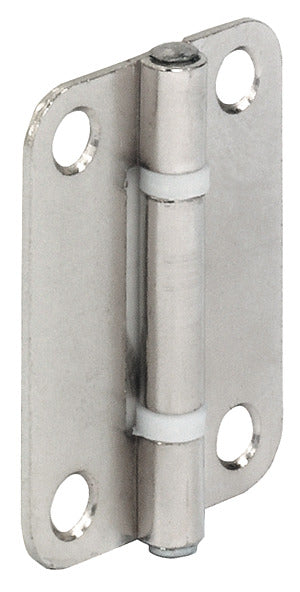

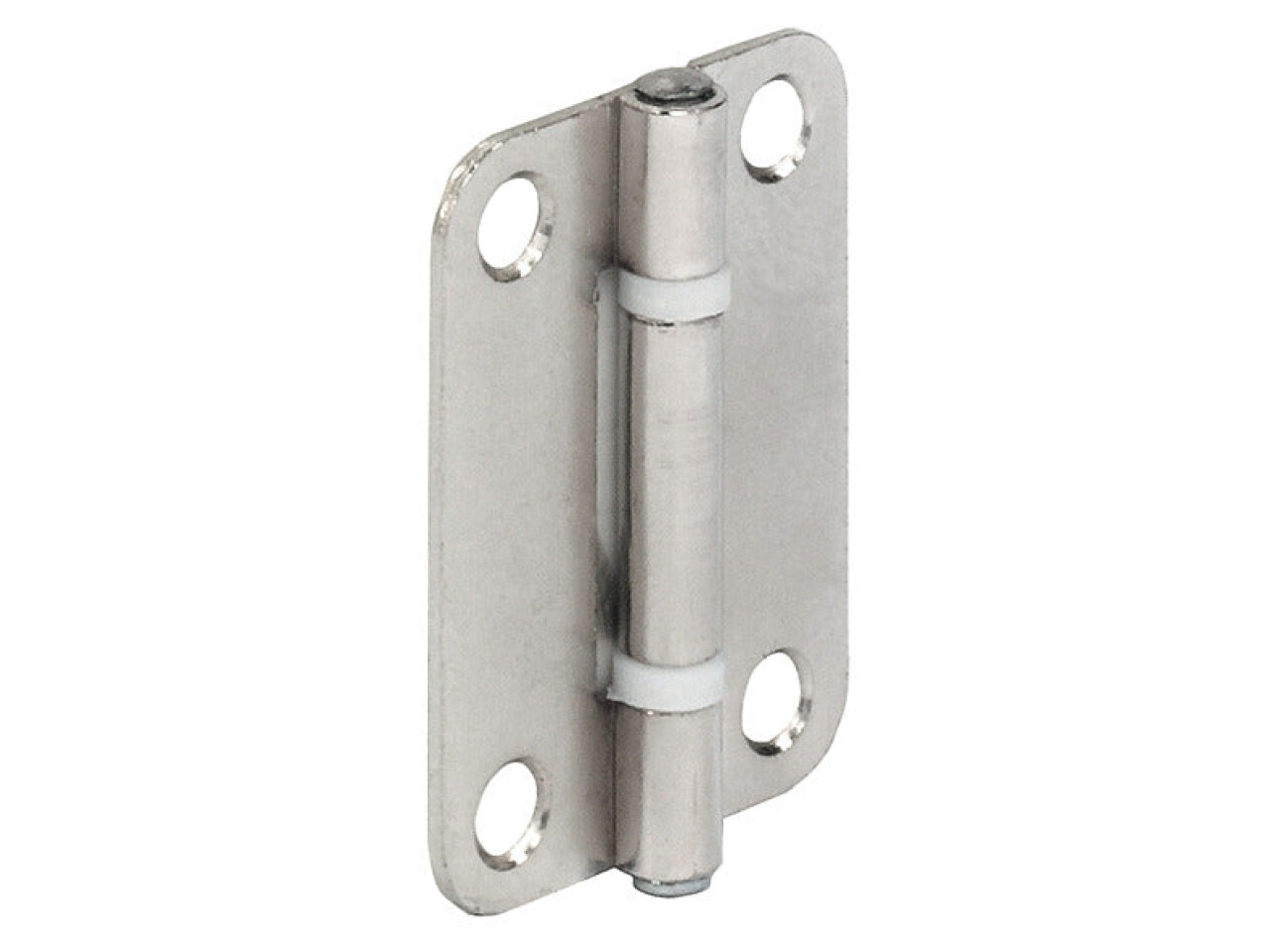

Folding Door Hinge, 40 x 29 mm, for Panel to Panel Joint. (Product Part No: 354.14.709) is a premium choice for creating smooth, reliable folding door panel joints in both living and commercial cabinetry. Designed for use with fold-aside systems, this hinge delivers controlled movement while keeping your furniture looking clean and well-finished.

Finished in polished nickel plated steel, the hinge adds a refined, durable appearance that complements modern interiors. The steel construction features plastic friction bearings to support quiet operation and help maintain consistent performance over time—ideal for everyday opening and closing.

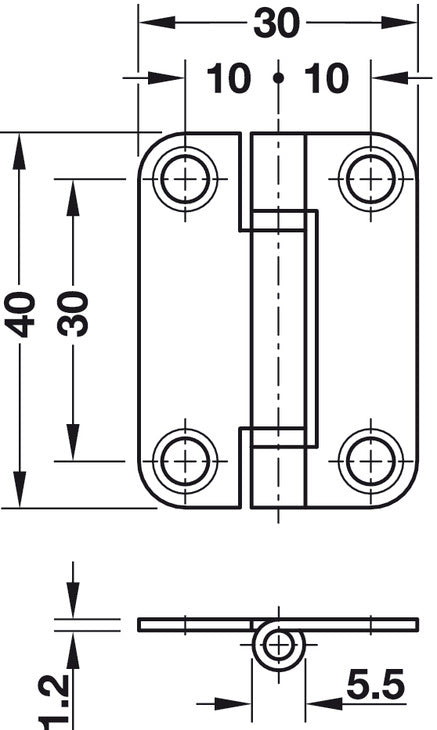

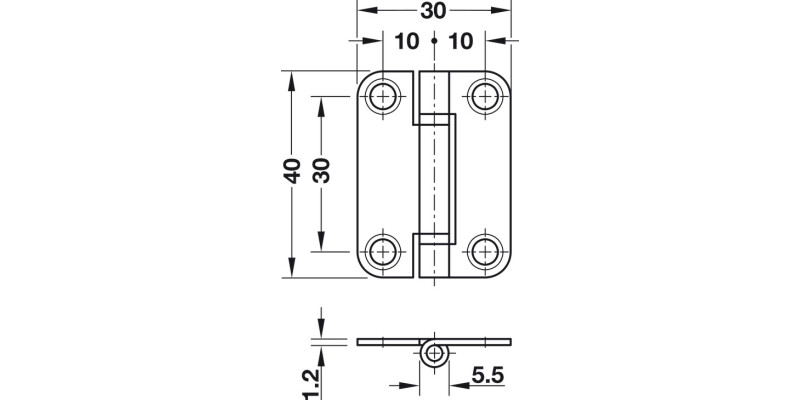

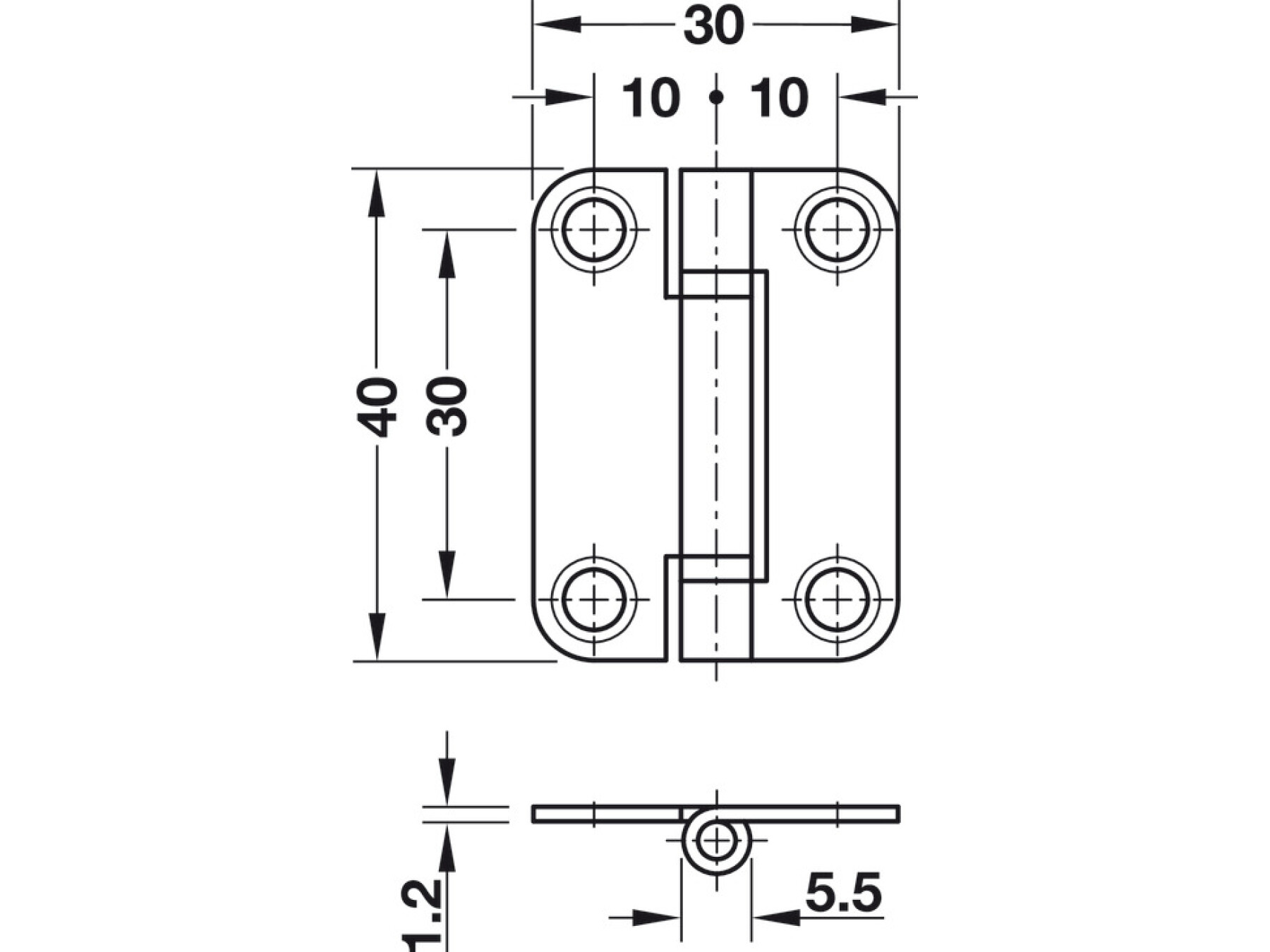

Built for secure installation, this folding door hinge includes a rounded flange with a riveted pin and is set up for screw fixing. With a flange thickness of 1.20 mm and a total width of 30.00 mm, it’s engineered for stable mounting and precise alignment. You’ll also benefit from 4 drill holes for dependable attachment.

Designed for flexibility, the hinge supports left or right mounting, making it easier to plan and fit your cabinet doors. It is suitable for panel-to-panel joints and specifically intended for use with fold-aside System 88 fittings.

Note: Order reference advises that Ø 3.0 mm countersunk screws must be purchased separately. Choose the Folding Door Hinge, 40 x 29 mm, for Panel to Panel Joint. for a high-quality folding door solution you can build on.

Specifications

Version

Rounded flange
with riveted pin
plastic friction bearing

Material

Steel with plastic bearings

Colour/finish

nickel plated

Total width

30.00 mm

Flange thickness

1.20 mm

Knuckle diameter

5.50 mm

Number of drill holes

4.00

Mounting

left or right

Product category

Folding Door Hinge

Area of application

For panel to panel joint
For use with fold-aside System 88 fittings

Crank type

Flange shape

rounded

Installation

For screw fixing

Order reference

Order Hospa Ø 3.0 mm countersunk screws separately

FAQ

Product Details

```html

Is the Folding Door Hinge 40x29mm Steel NP suitable for both left and right mounting?

Yes. This folding door hinge is designed for left or right mounting, making it flexible for different cabinet layouts and fold away configurations.

What finish does Product Part No 354.14.709 use?

The hinge is made from steel and finished in polished nickel plated for a clean, hard wearing appearance that suits many living and commercial furniture styles.

How is this hinge installed and does it require special fixing hardware?

Installation is designed for screw fixing. You will need to use Ø 3.0 mm countersunk screws, which are supplied as separate order items rather than included with the hinge.

How does the hinge handle movement at the folding panel joint?

The hinge uses a plastic friction bearing to support smooth movement at the fold point, helping the hinge operate quietly and consistently during repeated opening and closing.

Is it intended for panel to panel folding door joints, or other cabinet uses?

This model is for panel to panel joints and is specifically stated for use with a fold aside system with System 88 fittings.

Will the hinge fit my application based on the drilling pattern?

It includes 4 drill holes on the flange to support secure mounting. If you are replacing an existing hinge, confirm the hole positions match your cabinet door construction before fitting.

What does the rounded flange and riveted pin design mean for strength and alignment?

The hinge features a rounded flange and a riveted pin, which helps maintain stable alignment of the knuckle during operation. This supports reliable joint behaviour over time.

```
