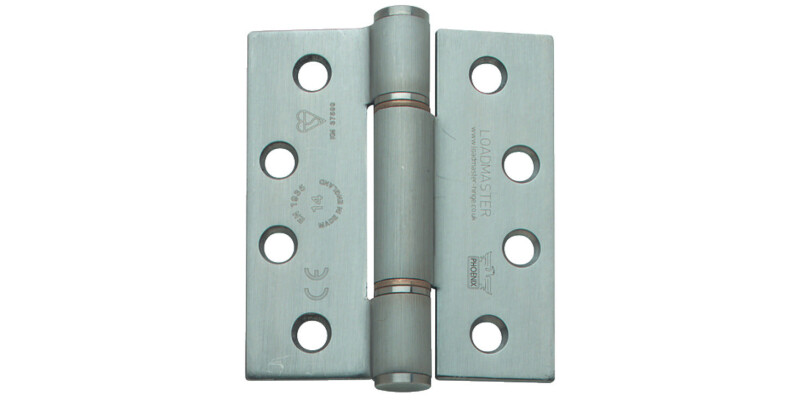

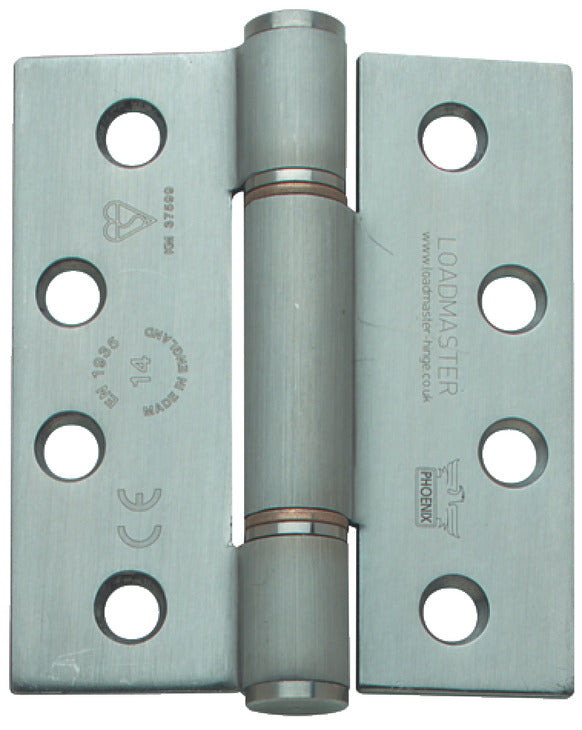

Butt Hinge, 102 x 89 mm, Grade 316 Stainless Steel, Loadmaster

Product Details

Is this butt hinge compatible with ANSI drilling patterns?

Yes. The hinge is supplied with an ANSI hole pattern (template drilled), making it easier to align during installation and helping you achieve a consistent fit on door hardware templates.

Will it suit my door thickness?

It is designed for doors with thickness of at least 44 mm. If your door meets this requirement, the hinge geometry and fixing positions are intended to work correctly for a stable, secure installation.

What does “SSS satin” mean for the finish?

“Satin” refers to a low glare surface finish that helps reduce visible fingerprints and smears compared with high gloss options. The result is a clean architectural look that suits many commercial and residential applications.

Which grade of stainless steel is used?

It uses stainless steel, quality AISI 316. This grade is widely chosen for its corrosion resistance, making it a good option for environments where moisture or coastal conditions may be a consideration.

Are the hinge corners square, and why does that matter?

Yes, the hinge has square corners. Square corner profiles can be important for maintaining the intended appearance and ensuring the hinge leaf sits flush with door and frame surfaces, especially where tight ironmongery tolerances are specified.

What door sizes or hinge pairings should I plan for?

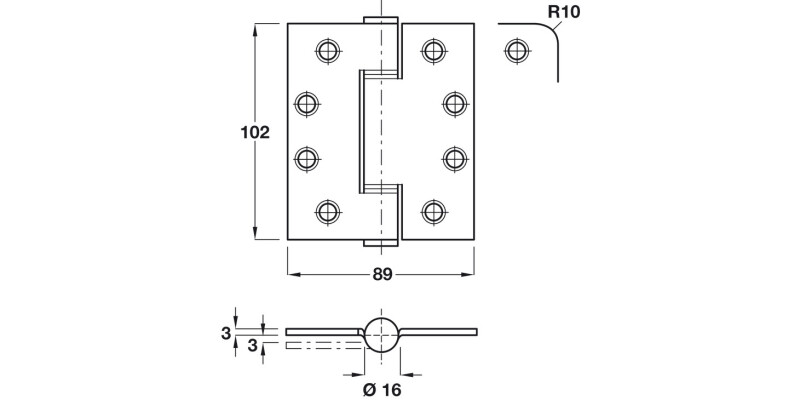

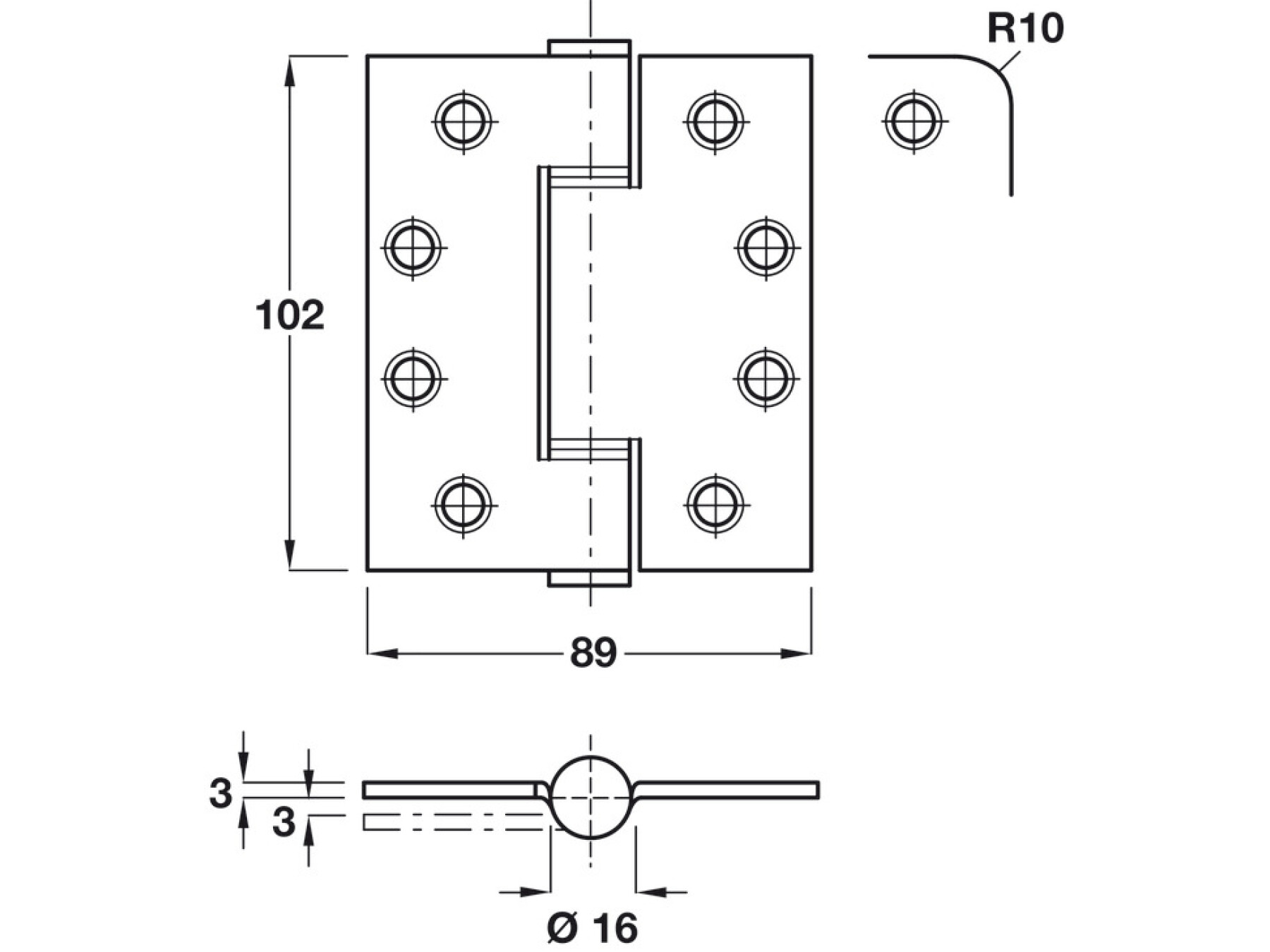

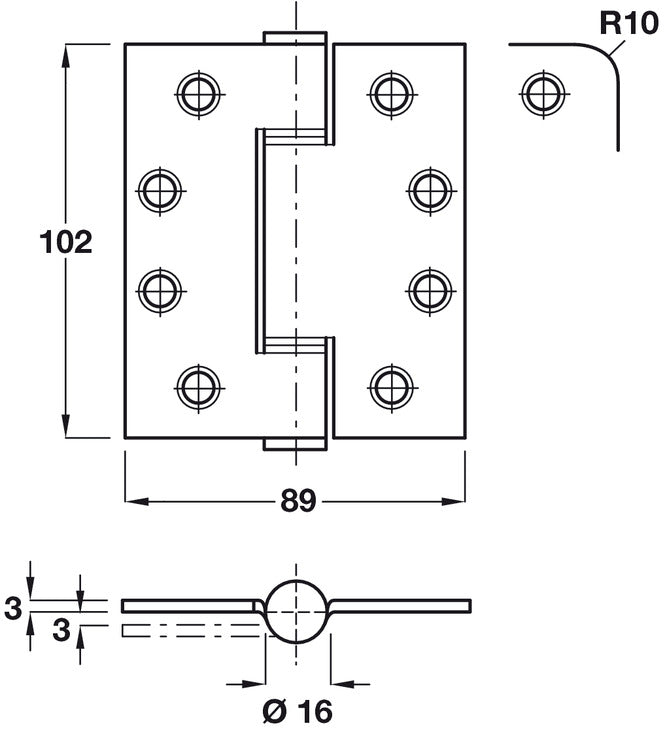

This part is a 102 mm by 89 mm butt hinge size. For correct performance, hinge selection should be based on door weight, door height, and the number of hinges used. If you are matching an existing hinge set, selecting the same size and pattern is usually the quickest route to an accurate replacement.

Does the hinge come with fixings?

Fixings are supplied. Having suitable fixings included can make installation more straightforward, but final fastening suitability can still depend on your door material and preparation, so it is worth confirming compatibility for your specific build.
