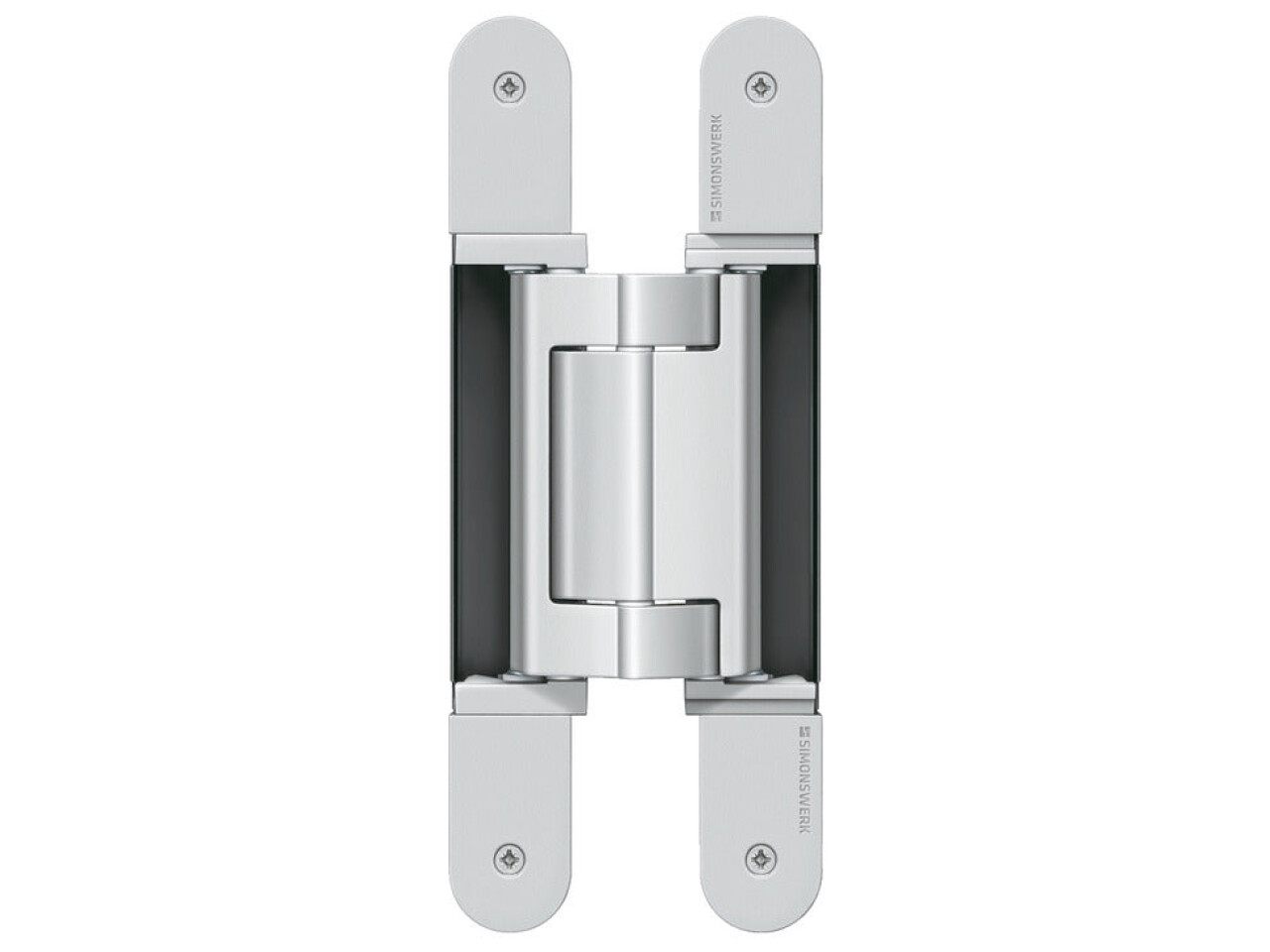

Tectus TE640 3D FR 180D Hinge M.Nkl

FD 30 fire ratedIntumescent built into hinge bodyMaintenance free friction bearingsSuitable for left or right hand applications

• Door weight: Max. adjusted 200 kg


• Opening angle: 180 ¬¨¬®‚Äö√†√ª


• Adjustment facility: 3-way continuous adjustment:Vertical: ¬¨¬®¬¨¬± 3 mmHorizontal: ¬¨¬®¬¨¬± 3 mmDepth: ¬¨¬®¬¨¬± 1.0 mm


• Application: For wooden, steel or aluminium framesFor flush doors


• For door thickness: Min. 40 mm


• Material: Aluminium, zinc diecast and steel


• Supplied with: Fixings
