Continuous Hinge, Rolled, Straight Piano, 4016 Quality

Product Details

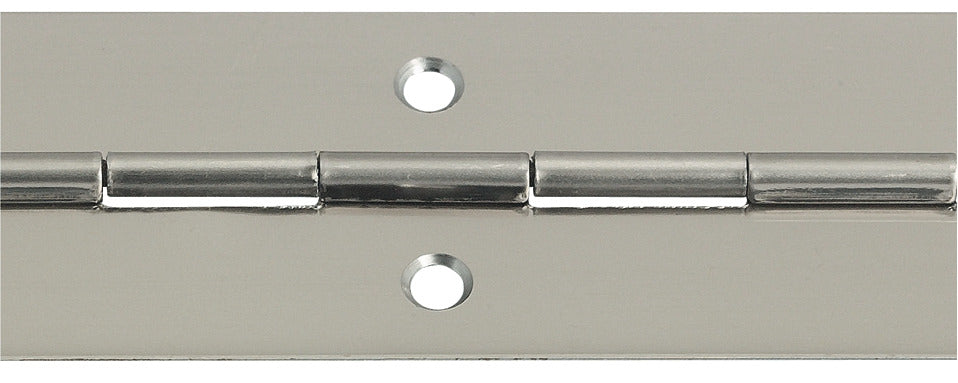

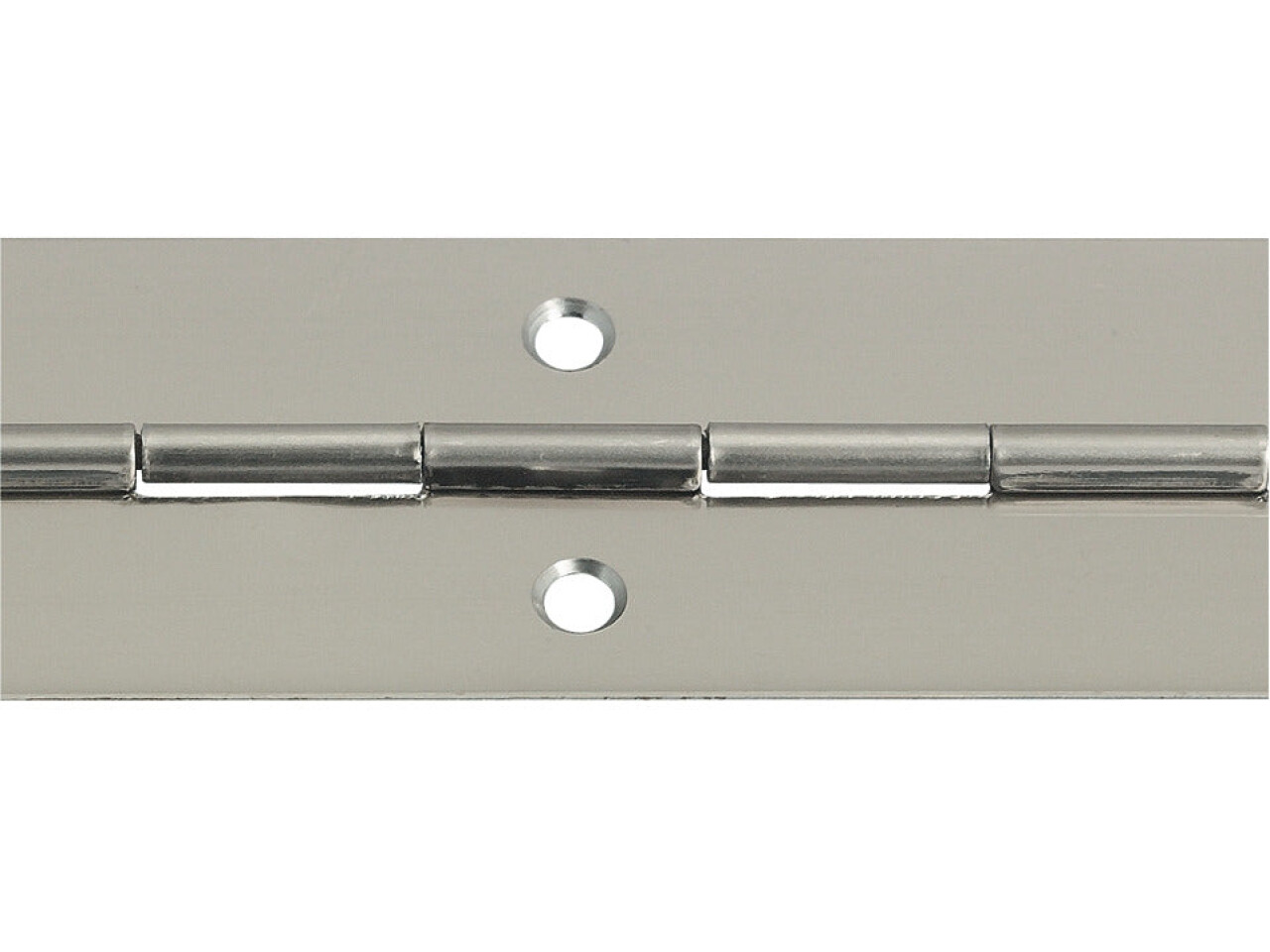

Continuous Hinge, Rolled, Straight Piano, 4016 Quality is a robust choice for doors that need a clean, continuous closing line. Designed for smooth, reliable movement along the full length, this straight continuous hinge brings both strength and architectural neatness to joinery, commercial interiors, and refurbishment projects.

With an open width of 32 mm, the hinge provides the flexibility required for accurate door alignment while offering a professional look once installed. The hinge is supplied in a rolled version and manufactured from stainless steel with a steel pin—ideal when you want durable performance and dependable operation day after day.

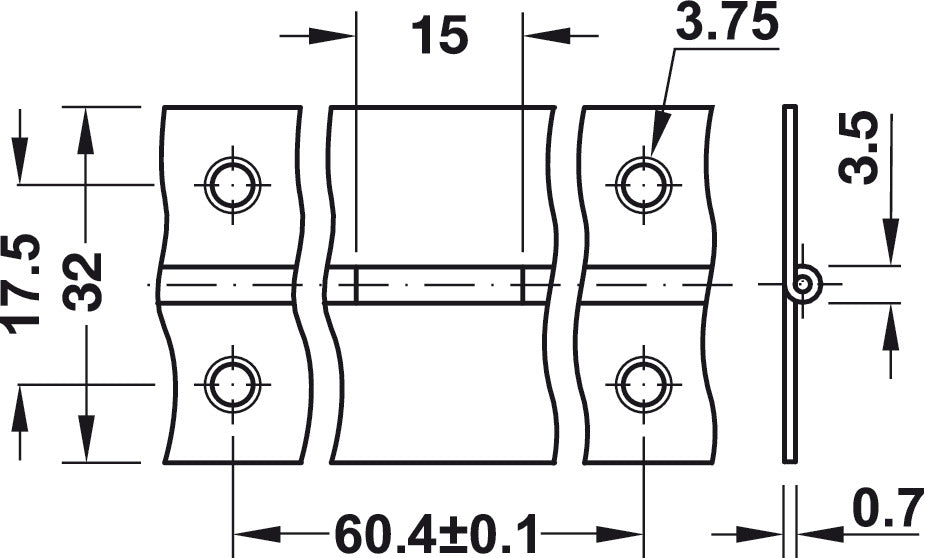

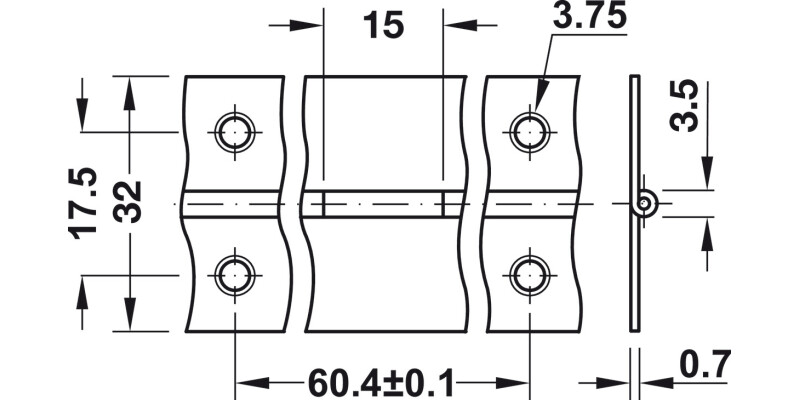

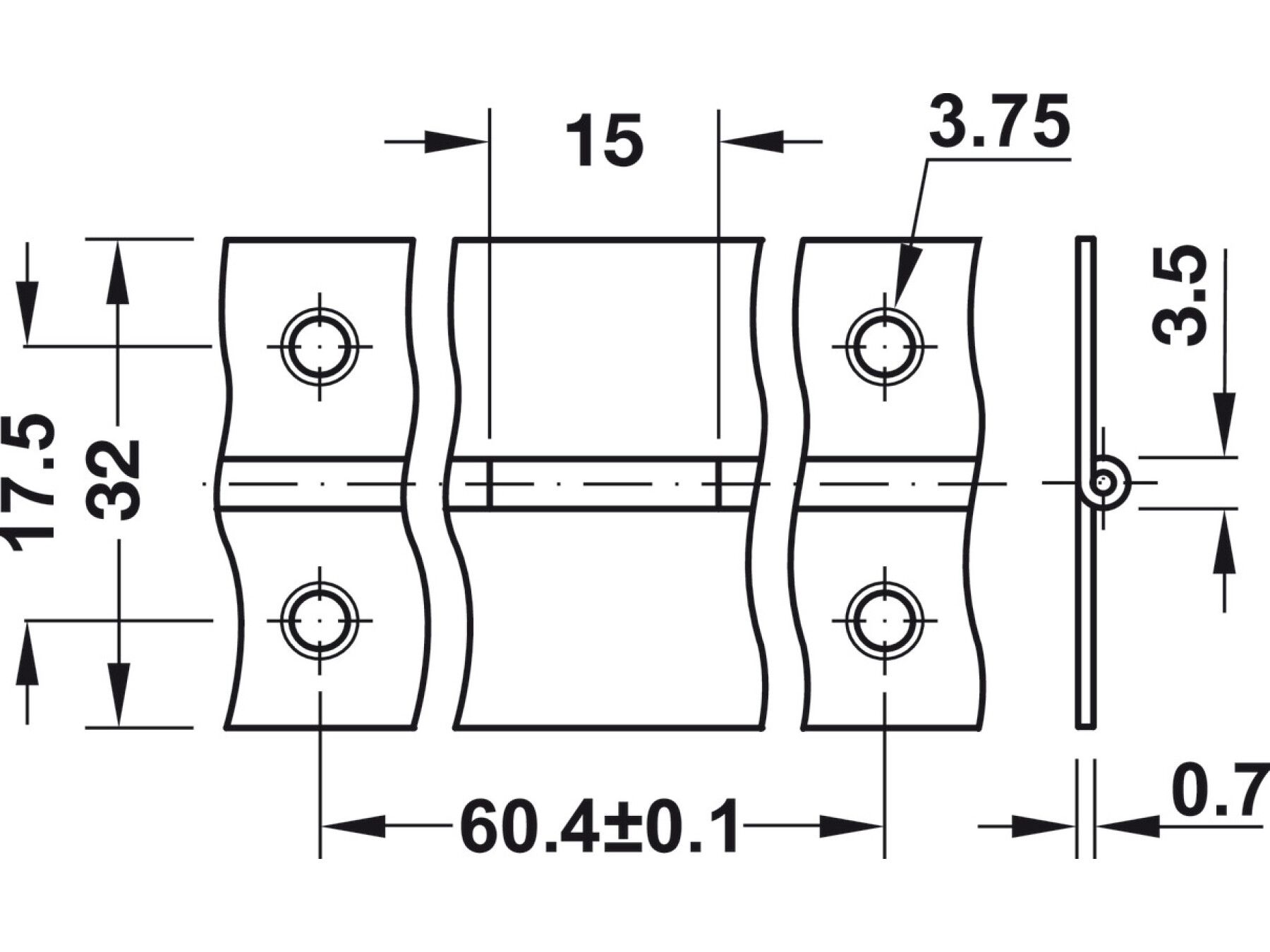

Built for practical installation, the piano hinge features a square flange shape and a flange thickness of 0.70 mm. At a total length of 3,500.00 mm, it’s well suited to long doors where a standard hinge arrangement would be impractical. The knuckle diameter of 3.50 mm supports smooth articulation and consistent contact through repeated use.

Installation is screw fixing with countersunk screw-holes Ø 2.5 mm. Please note: order Ø 2.5 mm countersunk wood screws separately to complete the fitment.

For a high-quality finish in the Architectural Ironmongery category—specifically Door Hinges / Continuous Hinge—choose Part No 351.04.038. If you’re upgrading hardware for a smarter, stronger door solution, this continuous hinge is an excellent place to start.

Order Ø 2.5 mm countersunk wood screws separately
