Ball Bearing Drawer Runners, Full Extension, Grade 304 Stainless Steel, Accuride (Part No: 432.44.922) is a... Read More

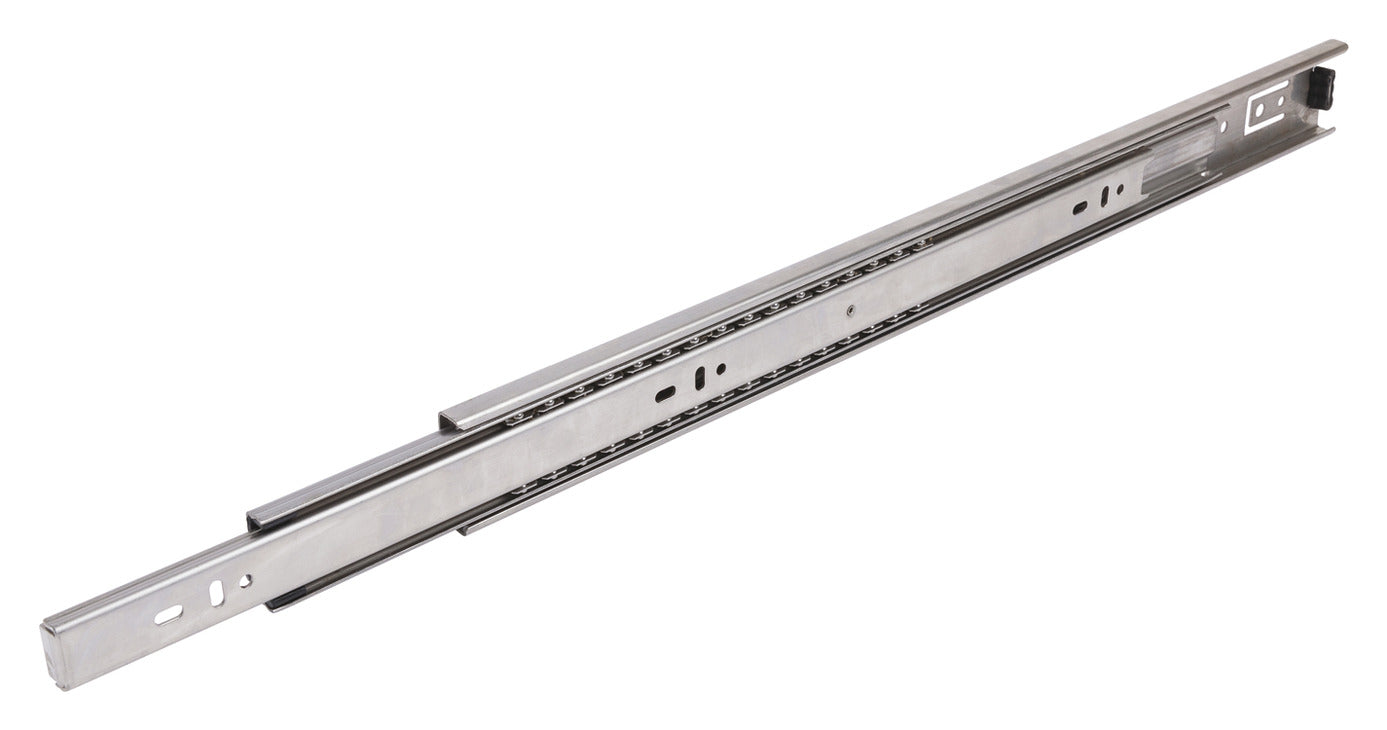

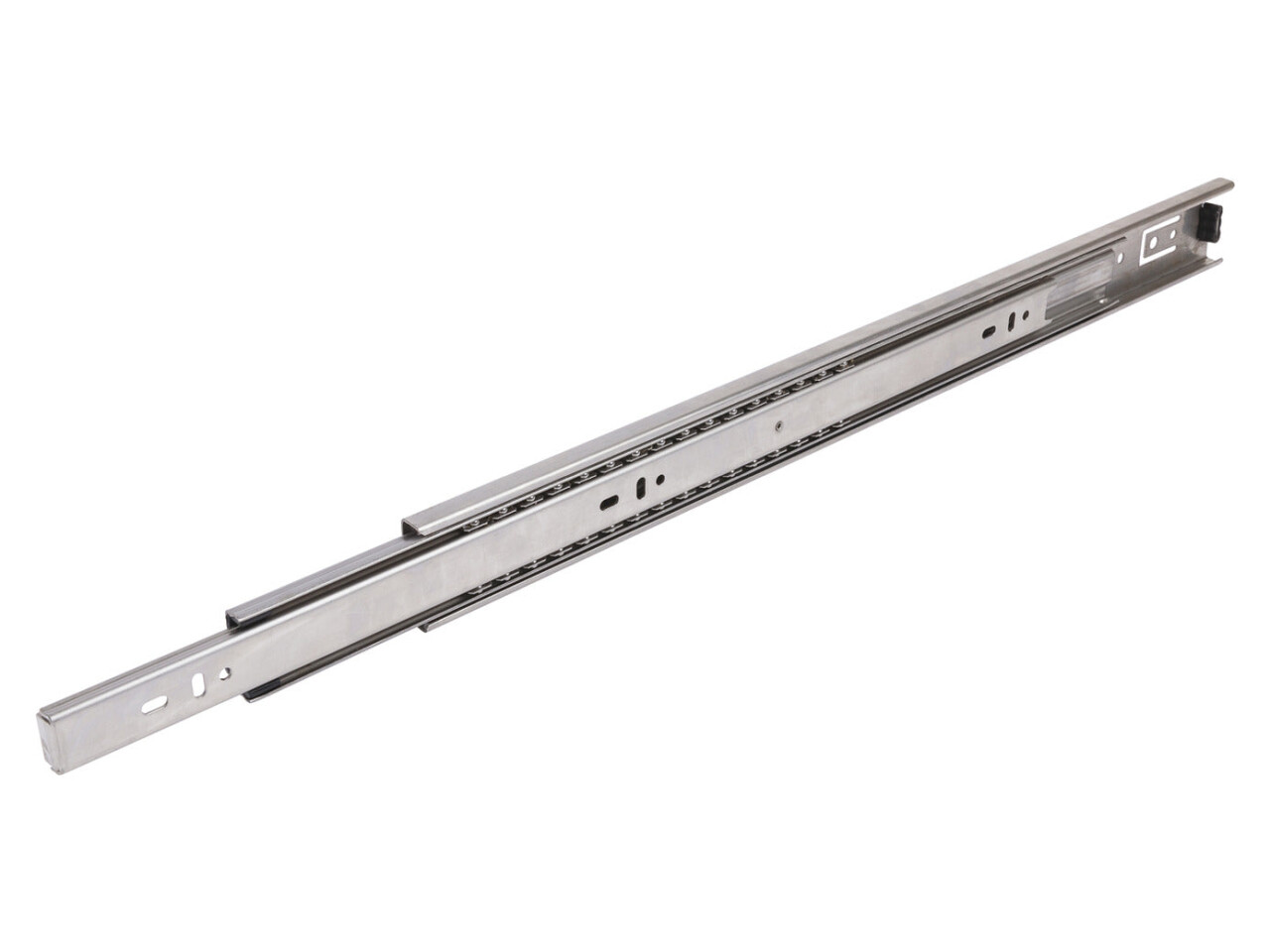

Ball Bearing Drawer Runners, Full Extension, Grade 304 Stainless Steel, Accuride (Part No: 432.44.922) is a premium full-extension drawer runner designed for smooth, effortless operation in both living and commercial furniture. If you’re upgrading kitchen drawers, workshop storage, or office cabinetry, this runner delivers the performance and durability you need—without compromising on clean, professional results.

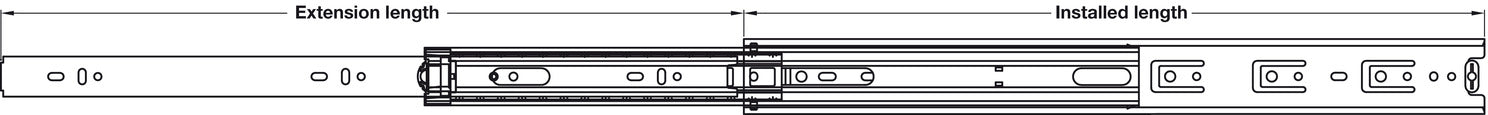

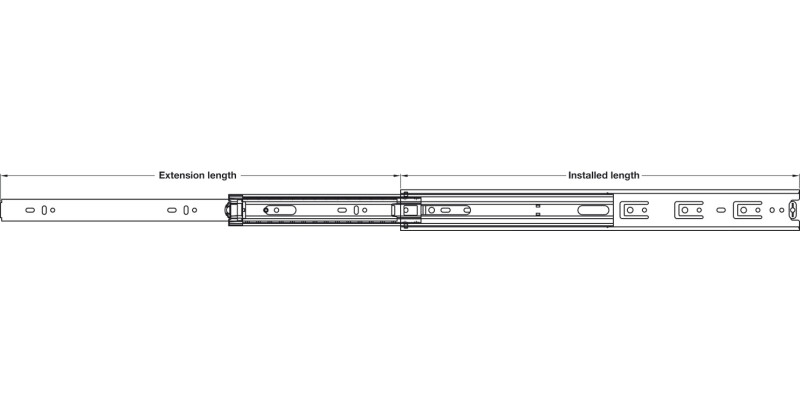

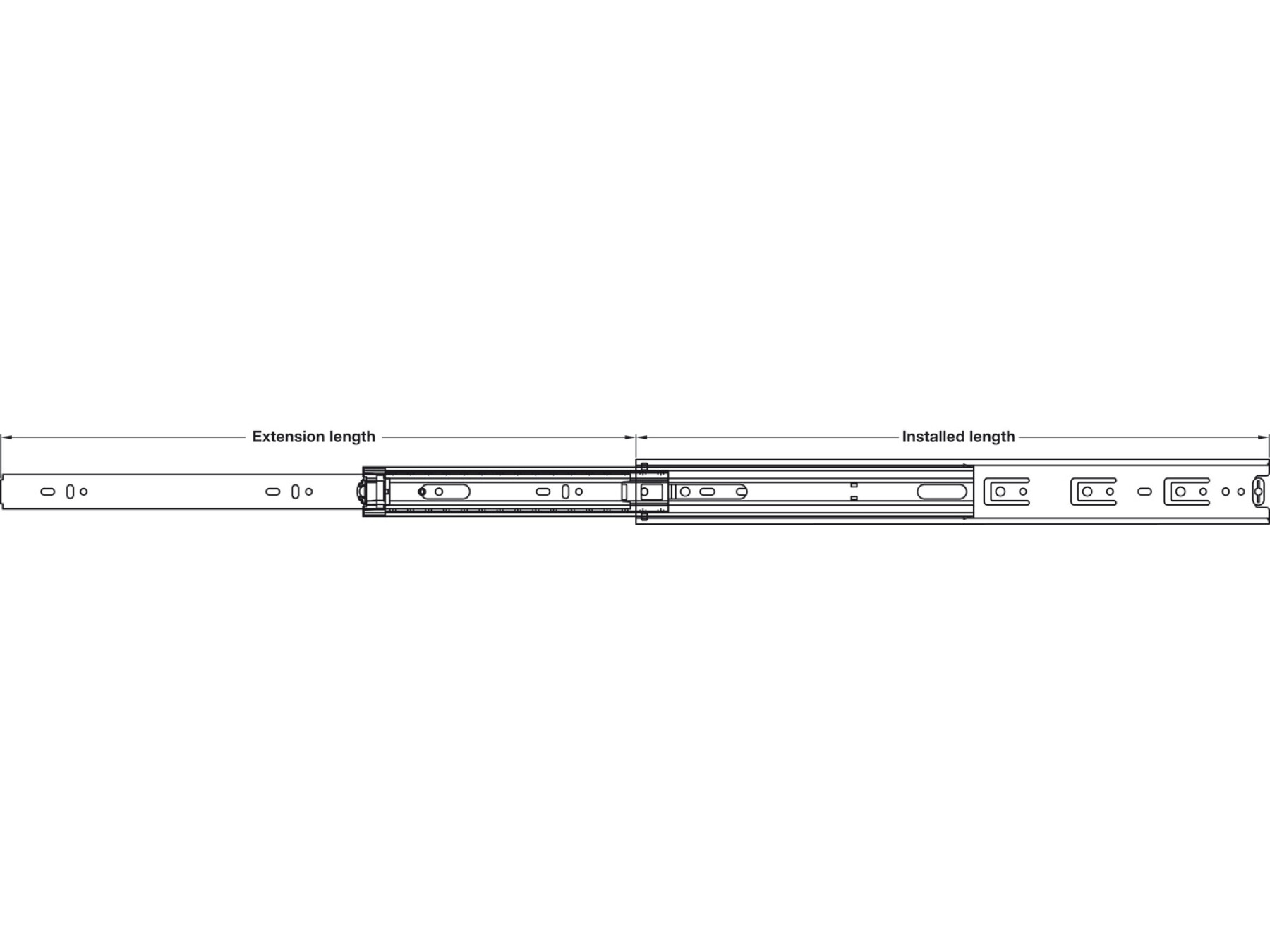

With an installation length of 200 mm and an extension length of 200 mm (±3 mm), this full-extension solution helps you access the entire drawer contents. The full extension motion maximises usability, making it ideal for deep drawers where reach matters.
Built for confident everyday use, the 4501 BB Drawer Runner offers a strong 36 kg load capacity. It features ball bearing technology for a stable, low-friction glide, helping drawers open and close quietly and smoothly over time.
Crafted from Grade 304 stainless steel, the runner is well-suited for environments that benefit from corrosion resistance and long service life. It includes a hold-in function and supports drawer removal with a release lever, making maintenance and cleaning easier.
Type of pull out: Full extension. Material: 304 stainless steel. Drawer support: Ball bearing, rated for up to 36 kg.
Order reference note: M4 handle screws and Hospa pan head Ø 4 mm pan head screws must be ordered separately.
Grade 304 stainless steel
Order M4 handle screws and Hospa pan head Ø 4 mm pan head screws separately
Up to 36 kg per pair when installed correctly. These runners use ball bearing technology for smoother movement and are suitable for everyday living and light commercial drawer applications.
Yes, the runners support drawer removal with a release lever. This makes cleaning and maintenance easier, especially where you need to access the drawer interior or the cabinet void behind it.

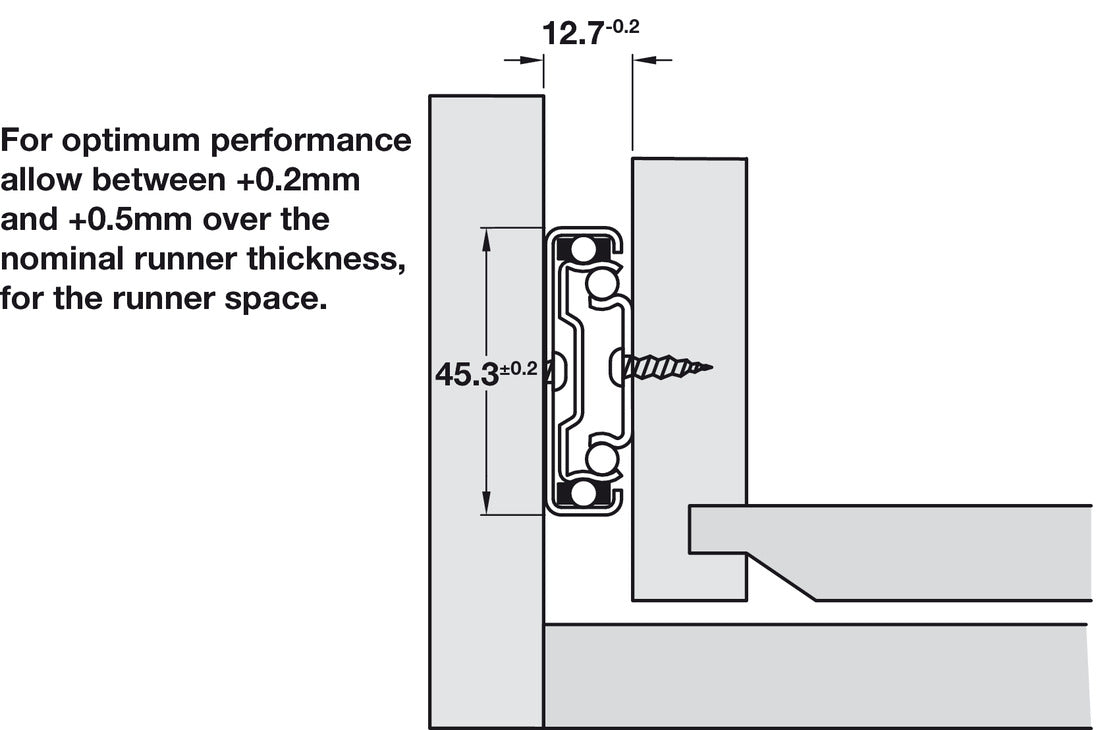

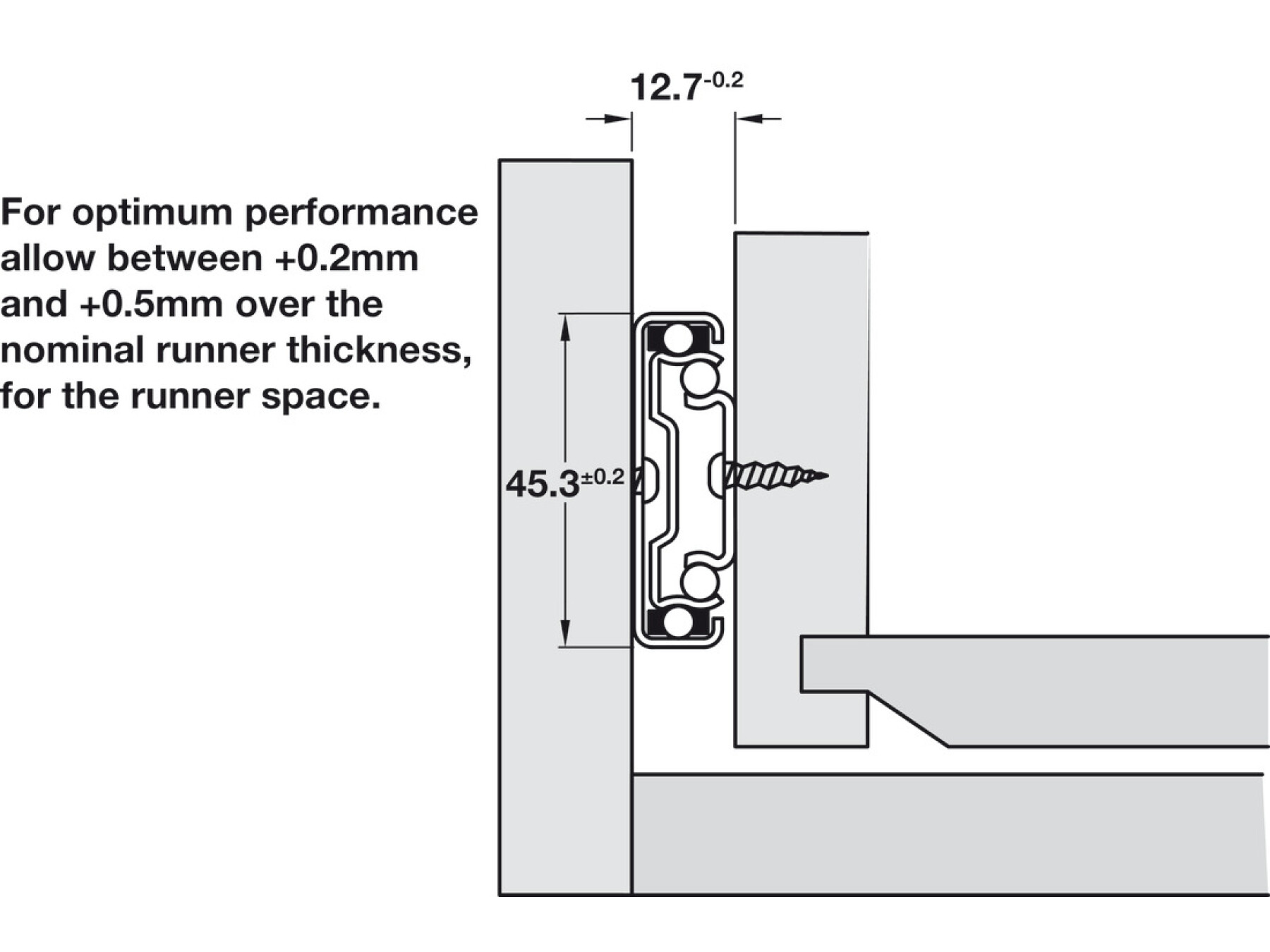

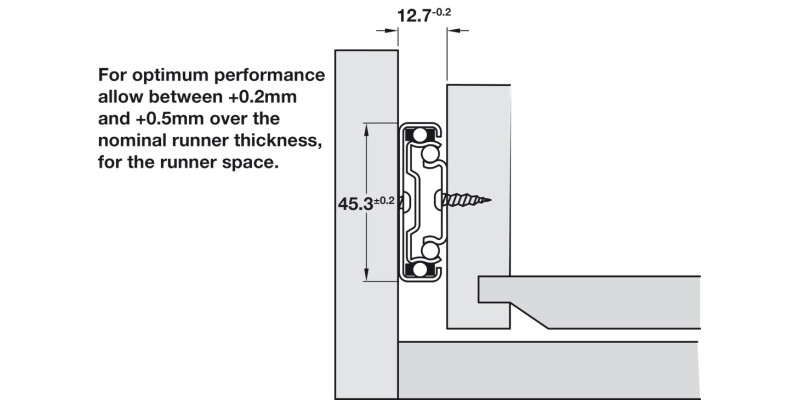

The installation length is 200 mm, which is the portion of the runner that sits within your cabinet. You should measure carefully so the runner mounting position matches this length for a proper fit.
The extension length is 200 mm with a tolerance of ±3 mm. This allows for real world fitting variations while still giving you full extension travel to help you reach the back of the drawer.
These runners are made from 304 stainless steel, which is a strong choice where you want good corrosion resistance. They are especially useful for kitchens and other spaces where humidity and cleaning chemicals may be present.
For correct installation, the product instructions recommend buying the specified fixing screws separately. Please note the order reference highlights that you may need M4 handle screws and Hospa pan head Ø 4 mm pan head screws as required for your setup.
Yes. With full extension design, the drawer opens so you can access items at the rear more easily. Combined with a 36 kg rating and smooth ball bearing action, these runners are a practical choice when you want reliable movement.
