Sashlock, 5 Lever, Security, Mortice, Steel or Brass (Product Part No: 911.03.701) is a beautifully made mortice... Read More

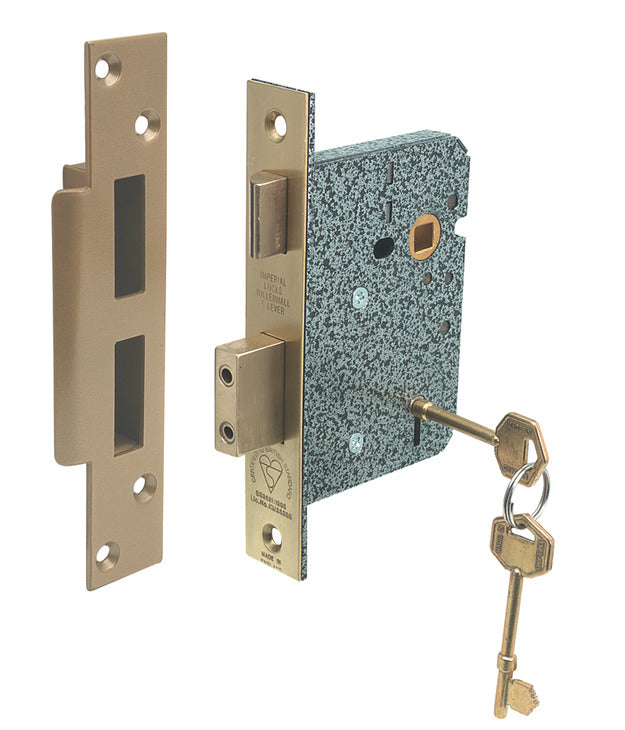

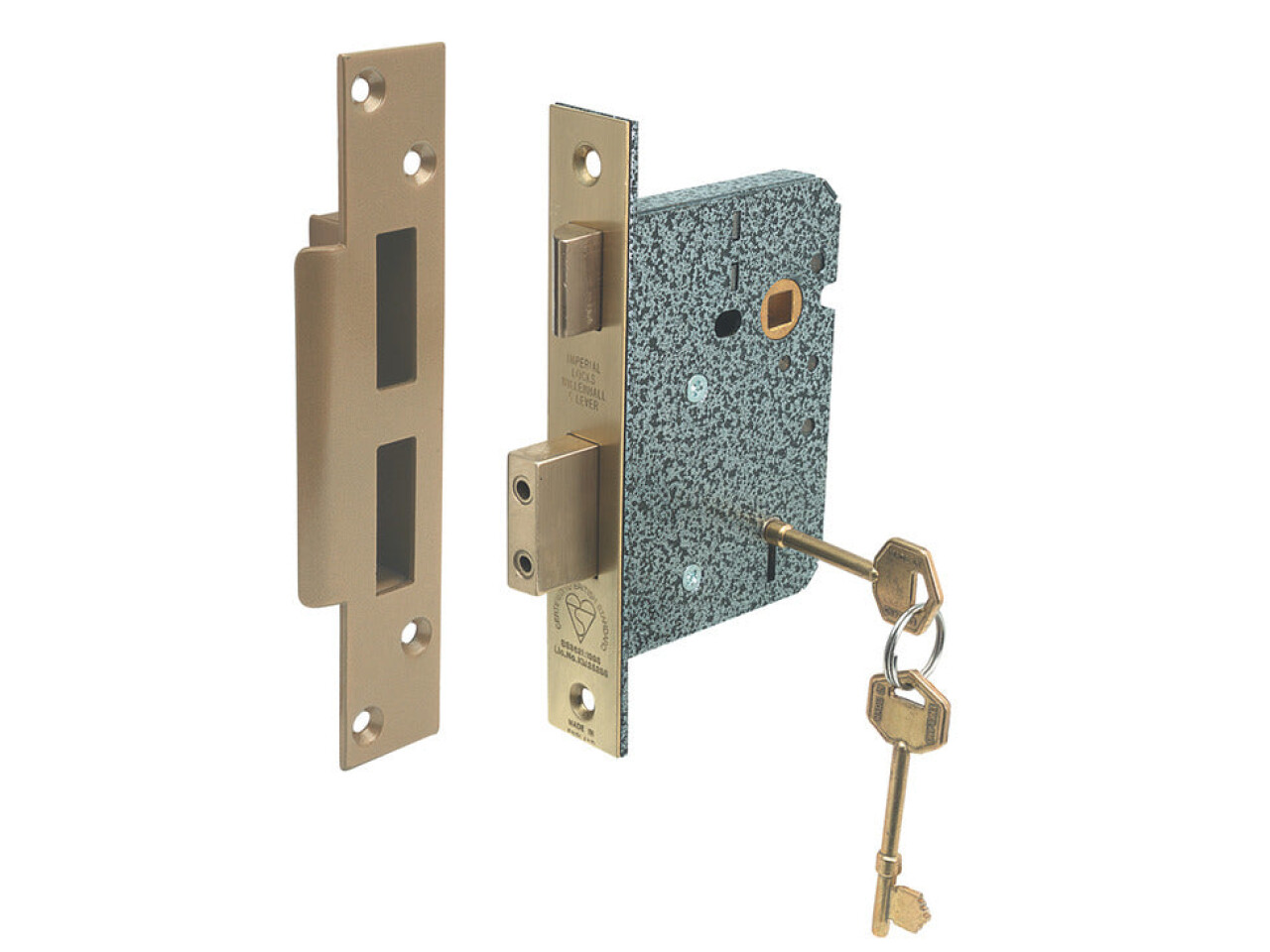

Sashlock, 5 Lever, Security, Mortice, Steel or Brass (Product Part No: 911.03.701) is a beautifully made mortice sashlock designed to deliver secure, smooth operation for residential and architectural door applications. Finished in a refined satin brass, this lock brings a classic, high-quality look that suits modern and traditional interiors alike.
Built for everyday reliability, this standard sprung 5-lever sashlock features a keyed alike closure, making it ideal for multi-door properties where you want convenience without compromising on security. With a backset of 45 mm and a case size of 63 mm, it’s well-suited to a wide range of compatible mortice installations.
The lock is engineered with a standard latch and standard deadbolt version for added protection. Its performance is supported by thoughtful design details, including a flat forend edged profile and a 25.00 mm forend width, giving a clean, professional finish on the door.
Measuring 152 mm forend length, the lever follower is set at 8 mm to ensure proper alignment and dependable action. Supplied with 2 keys and fixings, it’s ready for installation, so you can complete your door project with confidence.
If you’re upgrading hardware for improved security and a premium satin brass appearance, the Sashlock, 5 Lever, Security, Mortice, Steel or Brass is an excellent choice—durable, elegant, and built to last.
Satin brass
2 Keys
Fixings
This 5 Lvr mortice sashlock is supplied keyed alike, which means the included keys are matched to the lock. If you are fitting more than one lock on the same property, this can make everyday use simpler and more convenient.

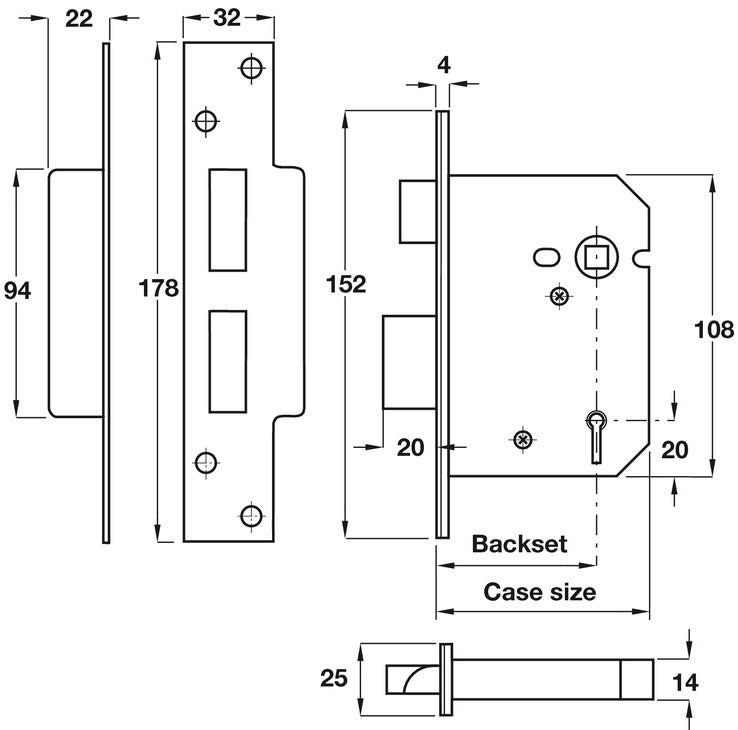

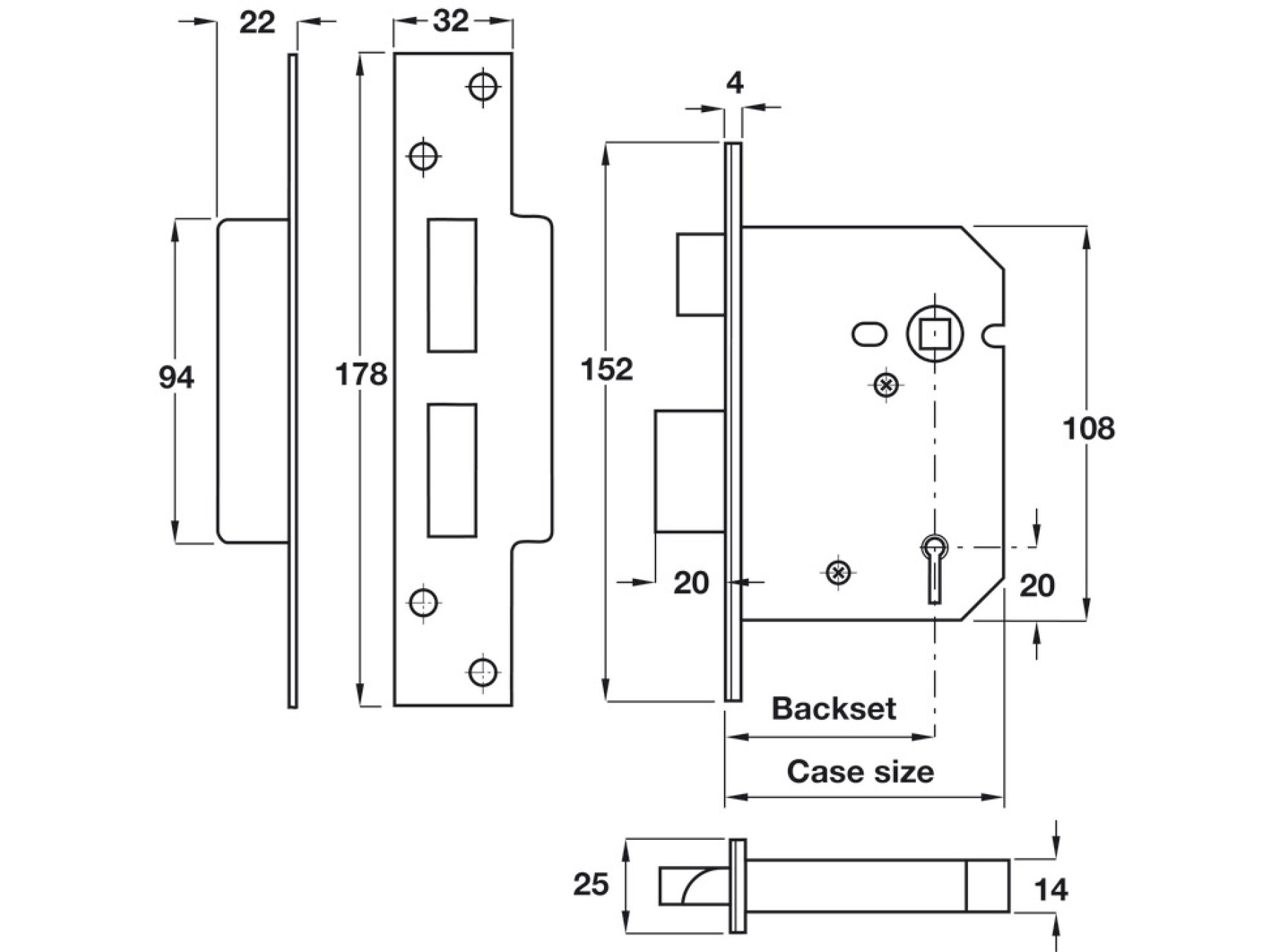

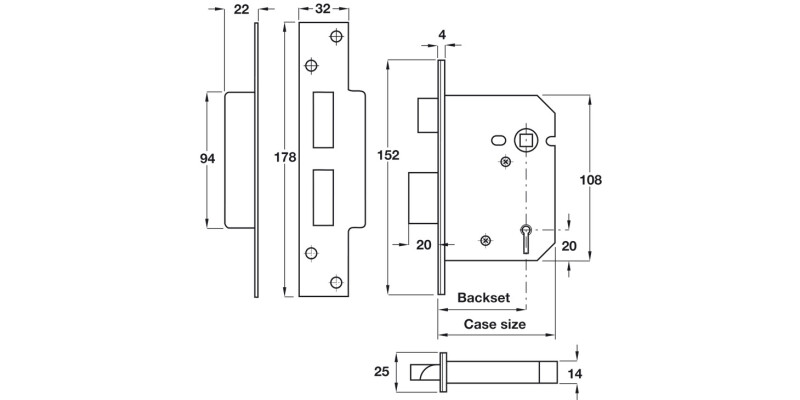

The lock is specified with a backset of 45 mm and a case size of 63 mm. These measurements are important when replacing an existing sashlock or matching the lock to the door preparation.
It uses a standard latch with a lever follower suitable for typical sprung sashlock operation. In practice, it is designed to be operated via the lever, engaging smoothly with the latchbolt for normal door closing and opening.
This model features a flat forend with an 25 mm forend width and a 152 mm forend length. It also includes an 8 mm lever follower, which helps ensure correct mechanical alignment when fitted to the mortice case.
The lock is supplied in a satin brass finish, making it a good match for many traditional and period style interiors while still offering a clean, modern look compared with highly polished brass.
Yes, it is supplied with 2 keys and fixings. Having the correct fixings included helps reduce the risk of delays during installation, especially when replacing a like for like mortice sashlock.
Check your existing mortice preparation and confirm the 45 mm backset and 63 mm case size match your door. If you are unsure, measuring the mortice or comparing it to the lock specification can help ensure you order the correct part, including the correct forend dimensions.
