Part No: 833.89.107
LED Push Switch, Ø 14 mm , for use with Loox LED Lights
£4.05
(excl. VAT)
LED Push Switch, Ø 14 mm , for use with Loox LED Lights
Part Number: 833.89.108
Black finish
Price:
£4.05
Per Item
LED Push Switch, Ø 14 mm , for use with Loox LED Lights. (Part No: 833.89.108) is a sleek, space-saving way... Read More
Product Information
Product Details

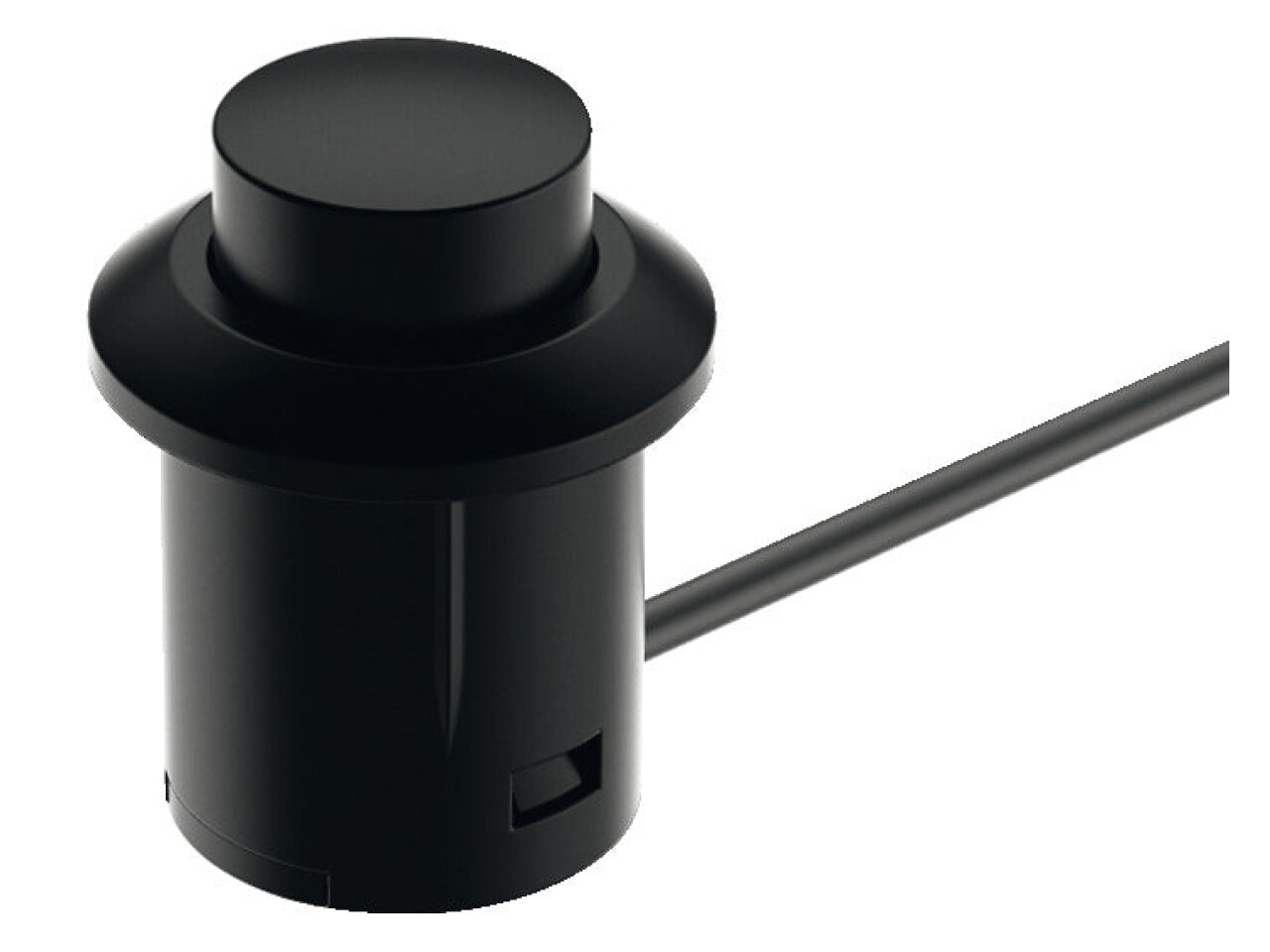

LED Push Switch, Ø 14 mm , for use with Loox LED Lights. (Part No: 833.89.108) is a sleek, space-saving way to control your Loox LED lighting with a satisfying on/off push action. Designed for a clean, modern look, this Black finish switch blends effortlessly into recessed installations where style and function matter.

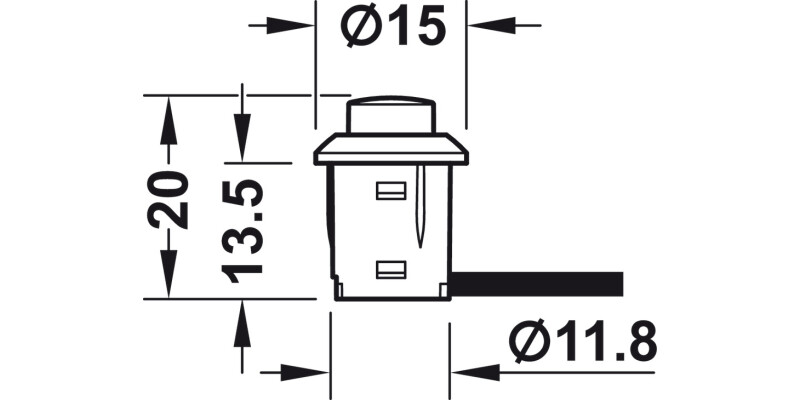

Ideal for low-voltage LED applications, this manual push switch for LED lights is built for straightforward, reliable everyday use. With a compact 14 x 20 mm footprint and a simple 12.00 mm drill hole requirement, it’s easy to integrate into suitable panels and housings. The switch is for recess mounting, making it a great choice for streamlined cabinet, display, or underlighting projects.
For installation convenience, it forms part of the Loox plug and play system. You’ll benefit from the included 2 m lead with connector for any Loox driver, helping you complete a tidy connection with minimal fuss. Installation depth guidance notes a hole depth of 13.5 mm, ensuring a neat fit.
Designed with durability in mind, the switch is made from plastic and offers an IP20 degree of protection for indoor use. It also comes backed by the Hafele Lifetime Guarantee (7 years), giving you extra confidence in your lighting setup.
Order note: Lights and accessories must be ordered separately to complete your system.
Specifications
Switching function
on/off
Drill hole Ø
12.00 mm
Length
20.00 mm
Area of application
Manual push switch for LED lights
Material
Plastic

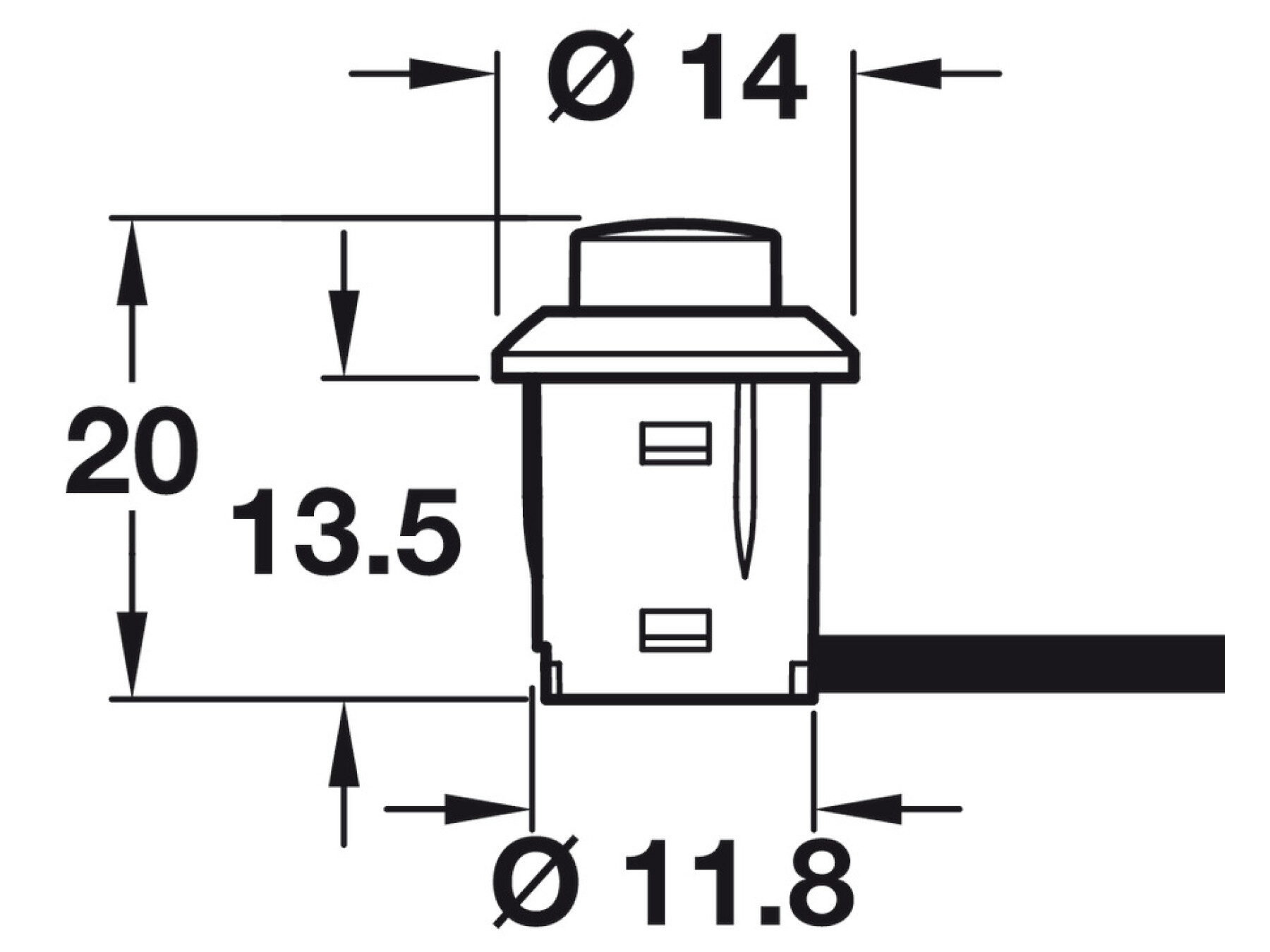

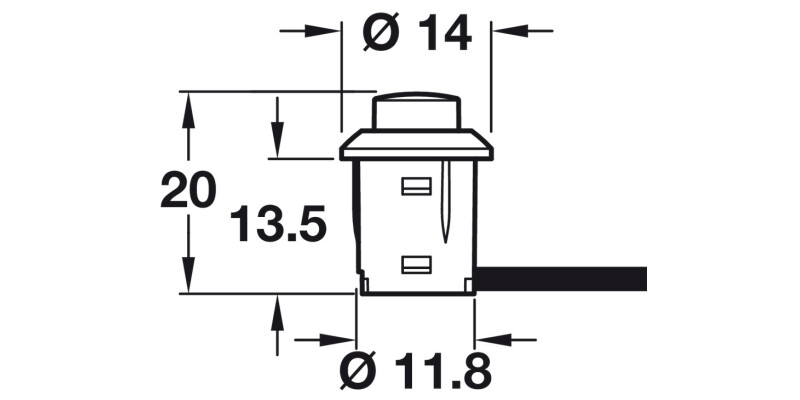

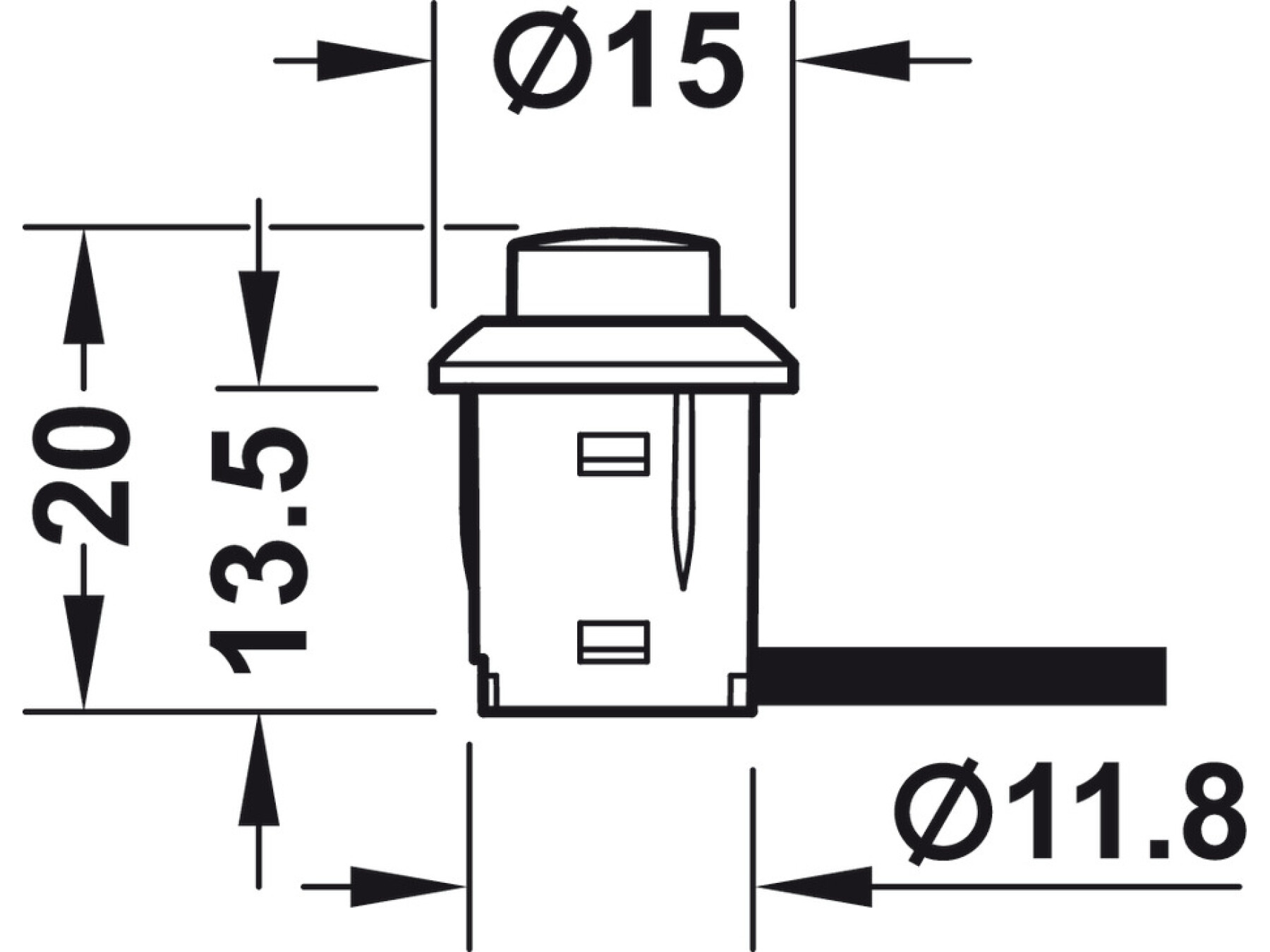

Dim. (Ø x L)
14 x 20 mm
Cable length
2,000.00 mm
Degree of protection
IP20
Plug drill hole Ø
12.00 mm
Installation
For recess mounting
Installation note
Part of the Loox plug and play system
Hole depth 13.5 mm
Hafele Lifetime Guarantee
7 years
Order reference
Lights and accessories to be ordered separately
Supplied with
2 m lead wih connector for any Loox driver
FAQ
Product Details
Is this pushbutton switch suitable for Loox LED driver systems?
Yes. The Loox LED PushButton Switch D14mm Blk is part of the Loox plug and play system and is supplied with a 2 m lead with connector for use with any Loox driver.
What size hole do I need to install it in?
Use a 12 mm drill hole. The switch is designed for recess mounting and the required drill hole diameter is 12.00 mm (with a listed hole depth of 13.5 mm).
Does it switch a light on and off directly, or is it for dimming?
It is an on off (manual) push switch. This model is intended to control an LED lighting circuit with a simple press to switch action.
What are the dimensions of the switch face and body?
The switch is 14 mm in diameter and 20 mm long (listed as 14 x 20 mm). This makes it suitable for compact recess mounting in furniture and interior applications.
How much cable length is provided from the switch to the driver connection?
A 2 m lead is included. The supplied cable length is 2,000 mm, giving you flexibility when planning the driver position.
What protection rating does it have for indoor use?
It is rated IP20. That means it is designed for indoor, dry locations and should not be used where it may be exposed to water spray.
Is a lifetime guarantee available for this product?
Yes. The Hafele Lifetime Guarantee applies for 7 years for this Loox switch product. It is designed to be used as part of the compatible Loox system.
