Plinth Adjusting Fitting, Partition Adjuster with Bracket, Steel. (Product Part No: 637.67.900) is a robust,... Read More

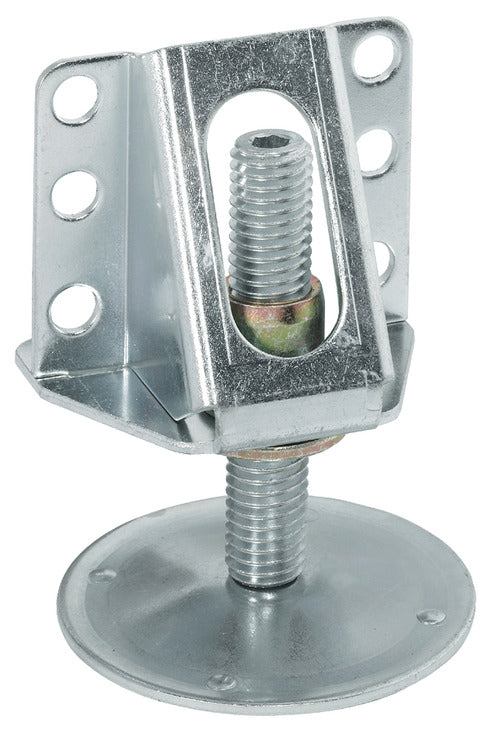

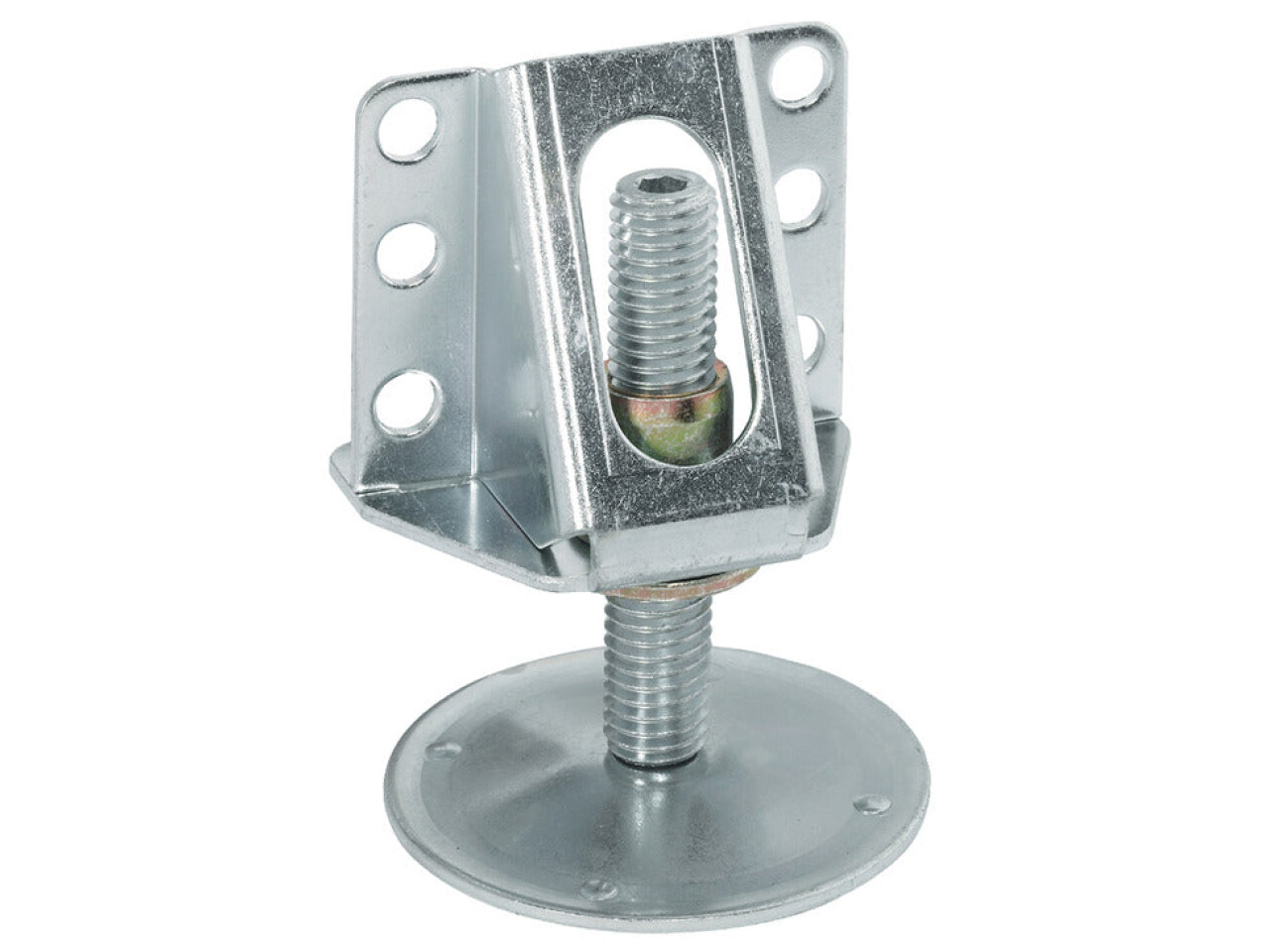

Plinth Adjusting Fitting, Partition Adjuster with Bracket, Steel. (Product Part No: 637.67.900) is a robust, practical plinth adjusting fitting designed to help you level and stabilize furniture and table structures with confidence. If you’re looking for a reliable solution for commercial or living spaces, this heavy-duty table leg component delivers smooth height control and strong support.
25 mm adjustment makes it easy to fine-tune height for uneven floors, ensuring your tables and seating arrangements look professional and stay aligned. The load bearing capacity of 200 kg offers peace of mind for demanding installations, from hospitality setups to office furniture and versatile multi-use systems.
Built for durability, this adjustment fitting is made from steel and finished with zinc plated, galvanized protection. That coating helps resist corrosion, supporting long-term performance in environments where wear and moisture exposure may occur.

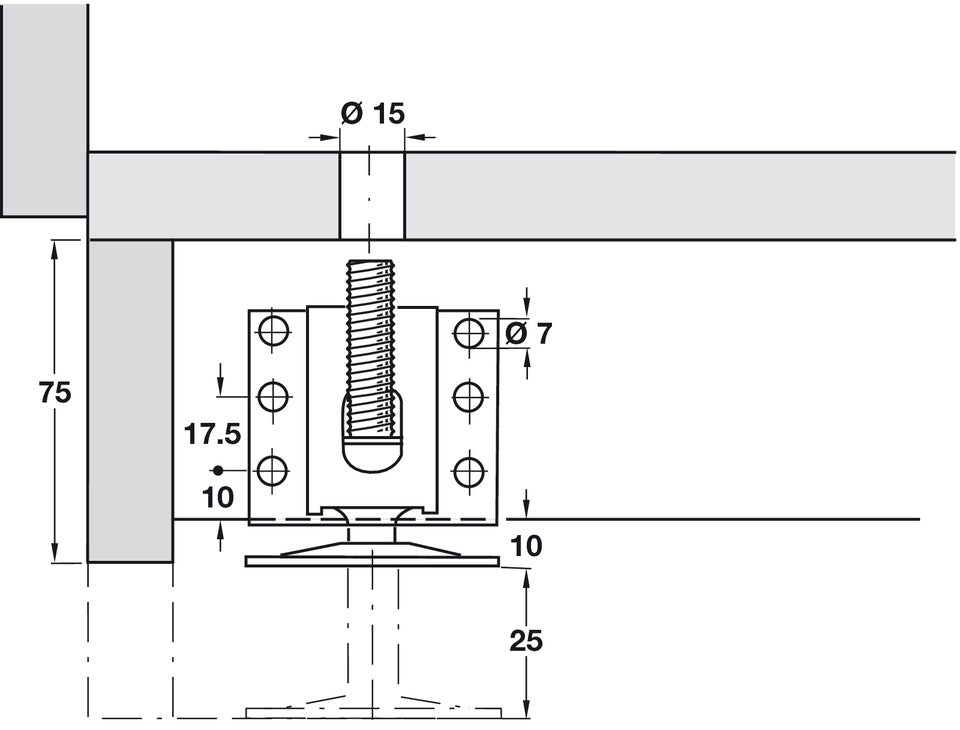

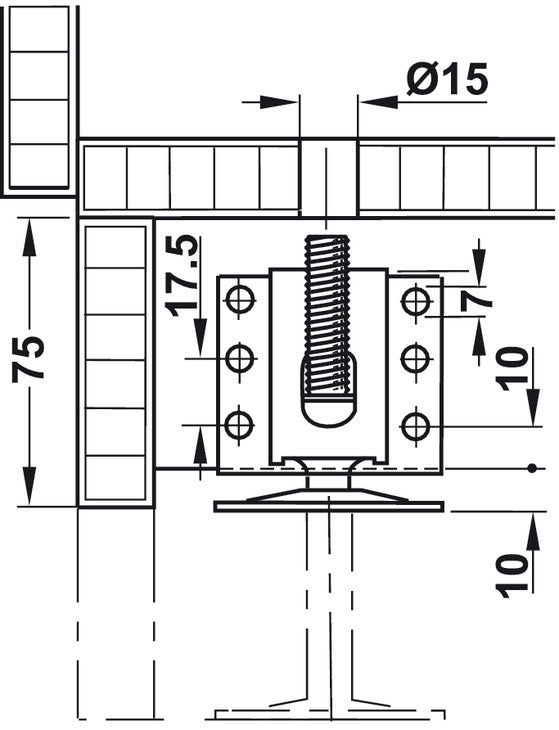

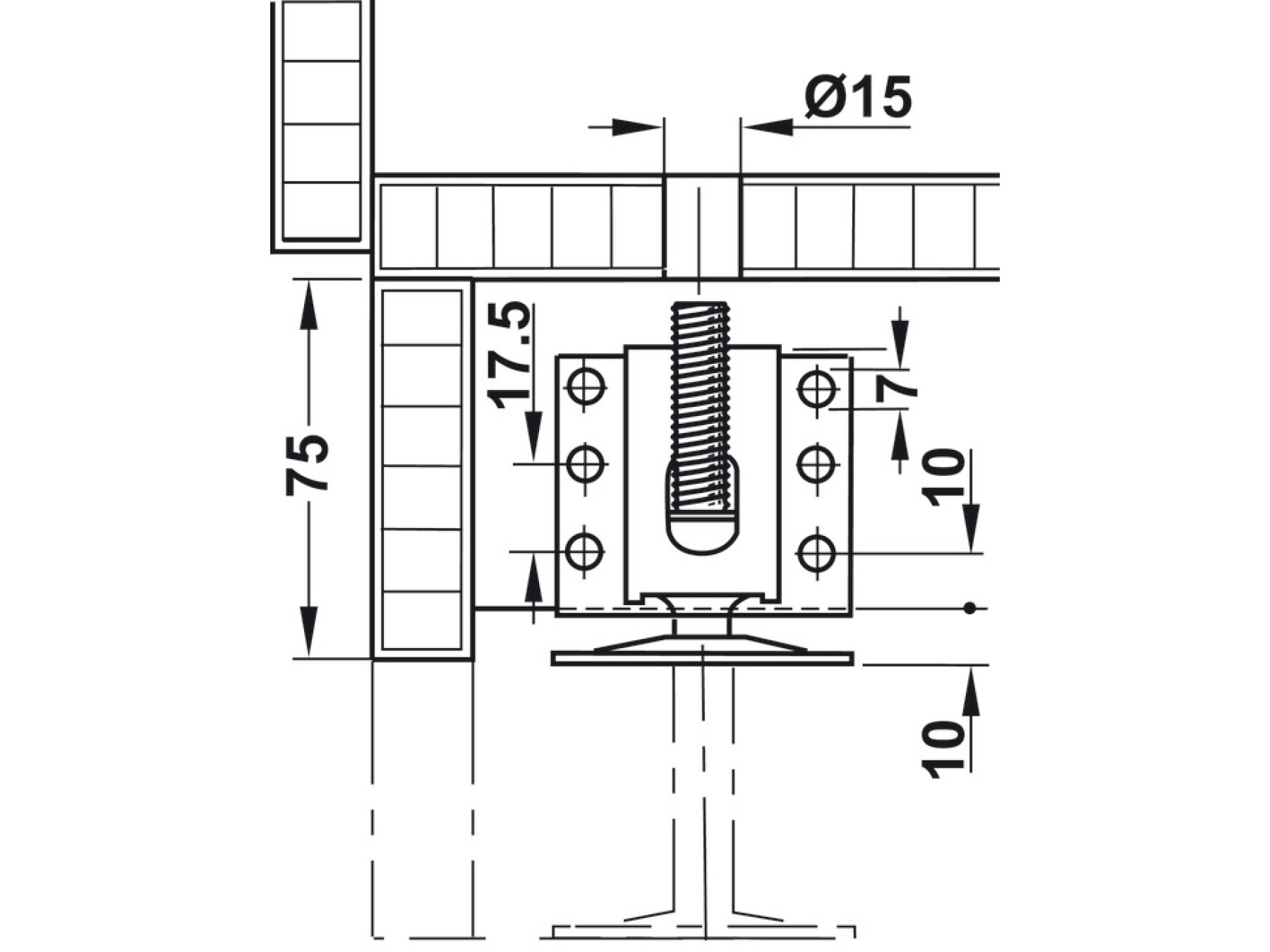

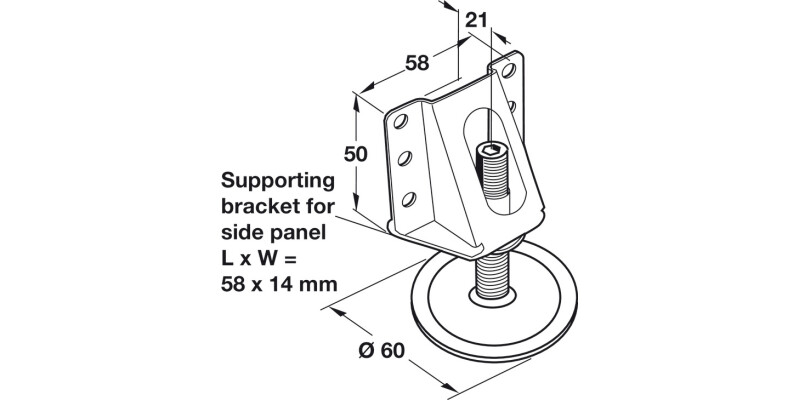

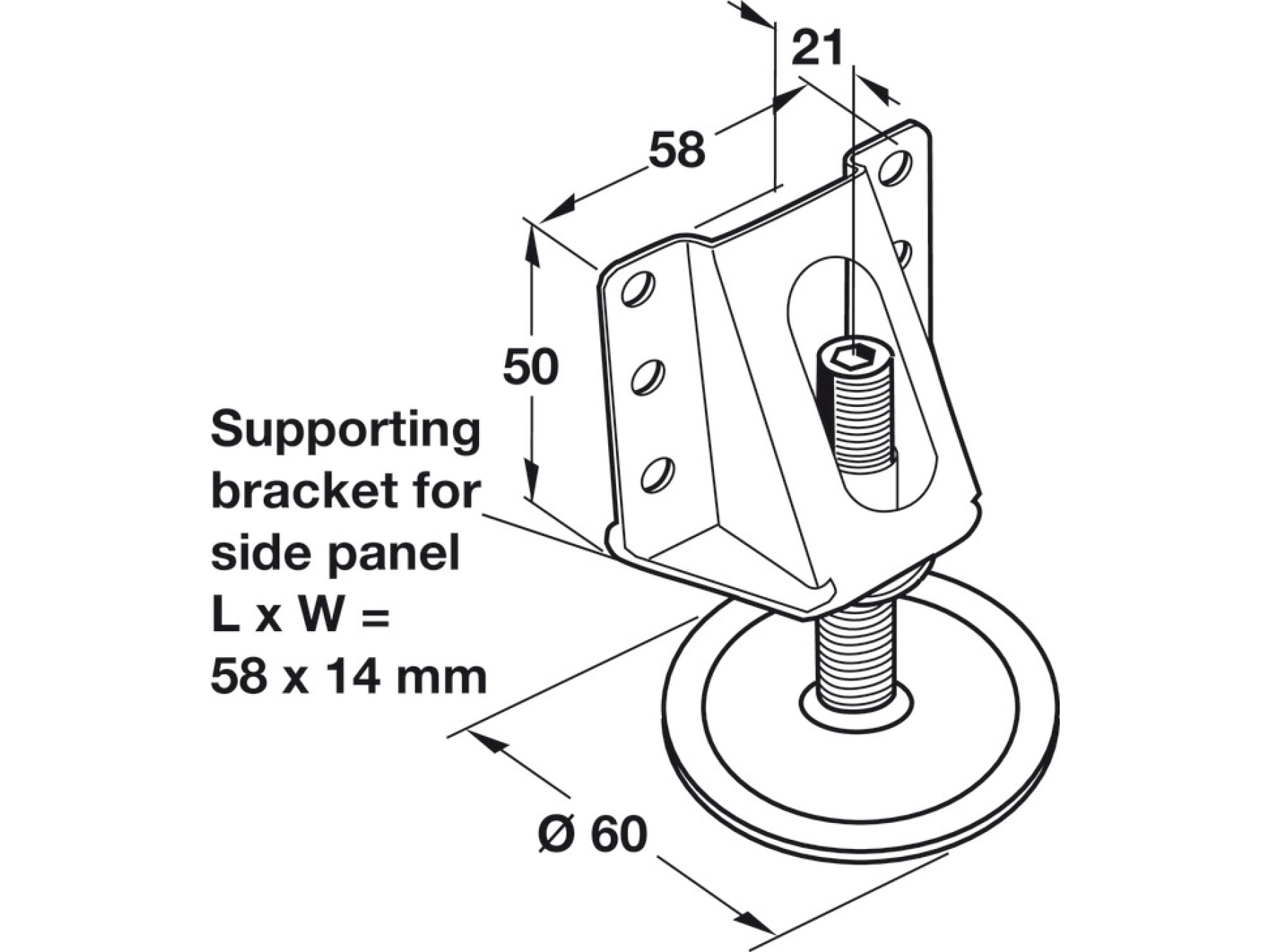

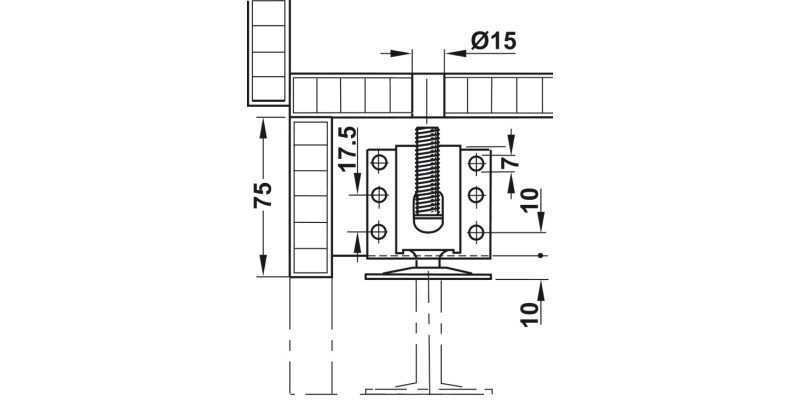

The fitting comes in a complete, functional version with supporting bracket, a swivelling base plate, and a threaded spindle M12 x 65 mm. Height adjustment is achieved with +25 mm, controlled via a hexagon socket (SW5) from above for straightforward installation and maintenance.
Installation is screw mounted, making it a clean, secure fit for your furniture framework. Please note: Order Varianta Ø 5.0 raised head screws separately.
Upgrade your table legs and plinth system with the Plinth Adjusting Fitting, Partition Adjuster with Bracket, Steel. and enjoy precise leveling, dependable strength, and a professional finish—ideal for both living and commercial solutions.
with supporting bracket,
with swivelling base plate,
with threaded spindle M12 x 65 mm
Steel
zinc plated, Galvanized
Height adjustment +25 mm
Screw mounted
Order Varianta Ø 5.0 raised head screws separately
This fitting offers 25 mm height adjustment, which makes it easier to level furniture and table frames on uneven floors. Use the threaded spindle to raise or lower the leg support smoothly within the adjustment range.
It has a load bearing capacity of 200 kg, supporting heavy furniture and commercial table setups when installed correctly with the recommended fixings.
Yes, this particular part is supplied with the supporting bracket and a swivelling base plate. The swivelling base helps it sit more securely on the floor, especially where slight alignment changes are needed.
Installation is screw mounted. For adjustment, the hex socket can be used from above using a SW5, making it practical to fine tune the height without removing the table or frame.
The threaded spindle is M12 x 65 mm. This standard size is designed to work with the fitting system and supports stable, repeatable adjustments.
The steel components are zinc plated and galvanized. This coating is intended to improve resistance to corrosion, which is useful for living and light commercial environments where fittings may be exposed to moisture and frequent use.
In most cases, the fitting is installed using appropriate raised head screws. The order reference notes that Ø 5.0 raised head screws may be supplied separately, so it is worth checking what fixings are included with your order or what your project requires.
