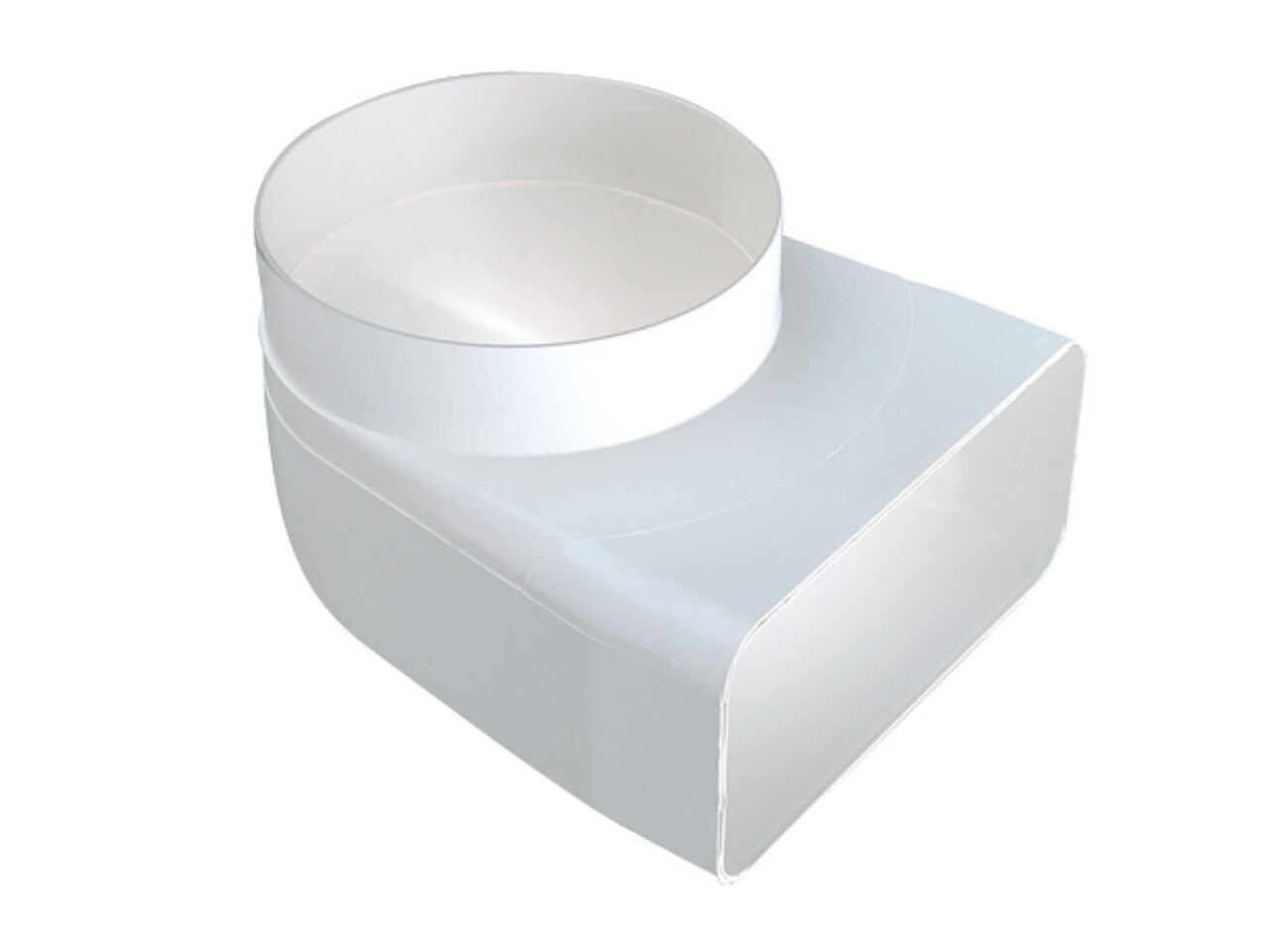

Elbow 90� Bend, Female, Flame Retardant, PVC, Manrose

Elbow 90� Bend, Female, Flame Retardant, PVC, Manrose

Part Number: 565.30.820

White material

Price:

£2.19

Per Item

VAT excluded

Elbow 90� Bend, Female, Flame Retardant, PVC, Manrose (Part No: 565.30.820) is the ideal finishing piece for... Read More

Product Information

Product Details

Elbow 90� Bend, Female, Flame Retardant, PVC, Manrose (Part No: 565.30.820) is the ideal finishing piece for creating a smooth, efficient route for your kitchen ventilation ductwork. Designed to fit neatly into the System 4a setup, this 90° bend helps you manage changes in direction without compromising airflow performance—so your extractor ventilation runs as intended, especially in tighter kitchen layouts.

Featuring a clean white material finish, the Elbow 90� Bend, Female, Flame Retardant, PVC, Manrose blends effortlessly with modern interiors while keeping the ducting looking tidy and professional. Its flame-retardant construction adds peace of mind, making it a practical choice for kitchen ventilation systems where safety and reliability matter.

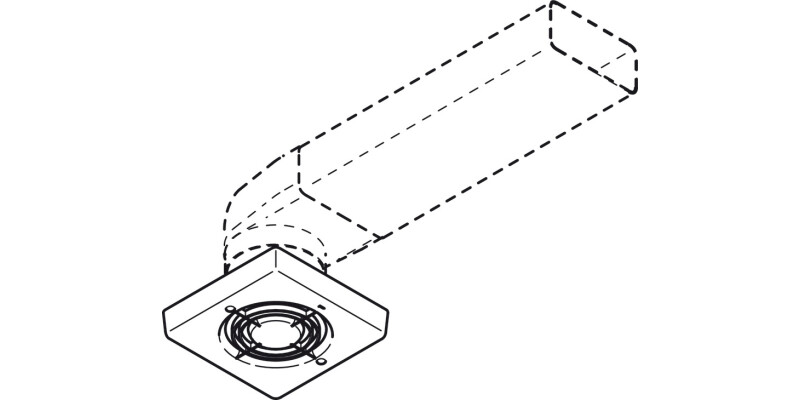

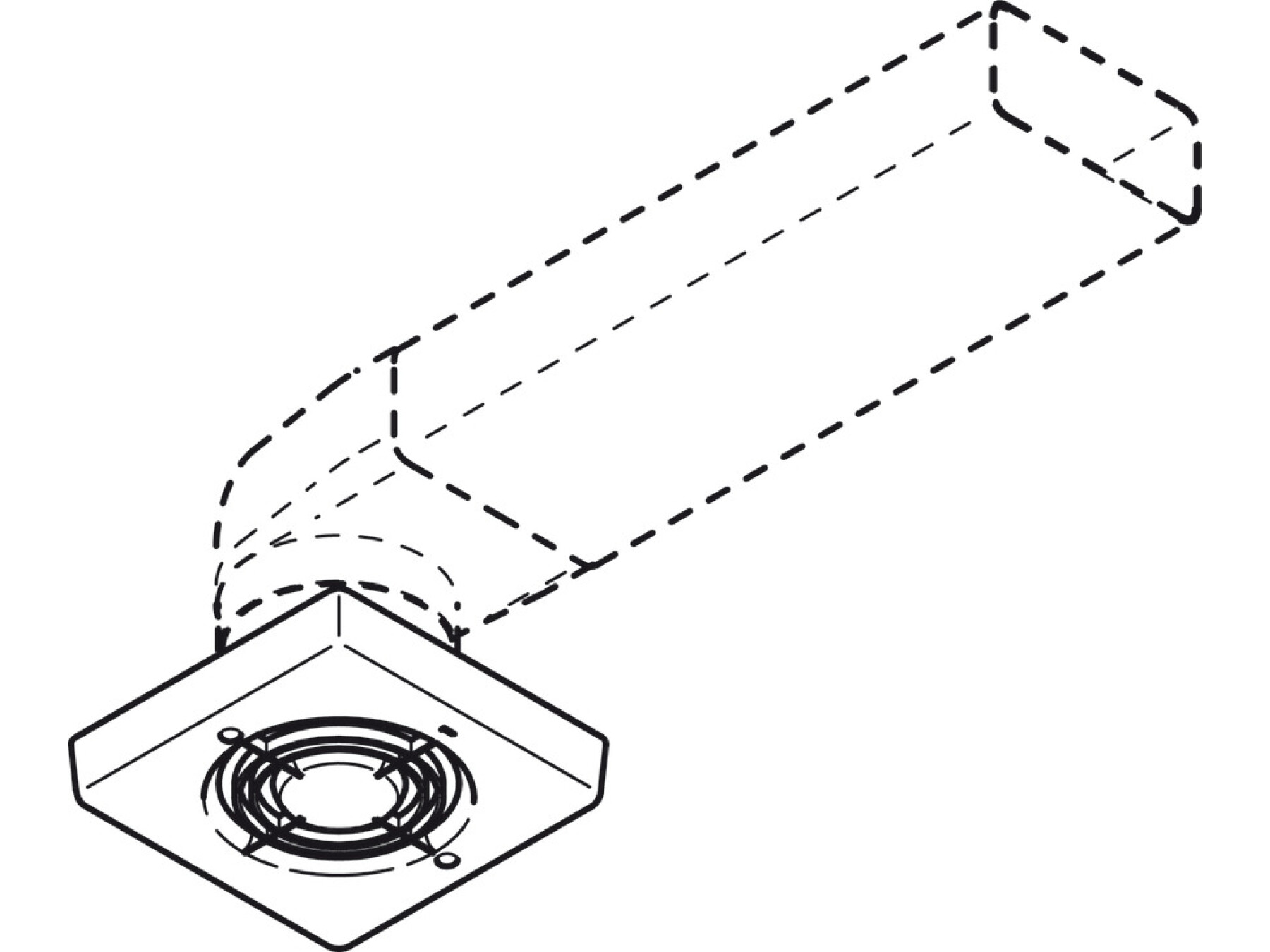

Built for compatibility and ease of use, this connector is made to connect a System 4 fan to a System 4a flat duct. With a 90.00° angle, it delivers a precise directional turn for effective duct alignment.

Key specifications: The flat duct dimensions are 110 x 54 mm, with an aperture diameter of Ø 100 mm. This ensures a secure fit within the System 4a configuration and supports steady airflow from fan to ducting.

If you’re planning a ventilation layout that needs a controlled corner turn, choose the Elbow 90� Bend, Female, Flame Retardant, PVC, Manrose to complete your installation neatly. Upgrade your kitchen ventilation system with a connector that’s functional, safe, and designed to look great.

Specifications

System

Version

Flat duct dims - 110 x 54 mm
Aperture Ø - 100 mm

Area of application

Connects system 4 fan to system 4a flat duct

Angle

90.00 °

Material

Flame retardant

Colour/finish

White

FAQ

Product Details

Will this 90 degree elbow connect a System 4 fan to a System 4a flat duct?

Yes. Sys4 90D Elbow Connector White is designed to connect a System 4 fan to a System 4a flat duct, helping you create a neat change in direction within your kitchen ventilation run.

What angle does the elbow provide for kitchen duct routing?

It provides a 90 degree bend. This makes it useful when you need to route ductwork around cabinetry, soffits, or to align with a vent position without compromising the overall layout.

What duct dimensions and opening size does this elbow suit?

It is intended for flat duct dimensions of 110 x 54 mm, and it features an aperture diameter of 100 mm. Checking these measurements before ordering will help ensure a proper fit.

Is the connector suitable for kitchen ventilation where heat and airflow matter?

It is flame retardant. This makes it appropriate for typical kitchen ventilation applications where ductwork components may be exposed to elevated temperatures.

Can I match this elbow with a white duct and fittings system?

Yes. The connector has a white finish, which can help you keep the ductwork appearance consistent where it is visible in kitchens.

Where can I use this elbow in a typical kitchen ventilation installation?

It is used to redirect duct runs between the fan connection and flat duct sections. If you are building a System 4 to System 4a layout and need a clean 90 degree turn, this connector is a straightforward choice.

How do I choose the right elbow connector for my setup?

Confirm your system type, duct size, and aperture requirement. This part is for System 4 to System 4a and is matched to 110 x 54 mm flat duct with a 100 mm aperture, so double checking these details helps avoid incompatible fittings.
