Matrix Box P Marking Gauge, for Drawer Fronts
Matrix Box P Marking Gauge, for Drawer Fronts (Part No: 553.69.035) is the ideal precision tool for anyone fitting... Read More
Product Details
Matrix Box P Marking Gauge, for Drawer Fronts (Part No: 553.69.035) is the ideal precision tool for anyone fitting drawer fronts with confidence. Designed specifically for the Matrix Box P system, this MX Marking Gauge for 16/18 mm drawer bases helps you accurately position front fixing brackets, so installation is quick, clean and consistently aligned—especially when working on both living and commercial furniture projects.
Whether you’re updating a kitchen or building out office storage, accurate fixing point marking is the difference between a smooth finish and time-consuming rework. This marking gauge takes the guesswork out of the process, guiding you to mark the correct locations for the Matrix Box P bracket setup.

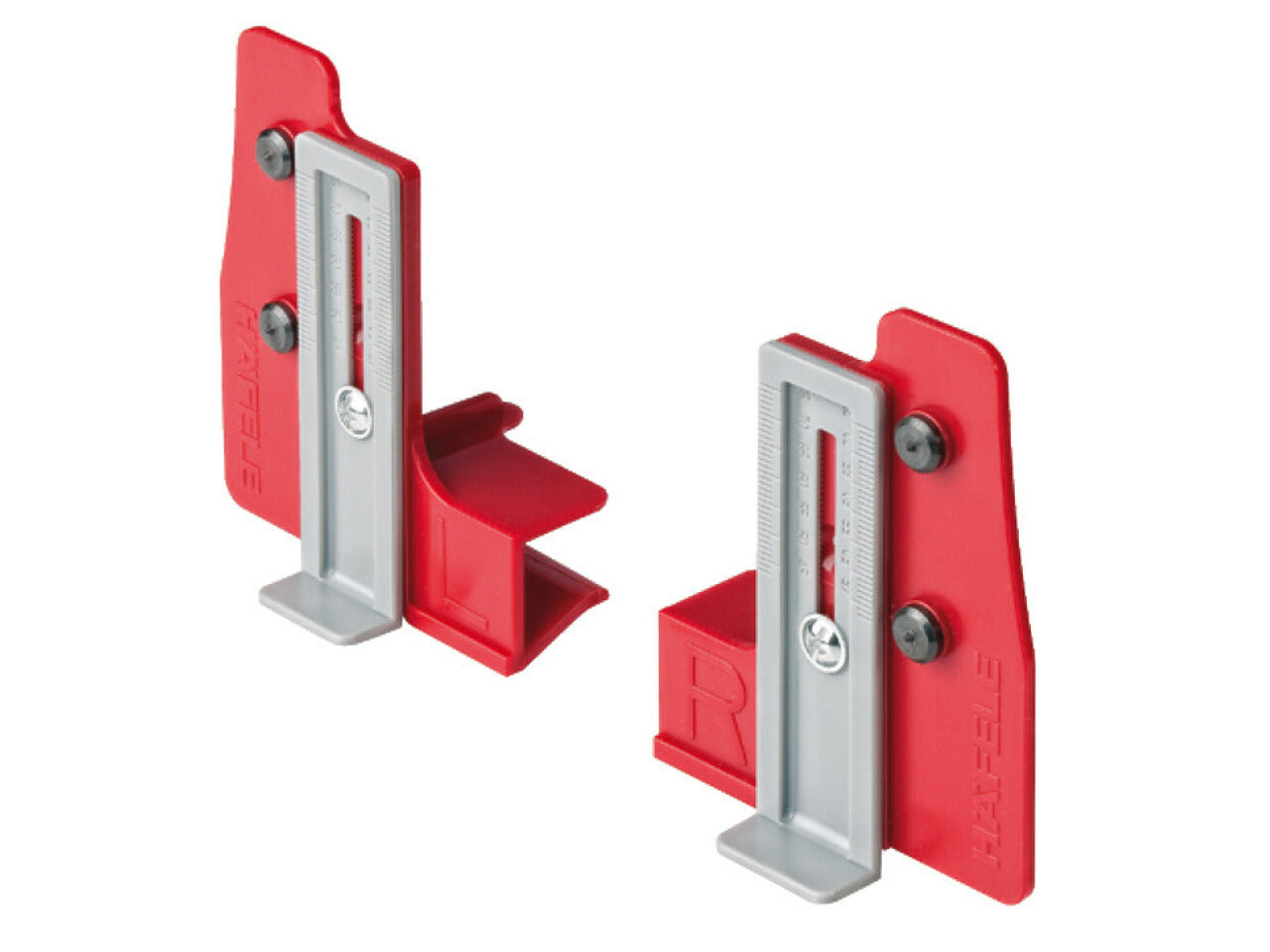

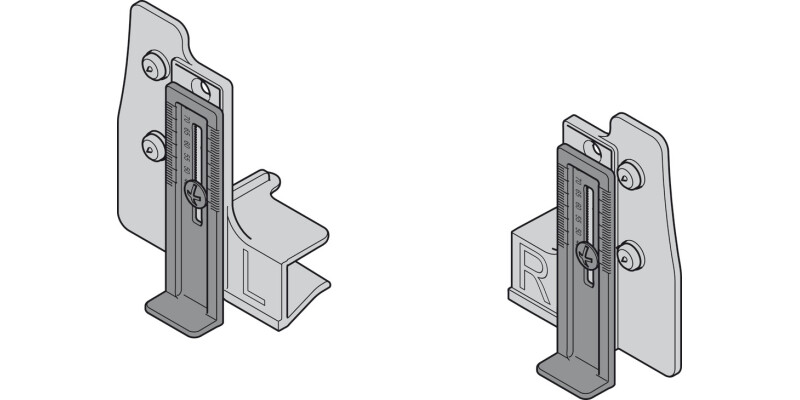

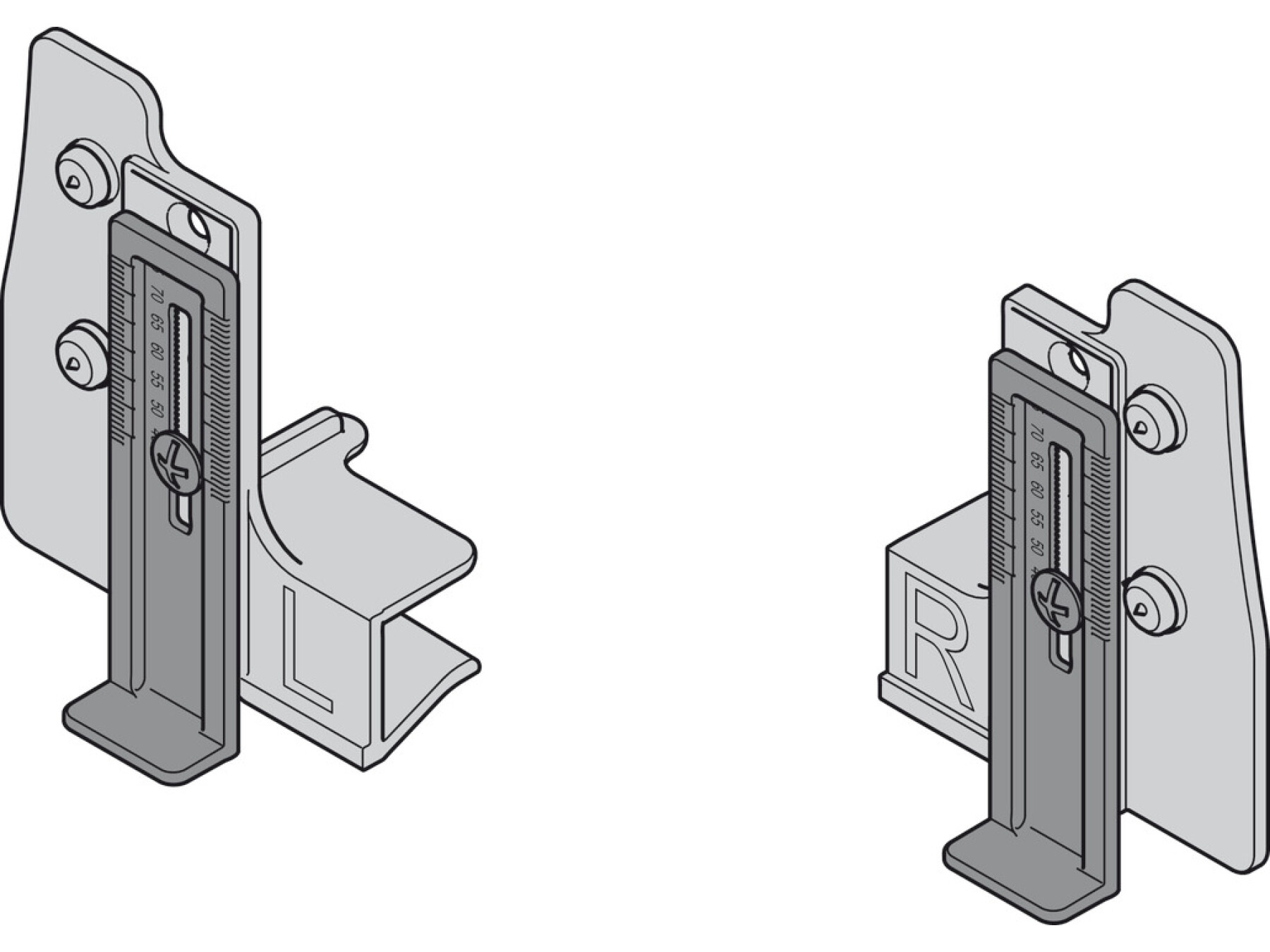

Built for reliable repeat use, the gauge features a durable plastic body with steel marking pins and secure screws. The grey/red design is complemented by zinc-plated pins and screws, providing a professional look and long-lasting performance.
You’ll also benefit from the Hafele Lifetime Guarantee of 25 years, giving you peace of mind for the long term. The MX Marking Gauge is supplied with installation instructions to help you get set up efficiently.
If you want accurate alignment, dependable materials, and a faster workflow when fitting Matrix Box P front fixing brackets, add the Matrix Box P Marking Gauge, for Drawer Fronts to your toolkit today.
Specifications
Product category
Area of application
For marking fixing points of Matrix Box P front fixing brackets
Material
Plastic with steel marking pins and screws
Colour/finish
Grey/red, Pins and screws: Zinc plated
Hafele Lifetime Guarantee
Supplied with
Installation instructions
Product Details
Which drawer base thickness is this marking gauge suitable for?
MX Marking Gauge for 16mm Drawer Bases is designed for 16 and 18 mm drawer bases where you need to mark the fixing point locations for Matrix Box P front fixing brackets. Using the correct gauge helps ensure bracket positions are accurate before you drill.
How does the gauge help when fitting Matrix Box P front fixing brackets?

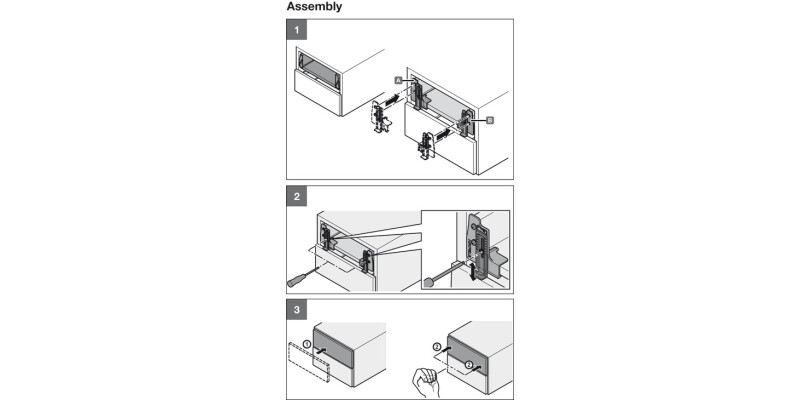

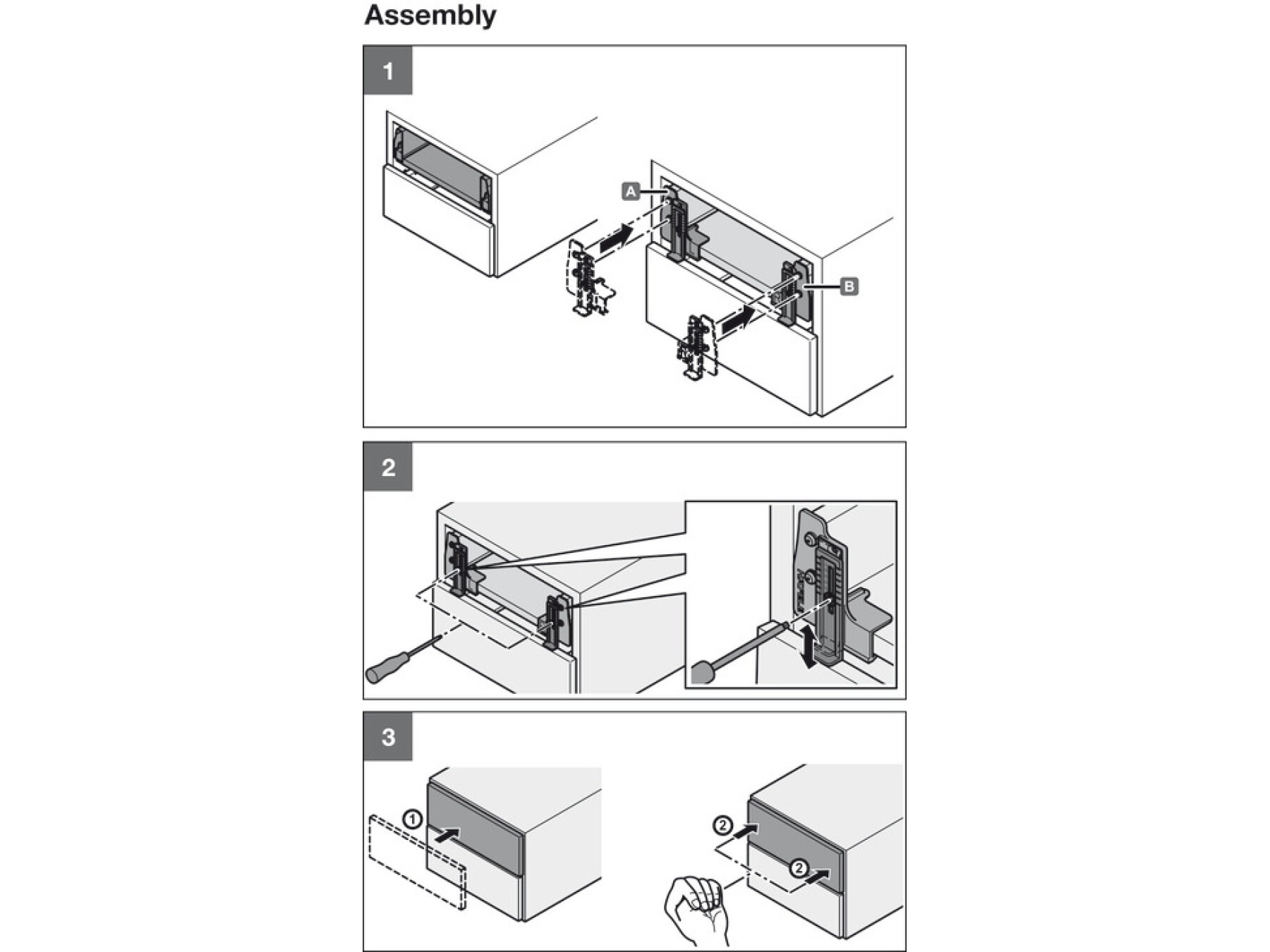

This gauge is intended to mark the fixing points for Matrix Box P front fixing brackets. By using the guide pins and screws to set your positions, you reduce the chance of misalignment and help make installation more consistent across drawers.
What is included with the MX Marking Gauge?
The gauge is supplied with installation instructions. The product itself includes a set of steel marking pins and the necessary screws to carry out the marking process.
Is it suitable for repeated use during workshop or commercial fitting?
Yes. The MX Marking Gauge is made with plastic components and steel marking pins intended for practical use when marking multiple drawer fronts and bases. It is a simple tool for repeatable layout work in both living and commercial settings.
What can I expect for the pin and screw finish?
The gauge is provided in a grey and red finish, with zinc plated pins and screws. This finish helps the hardware resist surface corrosion in normal workshop use.
Does this product come with a guarantee?
Yes. It is covered by the Hafele Lifetime Guarantee of 25 years. If you are fitting drawers regularly and want a marking tool that is built for long term use, this is a dependable choice.
Do I need any special tools or experience to use it?
No specialist experience is required. You follow the included installation instructions to position the gauge, then mark the fixing points using the pins. This approach is designed to be straightforward for accurate drilling and bracket fitting.
