NovaPro Scala Cry+ IntSet 186/800mm Stn
Part Number: 551.91.567
To create Nova Pro Scala and Crystal Plus internal drawers, For cabinet width 800 mm, panel width 754 mm, stone
Price:
£56.57
Per Item
Front panel profile for Nova Pro Scala 186 mm high drawer sides and Nova Pro Scala Crystal Plus Order reference... Read More
Product Information
Product Details
Front panel profile for Nova Pro Scala 186 mm high drawer sides and Nova Pro Scala Crystal Plus
Order reference
Front base connector H to be ordered separately for internal drawers and pull outs with width 600 mm and above
Drawer set to be ordered separately
Supplied with

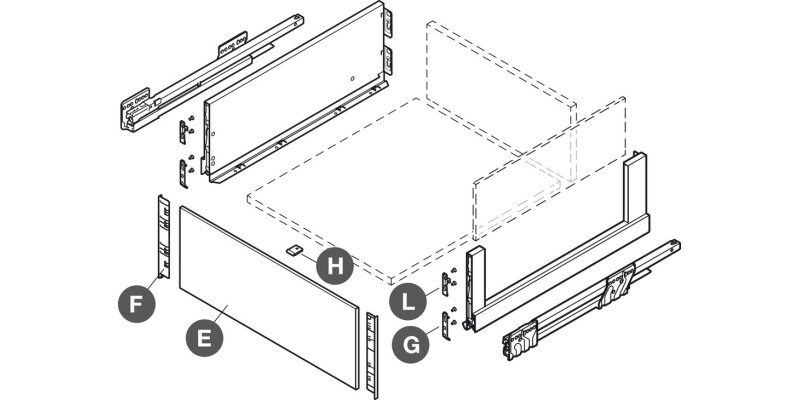

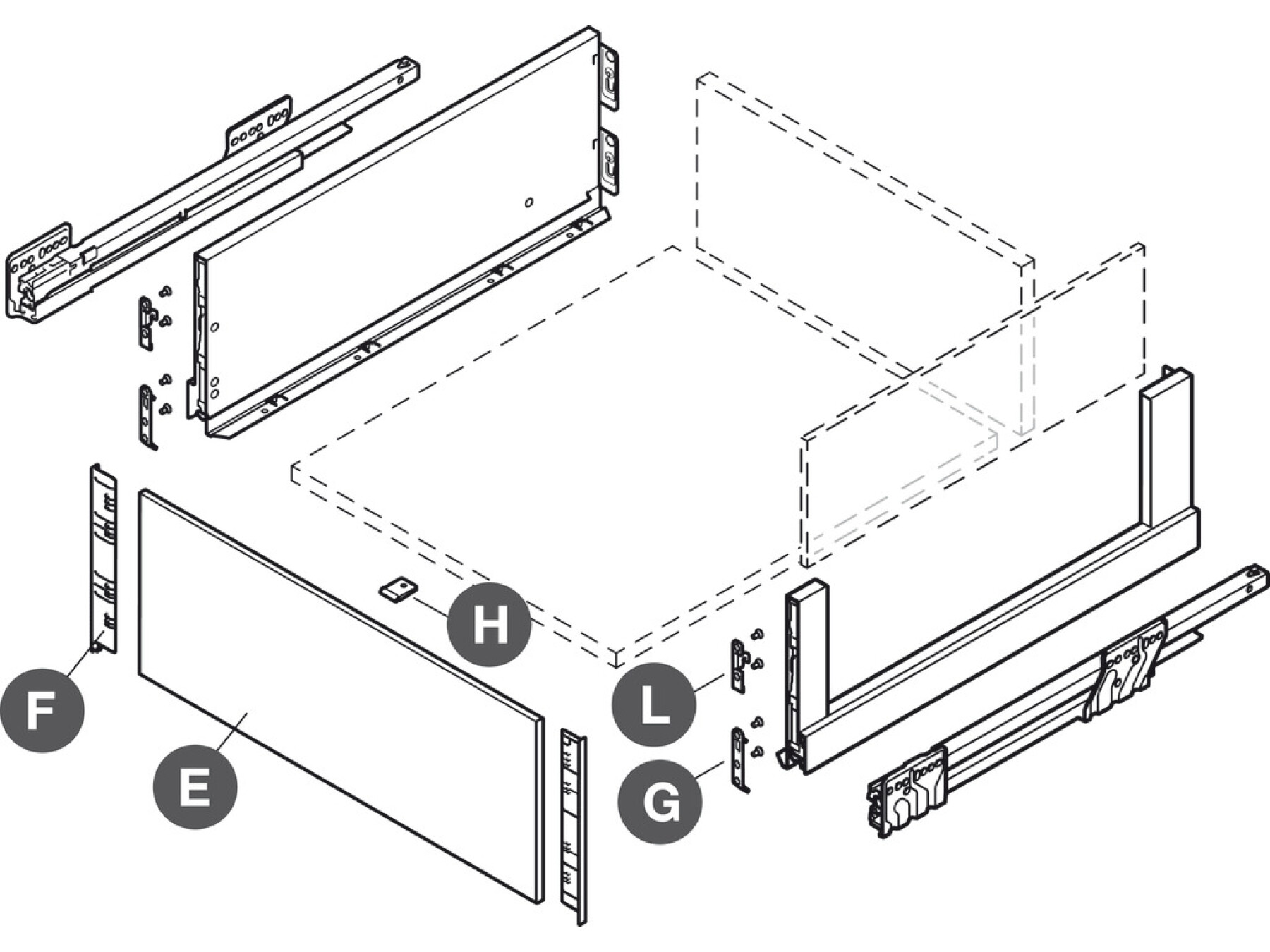

Set includes:
E 1 pc internal panel, 197 mm high x 8 mm thick
F 1 pair cover caps
G 2 pcs hook for screw fixing
L 2 pcs front bracket for screw fixing
Specifications
Area of application
Nova Pro Scala internal drawers
Installation
Front fixing brackets - Screw fixing
