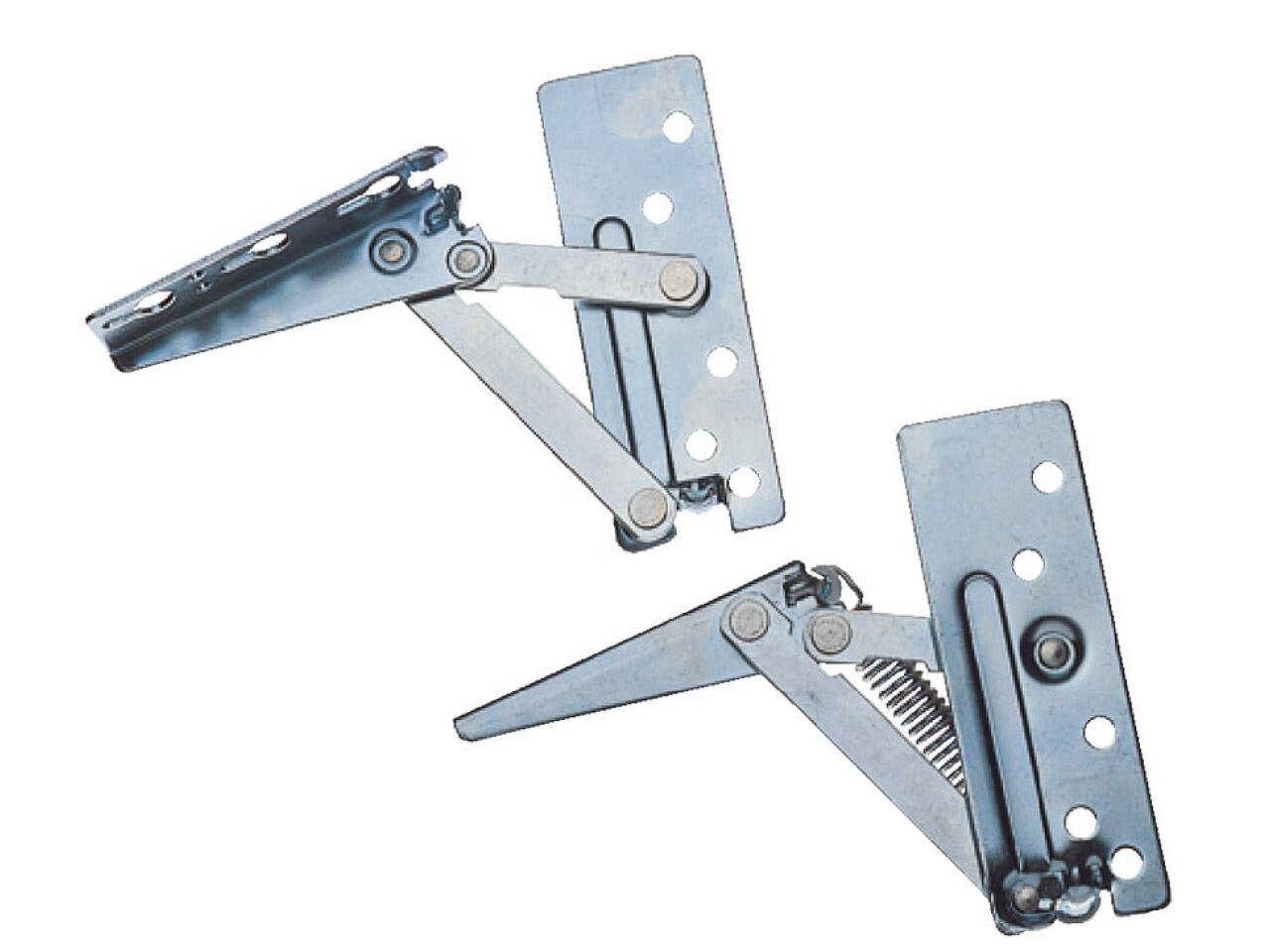

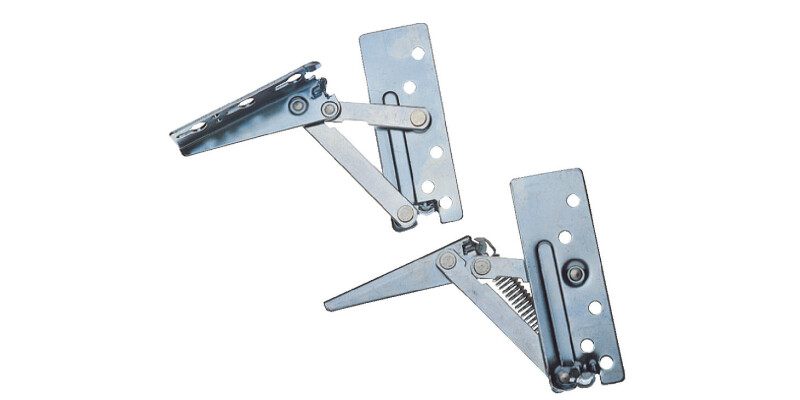

Flap Hinge, Swing Up, Sprung Right Hand or Both Sides, Steel

Product Details

Flap Hinge, Swing Up, Sprung Right Hand or Both Sides, Steel (Part No: 504.43.993) are the ideal flap fittings for anyone upgrading tall cabinet top boxes with smooth, controlled movement. Designed as a sprung right-hand solution, this hinge system helps your flap open with confidence and stay in a reliable position for everyday use—perfect for both living spaces and commercial furniture applications.

Product subtitle: Sprung right hand side only, max. weight 11.9 kg, force 180 N. This means you get dependable support for heavier top-flap loads, with a spring force of up to 180 N to deliver consistent performance over time. If you’re building or replacing flap hinges for a right-hand configuration, these 85D hinges provide a smart, practical fit.

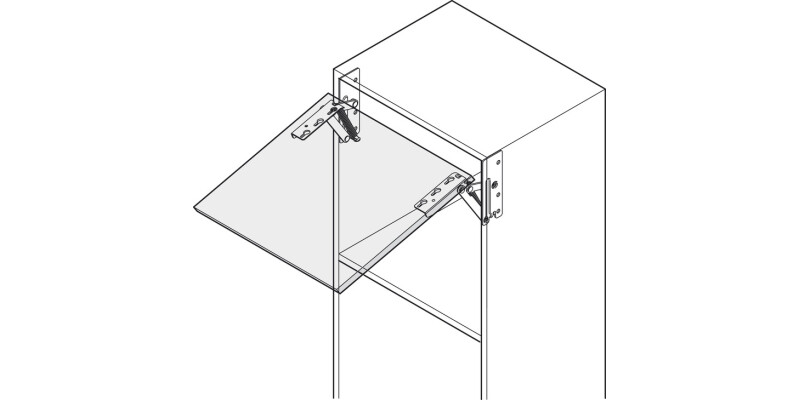

Area of application: For top boxes in tall cabinets. The hinge is made from steel, offering strength and stability for frequent opening and closing. The opening angle of 75° provides comfortable access while helping maintain a neat, space-efficient cabinet profile.

With spring force ≤180 N, the flap movement feels balanced and effortless—reducing strain during use. For installation, please note that the order reference specifies that you should order Hospa Ø 4.0 pan head screws separately. This keeps your project straightforward and ensures you have the correct fixing hardware on hand.

Choose the Flap Hinge, Swing Up, Sprung Right Hand or Both Sides, Steel to upgrade your cabinet hardware with a durable, sprung hinge mechanism built for smooth operation. Order 504.43.993 today and give your top boxes the performance they deserve.

Order Hospa Ø 4.0 pan head screws separately
