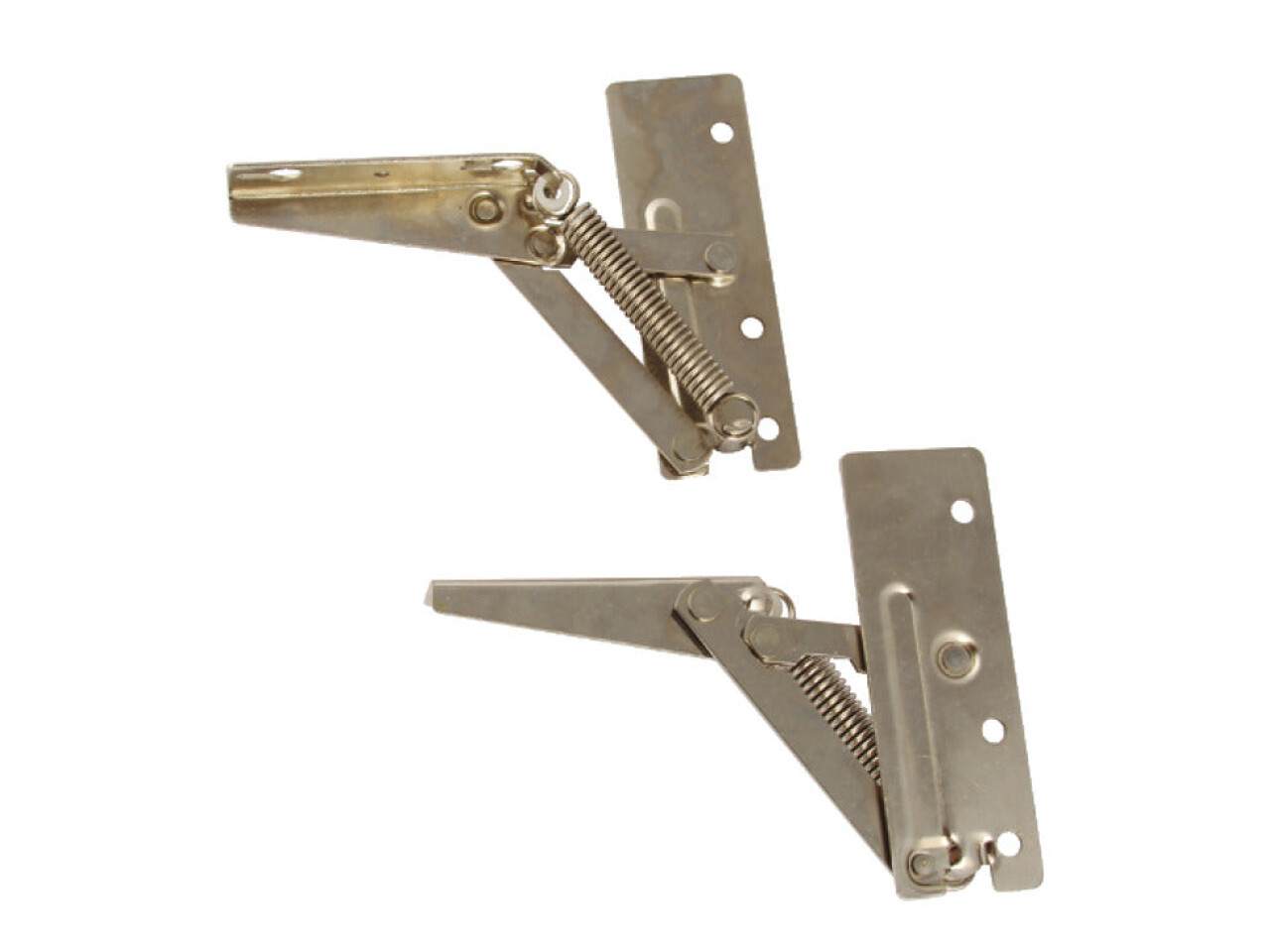

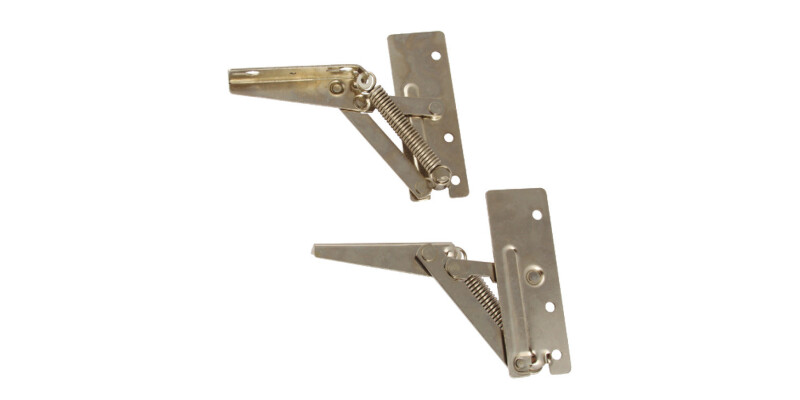

Flap Hinge, Swing Up, Sprung Both Sides, Steel

Product Details

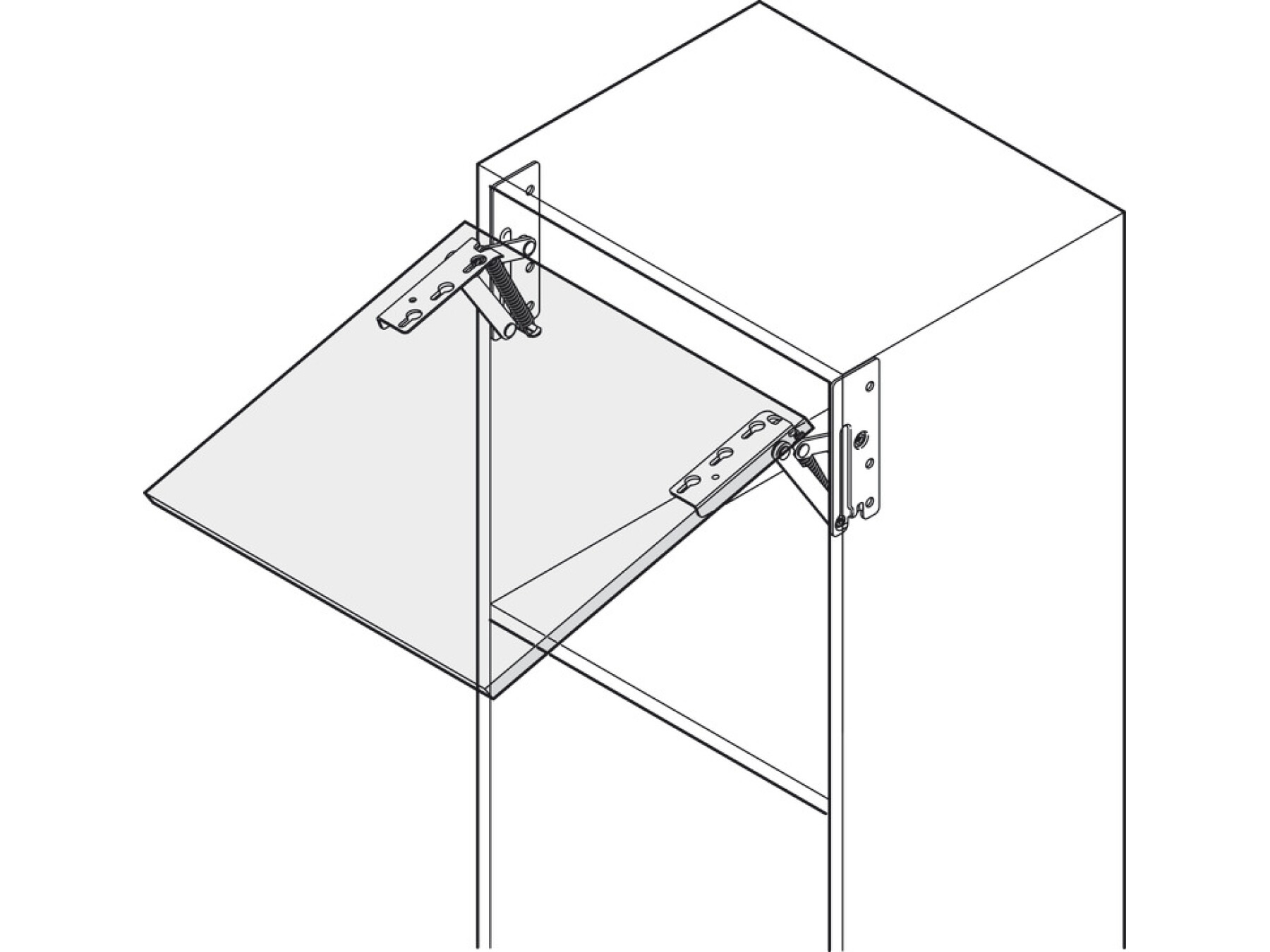

Which cabinets is the Swing Up Flap 90D suitable for?

It is designed for top boxes in tall cabinets, making it a good choice when you want a controlled, reliable lift for flap style storage. The 90 degree opening angle helps achieve practical access while keeping the flap aligned in normal use.

How strong is the spring force, and does it suit heavier flaps?

The spring force is 2 x 180 N, providing a balanced assist for flap movement. This level of support is typically used where the flap needs consistent lifting without feeling either too heavy to raise or too light to control during closing.

What opening angle should I expect from this hinge?

The opening angle is 90 degrees, which is ideal for many tall cabinet top box layouts where you need clear access. If your cabinet design requires a different range, you may need a different hinge model.

What material is the hinge body made from?

The hinge is made from steel, offering strength for long term flap fitting in both living and commercial furniture applications. Steel construction is commonly used in fittings where you want stability and durability.

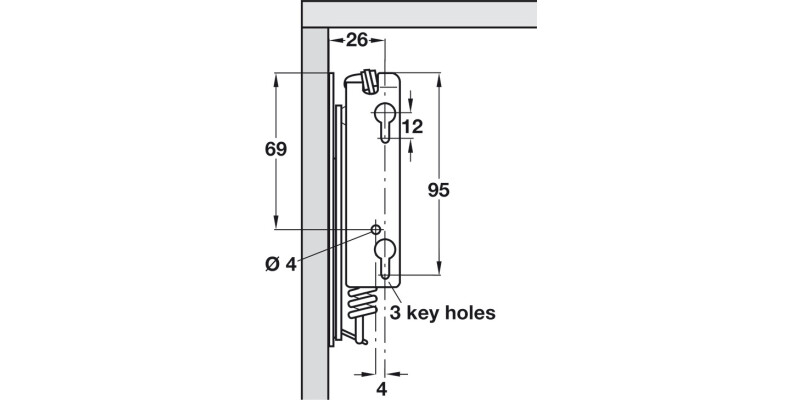

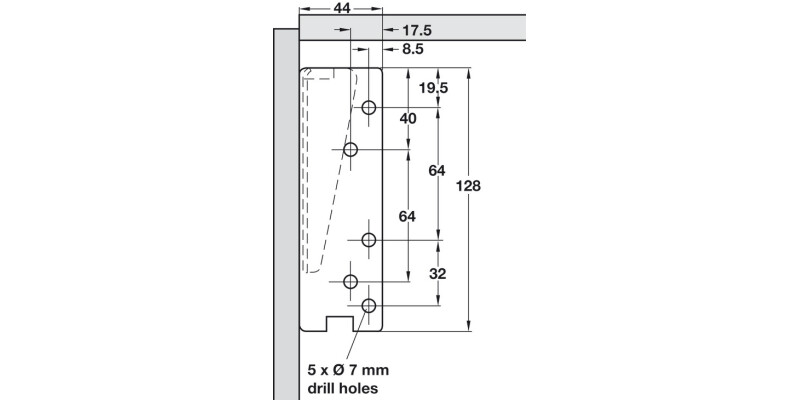

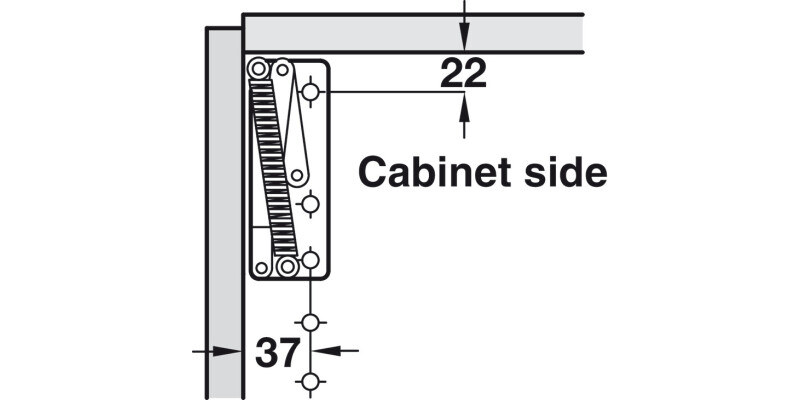

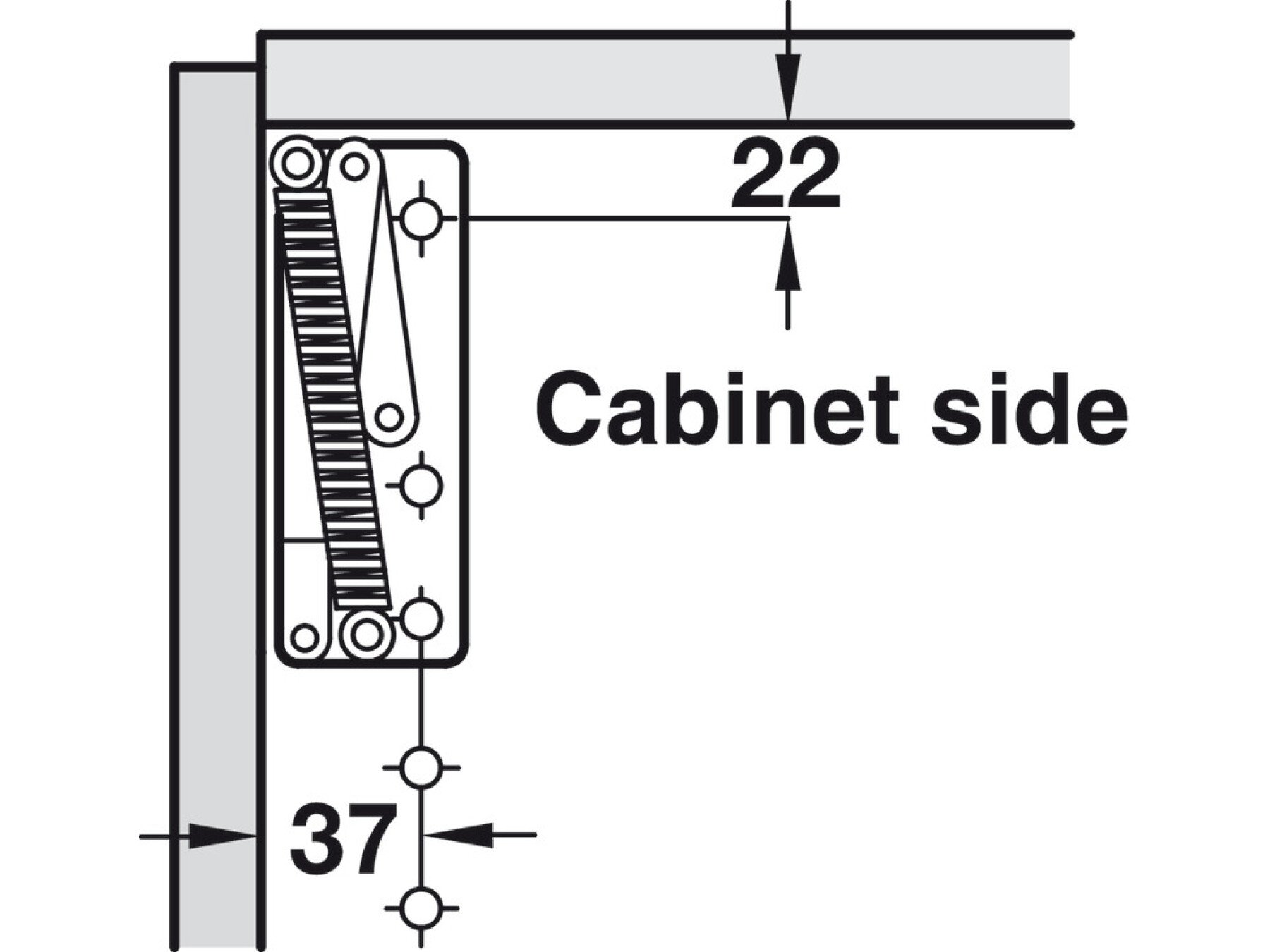

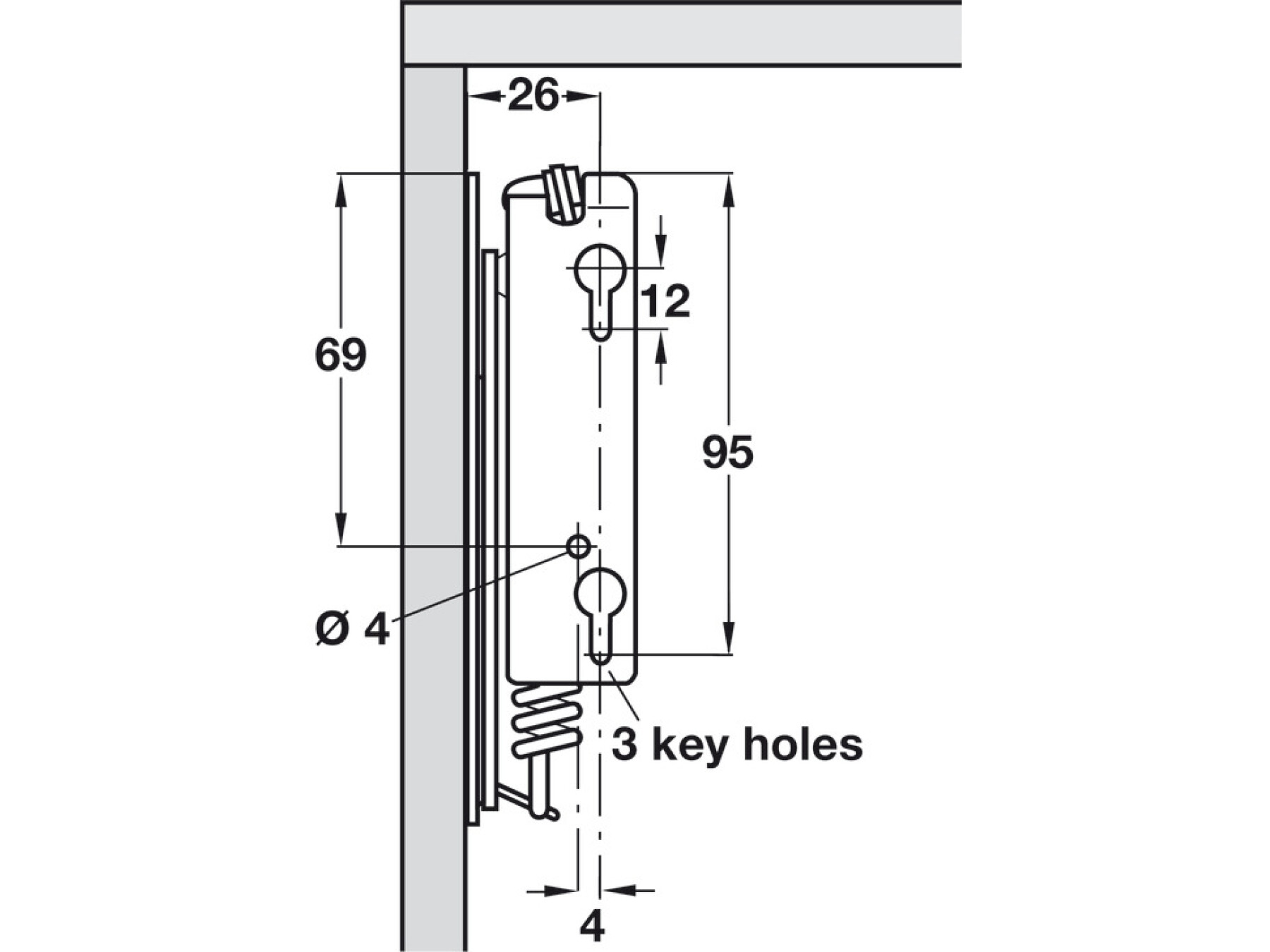

What screws do I need to fit the Swing Up Flap 90D hinges?

You should order Hospa Ø 4.0 mm pan head screws separately. Using the correct screw type and size helps ensure the hinge mounts securely and that the spring action performs as intended.

Will this hinge work if I am replacing an existing flap fitting?

It can be suitable when the original hinge matches the required function and opening behaviour, particularly the 90 degree swing and the support strength. For the best results, confirm the mounting position and screw fixing requirements before purchase.

Why choose Swing Up Flap stays for tall cabinet top boxes?

These flap hinges and stays provide controlled movement for flap access, helping the flap lift smoothly and stay where it should during opening. For customers fitting new furniture or upgrading existing cabinets, this can make everyday use more convenient and consistent.
