Ball Bearing Drawer Runners, Full Extension, Grade 304 Stainless Steel, Accuride (Part No: 432.44.917) is a... Read More

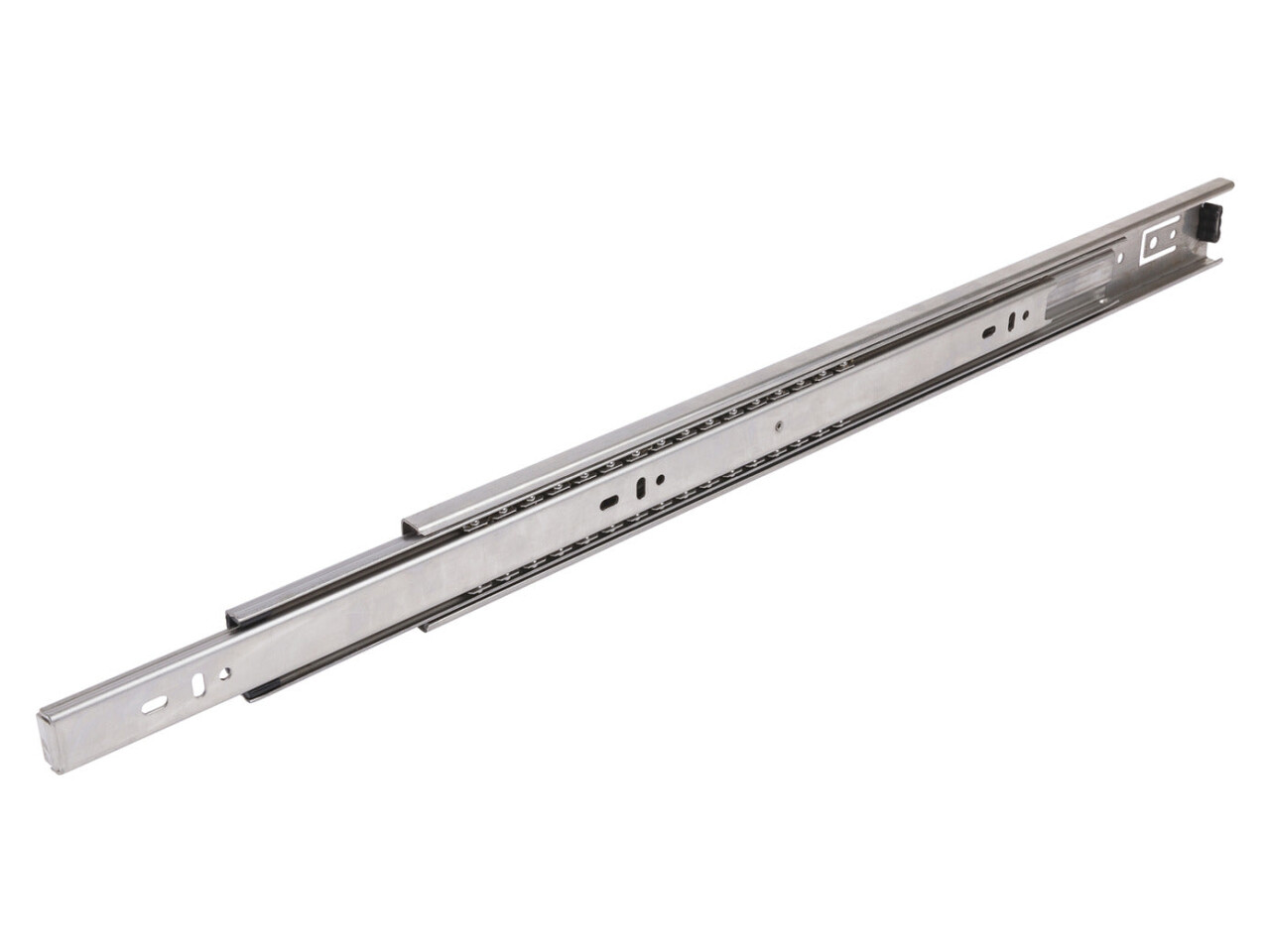

Ball Bearing Drawer Runners, Full Extension, Grade 304 Stainless Steel, Accuride (Part No: 432.44.917) is a premium ball bearing drawer runner designed for smooth, reliable full extension in both living and commercial furniture applications. If you want drawers that glide effortlessly while maintaining strong support, this full-extension runner is built to deliver.
With an installation length of 150 mm and an extension length of 134 mm (±3 mm), these runners provide the reach you need for easy access to the full drawer contents. The 34 kg load capacity makes them ideal for everyday use, helping you create sturdy storage solutions that feel effortless to open and close.
Crafted from Grade 304 stainless steel, the runners offer excellent durability and a clean, professional finish—well-suited to environments where quality and longevity matter. Their ball bearing system ensures a smooth movement that improves usability and reduces wear over time.
This runner features a secure hold-in function and includes drawer removal with release lever, making maintenance and removal quick and convenient. For order planning, please note: Order M4 handle screws and Hospa pan head Ø 4 mm pan head screws separately.
Choose the Ball Bearing Drawer Runners, Full Extension, Grade 304 Stainless Steel, Accuride for a high-performance drawer build—engineered for full extension, strong support, and dependable operation.
Grade 304 stainless steel
Order M4 handle screws and Hospa pan head Ø 4 mm pan head screws separately
Yes. The 4501 BB Drawer Runner Full is rated for a 34 kg load capacity, making it suitable for heavier drawers in both living and commercial furniture where smooth movement and stability are important.

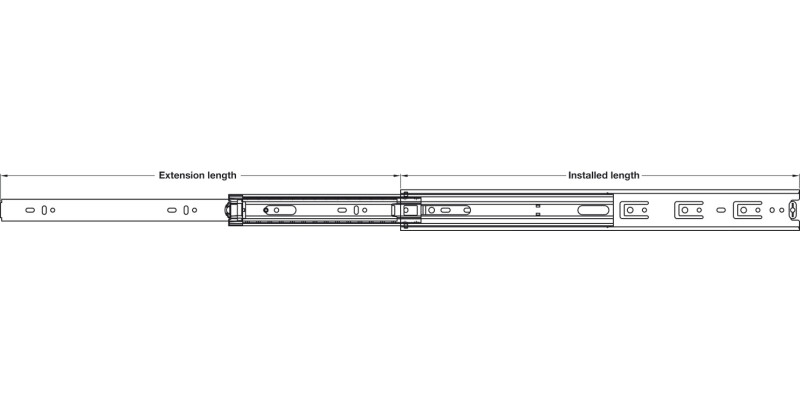

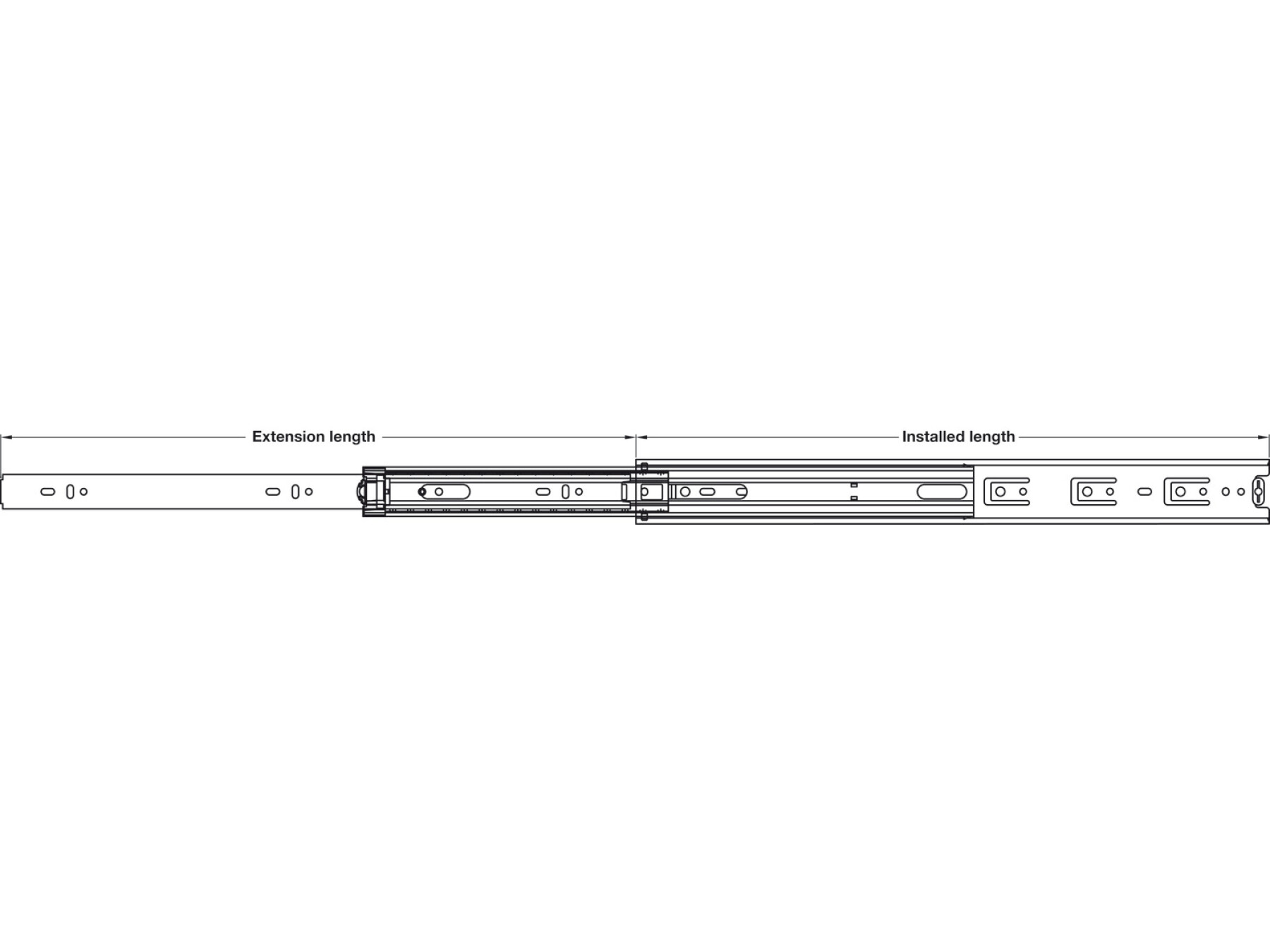

The installation length is 150 mm and the extension length is 134 mm (with an allowance of plus or minus 3 mm), so the drawer will pull out close to the full working travel for easier access.
Yes. This model is a full extension runner, helping you reach items at the back of the drawer more comfortably than partial pull out designs.
Yes. These runners support drawer removal with a release lever, allowing you to lift the drawer away when you need to clean or service the unit.
It includes a holding function. The hold in feature helps keep the drawer properly positioned, reducing unwanted movement during day to day opening and closing.
Yes, some hardware is ordered separately. The product information indicates you should order M4 handle screws and Hospa pan head pan head screws with a diameter of 4 mm separately to complete the installation.
Yes. The runner is made from 304 stainless steel, which is commonly chosen for its corrosion resistance, making it a good fit for kitchens, bathrooms, and other areas where moisture and wear can be an issue.
