Ball Bearing Drawer Runners, Full Extension, Load Capacity 13-20 kg, Accuride 24

Product Details

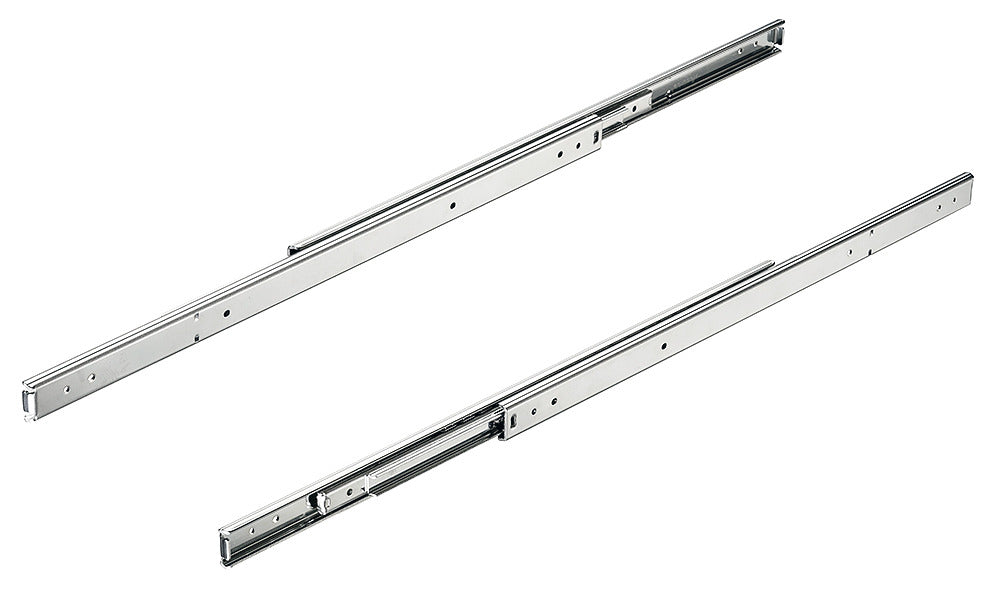

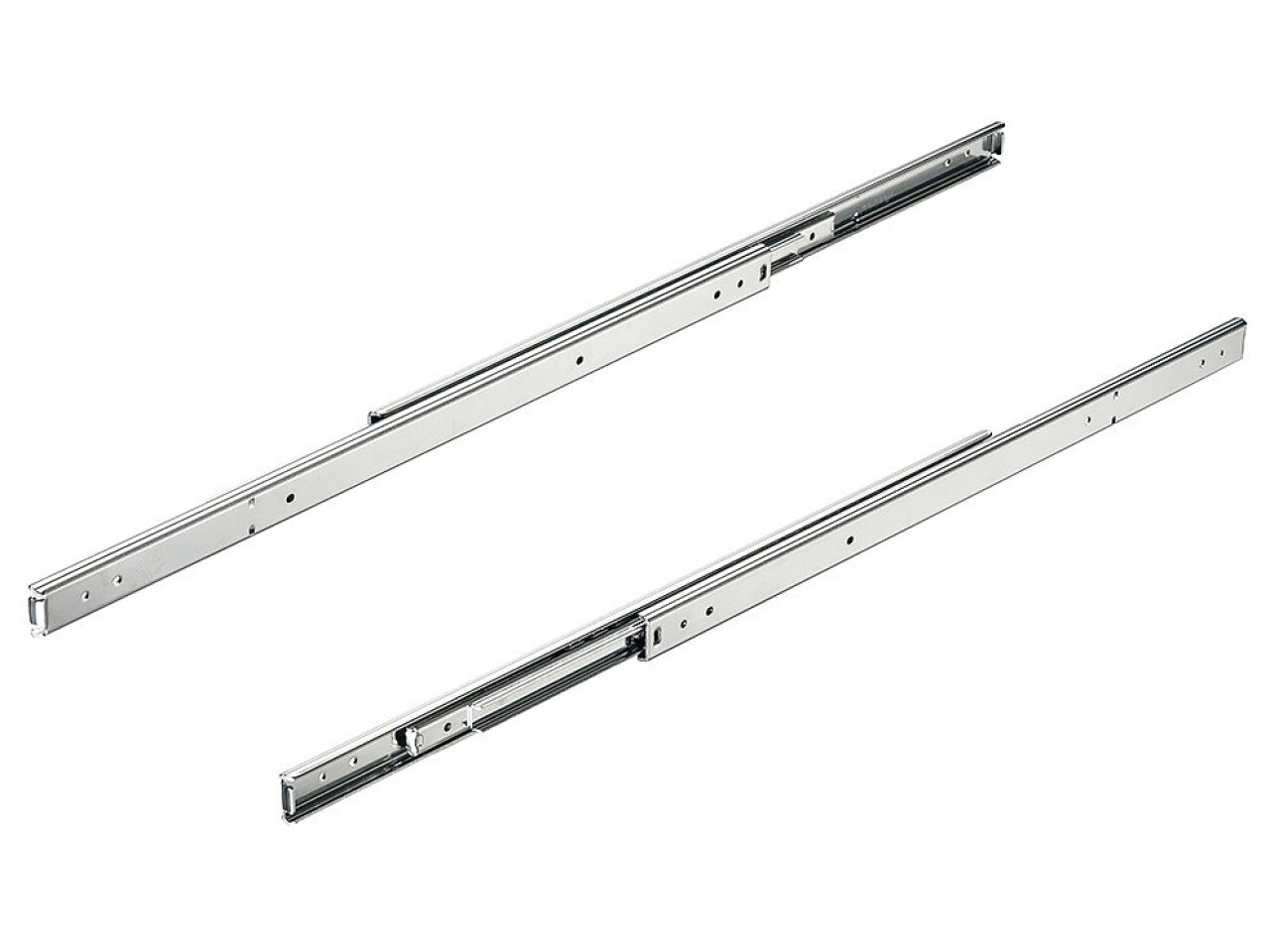

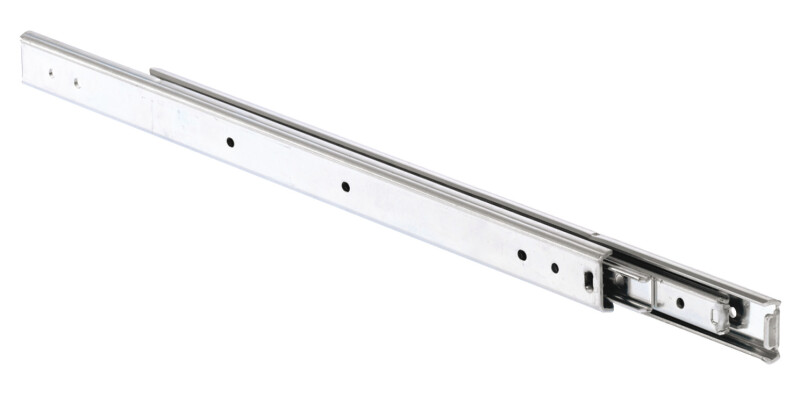

Ball Bearing Drawer Runners, Full Extension, Load Capacity 13-20 kg, Accuride 24 (Part No: 432.30.950) is a high-performance ball bearing drawer runner designed for smooth, reliable everyday use in both living and commercial furniture applications. If you’re building or upgrading cabinetry that needs effortless access and confident load handling, this model delivers.

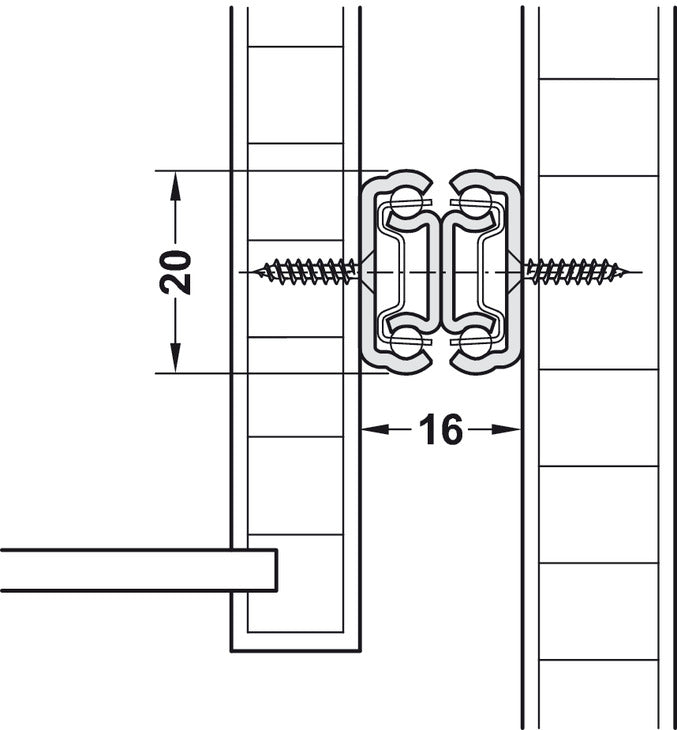

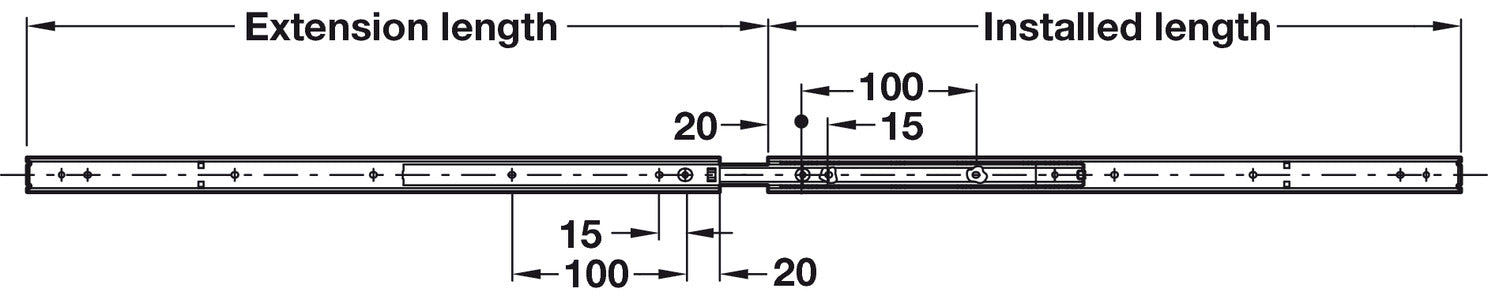

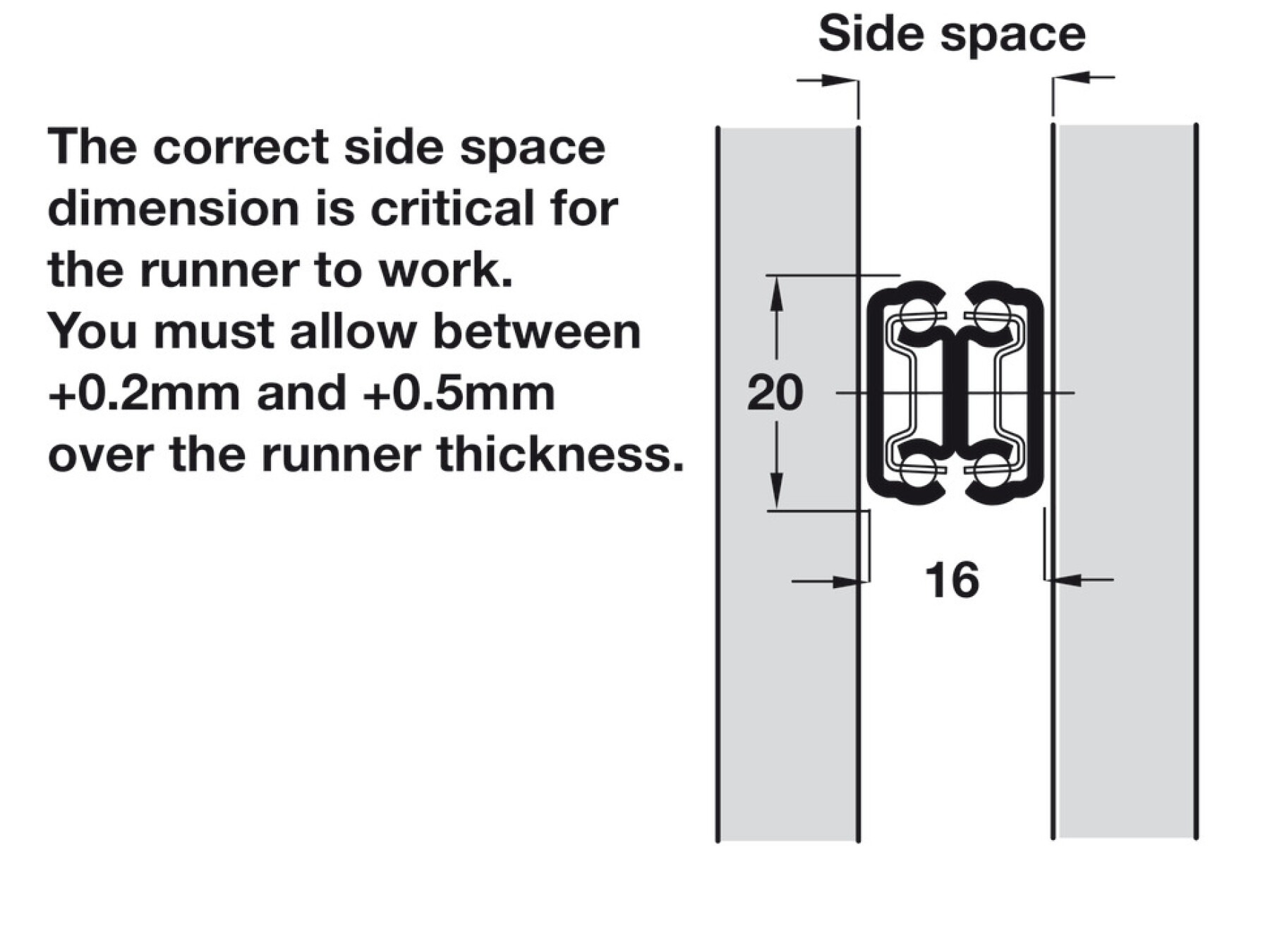

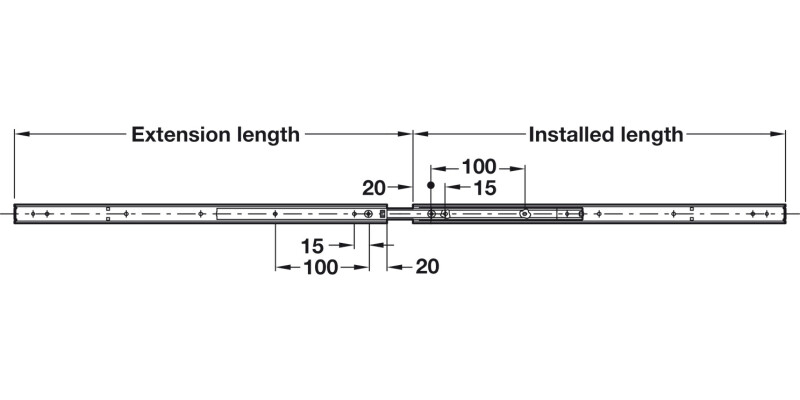

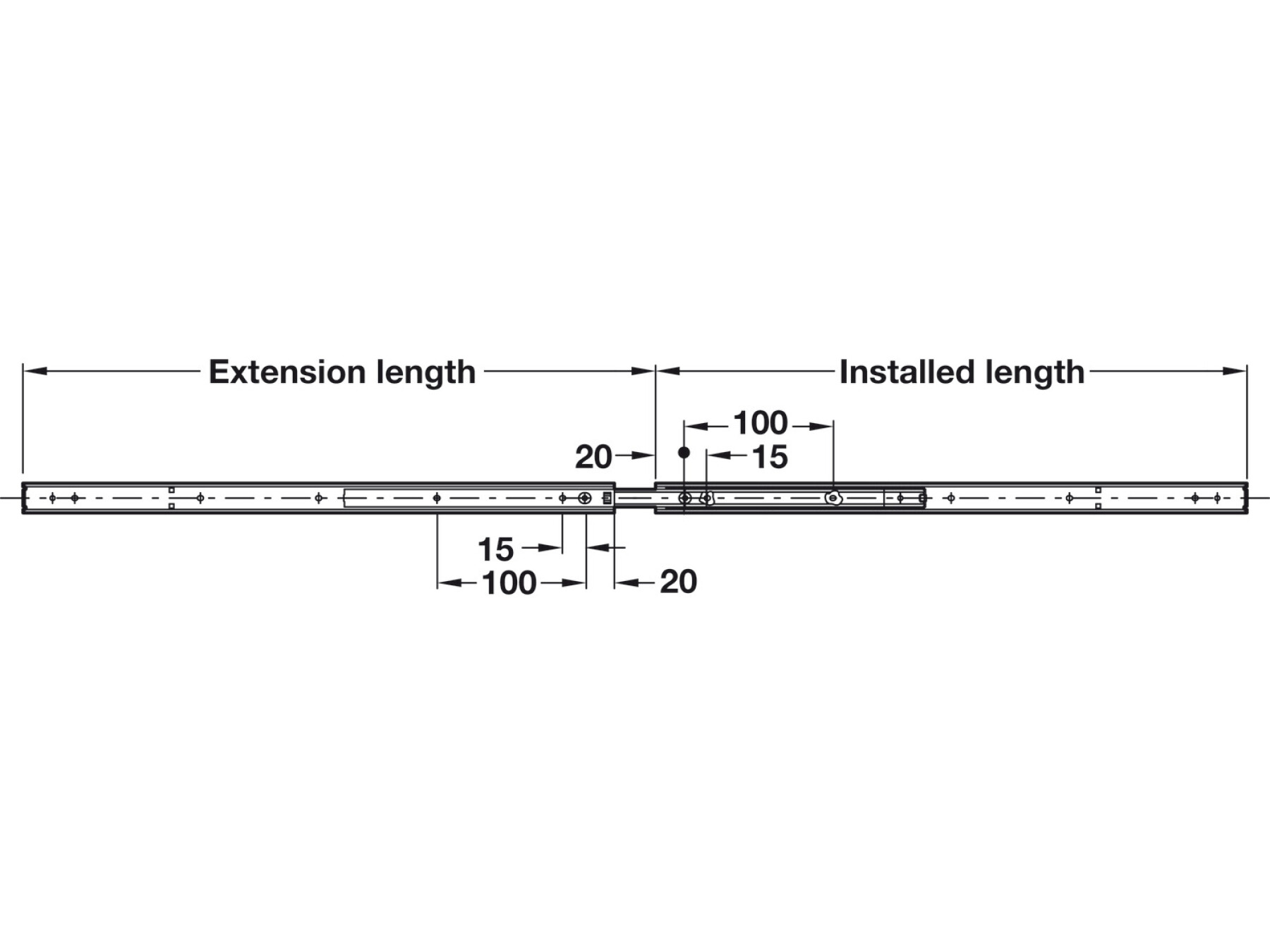

The low profile design of this Ball Bearing Drawer Runners, Full Extension, Load Capacity 13-20 kg, Accuride 24 keeps things sleek while still performing at a serious level. With a runner height of just 20 mm and an installed length of 500 mm, it’s a great choice when you want a tidy fit without sacrificing function. Rated to carry up to 13 kg, it’s ideal for drawers that hold everyday essentials, office storage, or light retail/utility cabinetry.

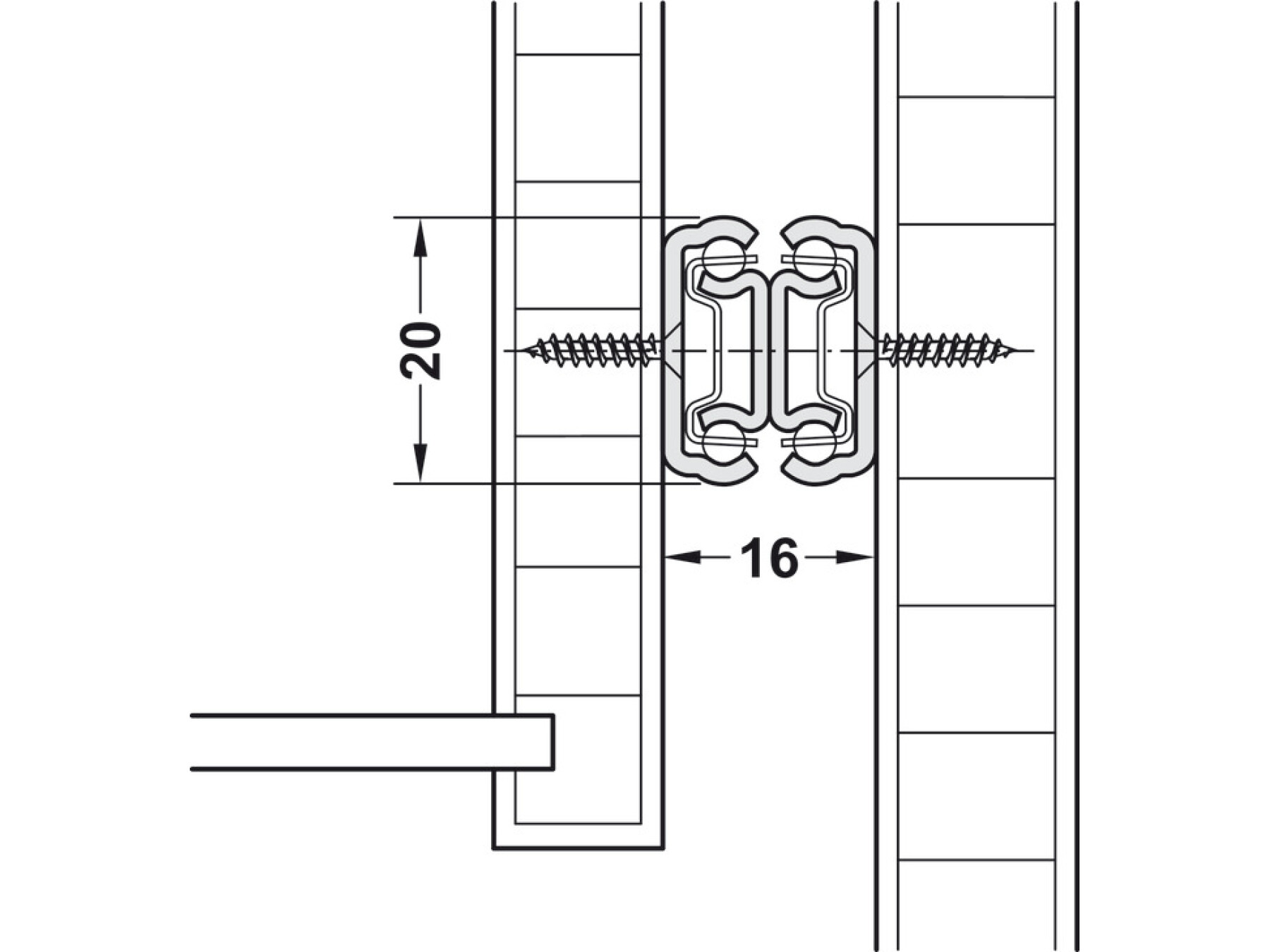

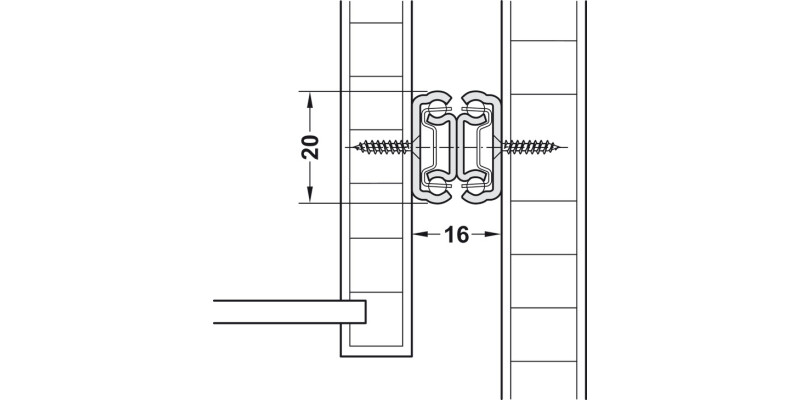

Built for convenience and durability, the runner features full extension so contents are easily reached at the back of the drawer. Drawer removal is available without a release lever, helping simplify maintenance and adjustments. Side mounting installation makes it straightforward for compatible drawer builds.

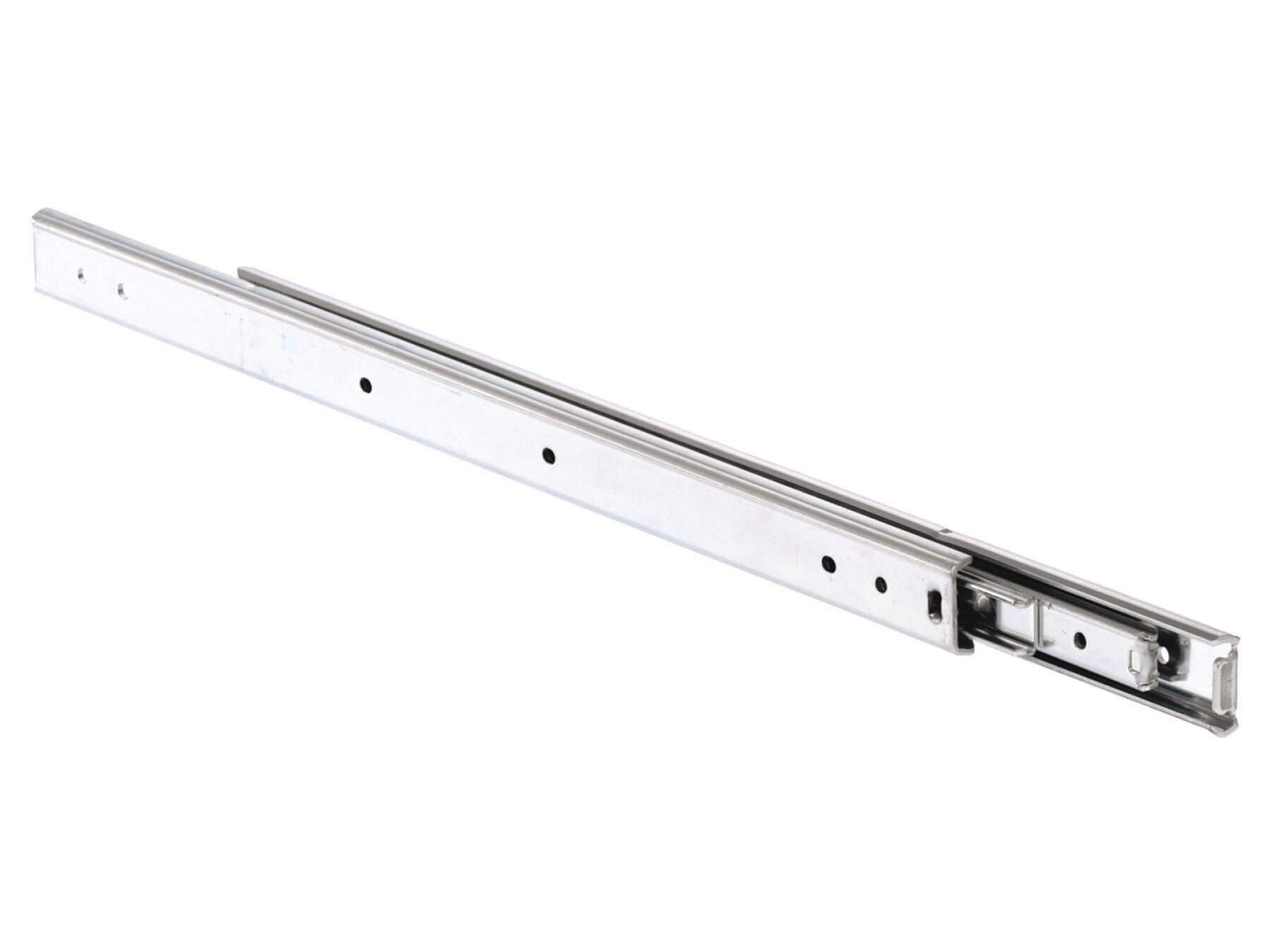

Finished in zinc plated, bright steel, the DZ2431 runner offers excellent corrosion resistance and a clean, professional appearance. As a full extension ball bearing runner, it’s engineered to glide smoothly and stay dependable over time.

Model: DZ2431. Colour/finish: Zinc plated, Bright. Installation: Side mounting. Width: 360.00 mm.

Order note: M3 handle screws are supplied separately. Fixings should match max head height 1.8 mm and Ø 5.6 mm.

Order M3 handle screws separately
Fixings: Max. head height 1.8 mm, Ø 5.6 mm
