Ball Bearing Drawer Runners, Full Extension, Load Capacity 13-20 kg, Accuride 24

Product Details

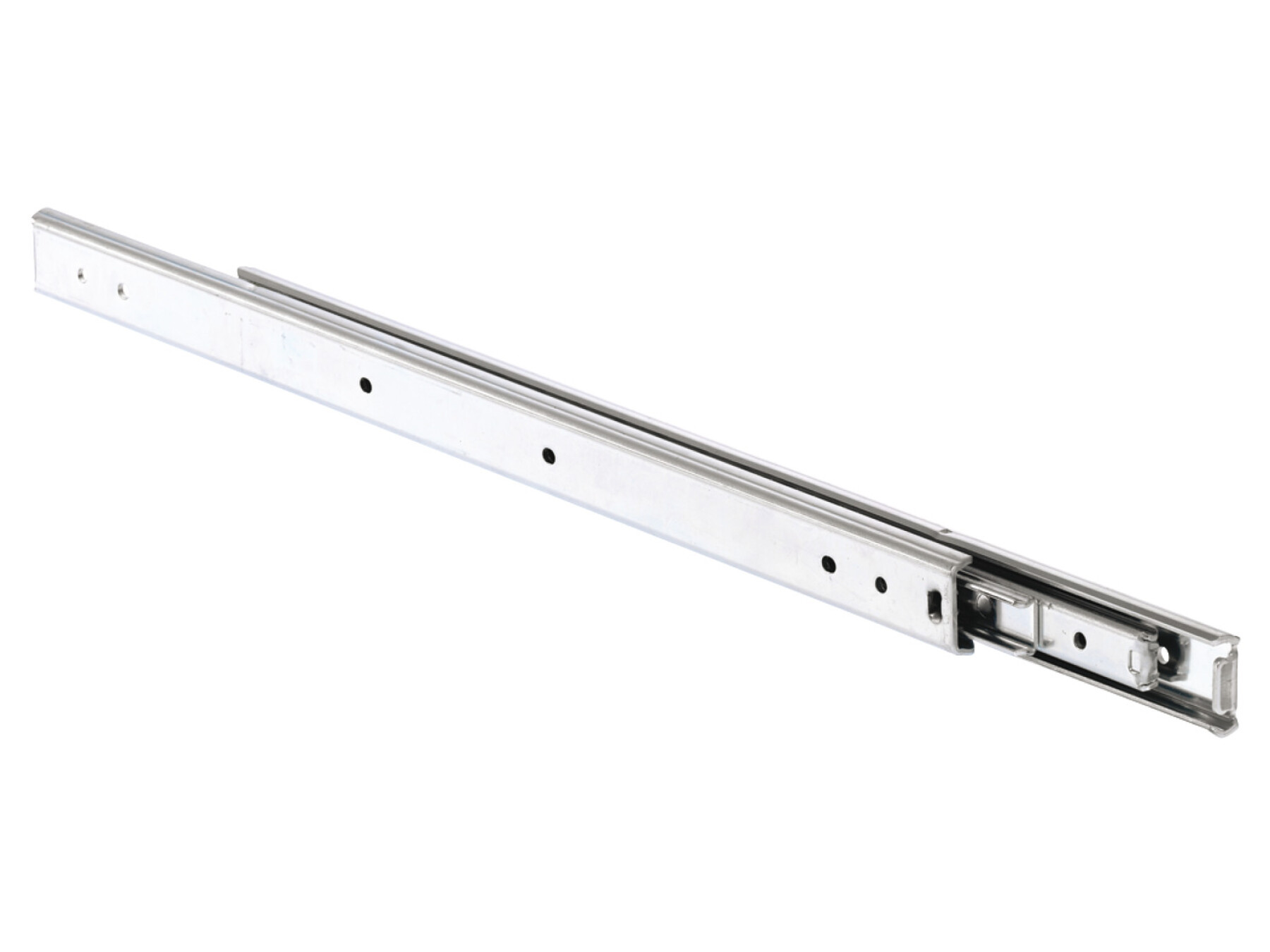

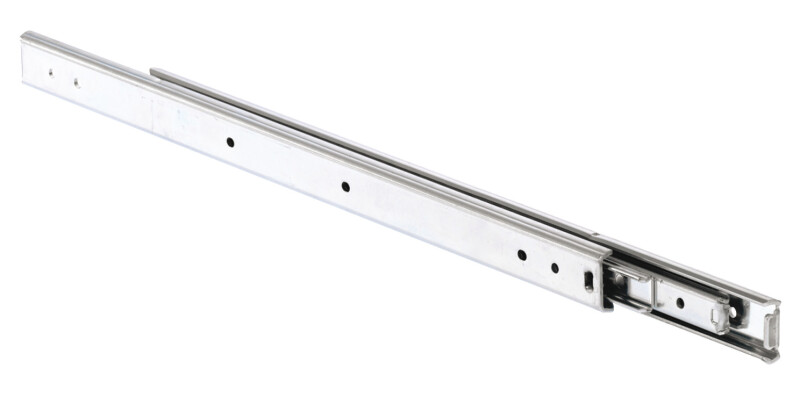

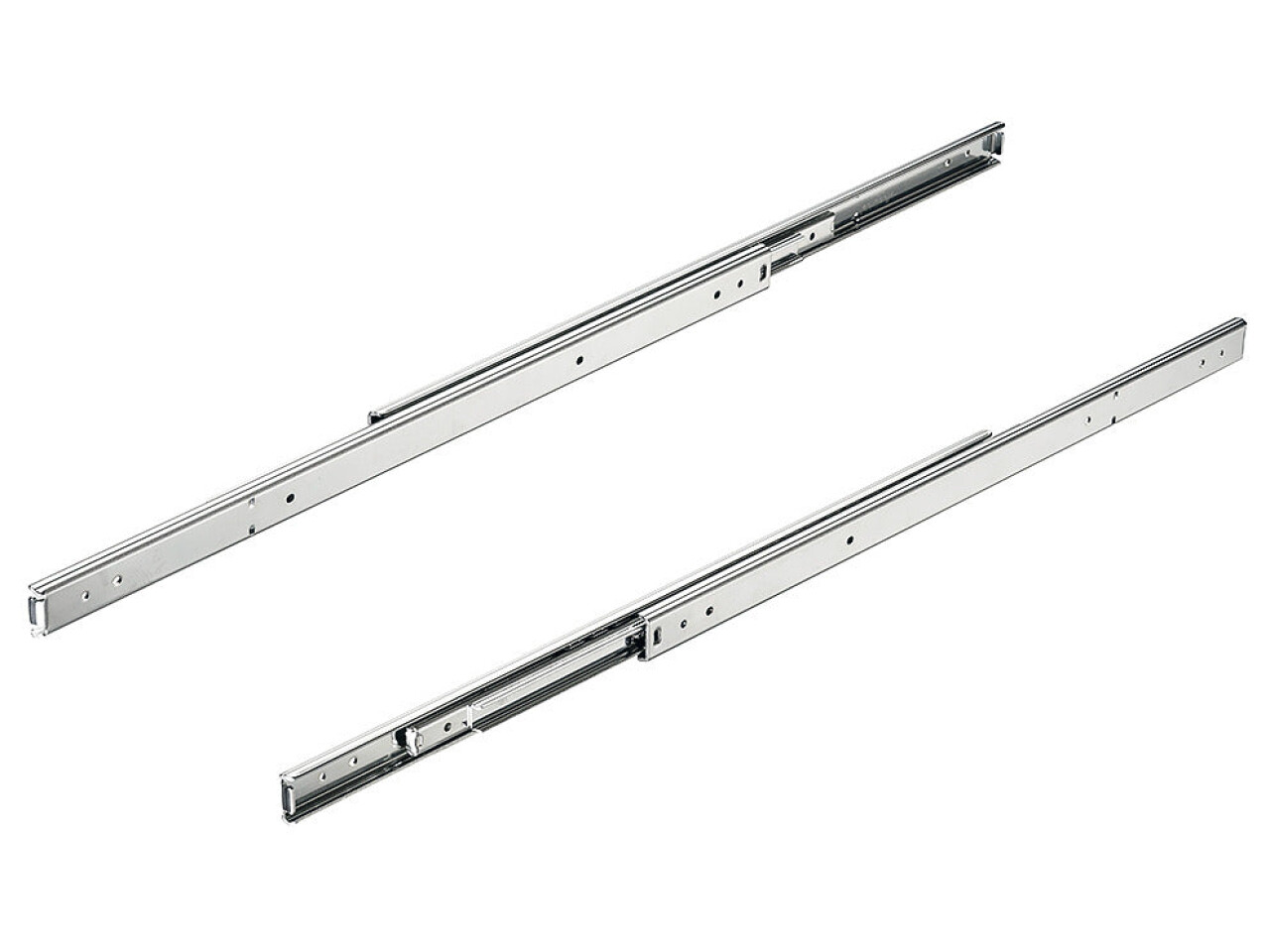

Ball Bearing Drawer Runners, Full Extension, Load Capacity 13-20 kg, Accuride 24 (Product Part No: 432.30.930) is a reliable, smooth-operating solution for furniture makers and installers who want dependable performance from everyday drawers. Designed with a practical low-profile height of just 20 mm, this runner keeps your drawer fronts looking neat while still delivering strong, stable movement.

Built for a full extension pull-out, the drawer roller system provides easy access to the entire drawer space—ideal for kitchens, commercial fit-outs, workshops, and living areas where functionality matters. With a 20 kg load capacity, this runner supports heavy use while maintaining consistent glide over time.

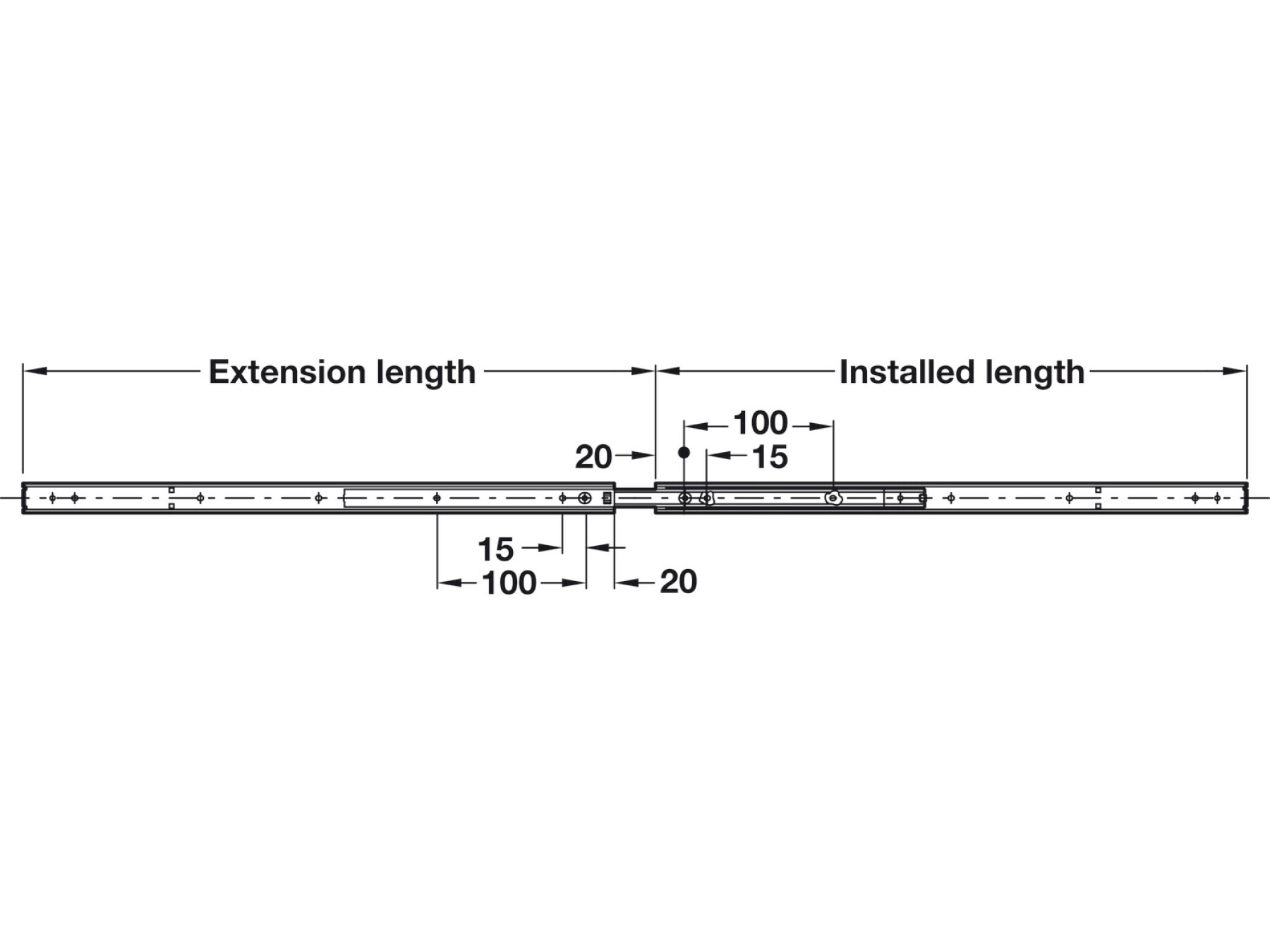

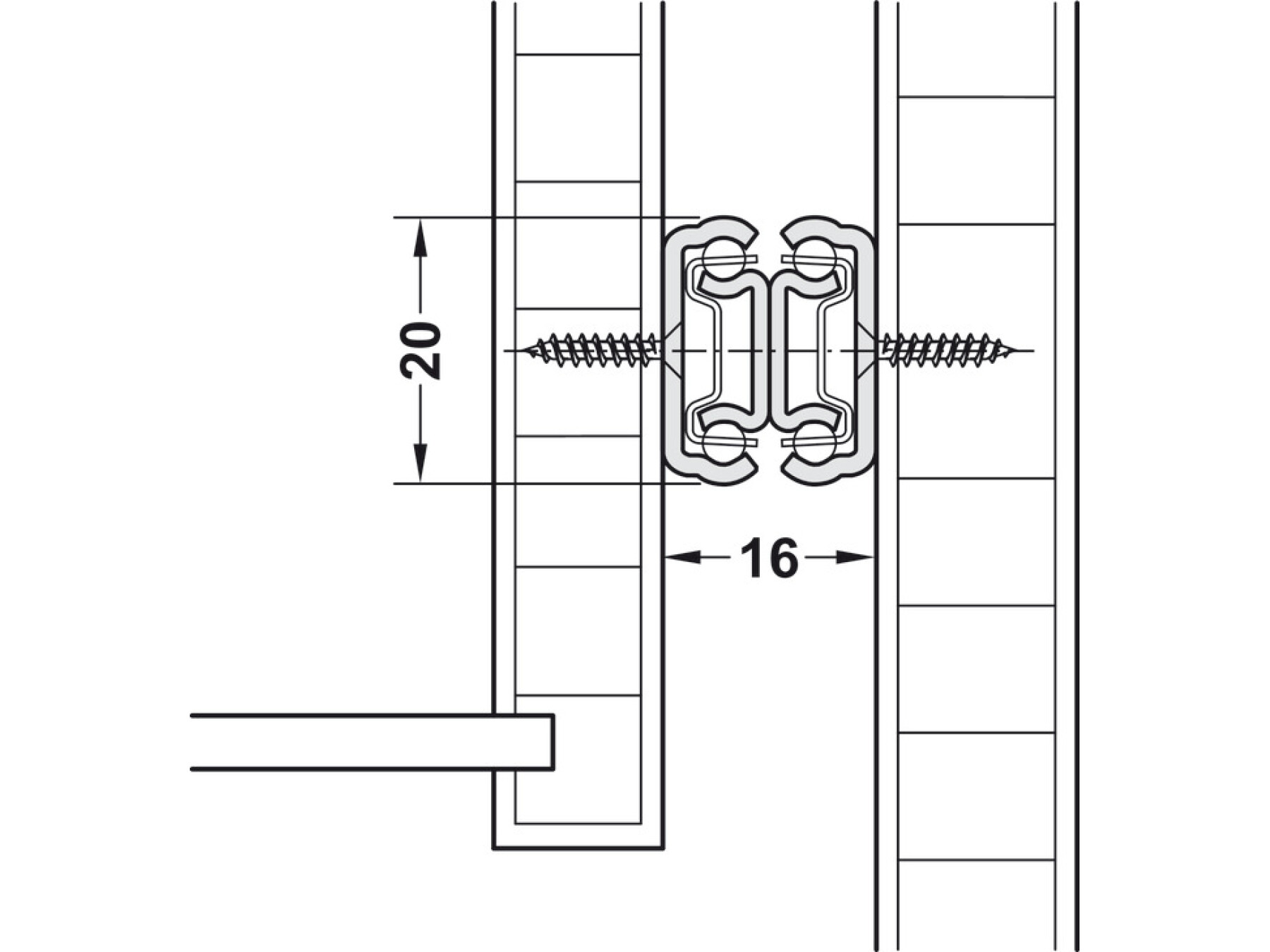

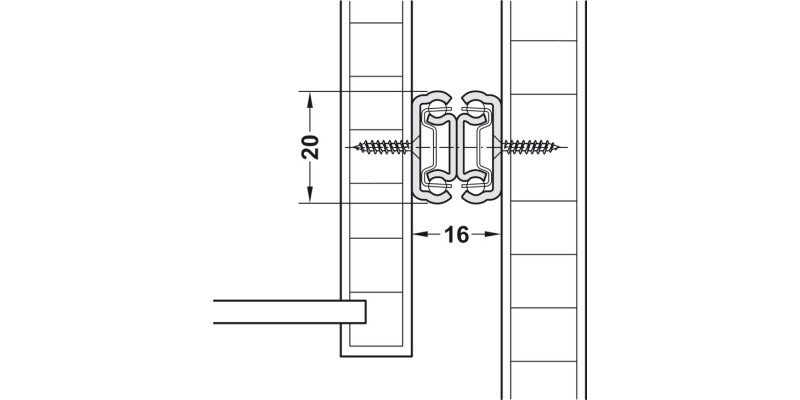

The 2431 BB Drawer Runner is made from steel and finished in zinc plated, bright (BZP) for attractive appearance and enhanced corrosion resistance. It is a DZ2431 model, engineered for side mounting installation and an installed length of 300 mm to suit a wide range of drawer builds.

For maintenance and usability, the system allows drawer removal without a release lever, making it convenient for cleaning, inspection, or adjustments. Please note that handle screws and compatible fixings are ordered separately—recommended parameters include a max head height of 1.8 mm and Ø 5.6 mm fixings.

If you’re upgrading drawer hardware or specifying new runs, choose the Ball Bearing Drawer Runners, Full Extension, Load Capacity 13-20 kg, Accuride 24 for smooth travel, smart low-profile design, and strong everyday load performance.

Order M3 handle screws separately
Fixings: Max. head height 1.8 mm, Ø 5.6 mm
