Ball Bearing Drawer Runners, Full Extension, Load Capacity 42-45 kg, Accuride 38 (Part No: 422.91.941) is a... Read More

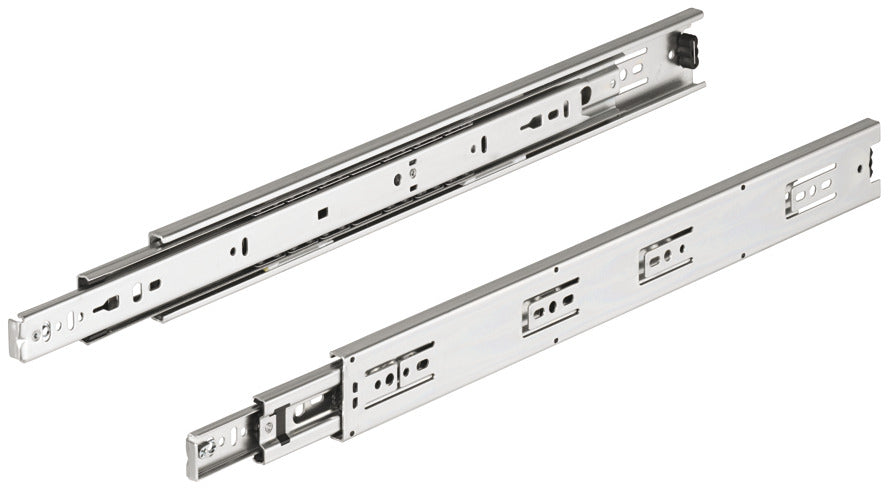

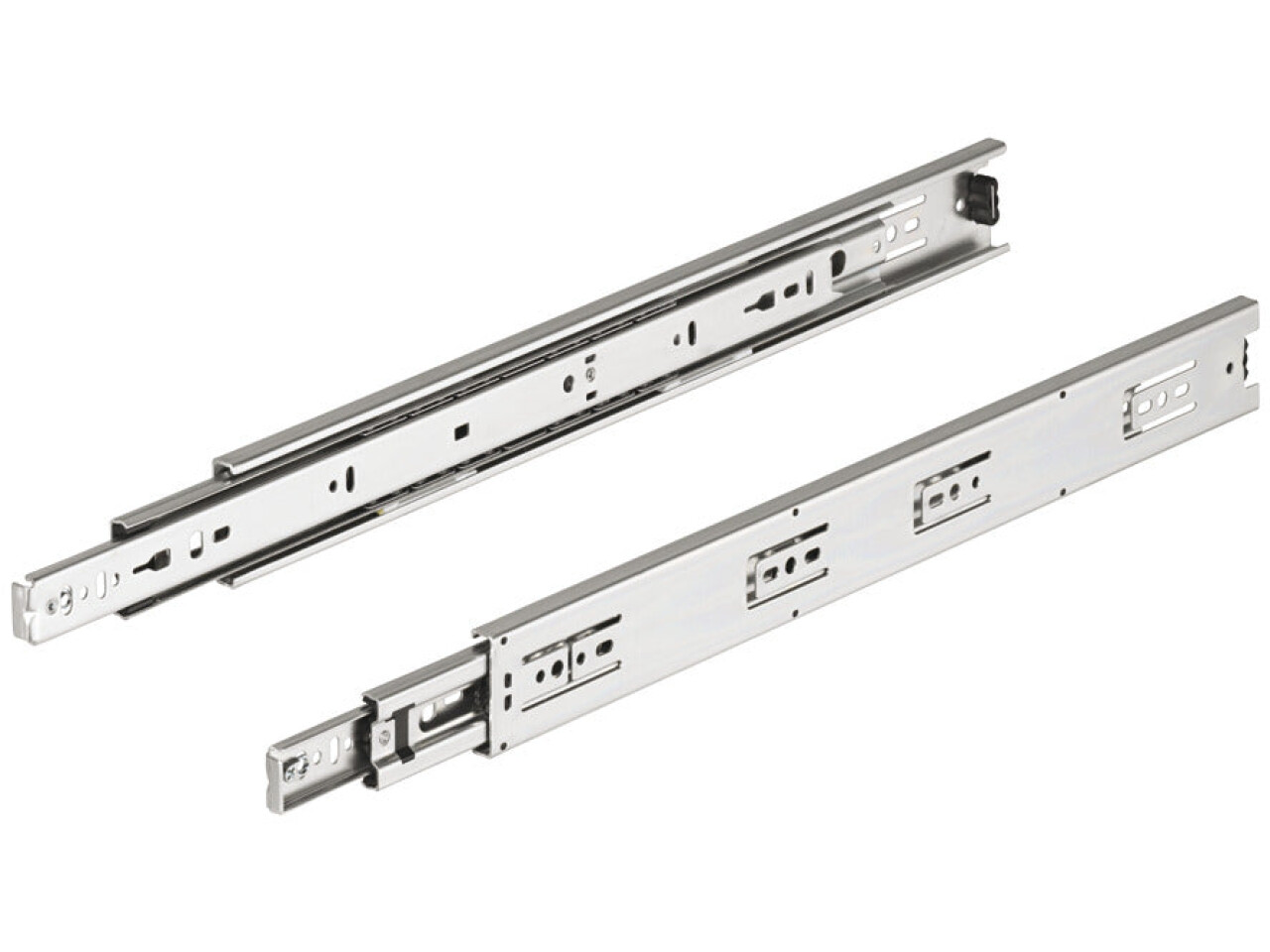

Ball Bearing Drawer Runners, Full Extension, Load Capacity 42-45 kg, Accuride 38 (Part No: 422.91.941) is a reliable, smooth-running solution for drawers that need everyday strength and dependable performance. Built from durable steel and finished in zinc plated, bright for corrosion resistance, this side-mounted ball bearing runner is ideal for commercial and home storage setups.
Designed with full extension, the runner allows your drawer to open fully, giving you better access to what’s inside—perfect for filing cabinets, desk pedestals, and general storage drawers. The unit supports a load bearing capacity up to 44 kg, with testing to 80,000 cycles to help ensure consistent operation over time.
Installation is straightforward thanks to a 32 mm drilling pattern, making it a practical choice for upgrading existing furniture fittings or planning new drawer builds. For added convenience, it features a release lever so the drawer can be removed when needed for cleaning, maintenance, or part replacement. Its holding function also helps the drawer stay secure, engaging effectively in both the closed and extended position.
As part of the 3832DO series, this model delivers robust stability for drawers with a clean, professional finish. If you’re sourcing quality ball bearing drawer runners, choose the Ball Bearing Drawer Runners, Full Extension, Load Capacity 42-45 kg, Accuride 38 for smooth motion, strong support, and long-lasting value.
Tolerance absorption tabs
Zinc plated, Bright

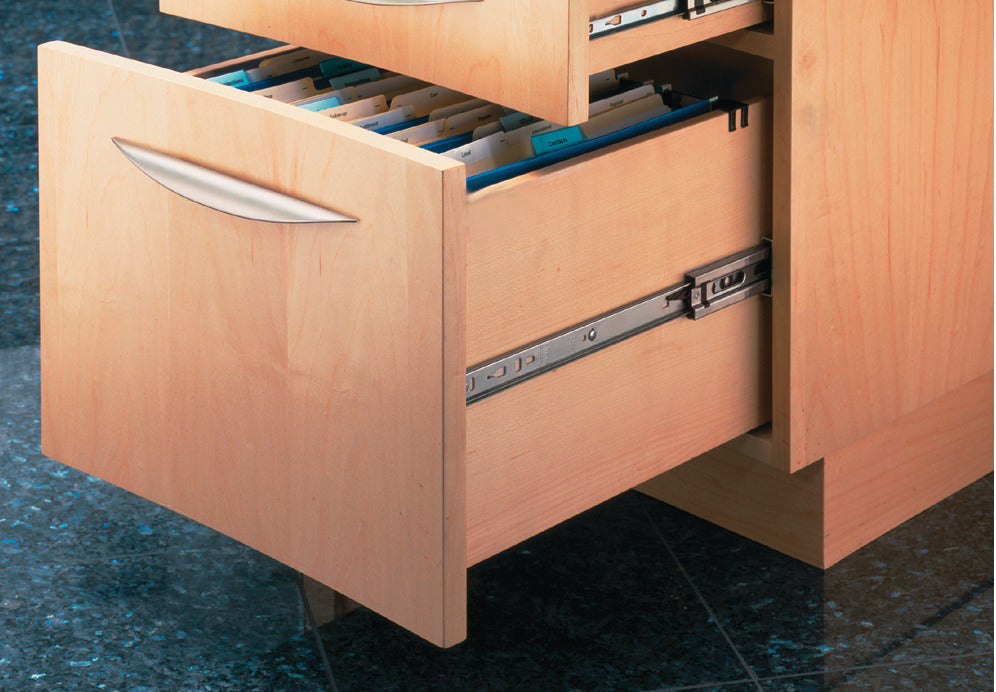

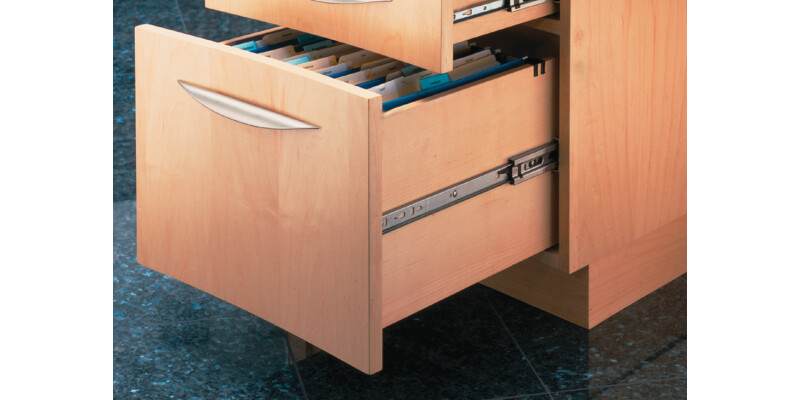

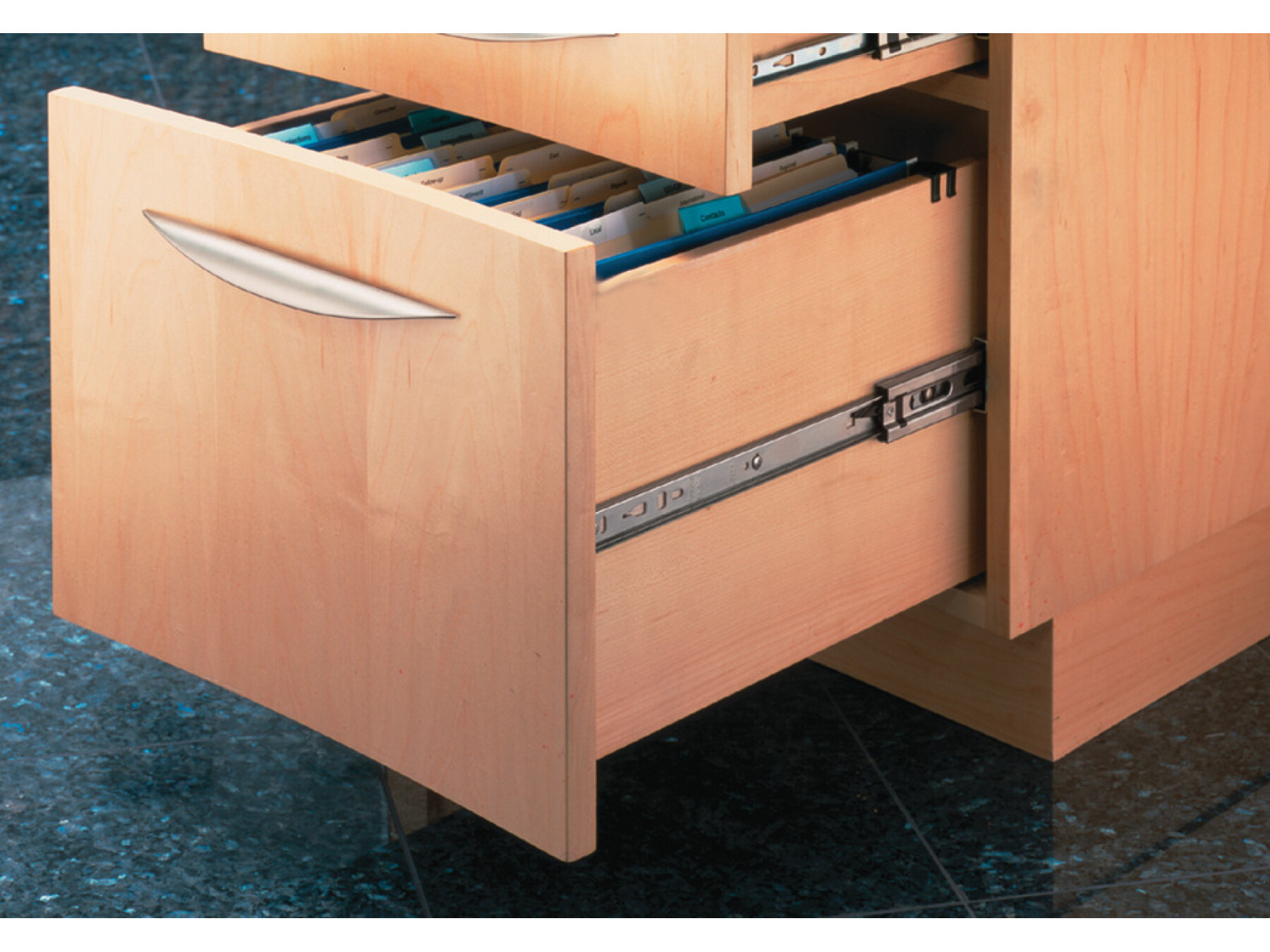

For applications such as filing cabinets, desk pedestals and general storage drawers
Steel
32 mm drilling pattern
This 3832DO BB Drawer Runner is rated for a load bearing capacity of up to 44 kg. It has been tested to 80,000 cycles, making it suitable for regular everyday use in filing cabinets, desk pedestals and storage drawers.
It is a full extension ball bearing drawer runner, so the drawer slides fully out for better access to the contents.

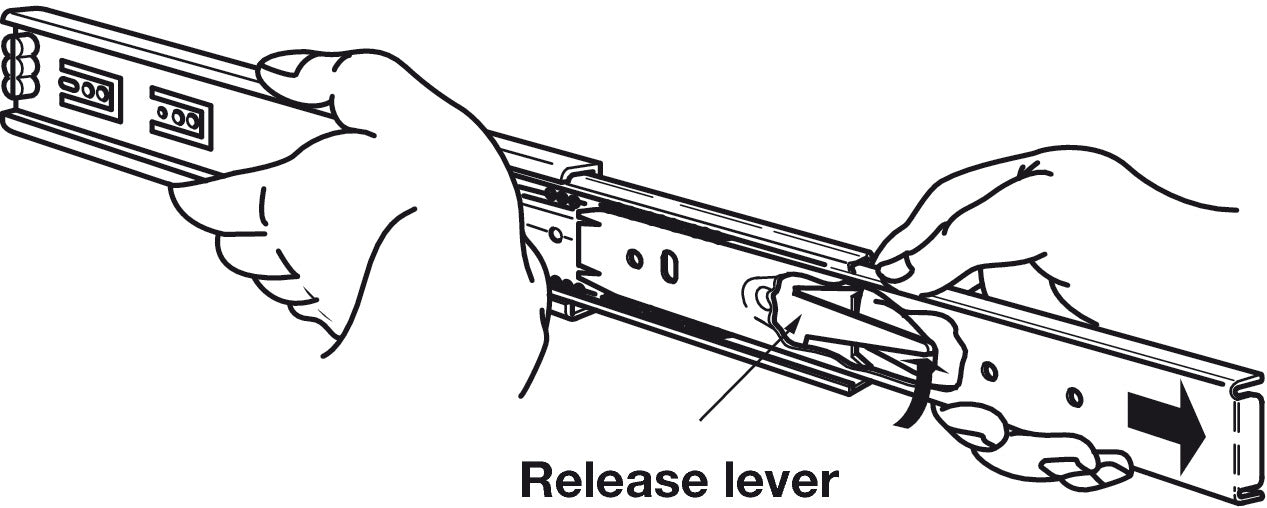

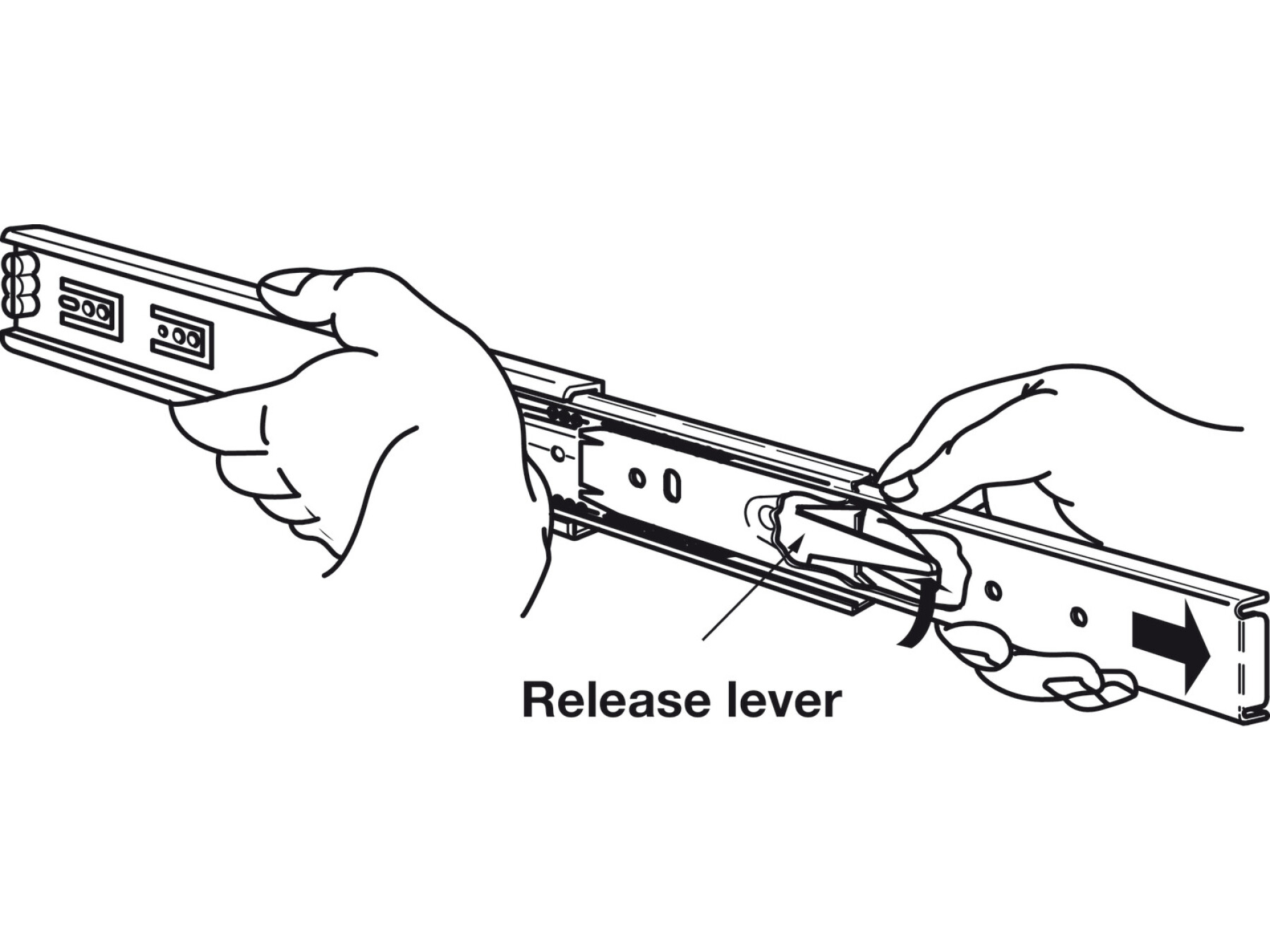

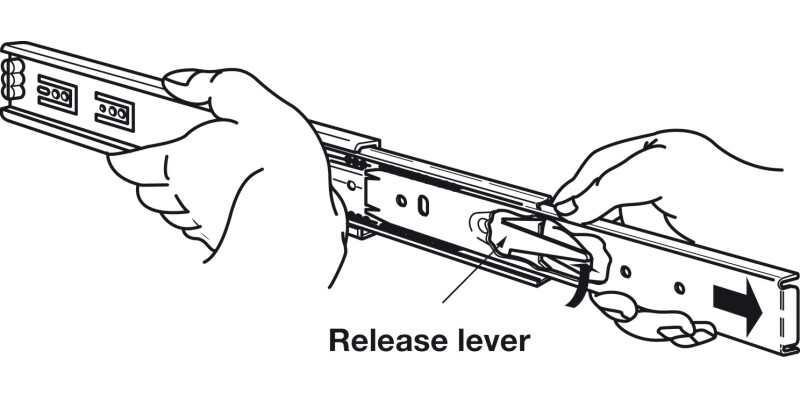

Drawer removal is supported with a release lever. This lets you take the drawer out more easily for cleaning, maintenance or adjustments.

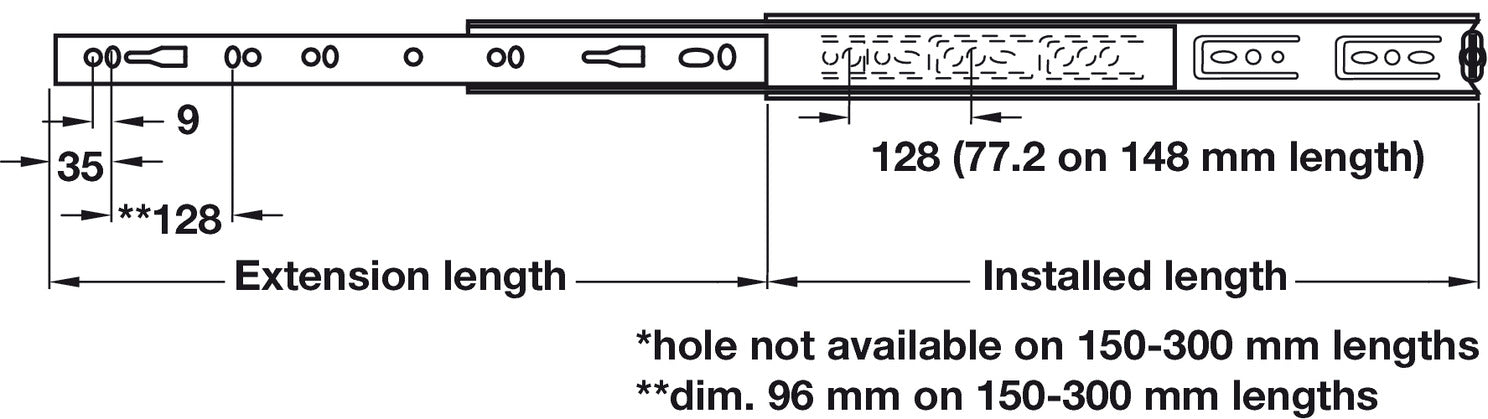

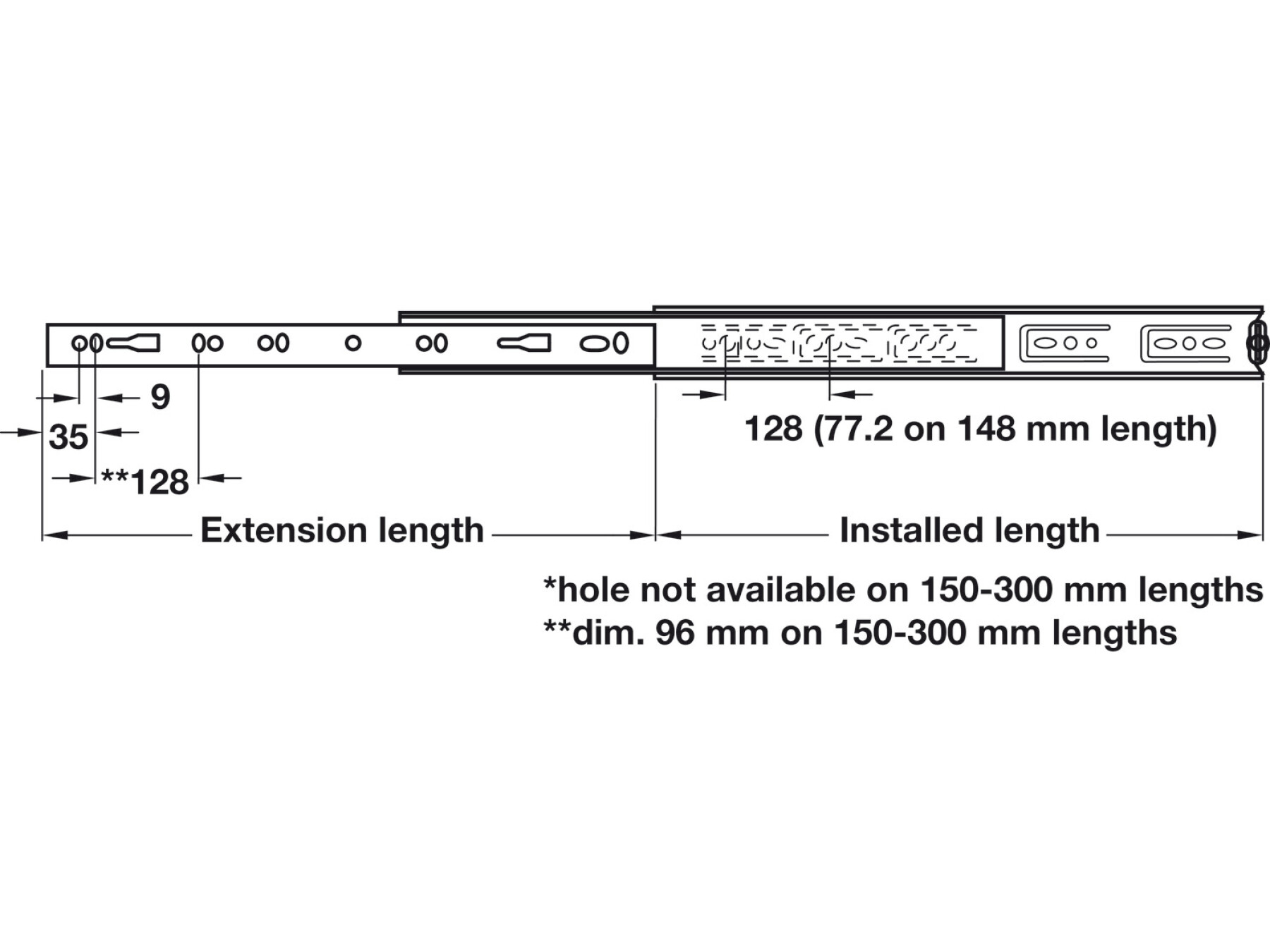

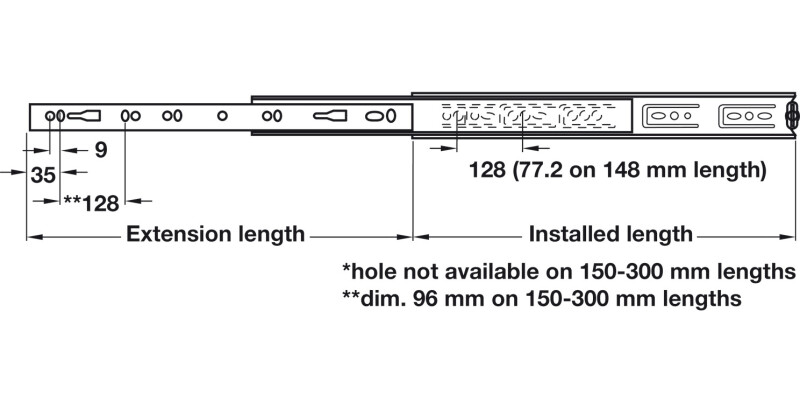

The installed length for this model is 400 mm. This refers to the length the runner is designed to sit and operate within once fitted.

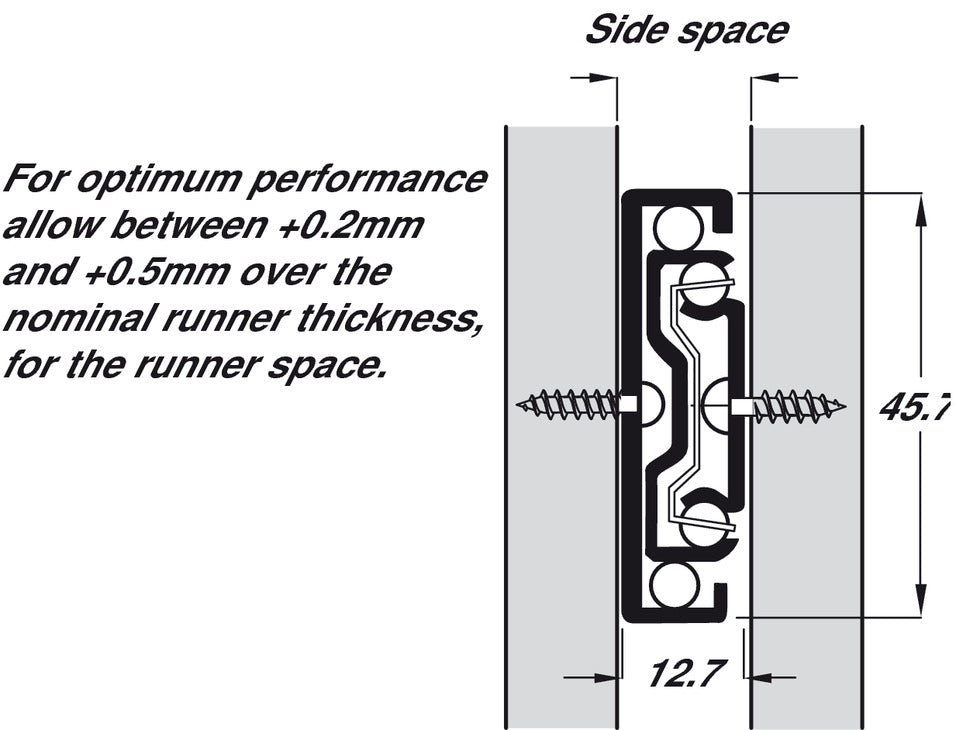

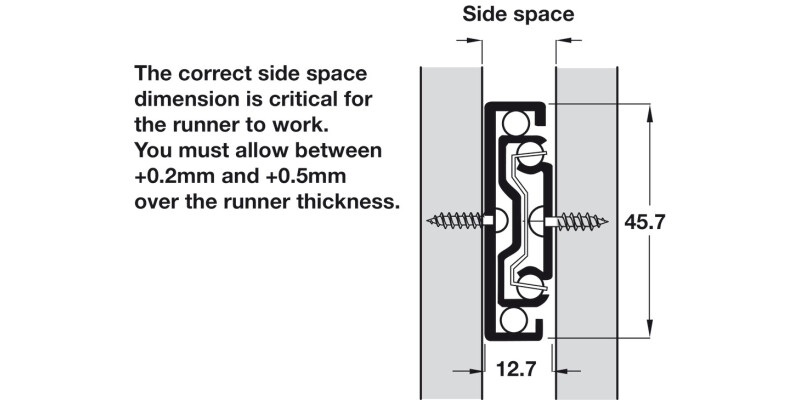

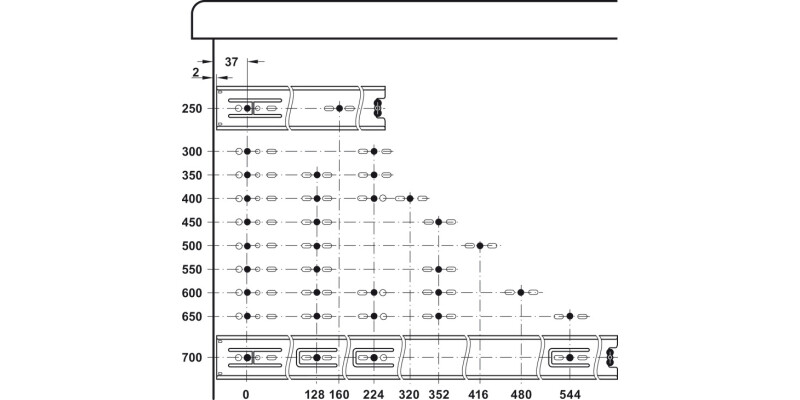

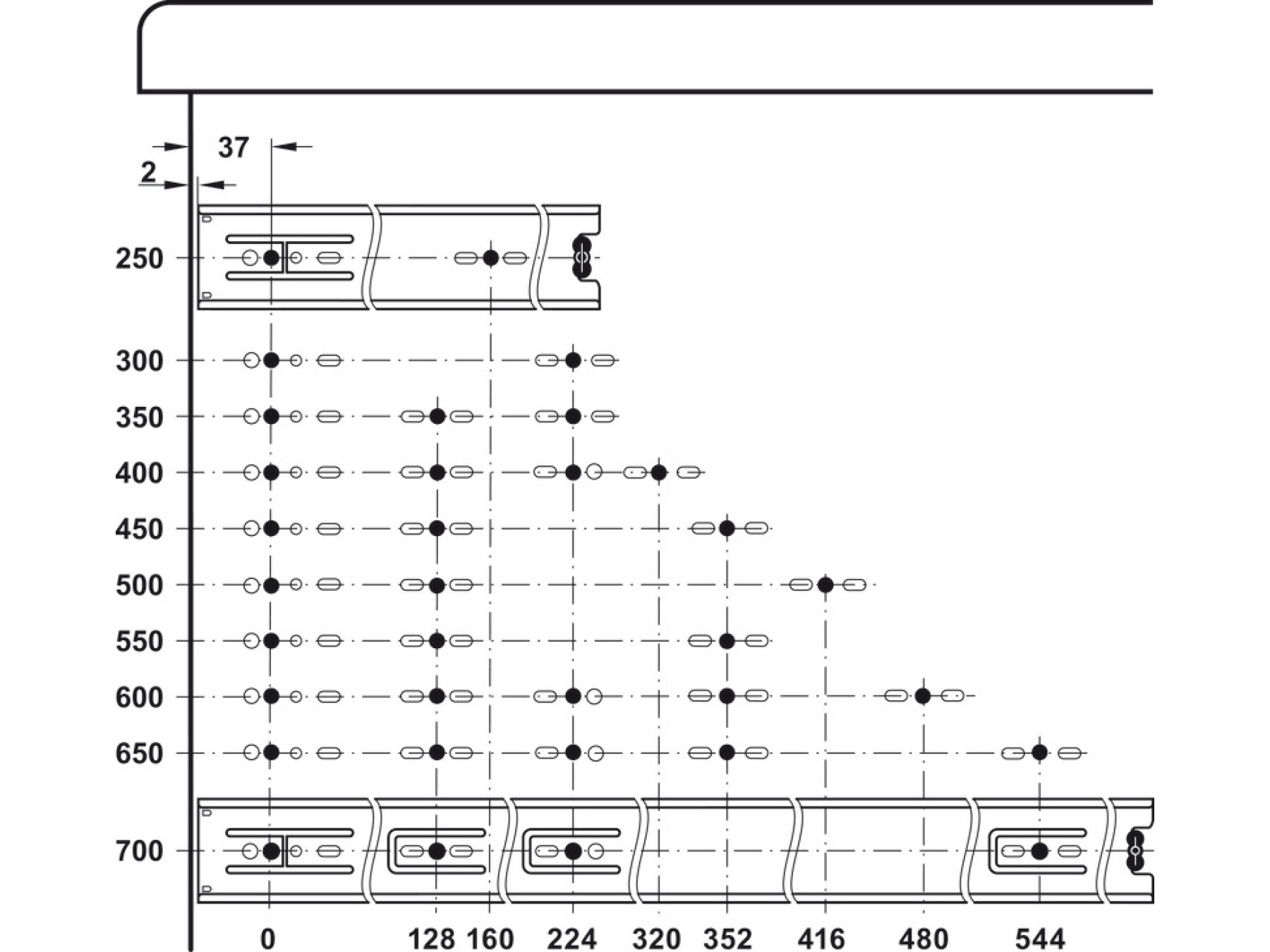

Installation uses a 32 mm drilling pattern. Check that your drawer and cabinet frames match this layout before fixing to ensure a secure, aligned fit.
Yes. The runner is zinc plated with a bright finish, which helps with corrosion resistance and provides a tidy appearance when used in living or commercial furniture applications.
It includes a holding function that helps engage in both the closed and extended position, helping the drawer stay where you need it during use.
