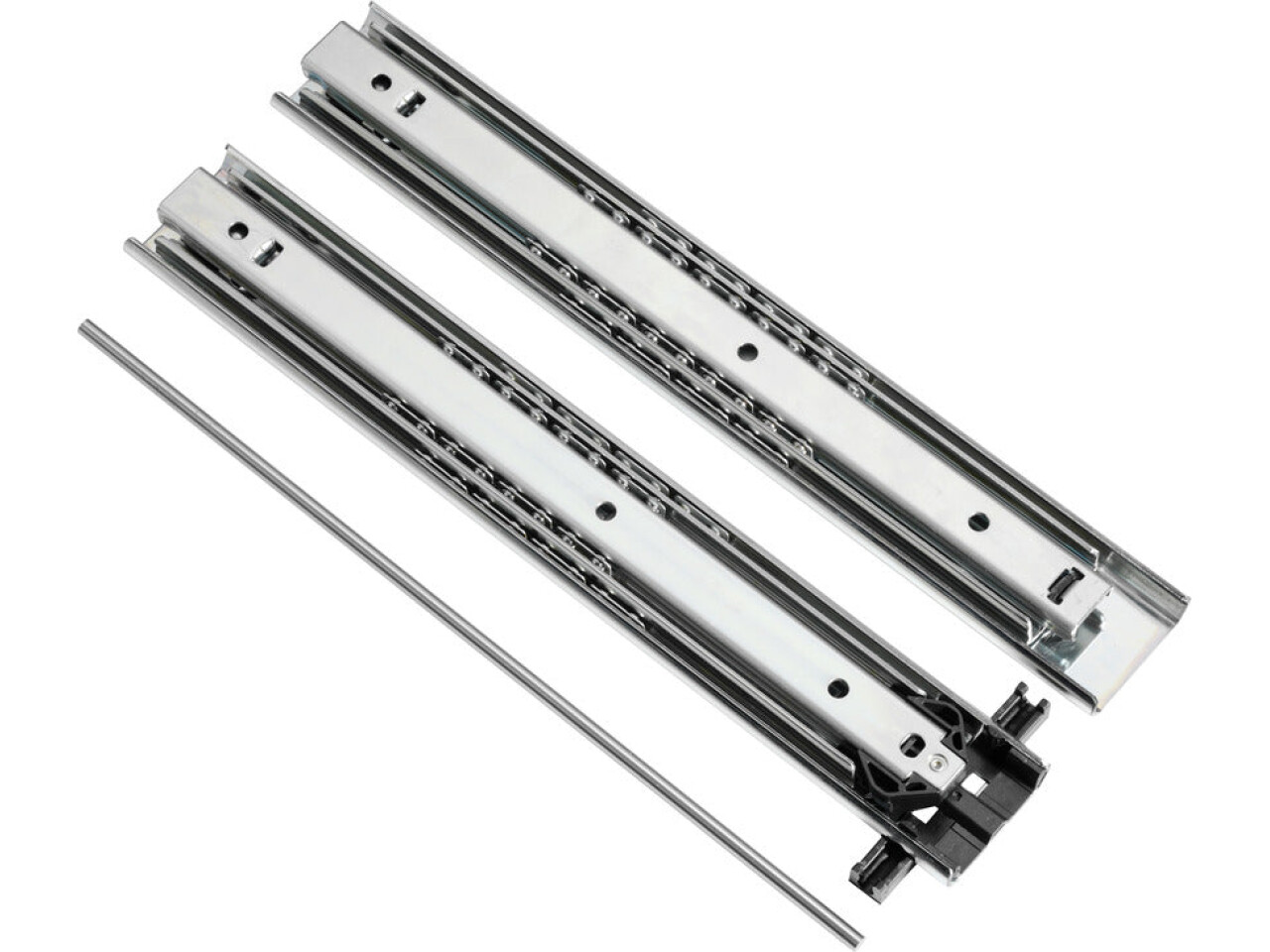

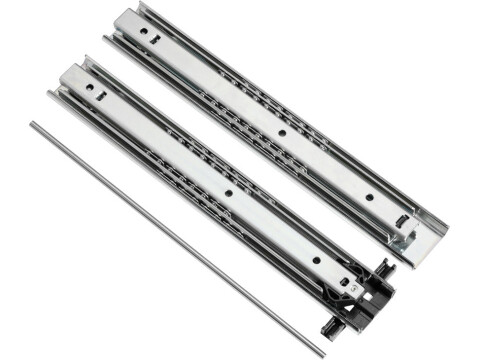

5343 InLock Drawer Runner Full 100kg 500mm SZP
Part Number: 422.45.024
Interlock slide (anti-tilt) with locking option, Installed length 500 mm, load capacity 100 kg
Price:
£305.28
Per 6 Pack
Interlock slide (anti-tilt) with locking optionHold-in feature holds the drawer in Area of application Suitable... Read More
Product Information
Product Details
Interlock slide (anti-tilt) with locking option
Hold-in feature holds the drawer in
Area of application
Suitable for drawers up to 1000 mm wide (for drawers 800-1000 mm wide the use of 2x interlock runners is recommended)
Order reference
For locking both sides order: 2 Interlock runners 422.05.02X
For locking one side order: 1 Interlock runner 422.45.02X, 1 Companion slide 422.45.03X
Locking kit 237.54.300 must be ordered separately.
Order Hospa Ø 4.0 mm countersunk and Varianta Ø 6 mm cylinder head screws separately
Specifications
Colour/finish
Zinc plated
Model
5343
Type of pull out
Full extension
Holding function
Hold-in
Drawer removal
without release lever
Material
Steel
Bearing
Ball bearing
Width
256.00 mm
Supplied with
1 Interlock slide, 1 ⌀ 6 x 300 mm rod
Cut to suit required pitch
