Mounting Brackets, for Accuride 2132/3732/3832 Drawer Runners Drawer Runners (Part No: 422.42.940) is a... Read More

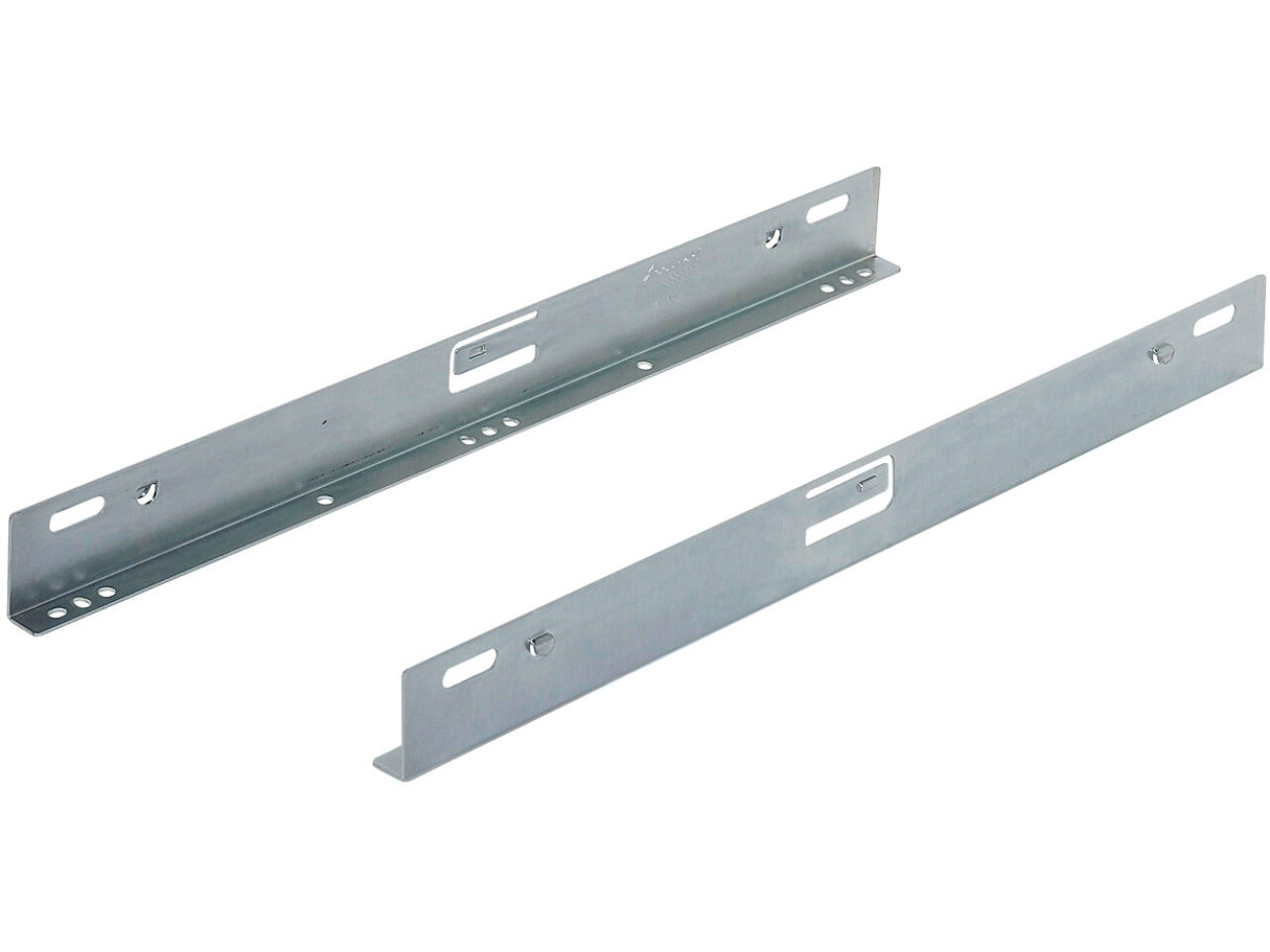

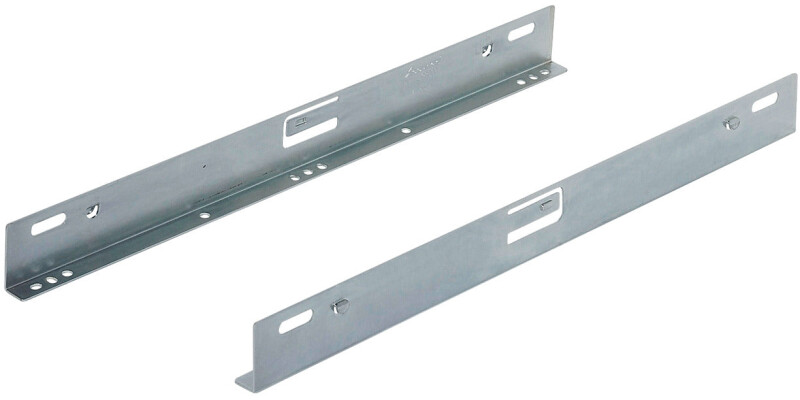

Mounting Brackets, for Accuride 2132/3732/3832 Drawer Runners Drawer Runners (Part No: 422.42.940) is a high-quality drawer runner mounting bracket designed to help you build drawers and shelving systems that move smoothly and stay solid under load. If you’re upgrading or installing furniture fittings for living or commercial spaces, this bracket is a reliable choice for a neat, professional finish.
Built from steel, the bracket offers dependable strength and long-term performance. It’s specifically made to suit drawer runners with a 400 mm runner length, making it ideal for compatible drawer runner systems where stability and alignment are essential.
Designed for compatibility, this bracket is intended for use with 2132, 3832, 3832SC and 3832DO drawer runners. The carrying capacity is matched to the runner specifications—so you can install with confidence, knowing the system is engineered to work together.
Easy, practical installation: it supports bottom mounting of drawers, or—when inverted—can be used for platform mounting of shelves. That flexibility makes it useful for a wider range of furniture and storage applications.
Important note: the bracket will reduce the external width of the drawer or shelf by 2.4 mm (due to the 1.2 mm material thickness of the bracket). Plan accordingly for a precise fit and tidy final assembly.
Choose Mounting Brackets, for Accuride 2132/3732/3832 Drawer Runners today for a durable mounting solution that keeps drawers and shelves operating exactly as they should.
Steel
For 2132, 3832, 3832SC and 3832DO drawer runners

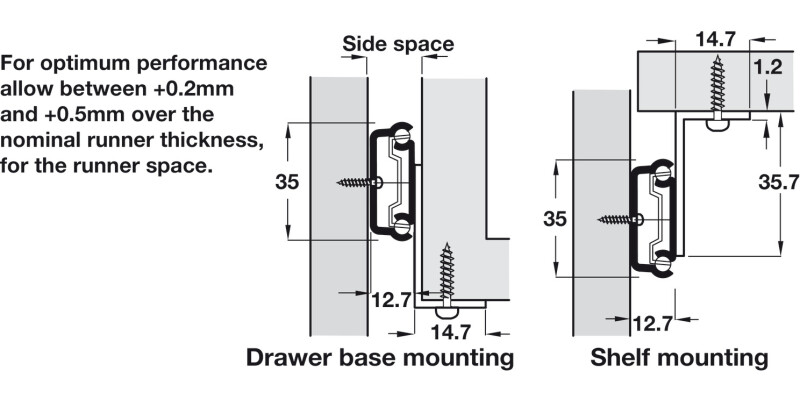

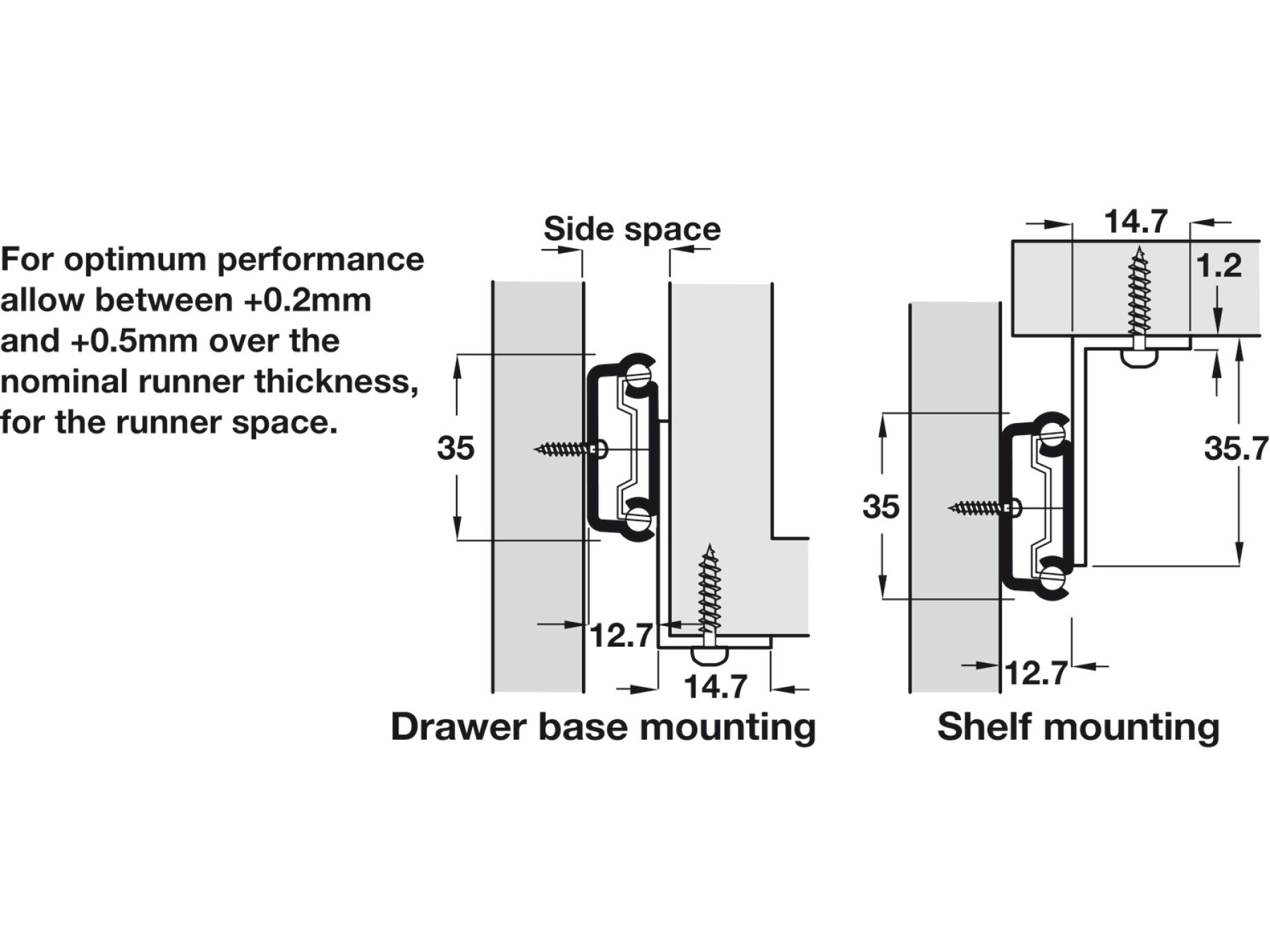

For bottom mounting of drawers or, when inverted, for platform mounting of shelves
The external width of drawer or shelf is reduced by 2.4 mm (material thickness of bracket 1.2 mm).
This bracket is designed as a mounting support for drawer runners and related furniture fittings. It is suitable for bottom mounting drawers, and can also be used in the inverted position for platform mounting of shelves, depending on your layout.
It is to suit runner length 400 mm and is intended for use with the 2132, 3832, 3832SC and 3832DO drawer runners. If your runner type or length differs, the fit and performance may not match.
Please note that the external width of the drawer or shelf is reduced by 2.4 mm. This reduction is due to the bracket material thickness of 1.2 mm on each side, which is important for accurate cabinet and component sizing.
Yes. The bracket supports bottom mounting of drawers. It can also be installed when inverted for platform mounting of shelves, which makes it useful when designing mixed drawer and shelf layouts.
“BZP” refers to the bright zinc plated finish. This coating is commonly selected because it helps improve corrosion resistance and gives a clean, bright appearance on furniture hardware.
The bracket’s carrying capacity is as per the runner it is used with. For best results, match it to the correct runner model and length, as the runner specification determines the safe load limits.
Use the product part number 422.42.940 and the runner compatibility details. Double check that you are using drawer runners that correspond to 2132, 3832, 3832SC or 3832DO with a 400 mm length to ensure correct alignment and reliable operation.
Because it is specified to match the correct runner length and runner family, you are more likely to achieve proper fit, smooth drawer movement, and correct sizing. Buying the matching bracket helps avoid installation issues that can arise when using incompatible components.
