LED TV/Monitor Lift, 2 Section Telescopic Lift
LED TV/Monitor Lift, 2 Section Telescopic Lift. (Part No: 421.68.470) is a sleek, space-saving solution for... Read More
Product Details
LED TV/Monitor Lift, 2 Section Telescopic Lift. (Part No: 421.68.470) is a sleek, space-saving solution for effortlessly raising and lowering your TV or monitor from inside your cabinet. Designed for a smooth, premium look, this remote controlled with RF and manual switch lift system travels 460 mm—perfect for show-style viewing while keeping your living space clean when the screen is not in use.
Built from powder coated steel, the lift features a refined, silver finish that blends beautifully with modern cabinetry and furniture designs. With a cabinet installation height reaching up to 646 mm and a compact 84 mm depth, it’s ideal for tailored TV furniture builds where every millimetre matters.
Whether you’re relaxing at home or entertaining guests, the 2-second lift action delivers quick, reliable movement. A manual switch provides a convenient backup, while the RF remote control lets you operate the system comfortably from your seat. Please note: this model is without automatic reverse function (AutoRev).
For versatile setups, the unit supports a practical load bearing range of 5–50 kg (maximum 50 kg). It’s compatible with 110–240 V / 50–60 Hz mains supply.
Supplied with everything you need to get started: RF remote control, manual switch, TV/monitor bracket set, and fixings. Upgrade your media centre with the LED TV/Monitor Lift, 2 Section Telescopic Lift. for a polished, functional centrepiece.
Specifications
Travel
Height
Depth
Material
Colour/finish
Load bearing capacity
Mains voltage
Load bearing capacity max.
Supplied with
RF remote control, manual switch and TV / monitor bracket set
Fixings
Product Details
How far does the LED TV lift travel, and will it clear furniture shelves?
This model provides 460 mm of travel. That lift distance is designed to raise TVs and monitors comfortably above typical cabinet obstructions, helping you use your space without the screen being permanently in the way. For a confident fit, compare your shelf clearance and viewing height requirements against the 460 mm travel.
Does the Tele 460mm version include an automatic reverse function?
No. The “2 Sec wo AutoRev” version is without automatic reverse. It is intended for controlled raising and lowering using the included controls, so it is important to keep the path clear of people and objects during operation.
Can I control the lift using both a remote and a manual switch?
Yes. It includes an RF remote control and a manual switch. This gives you flexible operation, whether you are using it from your seat or you need to operate it directly during setup or troubleshooting.
What weight of TV can the lift support?
The lift is rated for a load bearing capacity of 5 to 50 kg, with a maximum of 50 kg. Choose a compatible TV weight to ensure safe operation, and consider the total load from the TV bracket attachments.
What power input does the LED TV lift use?
This unit runs on 110 to 240 V at 50 to 60 Hz. That wide mains range makes it suitable for common UK installation requirements when wired by a competent person.
What is included with the LED TV Lift Tele 460mm?
You receive the lift system with the key accessories, including an RF remote control, manual switch, a TV and monitor bracket set, and fixings. This helps you plan a complete installation rather than sourcing major parts separately.
Is the lift suitable for built in cabinets, and what dimensions should I check?

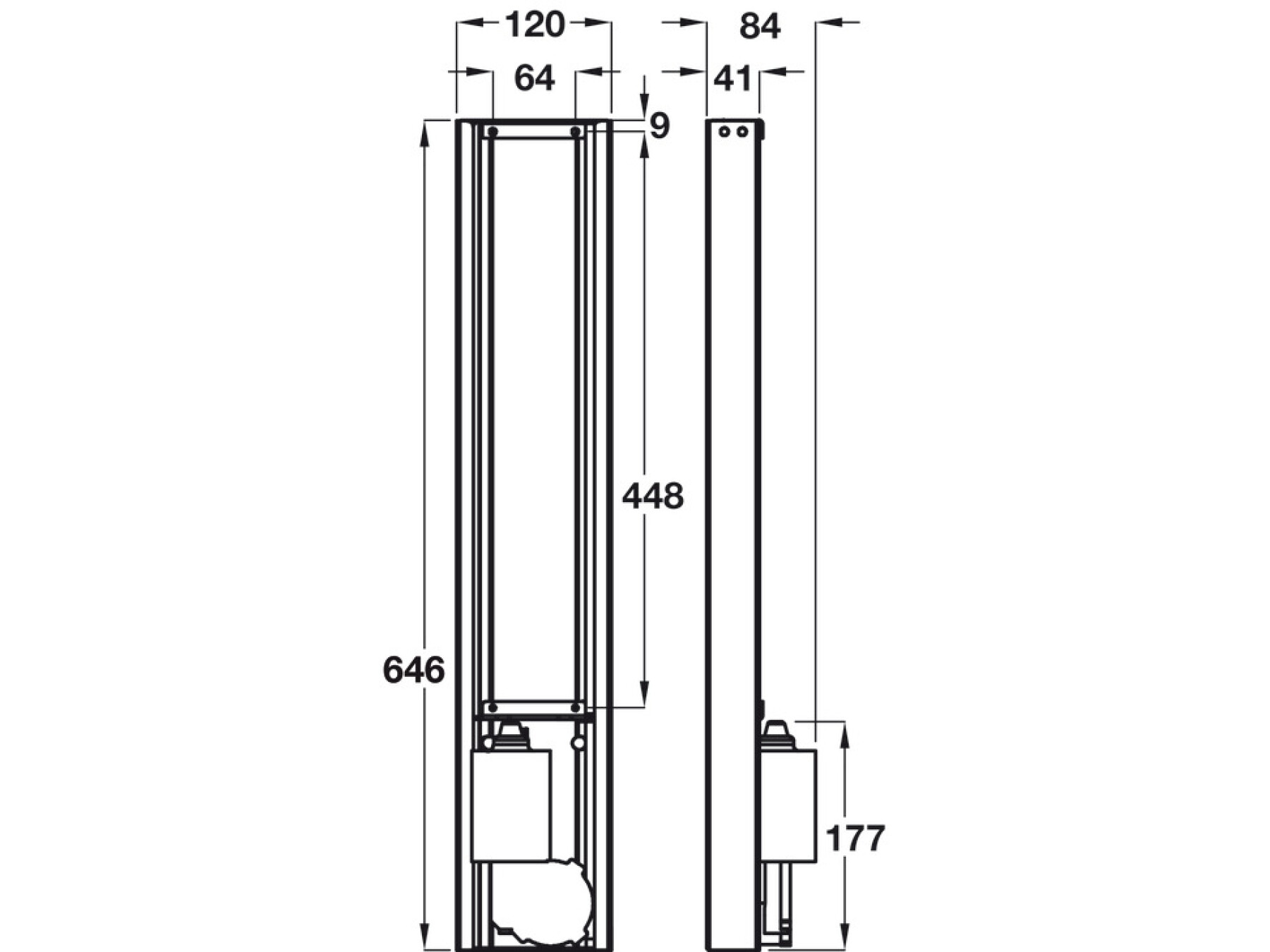

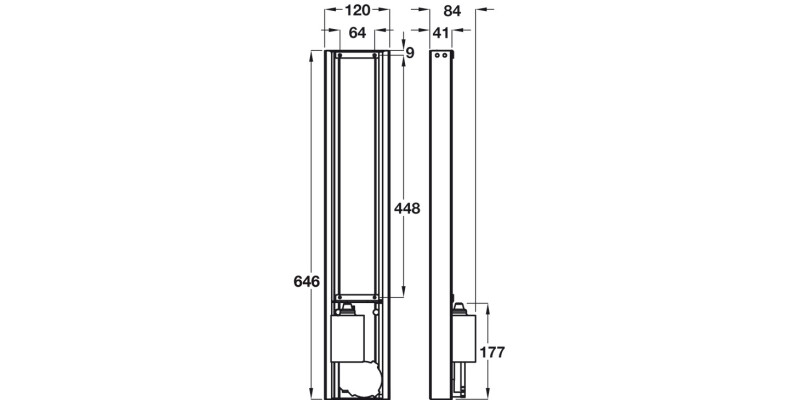

Before purchasing, check the cabinet opening and mounting space. The unit has a height of 646 mm and a depth of 84 mm. It is supplied in silver powder coated steel, and the compact depth can help when fitting into tighter cabinet structures.
