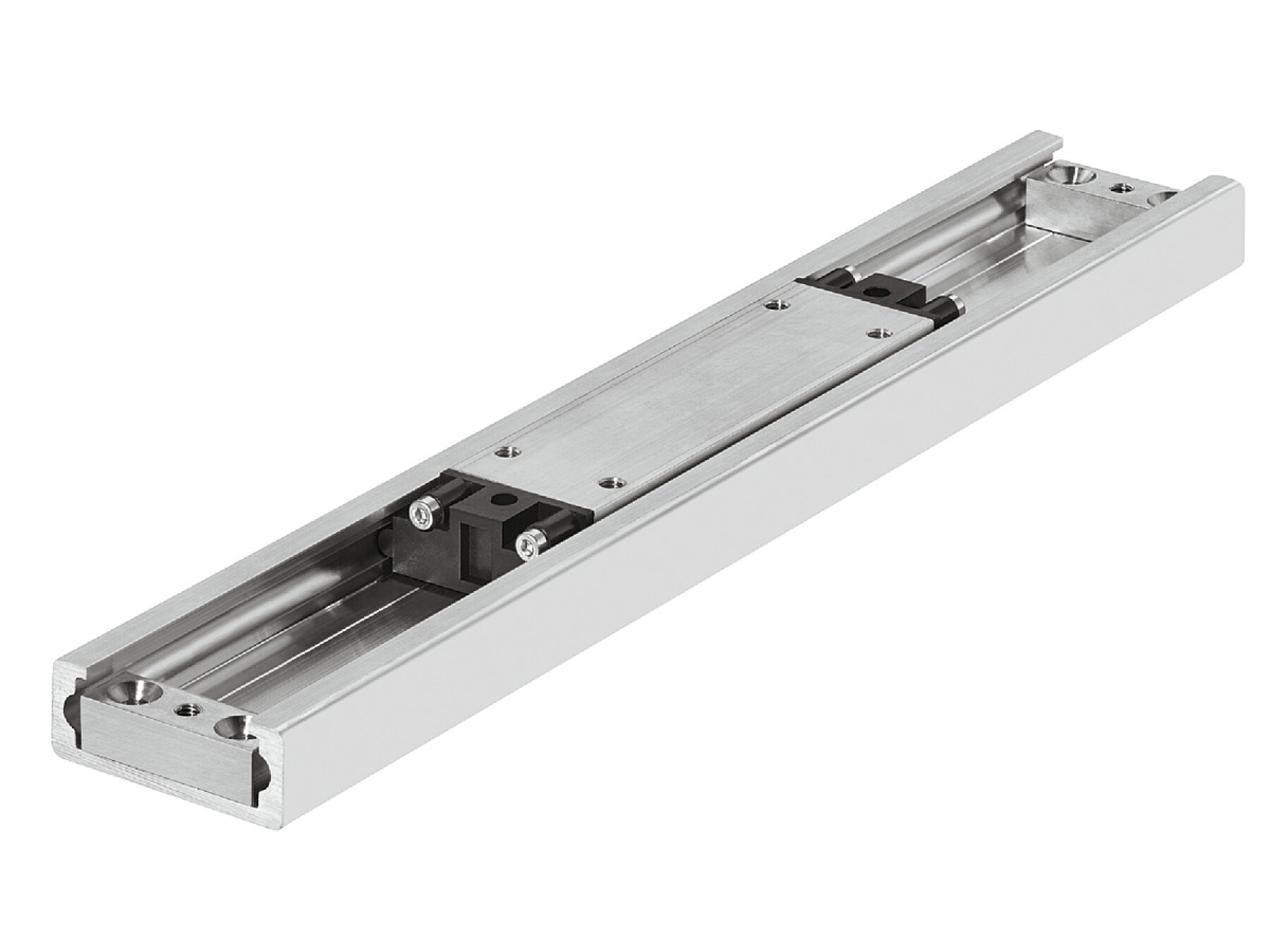

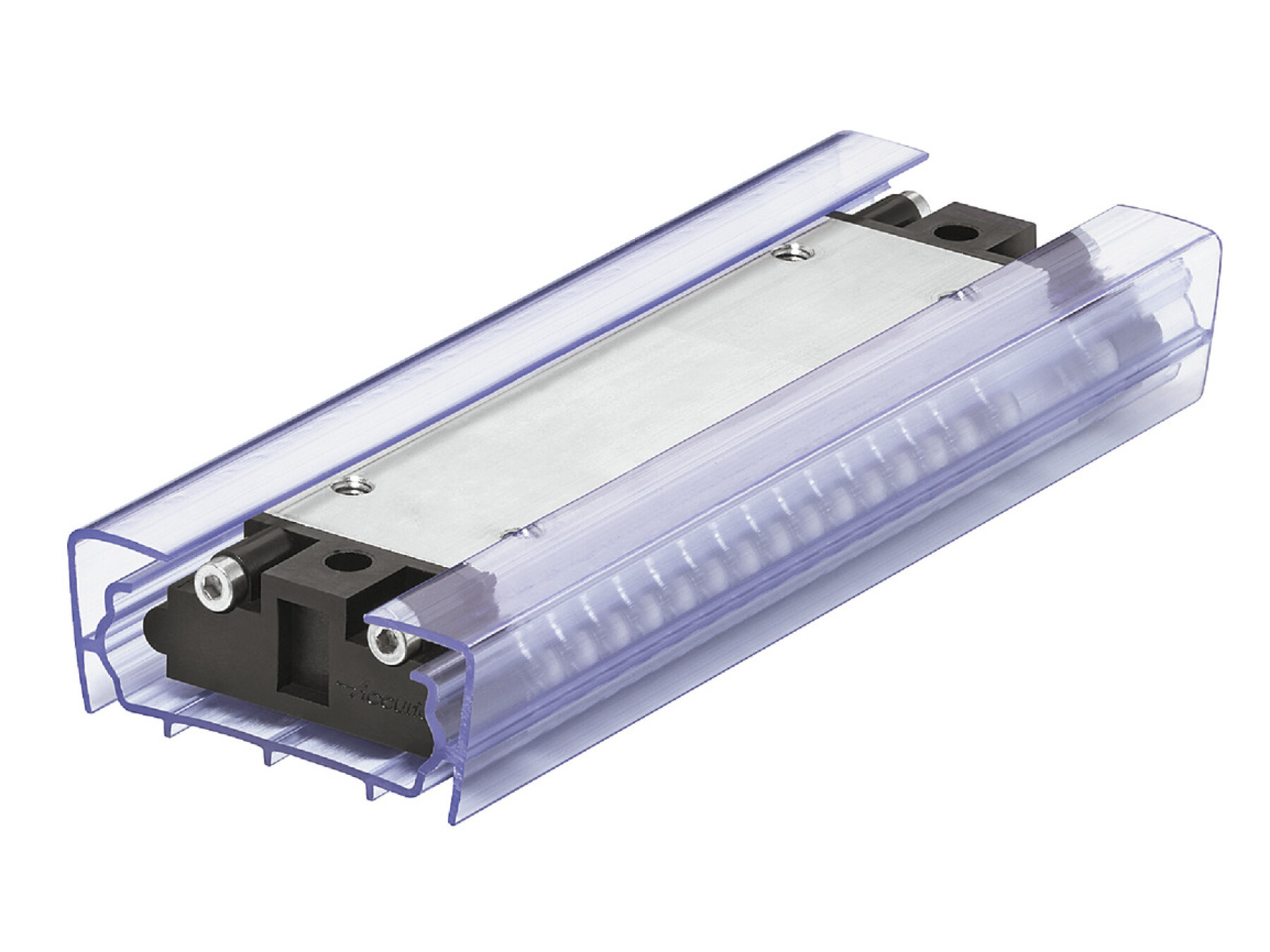

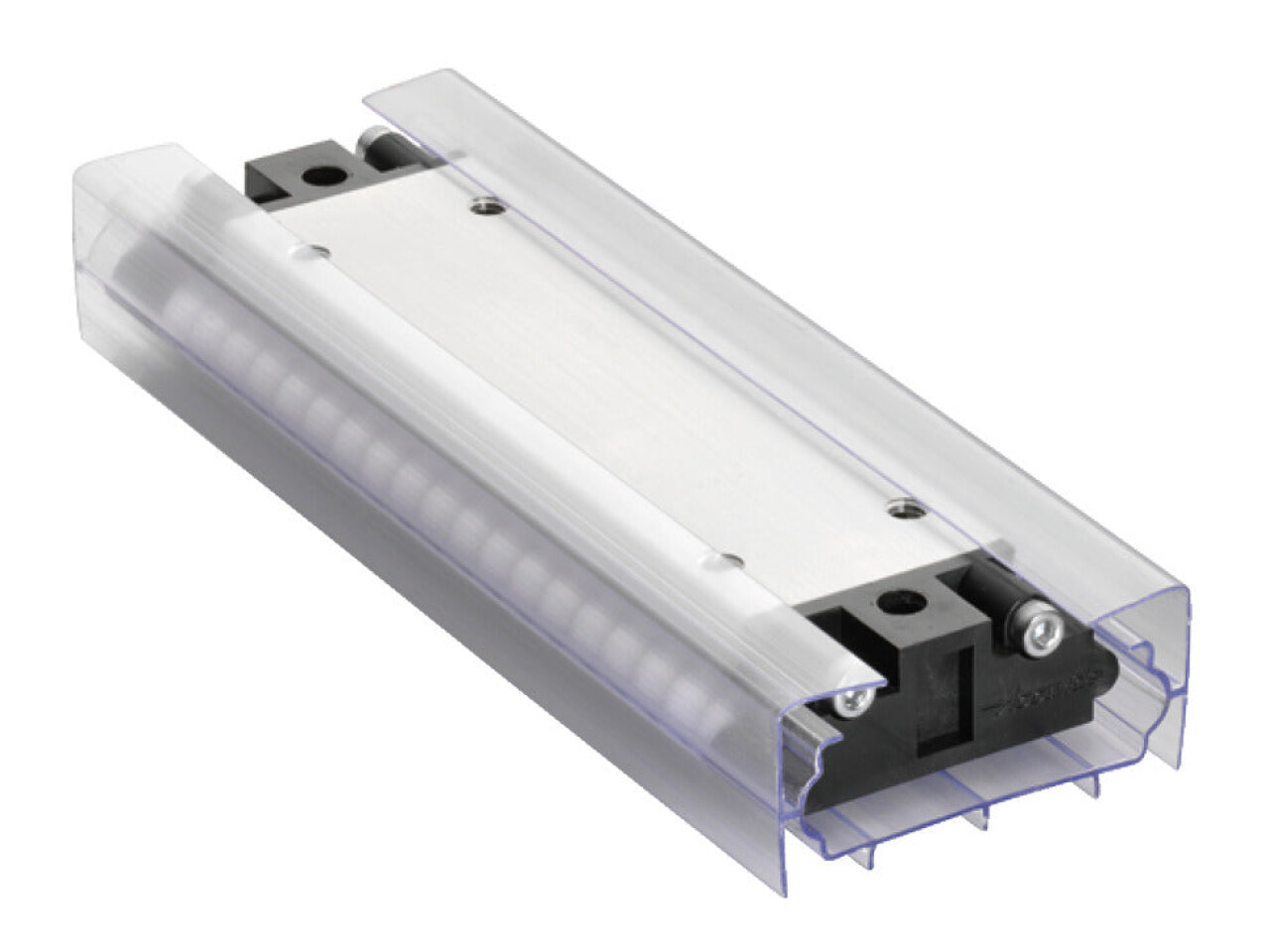

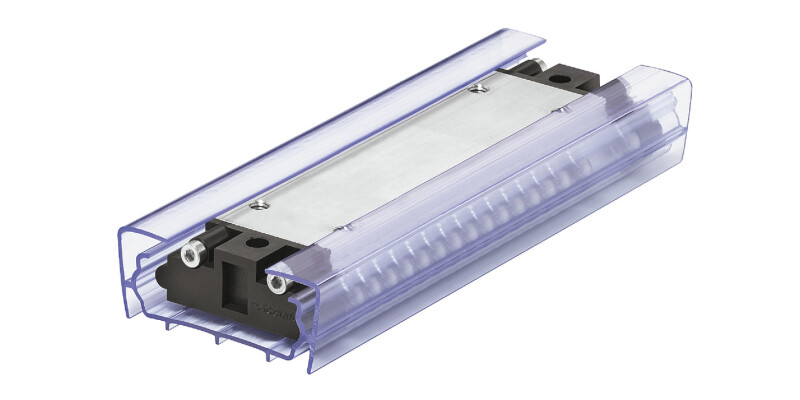

Ball Carriage, Accuride 0116 Sliding Track System

Product Details

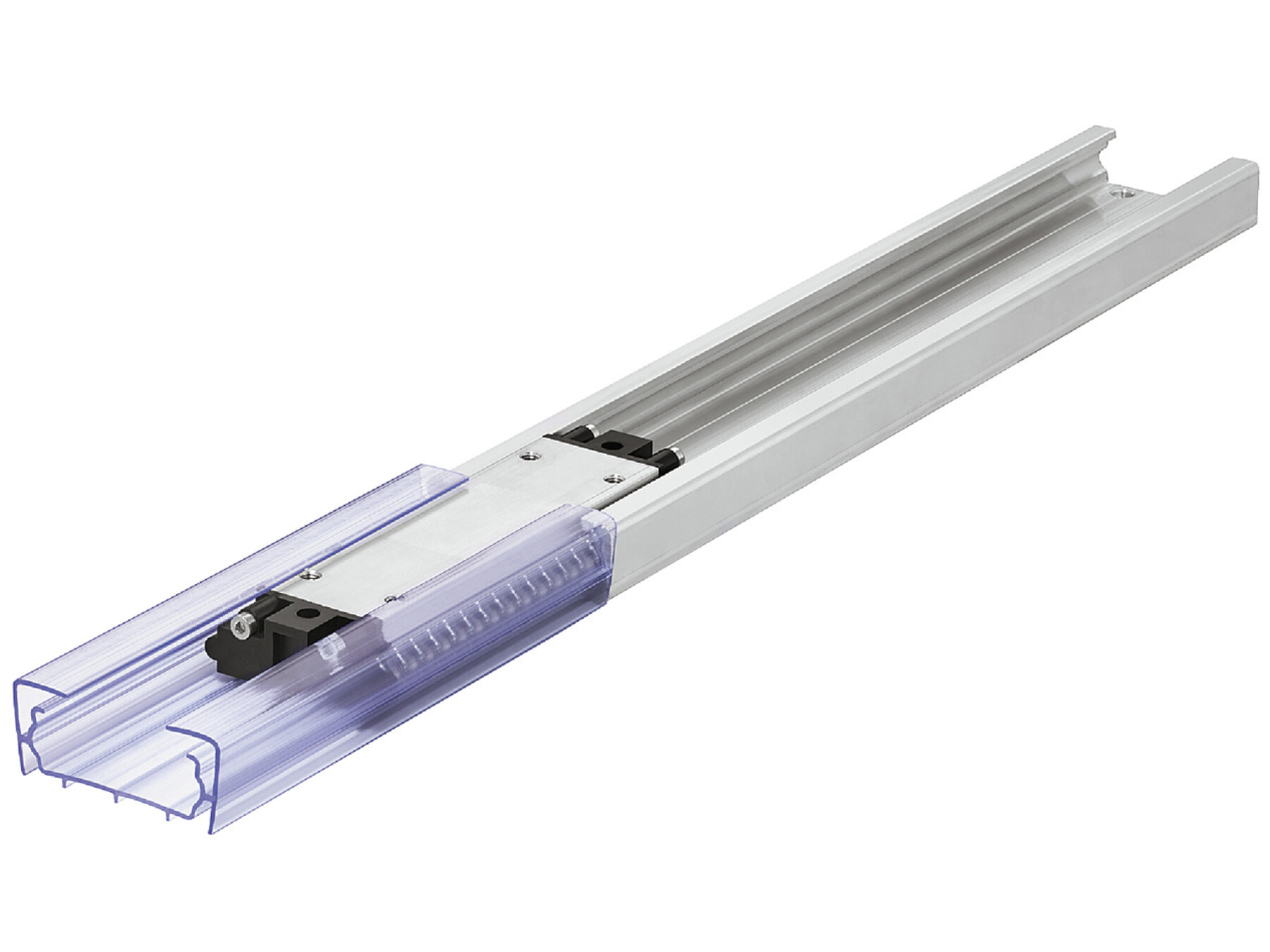

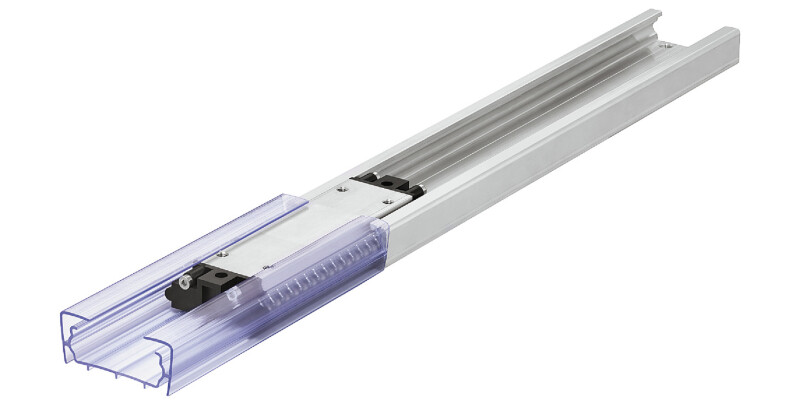

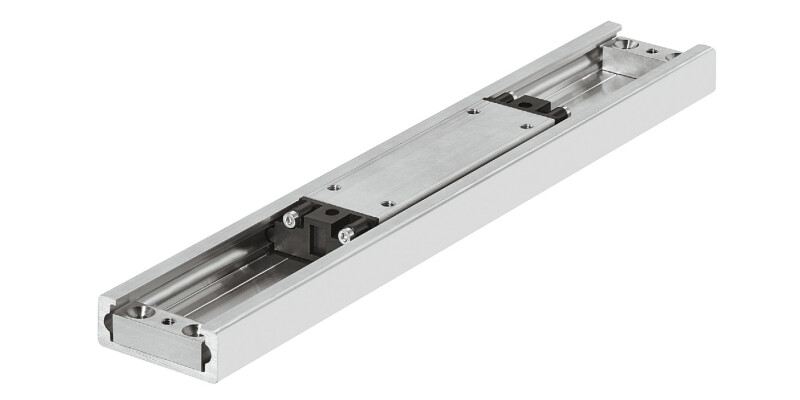

Can I use the Accuride 0116 Ball Carriage with existing Accuride 0116 linear runners?

Yes. This carriage is designed to work with Accuride 0116 linear runners for smooth horizontal movement in drawer and cabinet applications. Using the matched system helps ensure correct fit and operation.

How is the Accuride 0116 Ball Carriage fixed to the furniture?

Screw fixing. The carriage is intended to be installed using M6 thread fixings. This makes it straightforward to mount during furniture build or retrofit work where fixing points are already prepared.

What is this ball carriage intended for in a drawer or sliding furniture application?

For sliding objects horizontally, it is suitable for uses such as cabinets, cladding solutions, and display walls where you want reliable run and controlled movement. It is an ideal component for horizontal drawer and runner systems.

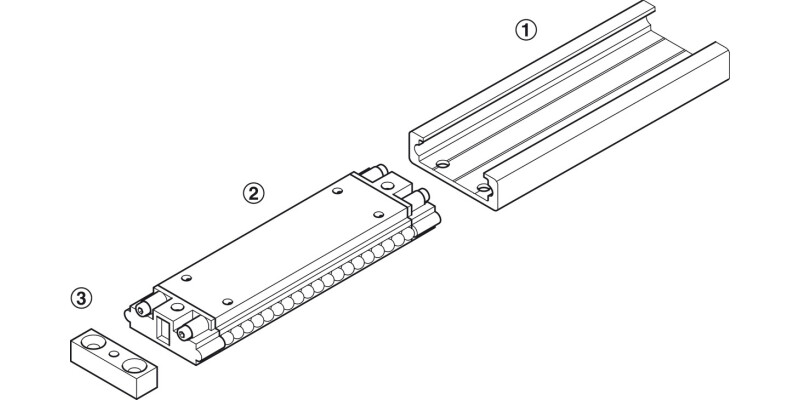

What accessories and parts do I need to order separately?

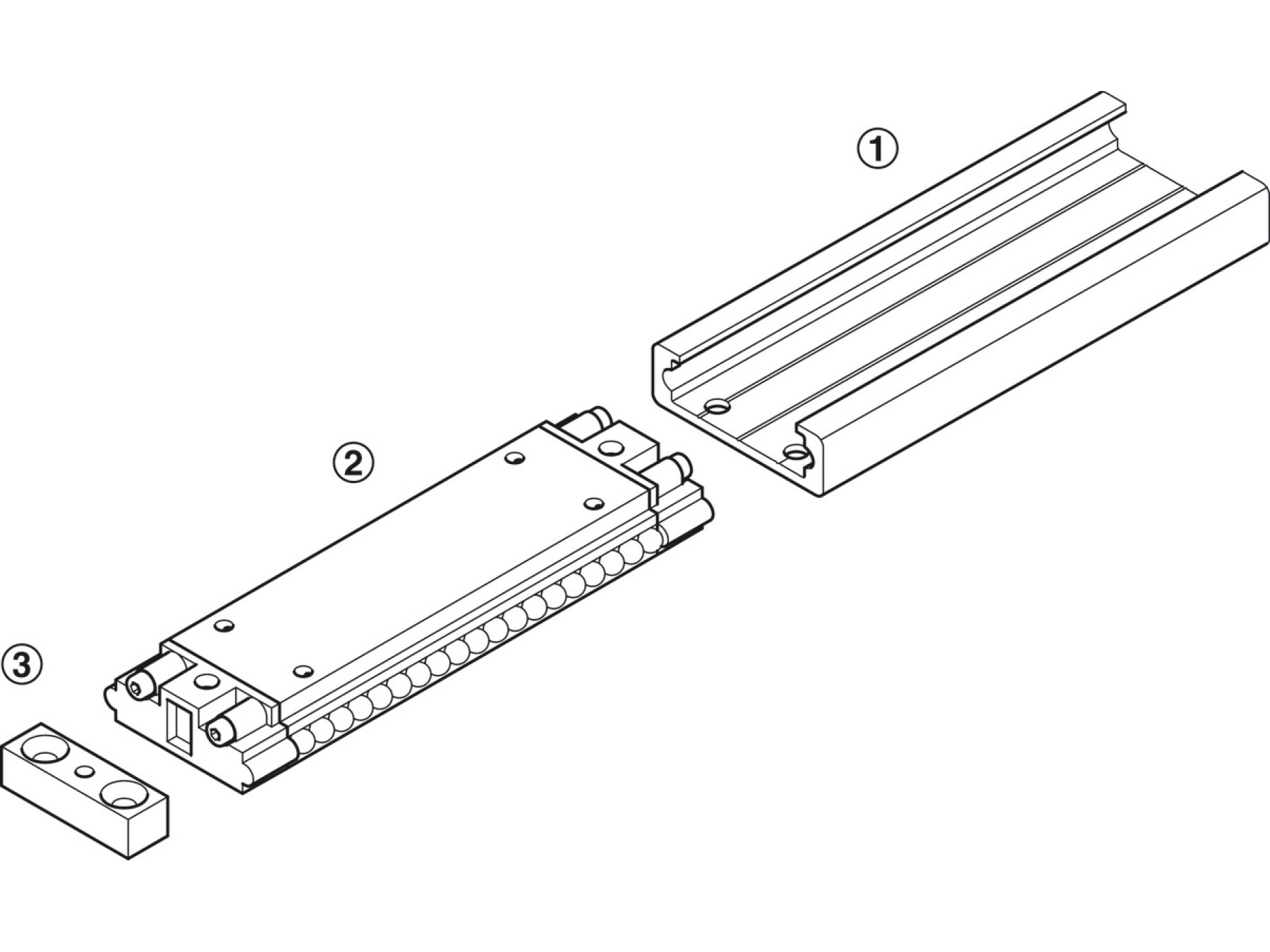

Tracks, end stops, and fixing screws are not included with this part. You will also need to source M6 fixing screws and accessories separately, along with the relevant tracks and end stops for your specific setup.

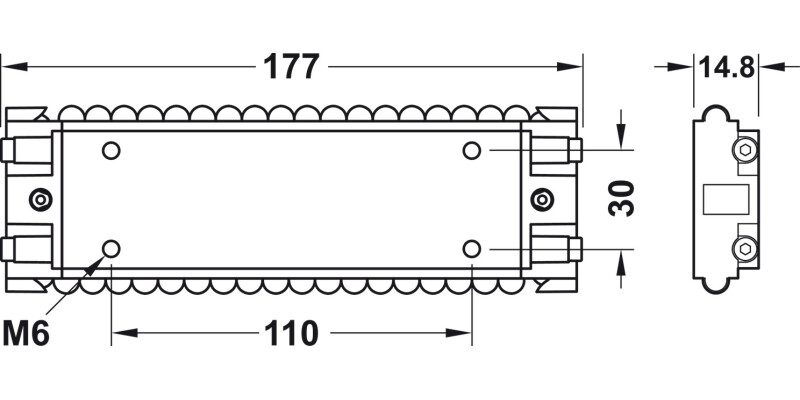

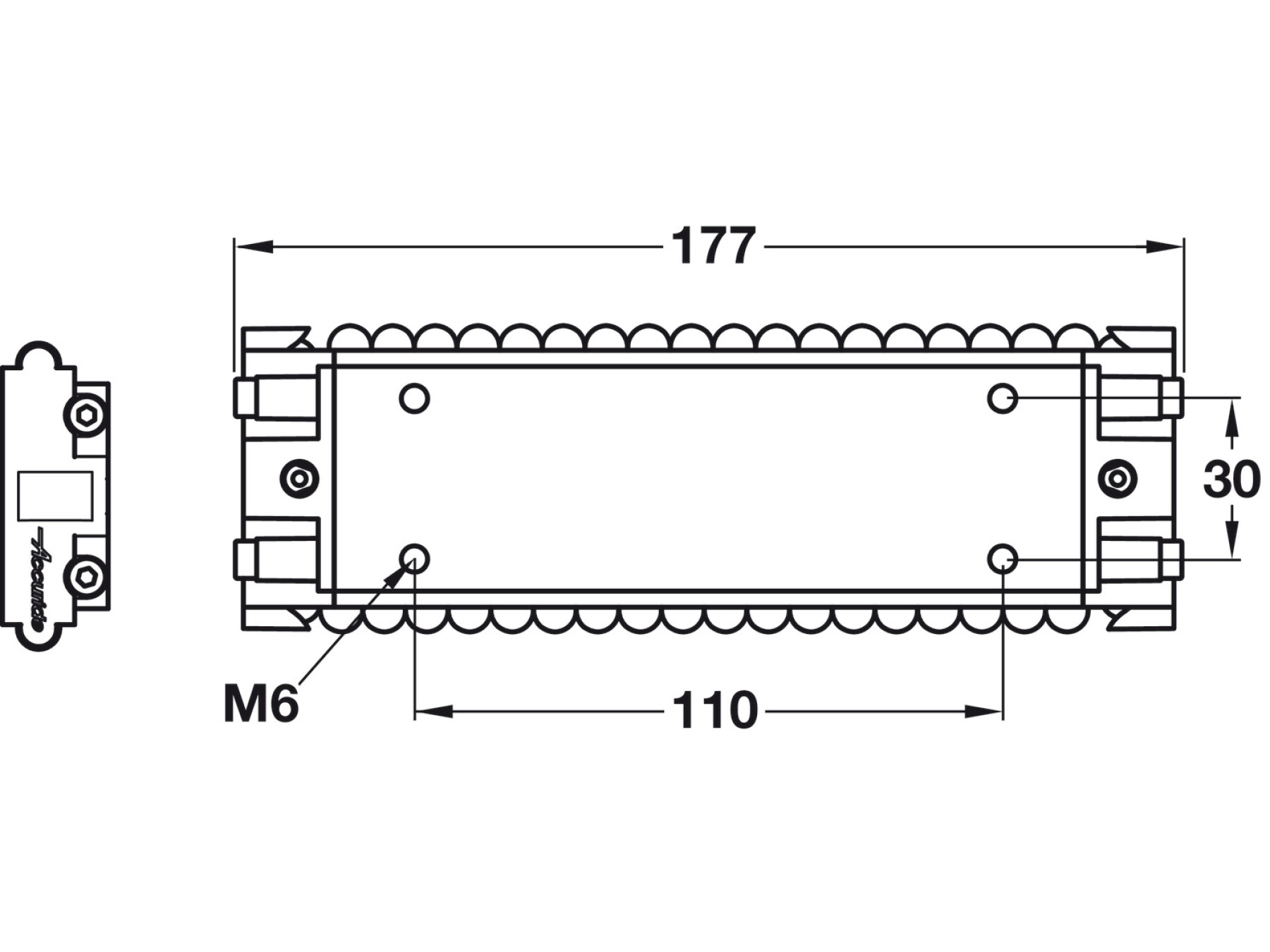

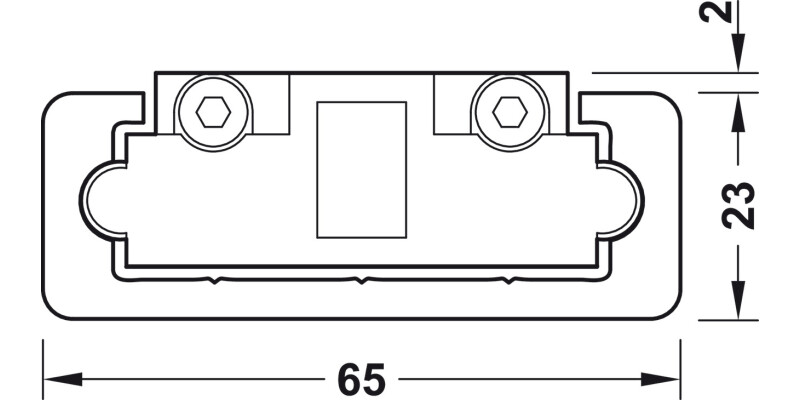

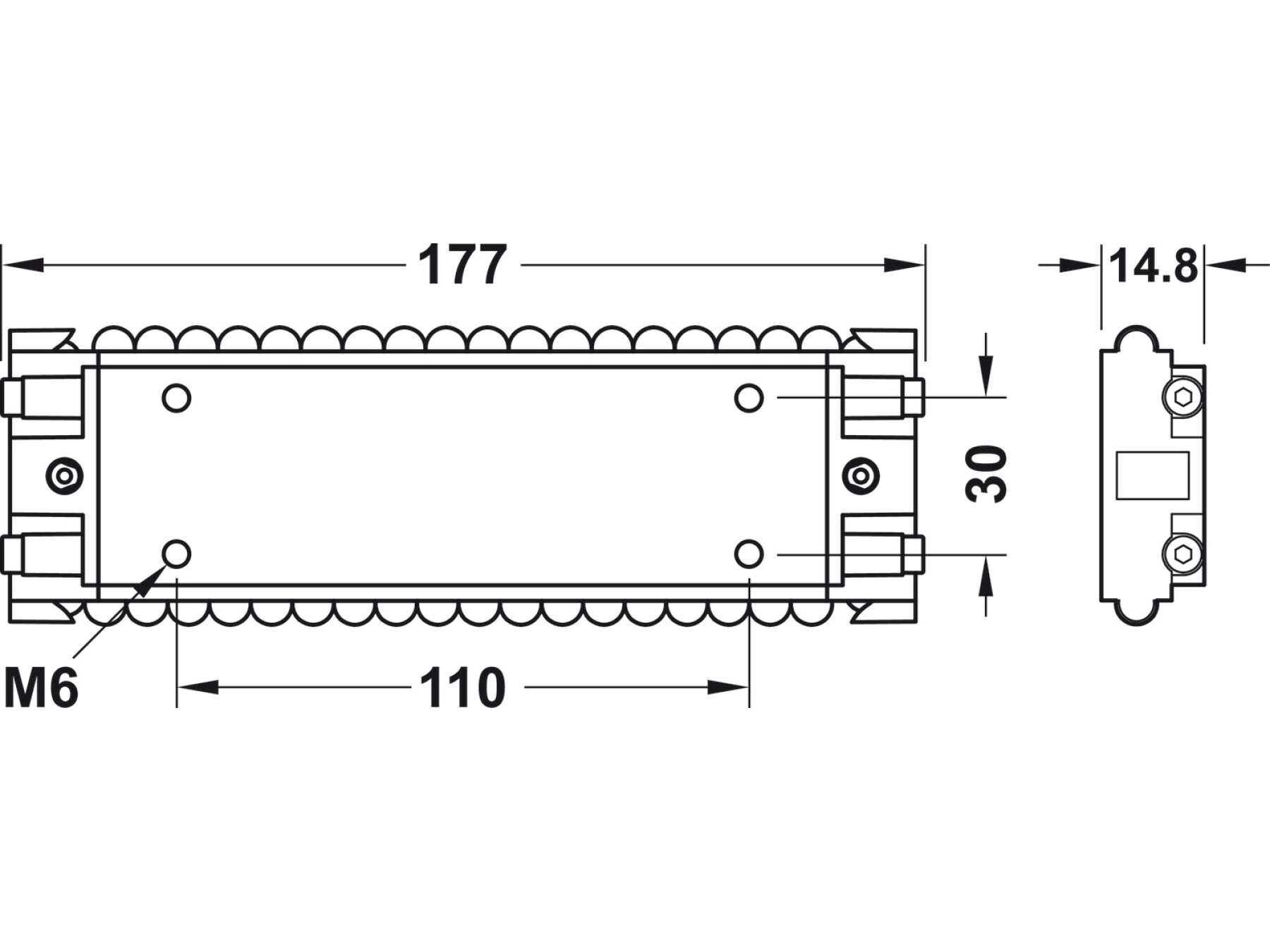

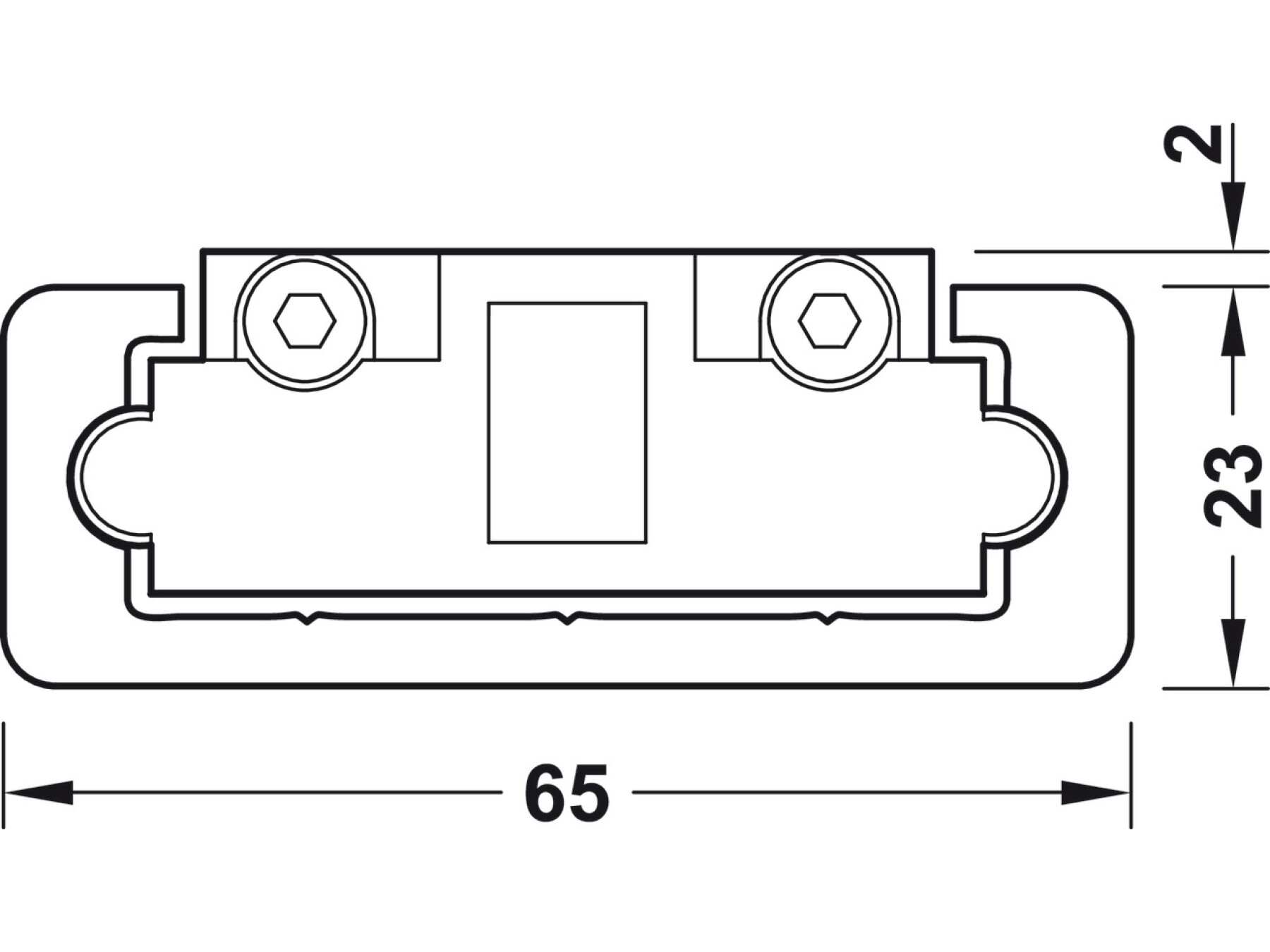

What are the key dimensions of the carriage so I can check compatibility?

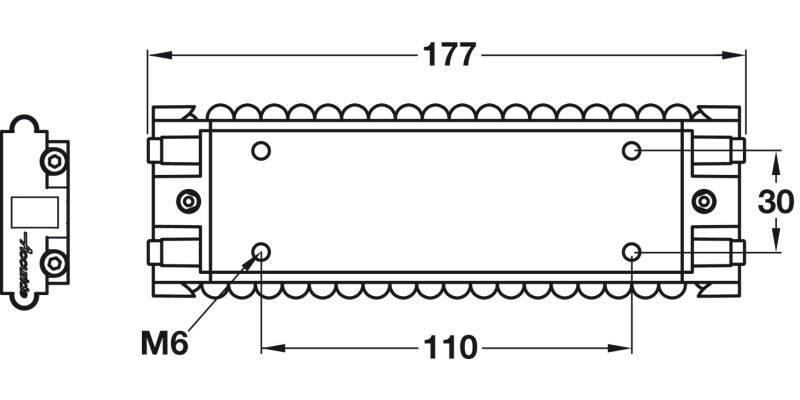

Length 177 mm, width 65 mm, height 25 mm. These dimensions help you confirm clearance in the drawer or furniture channel before installation. If you are matching to an existing space, comparing these measurements is a good first step.

Is this component suitable for living and commercial furniture projects?

Yes. As part of a drawer fittings and living and commercial solutions range, the Accuride 0116 ball carriage is commonly used in applications where dependable sliding performance matters, including both home furniture and commercial installations.

How do I identify the correct part when ordering?

You can order using Product Part No: 421.59.812. For best results, make sure you are selecting the matching Accuride 0116 carriage version for your runner system before placing an order.
