Ball Bearing Drawer Runners, Two Way Travel, Single Extension, Load Capacity 35- (Product Part No: 420.45.950) is... Read More

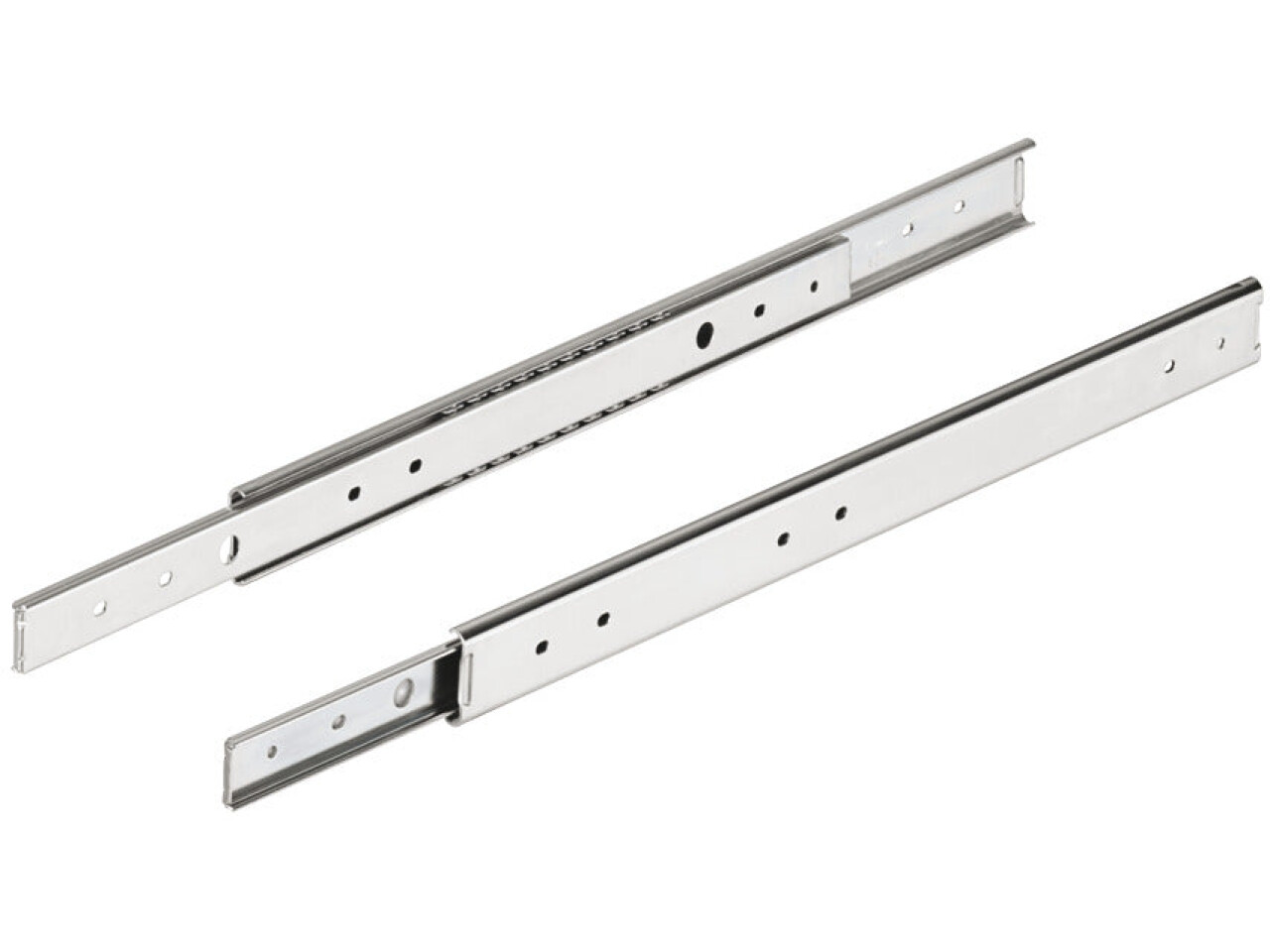

Ball Bearing Drawer Runners, Two Way Travel, Single Extension, Load Capacity 35- (Product Part No: 420.45.950) is a premium ball bearing drawer runner designed for smooth, reliable movement and heavy-duty performance. Ideal for quality drawer systems in living and commercial environments, this single-extension runner delivers confident travel with a two-way setup—so drawers can be accessed and used from both sides where space and layout require it.
Built with a 40 kg load capacity, the “Ball Bearing Drawer Runners, Two Way Travel, Single Extension, Load Capacity 35-” features an installed length of 500 mm and supports efficient pull-through drawer design. The runner is zinc plated in a bright finish, offering attractive appearance and dependable corrosion resistance for long-lasting use.
Featuring two-way travel and a hold-out at either end, this model helps keep drawer motion controlled during everyday operation. Installation is side mounting, making it a practical choice for compatible furniture builds and fit-outs. The drawer removal is without a release lever, supporting straightforward maintenance and panel servicing when needed.
With a single extension action and an engineered steel construction, the runner is well suited to applications where access is required from both sides of the unit. Upgrade your drawer hardware today with the smooth glide and dependable strength of the Ball Bearing Drawer Runners, Two Way Travel, Single Extension, Load Capacity 35-—built for performance you can feel every time you open and close the drawer.
Order note: Order the required Ø 4.0 countersunk screws separately (max head height 2.5 mm, Ø 9.6 mm).
Hold-out at either end
Zinc plated, Bright
Use for pull through drawers when access is required from both sides of unit
Steel

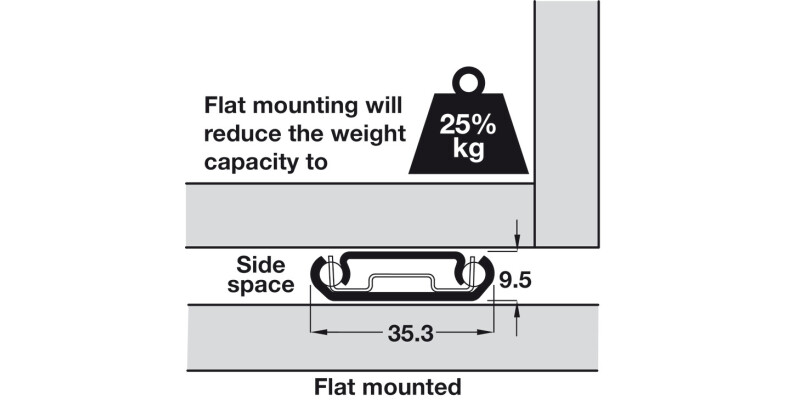

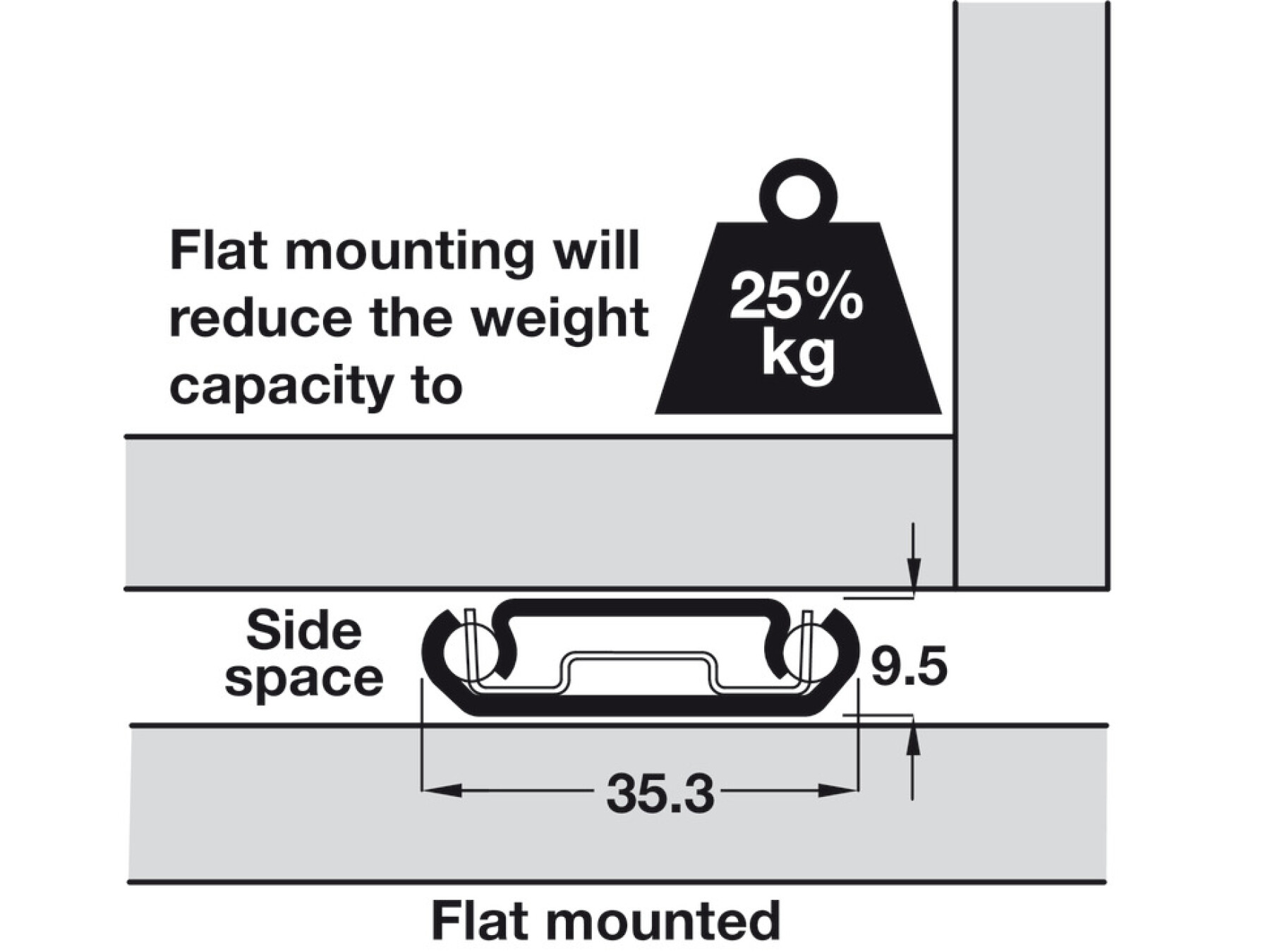

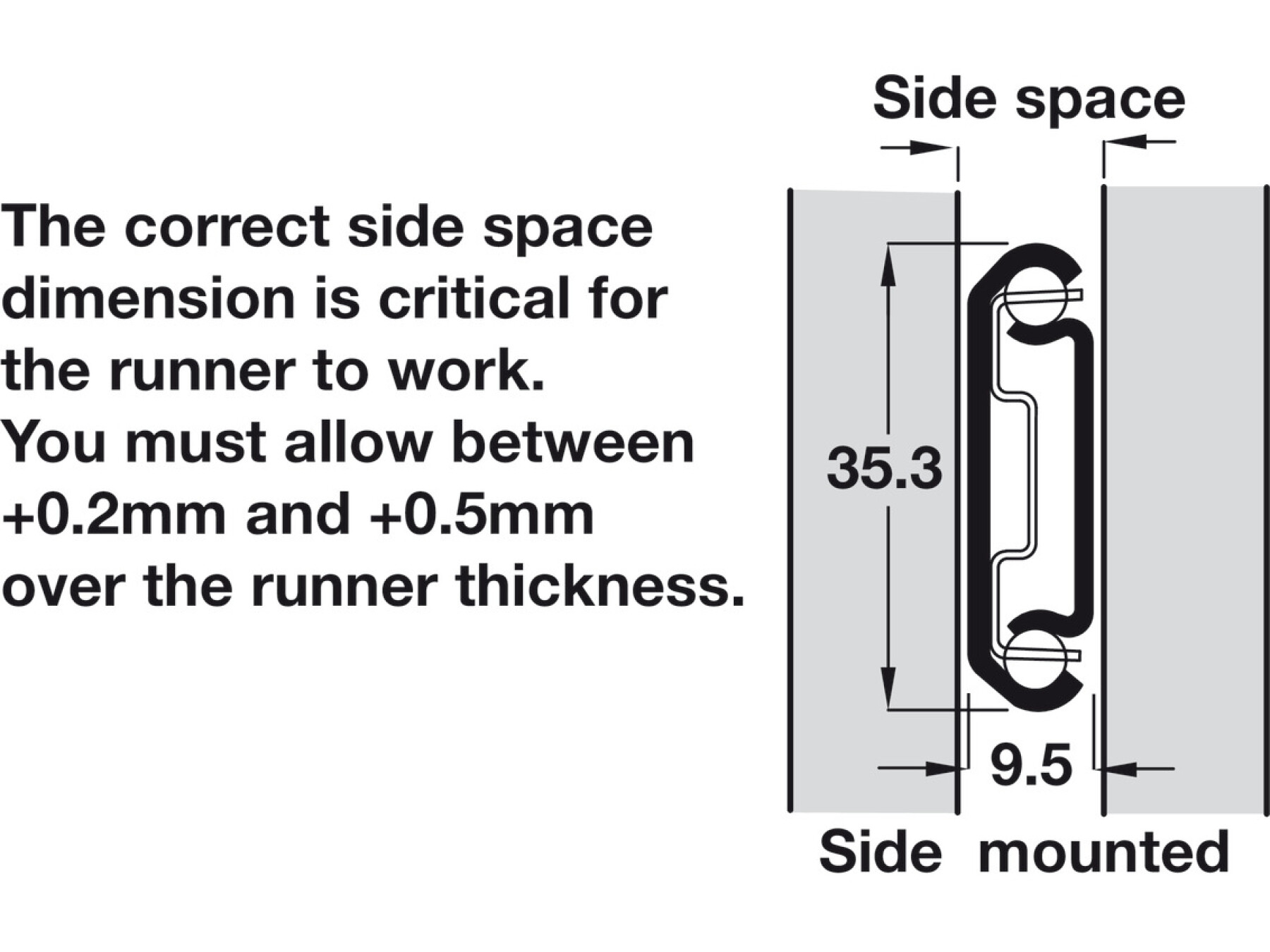

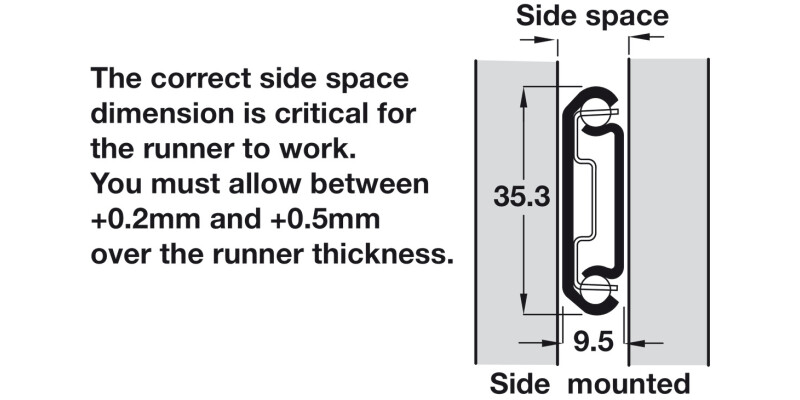

Side mounting
Order Hospa Ø 4.0 countersunk screws separately (max head height 2.5 mm, Ø 9.6 mm)
Two way travel means the runner supports drawer movement in both directions, which is useful when the drawer needs to be accessed from either side of a unit. This version is also designed for pull through drawers where access can be required from both sides.
Yes. This model has a hold out function at either end, which helps keep the drawer in a stable position when it reaches its travel limits.
The runner is rated for a 40 kg load capacity, making it a good choice for heavier drawers where smooth, controlled extension is required.
This runner supports drawer removal without a release lever. That means you do not need a separate lever mechanism to take the drawer out for cleaning or maintenance.

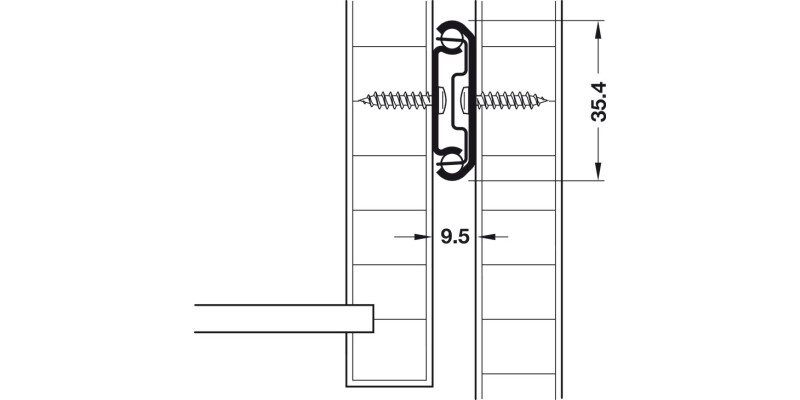

Installation is side mounting. You will need to order the countersunk screws separately, using Ø 4.0 countersunk screws with a maximum head height of 2.5 mm and Ø 9.6 mm.

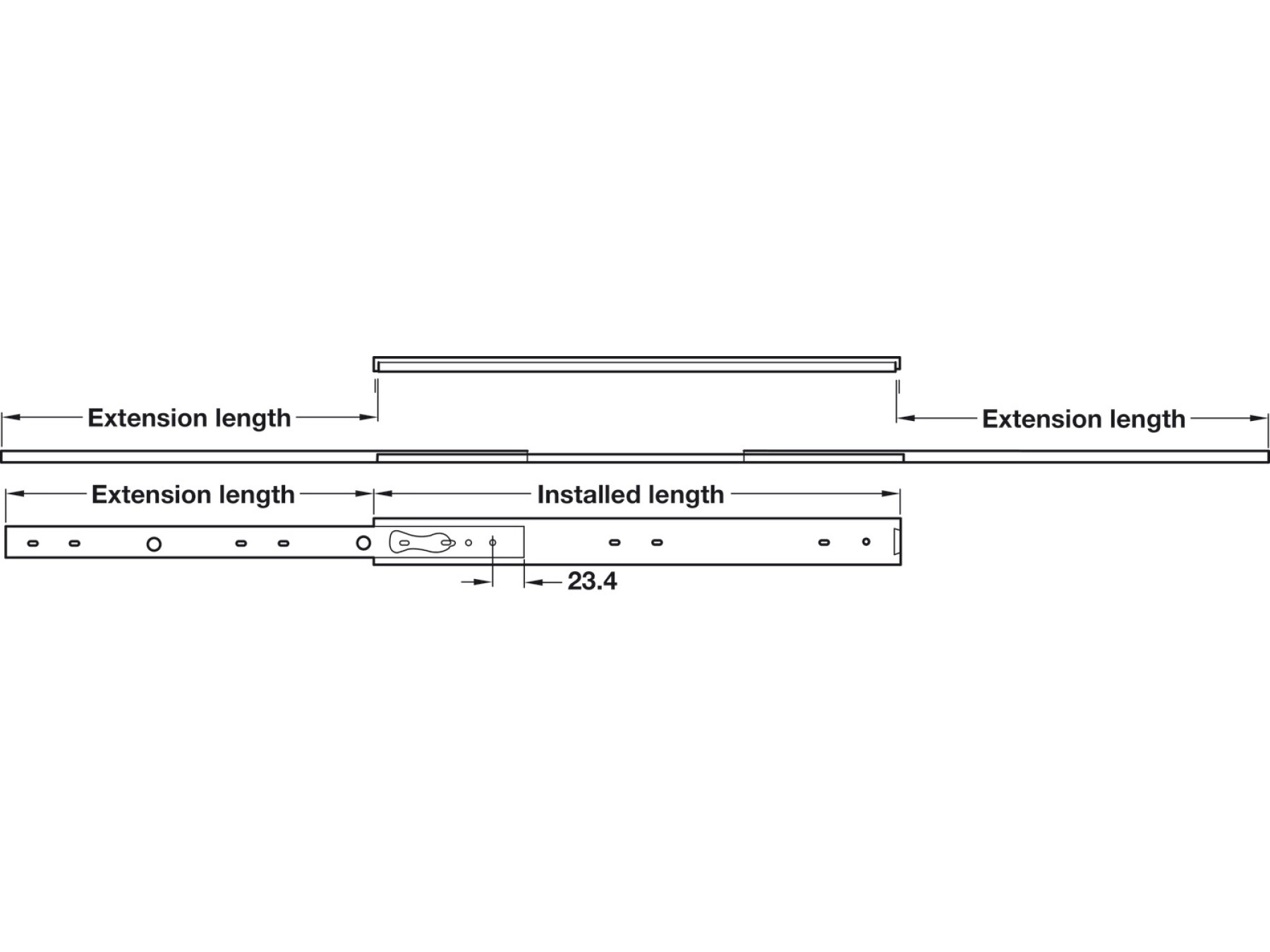

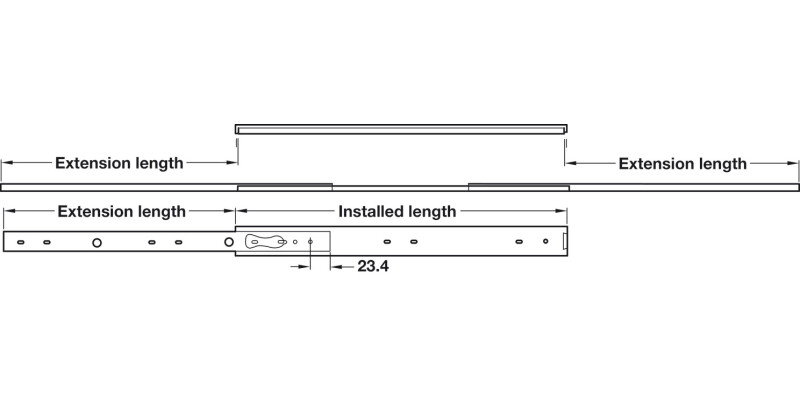

Installed length 500 mm refers to the effective runner length when fitted. Before purchase, measure your drawer aperture and side clearances to make sure the 500 mm installed length fits your furniture design.
