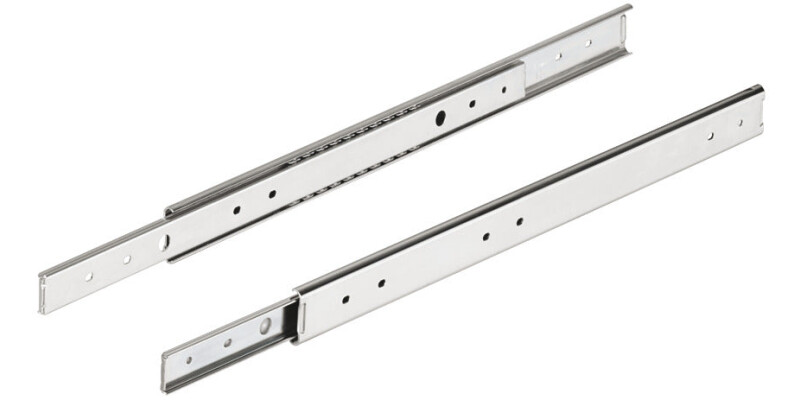

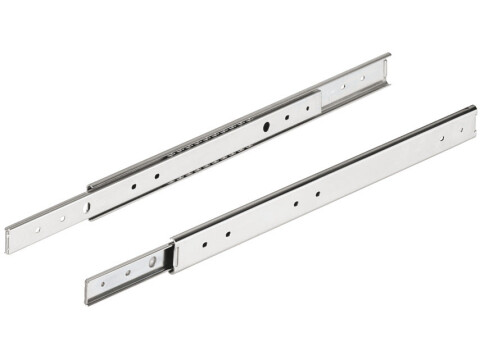

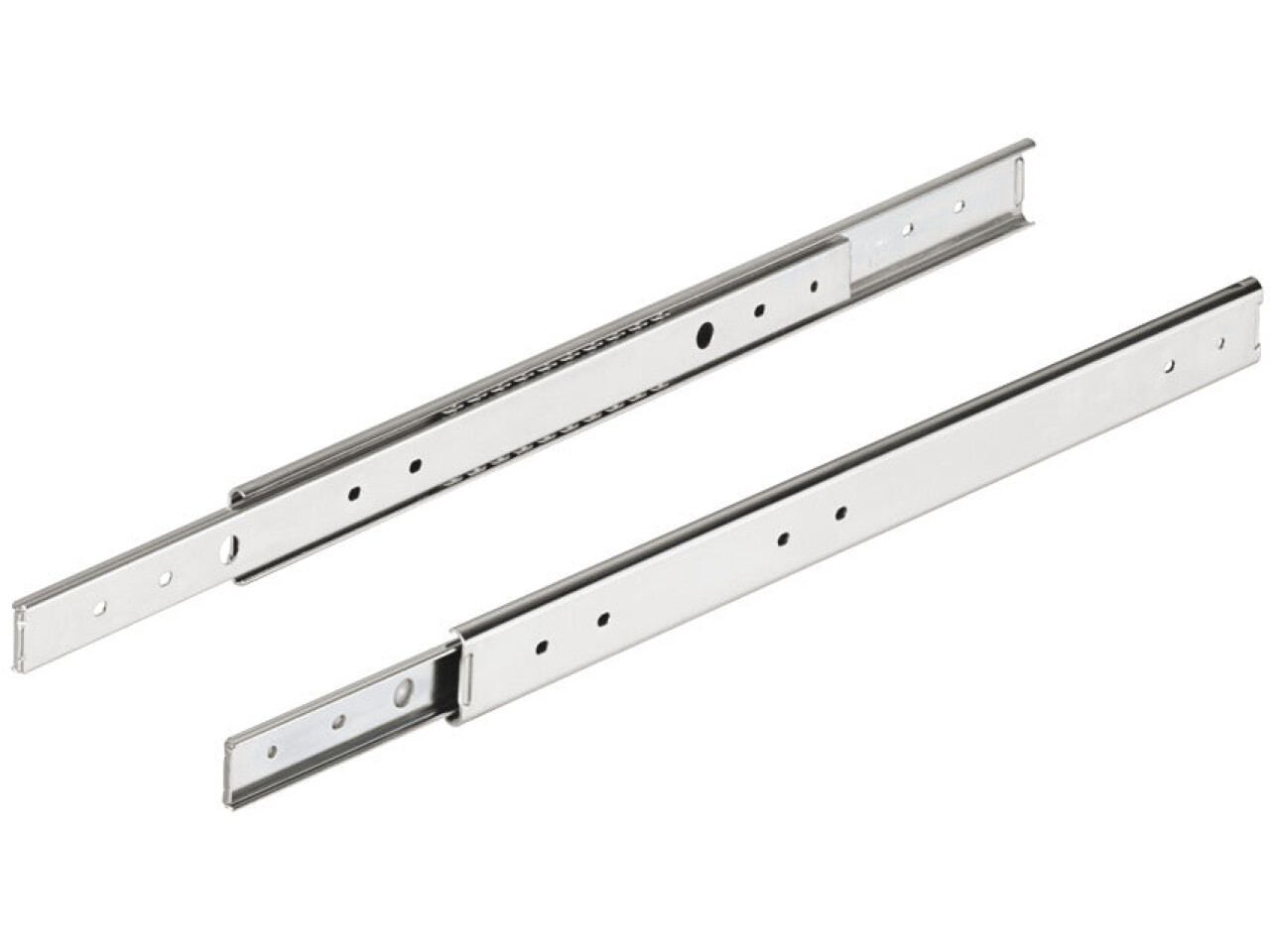

2026 BB Drawer Runner 2Way Sgl 45kg 400mm BZP
Part Number: 420.45.940

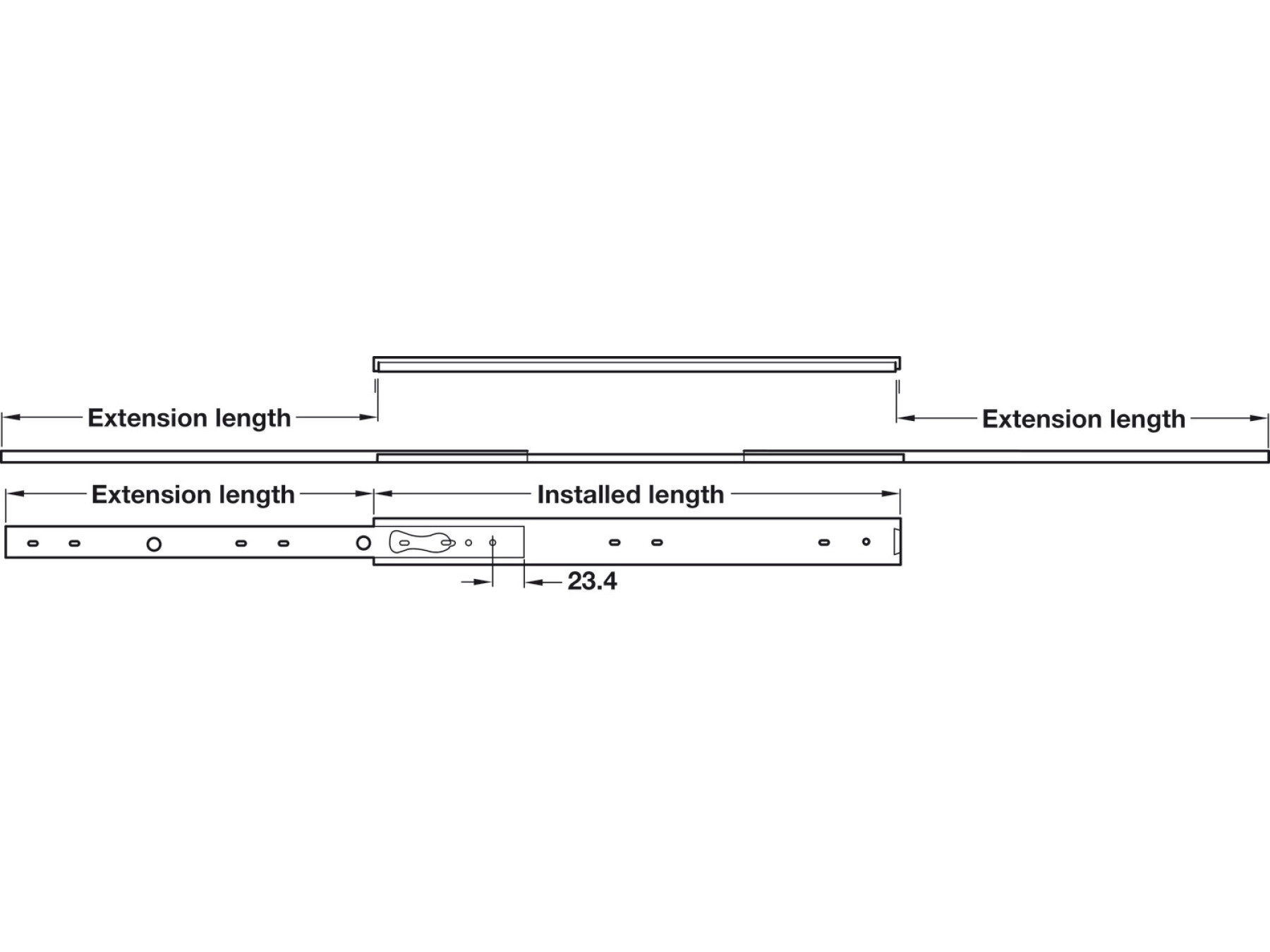

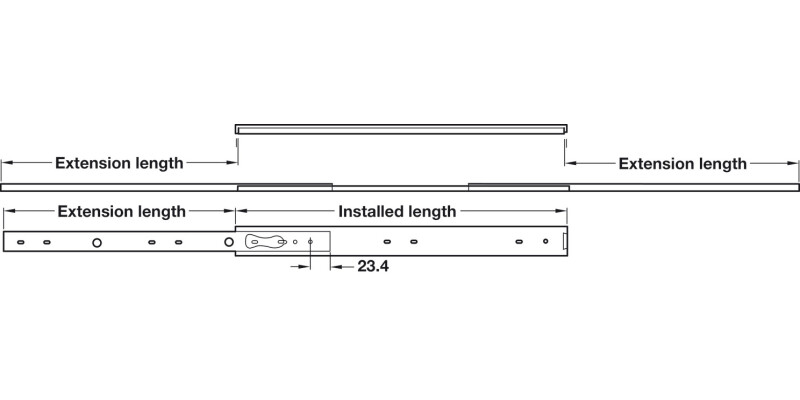

Two-way travel, Installed length 400 mm, load capacity 45 kg
Price:
£19.55
Per Item
Two way travelTested to 50,000 cyclesFront panels must be notched for two-way travel drawers with continuous front panels.
Product Information
Product Details
Two way travel
Tested to 50,000 cycles
Front panels must be notched for two-way travel drawers with continuous front panels.
Specifications
Version
Hold-out at either end
Colour/finish
Zinc plated, Bright
Model
2026
Type of pull out
Single extension
Area of application
Use for pull through drawers when access is required from both sides of unit
Holding function
Hold-out
Drawer removal
without release lever
Material
Steel
Width
224.00 mm

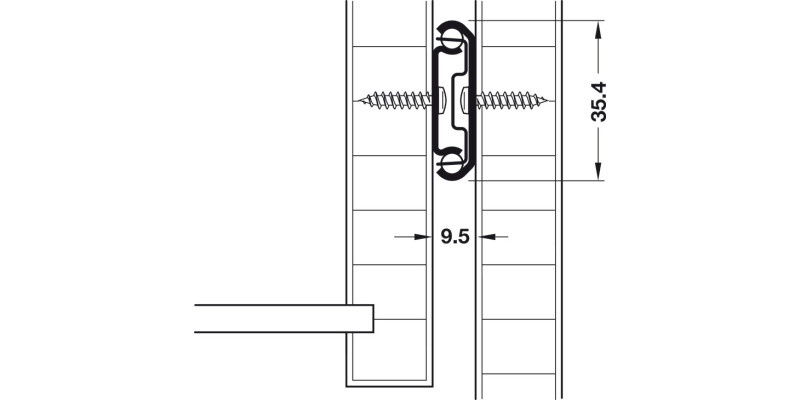

Installation

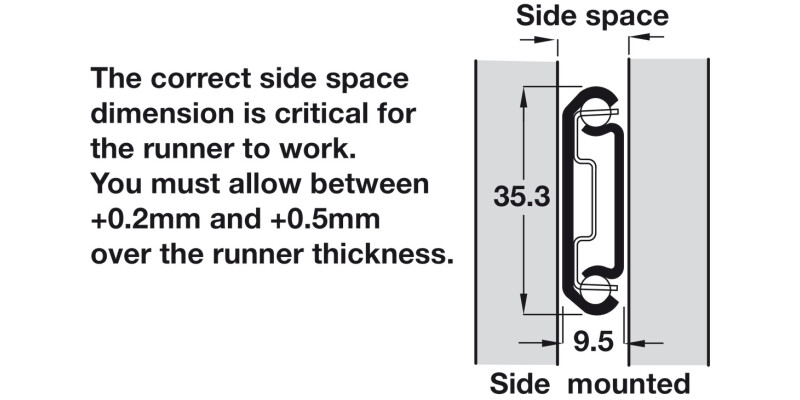

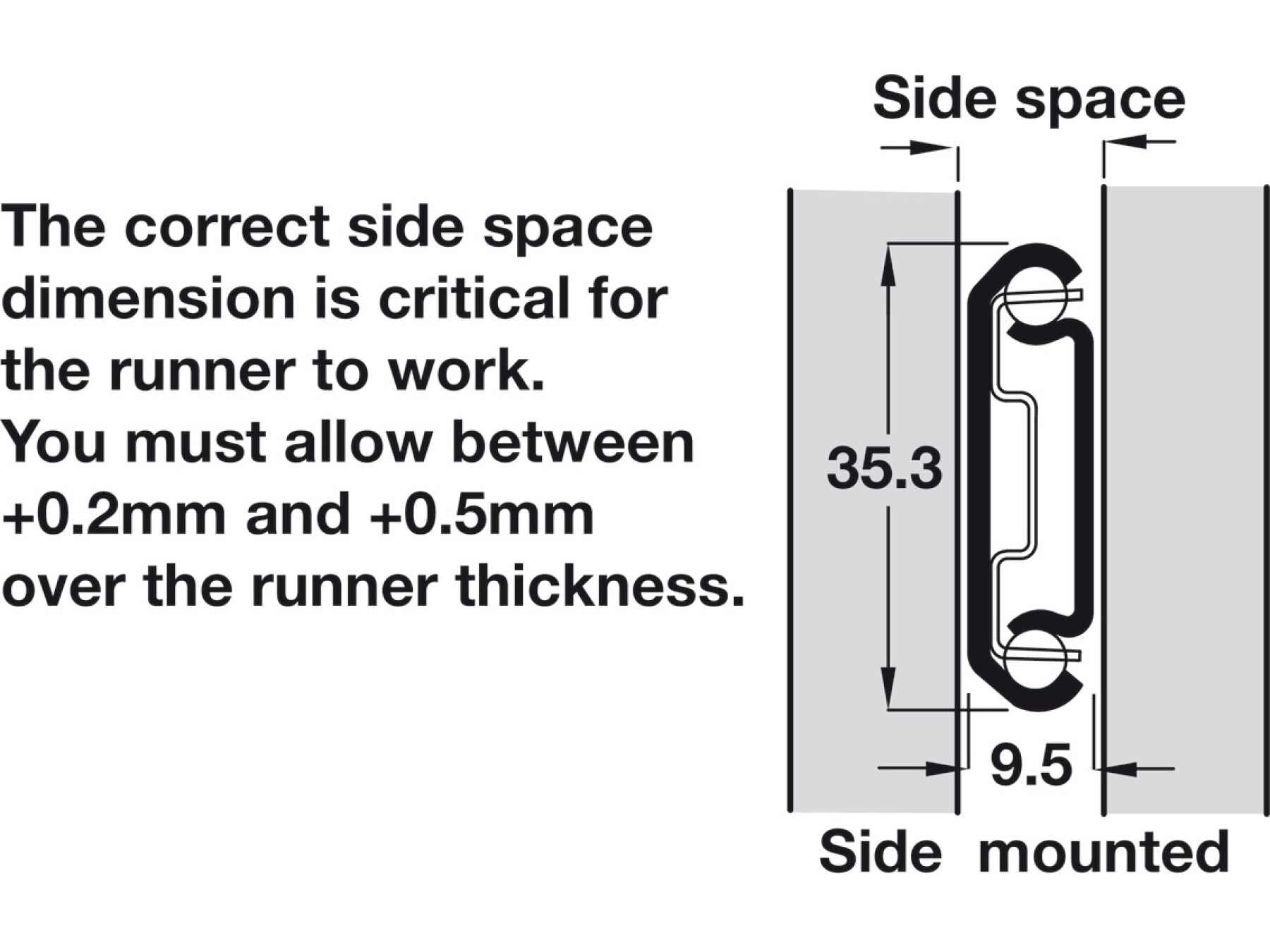

Side mounting
Order reference
Order Hospa Ø 4.0 countersunk screws separately (max head height 2.5 mm, Ø 9.6 mm)
